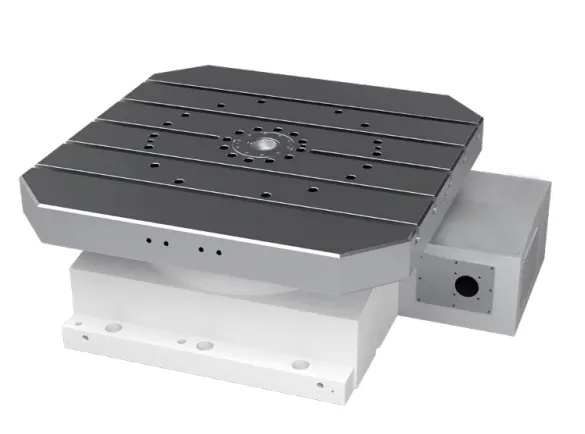

WT-H800 5th Axis 800mm Rotary Table for CNC Machine Turntable

The WT-H800 5th axis 800mm rotary table is a precision tool developed by Raydafon (Ningbo Raydafon) designed for use in a variety of CNC machines. The rotary table is an essential component in CNC machining, providing the ability to hold the workpiece at precise angles, allowing the machine to perform complex cutting operations. The WT-H800 model is highly versatile and adaptable, suitable for a range of applications, from milling and drilling to boring and grinding.

Product Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	860 Kg
Customization:	Available

Key Product Features

• Horizontal structure: The WT-H800 5th axis rotary table features a horizontal structure, making it suitable for horizontal machining and horizontal boring machines.
• Heavy-duty cutting: This rotary table is capable of handling heavy-duty cutting tasks, ensuring high performance even under demanding conditions.
• Hydraulic lock: The hydraulic lock feature ensures stability and precision, guaranteeing accurate results every time.
• Non-simultaneous machining: The WT-H800 model allows for non-simultaneous machining, offering flexibility for complex operations.

How Does a CNC Rotary Table Work?

A CNC rotary table is composed of three main components: the spindle, the drive system, and the control system. The spindle holds the workpiece or tool and rotates it. The drive system powers the spindle, while the control system manages the speed and direction of the spindle's rotation.

Applications of the WT-800 Rotary Table

This versatile rotary table can be used with various types of CNC machines, including punching machines, grinding machines, slotting machines, milling machines, drilling machines, and boring machines.

Benefits of Using a CNC Rotary Table

There are several advantages to using a CNC rotary table in your machining processes. These include:

• Increased productivity: The automatic rotation of the workpiece or tool makes the machining process more efficient, boosting productivity.
• Enhanced product quality: The precision control of the rotary table ensures accurate positioning of the workpiece or tool, leading to superior product quality.
• Reduced labor costs: The automation provided by the CNC rotary table reduces the need for manual labor, thereby lowering labor costs.

Worm Gear System in CNC Rotary Tables

The WT-H800 5th axis rotary table uses a worm and worm gear drive system. This is a highly effective system that offers precise positioning and stable rotational movement, making it ideal for machining tasks that require accuracy and stability.worm gear system">

About Raydafon (Ningbo Raydafon)

Raydafon is a leading supplier of CNC rotary tables. With a strong commitment to R&D innovation and production technology, we strive to meet the rapidly evolving needs of our customers. Our business philosophy is based on honesty, harmony, and technological competitiveness. We are proud to offer a range of high-quality 4-axis and 5-axis CNC rotary tables that cater to various processing fields. Our products are widely used in various processing equipment across multiple sectors including 3C, automotive, energy, military, and aerospace. Discover the Raydafon difference ?C quality, affordability, and exceptional customer service.

Frequently Asked Questions

Q: Can the WT-H800 5th axis rotary table be customized?

A: Yes, we offer customization options to meet your specific requirements.

Q: What is the weight of the WT-H800 5th axis rotary table?

A: The net weight of the rotary table is 860 kg.

Q: What is the structure of the WT-H800 5th axis rotary table?

A: The rotary table has a horizontal structure, suitable for horizontal machining and horizontal boring machines.
