WT-RT150 Pneumatic Brake 5th Axis 150mm Rotary Table CNC Machine Index Table Turntable

Introduction to CNC Rotary Table

The CNC rotary table is a vital component of CNC machine tools, which plays a crucial role in the accurate positioning and movement of the workpiece or tool. The WT-RT150 model is a precision rotary table specifically designed for various machining applications. Its impressive features include a pneumatic brake, a robust stainless steel structure, and a high-performance 5th axis 150mm rotary table.

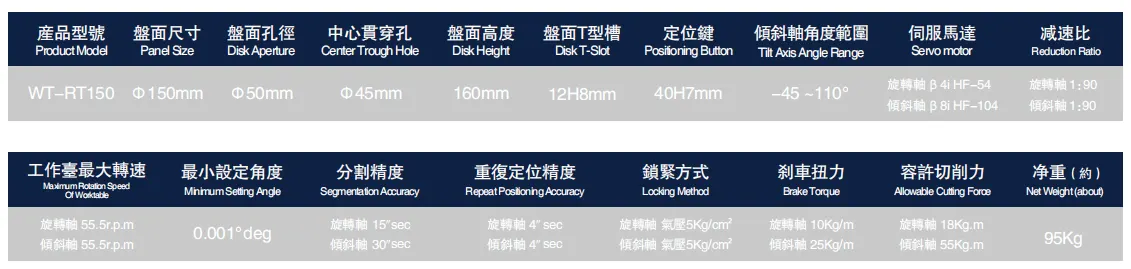

Product Specifications

Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	95 Kg
Brake:	Pneumatic / Hydraulic



Features of WT-RT150 CNC Rotary Table

• Five axis linkage machining: Enables simultaneous multi-axis machining for complex parts.
• High segmentation accuracy: Ensures precise positioning and movement for high-quality outcomes.
• High performance and high efficiency: Optimizes production speed without compromising on precision and quality.
• Strong braking system: Enhances safety and control during operations.
• Optional hydraulic brake: Provides additional flexibility and control for various machining needs.

Working Principle of CNC Rotary Table

The CNC rotary table consists of three main components: the spindle, the drive system, and the control system. The spindle rotates the workpiece or tool, the drive system provides power to the spindle, and the control system controls the speed and direction of the spindle.

Applications of the WT-RT150 CNC Rotary Table

This rotary table is versatile and adaptable, making it suitable for a wide range of applications, including Punching Machines, Grinding Machines, Slotting Machines, Milling Machines, Drilling Machines, and Boring Machines.

Advantages of the CNC Rotary Table

The CNC rotary table offers several benefits such as improved production efficiency, enhanced product quality, and reduced labor costs.

Worm Gear System in CNC Rotary Tables

Worm gears are spiral structures similar to propellers, paired with a gear with more teeth called worm wheel. This design provides a high transmission ratio, allowing for greater torque output in a small space. In CNC machines, rotary tables often use worm gear systems as they offer precise positioning and stable rotary motion, ideal for tasks requiring precise control and stability.

About Raydafon (Ningbo Raydafon)

Raydafon is a leading supplier of CNC turntables, known for its innovative R&D and production technology. The company is committed to meeting the rapidly changing needs of customers and designs CNC rotary tables that meet their specific requirements. Raydafon's main products include 4-axis and 5-axis CNC turntables and horizontal 4-axis turntables for tool machine tools. The company's products are widely used in various processing equipment in 3C, automotive, energy, military, aerospace, and other fields.The company strongly encourages customers to explore the WT-RT150 CNC Rotary Table and contact us for purchase. With Raydafon, you can expect high-quality products, competitive prices, and exceptional service.

Frequently Asked Questions

Q: Are you a trading company or a manufacturer?A: We are Raydafon, a leading manufacturer with more than 15 years of experience in the industry.Q: Can the products and packaging be customized?A: Yes, we offer OEM services. Simply share your detailed requirements, and we will design and produce products according to your needs.Q: What is the quality guarantee?A: We offer a one-year quality guarantee for our products.Edited by Zqq.
