WT-SL320 High Rigidity 5th Axis Worm and Worm Gear Dual Arm Rotary Table for CNC Machine

Understanding the CNC Rotary Table

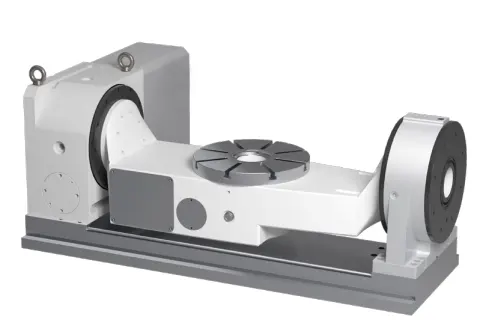

The CNC rotary table is an essential component in CNC machine tools. It plays a pivotal role in the precise positioning and movement of workpieces during machining processes. The WT-SL320 model is a high-rigidity 5th axis worm and worm gear dual arm rotary table designed for CNC machines. Its primary function is to provide a stable and efficient platform for various machining operations.

Product Features and Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Vertical And Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	600 Kg



Key Features of the WT-SL320 CNC Rotary Table

• Cradle type and extended type: The WT-SL320 model comes in both cradle and extended type configurations, providing flexibility for different machining requirements.
• The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulic brake mechanism: This feature enhances the stability and precision of the table during operations.

Working Principle of CNC Rotary Table

The CNC rotary table is composed of three basic parts: the main spindle, the drive system, and the control system. The main spindle is the axis that rotates the workpiece or tool. The drive system provides power for the main spindle, while the control system controls the speed and direction of the main spindle.

Applications of the WT-SL320 CNC Rotary Table

The WT-SL320 CNC rotary table is widely used in various machining equipment like Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine, and more.

Advantages of Using CNC Rotary Table

• Improved production efficiency: The CNC rotary table can automatically rotate workpieces or tools, thereby enhancing production efficiency.
• Enhanced product quality: The CNC rotary table ensures precise positioning of workpieces or tools during rotation, which improves product quality.
• Reduced labor cost: The CNC rotary table reduces the need for manual labor, thereby lowering labor costs.

Worm Gear System in CNC Rotary Tables

The worm is a spiral structure, similar to a propeller, while the worm gear is the corresponding gear, typically with more teeth than the worm. This design offers a high transmission ratio, allowing for greater torque output in smaller spaces. In CNC machines, rotary tables often use worm and worm gear drive systems because they provide accurate positioning and stable rotational motion, making them ideal for machining tasks requiring precise control and stability.

The Raydafon Advantage

Raydafon, also known as Raydafon, is one of the leading suppliers of CNC turntables. The company actively develops R&D innovation and production technology, fully cooperates with rapidly changing customer needs, and designs CNC rotary tables that meet customer requirements. Raydafon adheres to the business philosophy of "honesty based, harmony based, technology-based, industry competitive".

Frequently Asked Questions

Q: What is a CNC Rotary Table?A: A CNC Rotary Table is a key component in CNC machine tools. It is used to precisely position and move workpieces during machining processes.Q: What are the key features of the WT-SL320 CNC Rotary Table?A: The WT-SL320 model is a high-rigidity 5th axis worm and worm gear dual arm rotary table. It comes in both cradle and extended type configurations and adopts an embracing hydraulic brake mechanism for enhanced stability and precision.Q: What are the advantages of using a CNC Rotary Table?A: A CNC Rotary Table improves production efficiency by automating the rotation of workpieces or tools. It also enhances product quality by ensuring precise positioning during rotation and reduces labor costs by minimizing the need for manual labor.Explore the WT-SL320 CNC Rotary Table today and take your machining processes to the next level. Contact us for more information and purchase inquiries.Edited by Zqq.
