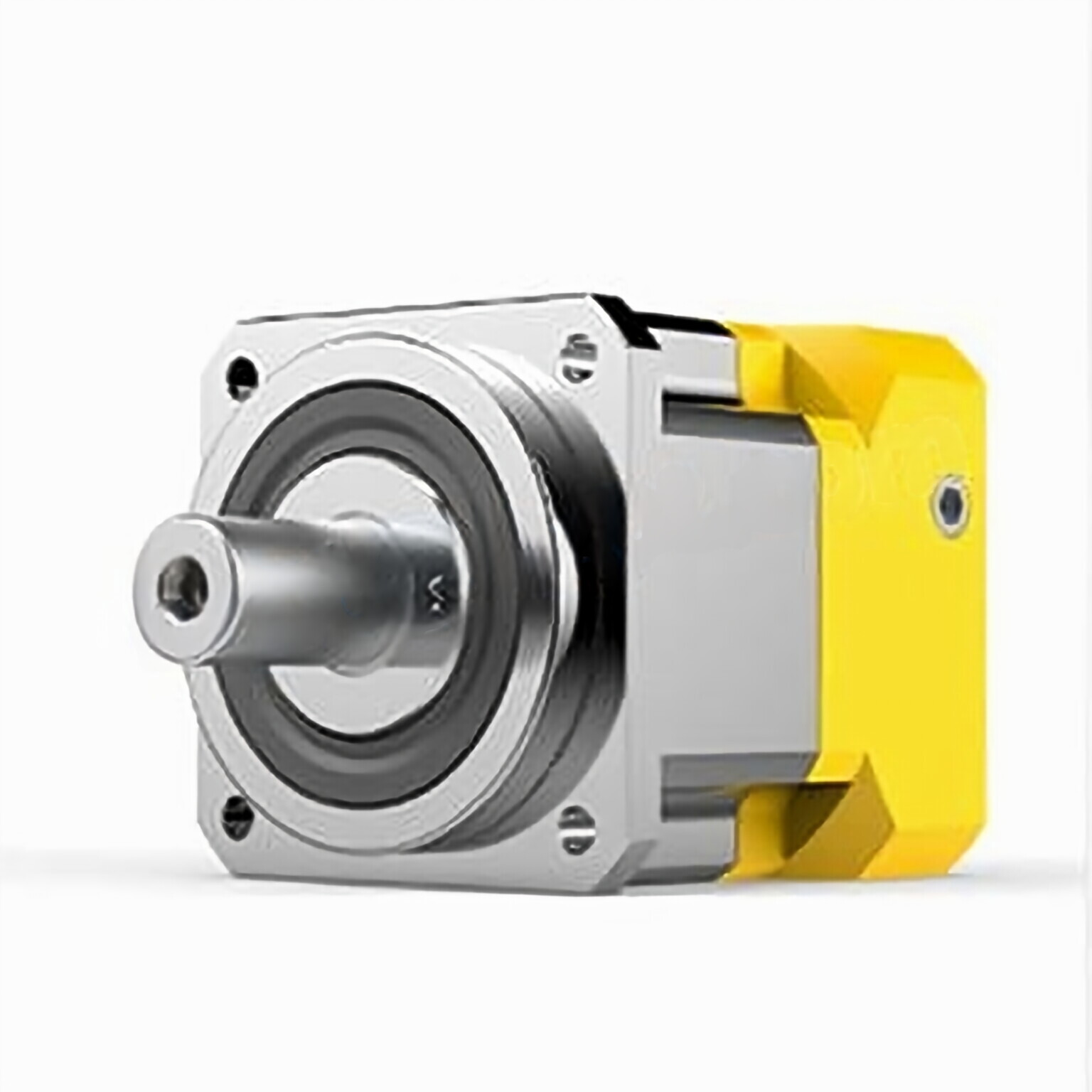

XPG Series Precision Planetary Gearbox

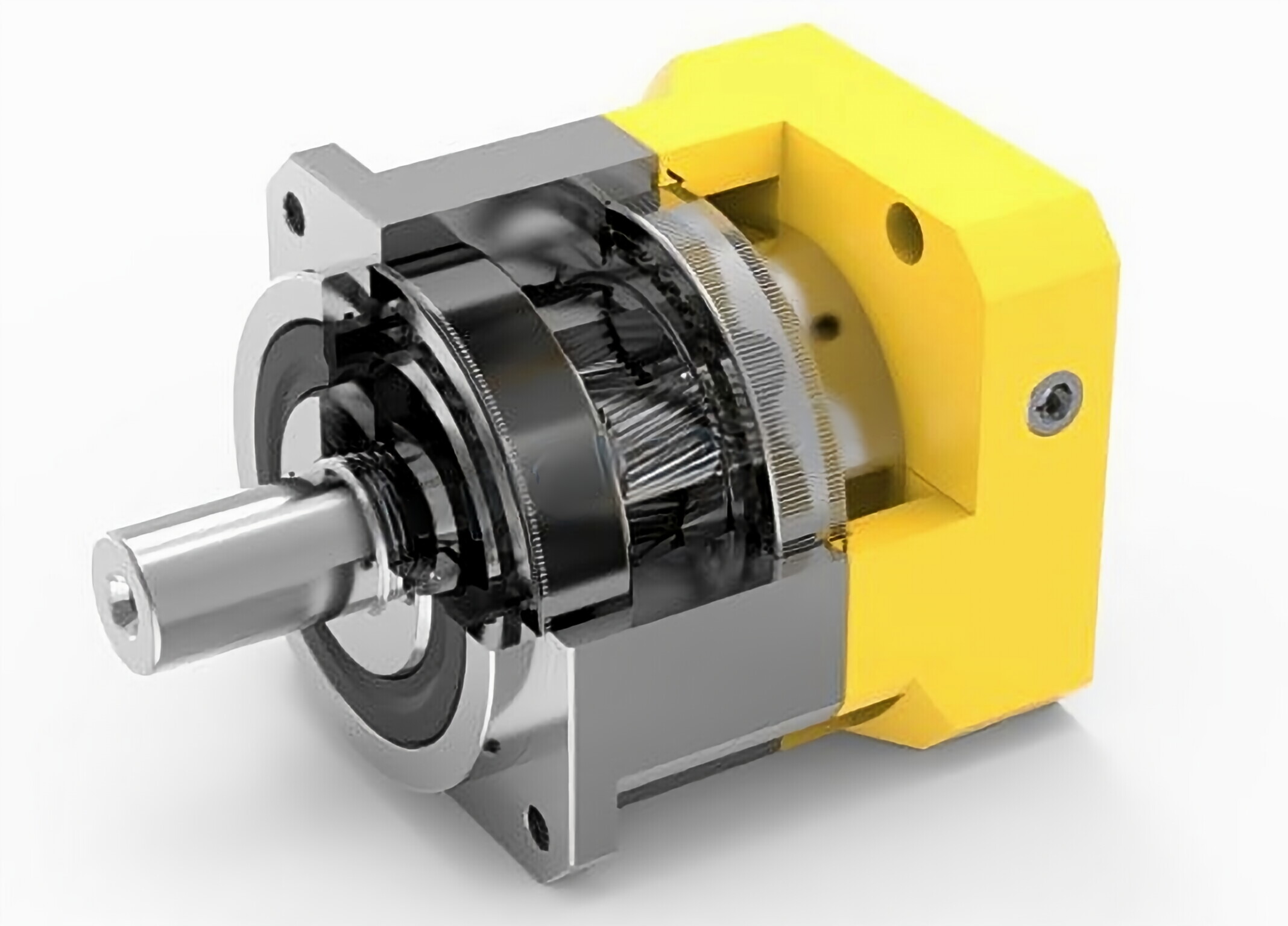

XPG Series Precision Planetary Gearbox

XPG series precision planetary gearbox is the perfect combination of high precision planetary gear and high-efficiency bearing. It is designed for high speed and low noise applications while achieving optimized performance. With a high-stiffness structure and high-precision helical gear, it runs smoothly and quietly and has a more powerful performance. Raydafon is one of the leading servo gearbox manufacturers that offer planetary gearbox for servo motor at affordable prices.

XPG Series Planetary Gearbox Features

• The new helical gear design achieves optimized synchronization and smooth operation, and minimizes vibration.
• High precision gear, high dynamic transmission, low backlash.
• High output torque and high efficiency.
• Smooth transmission, high input speed and low noise.
• Coaxial alignment of the input and output shafts, input direction of rotation equals to output direction of rotation, output shaft diversification.
• High stiffness, compact design.
• Nice appearance and excellent resistance.
• Suitable for any installation position.
• Variable connection dimensions, easy to install.
• Good tightness, lifetime lubrication, maintenance-free.

[video width="960" height="540" mp4="https://hzpt.com/wp-content/uploads/2022/07/precision-planetary-gearbox.mp4"][/video]

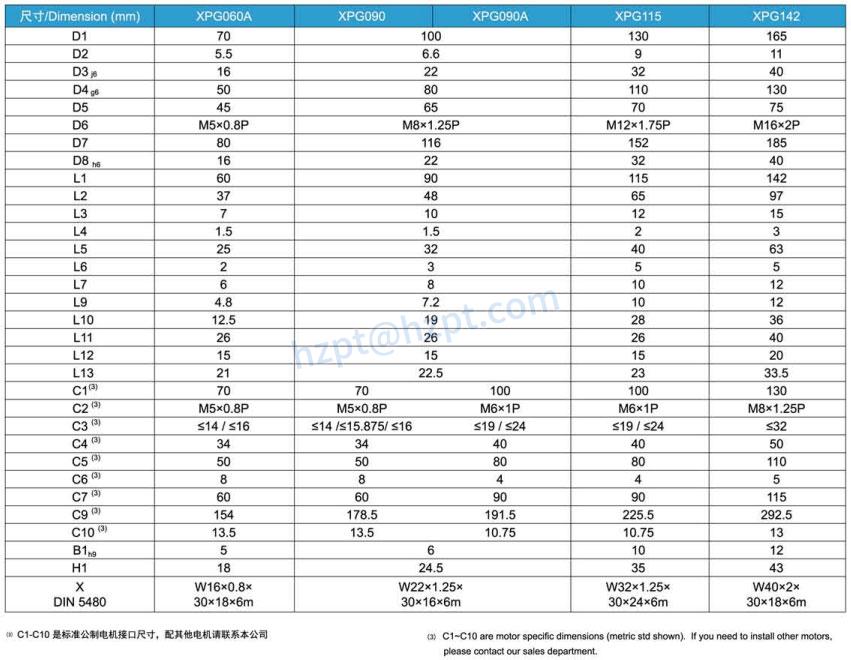

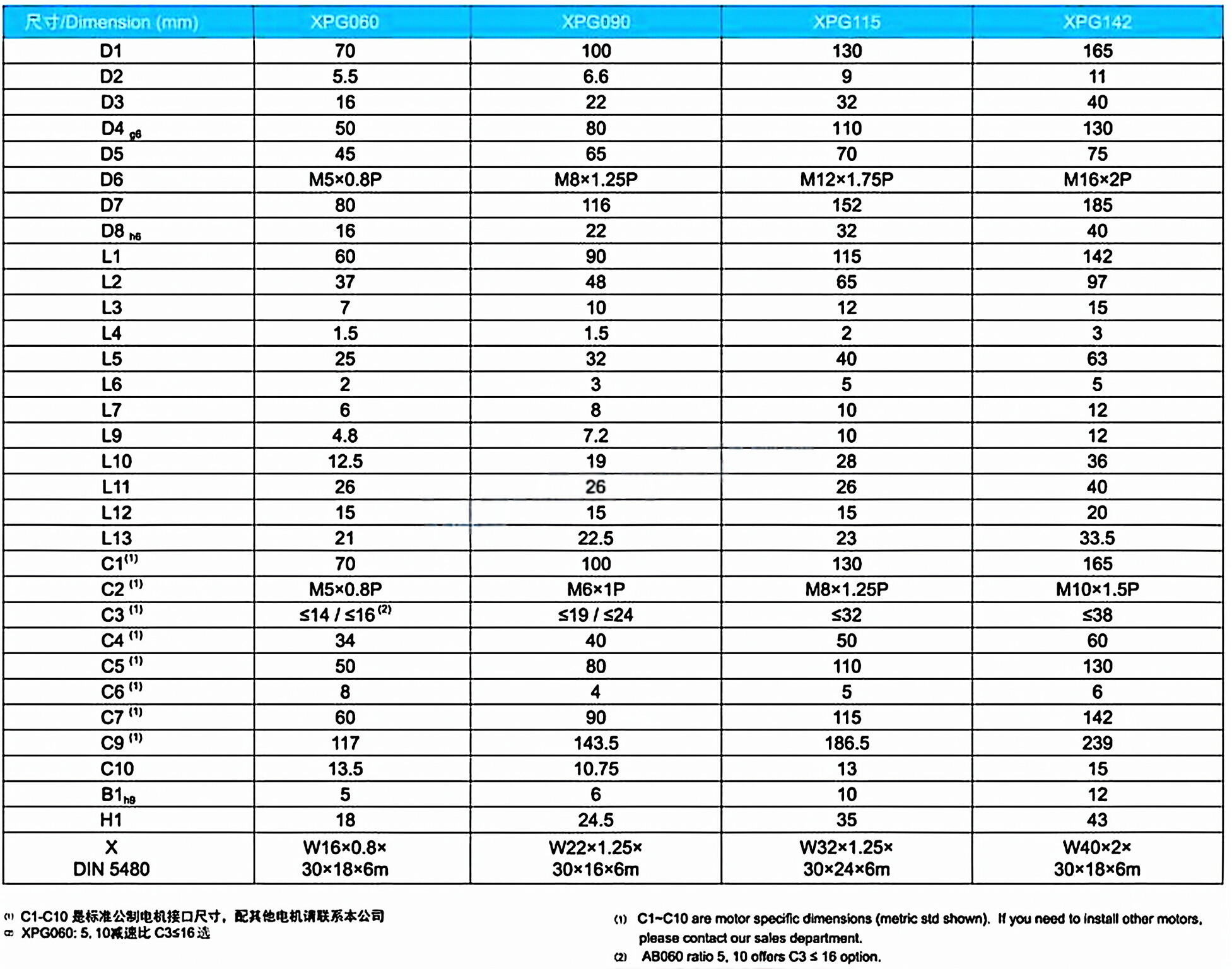

Dimensions of XPG Series Planetary Gearbox

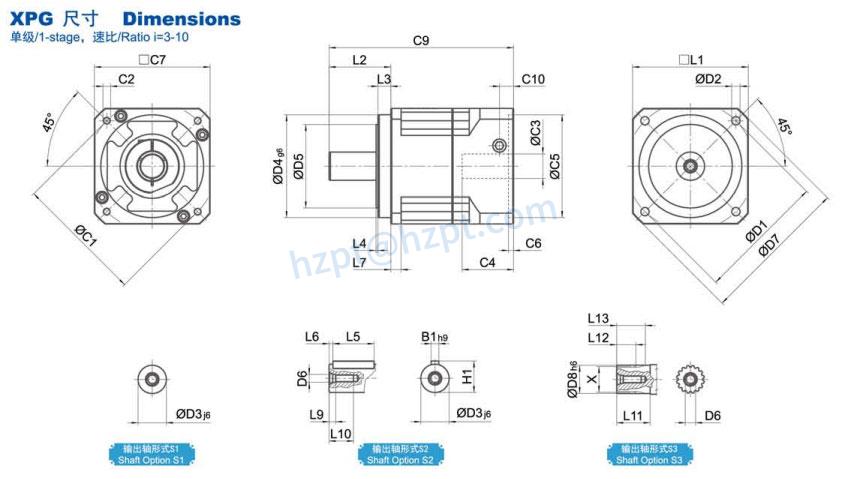

1-stage， Ratio i=3-10

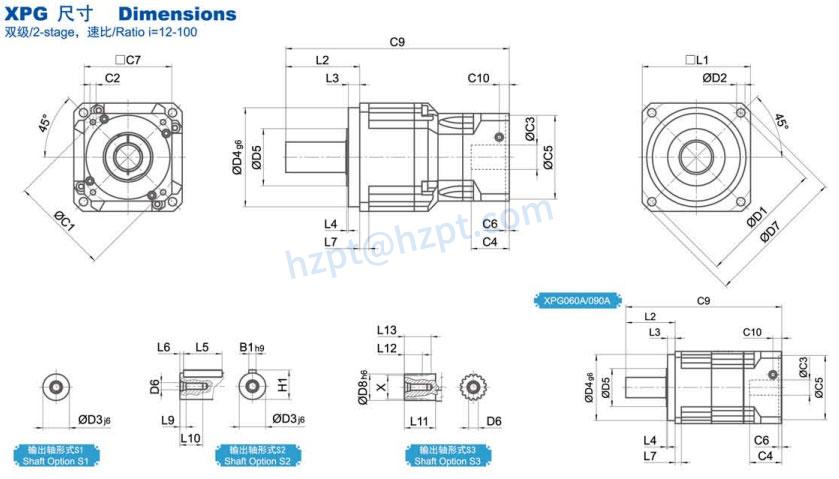

2-stage, Ratio i=12-100

Benefits of XPG Precision Planetary Gearbox

A planetary gearbox with an output shaft is an inexpensive, entry-level planetary gearbox that is suitable for simpler applications. These gearboxes impress with quality, availability, and reliability.Right angle planetary gearhead features matched spiral bevel gears for smooth operation and low backlash.Backlash can be removed dynamically by encoder feedback or manually by the outer collar. One collar revolution removes 30 minutes of arc and can be adjusted to remove 6 minutes per revolution. Raydafon's design provides adjustable control, accurate torque, and repeatability and reduces wear. The low backlash planetary gearbox also improves performance in a wide range of power transmission applications.All of the low backlash planetary gearboxes offer high performance and economic efficiency. These gearboxes come in various gear ratios, sizes, and output configurations. They can also couple to any servo motor with a Quick Connect coupling. They are also available in various sizes and have a low-cost and high-performance option.

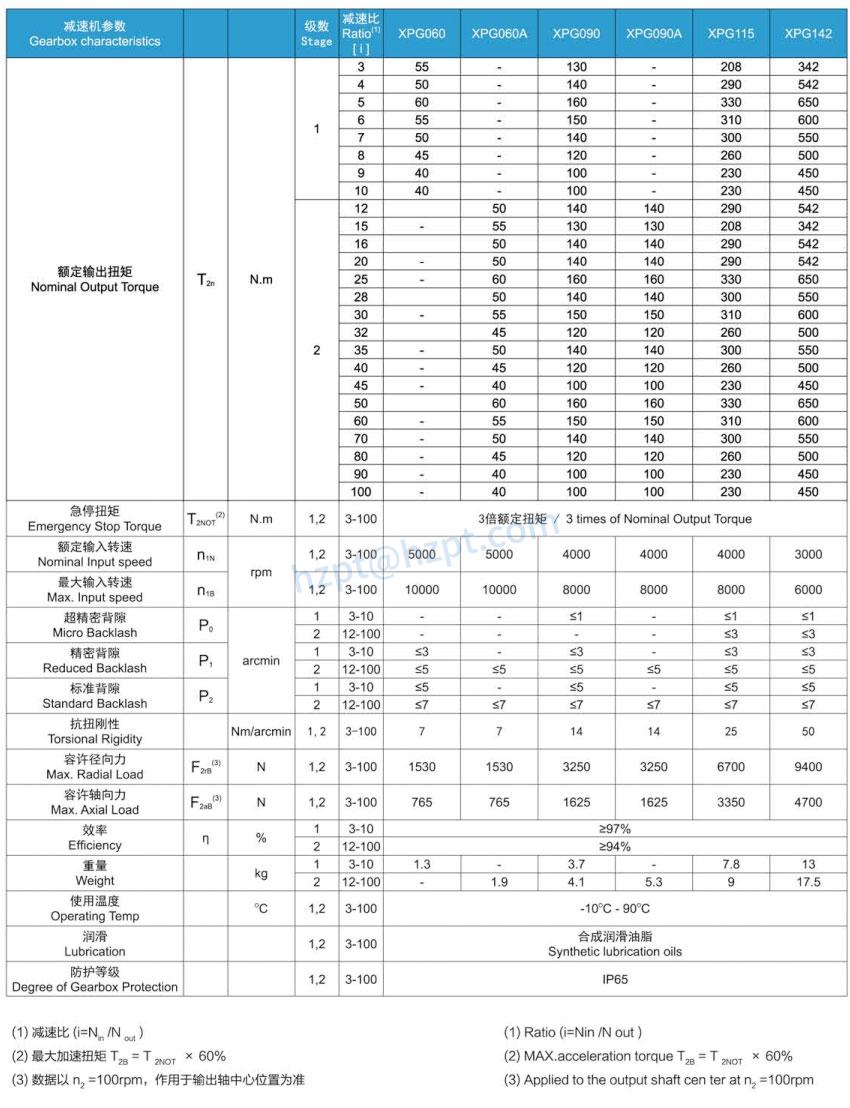

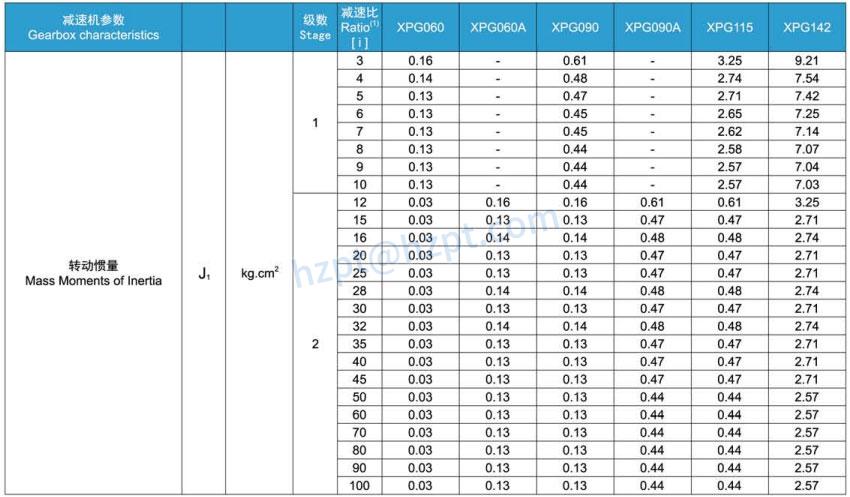

Technical Data of XPG Series Planetary Gearbox

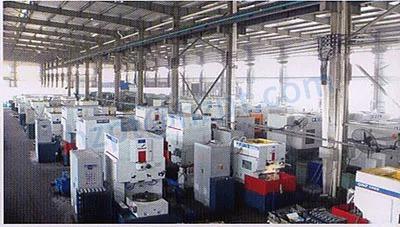

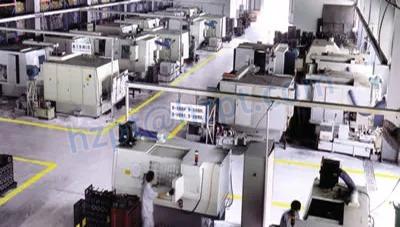

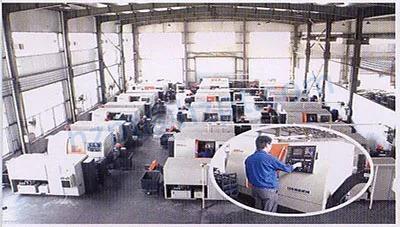

Servo Gearbox Manufacturer-Raydafon

Raydafon always adheres to the business philosophy of "integrity first", obtains customers with integrity and occupies the market with reputation.We have a large number of customer service and after-sales technicians, considerate service, professional pre-sales and after-sales service team and efficient factory production technology to provide customers with professional and thoughtful technical services. Specific technical solutions can be made according to various complex problems encountered by customers. Implement efficient internal cost control and continuously improve the digitization and mechanization rate to reduce costs and benefit customers. Sufficient production capacity and convenient logistics can meet various needs of customers for timely supply.With more than ten years of industry accumulation and a complete product system, you only need to provide your needs, and we will provide you with corresponding customized solutions. With a wide range of products, you only need to submit your needs, and professionals will provide you with options and one-stop comfortable services.
