Y-HG1 Metallurgical Hydraulic Cylinder

Y-HG1 Metallurgical Hydraulic Cylinder

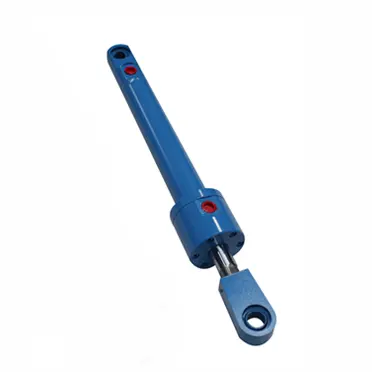

Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of flange, earrings, pins, trippers (base) and other types.High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe and other processing equipment, product quality is stable and guaranteed.

Metallurgical Hydraulic Cylinder Parameter:

（1）Axial Tripod Type Metallurgical Hydraulic Cylinder Parameter

（2）Head Method Orchid Type Metallurgical Hydraulic Cylinder

（3）Head Pin Type Metallurgical Hydraulic Cylinder

（4）Head Rectangular Flange Type Metallurgical Hydraulic Cylinder

（5）Head Round Flange Type Metallurgical Hydraulic Cylinder

（6） Middle Pin Type Metallurgical Hydraulic Cylinder

（7）Rear Method Orchid Type Metallurgical Hydraulic Cylinder

（8）Rear Pin Type Metallurgical Hydraulic Cylinder

（9）Rear Rectangular Flange Type Metallurgical Hydraulic Cylinder

（10）Rear Round Flange Type Metallurgical Hydraulic Cylinder

（11）Rear Single Earring Type Metallurgical Hydraulic Cylinder

(12) Y-HG1 Noraml Metallurgical Hydraulic Cylinder

Metallurgical Hydraulic Cylinder Technical Parameter:

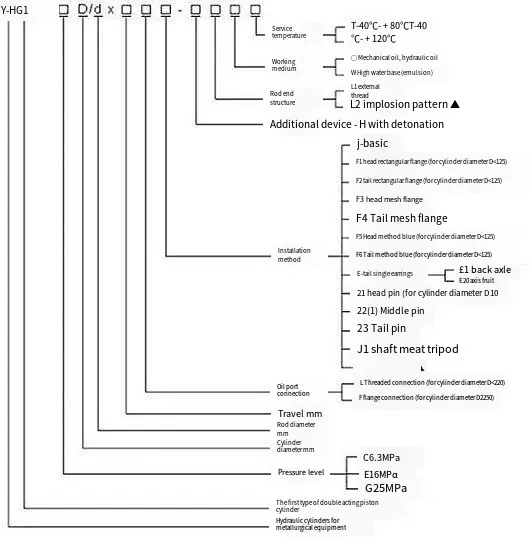

Model example: Y-HG1-E40/22*50LJ1L10T1

Scope Of Application Of Metallurgical Hydraulic Cylinder:

Y-HG1 series hydraulic cylinder for metallurgical equipment is a double-acting piston cylinder; cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, its basic parameters, including cylinder diameter, rod diameter, stroke, and oil port size.

How To Disassemble Hydraulic Cylinder?

Disassembling a hydraulic cylinder requires careful attention and proper tools to ensure a safe and successful process. Here's a general guide on how to disassemble a hydraulic cylinder:

1. Prepare the Work Area:
   • Clear a clean and well-lit work area where you can safely disassemble the hydraulic cylinder.
   • Gather the necessary tools, including wrenches, pliers, a rubber mallet, a pry bar, and a suitable container for collecting hydraulic fluid.
2. Release Hydraulic Pressure:
   • Before starting the disassembly, relieve any hydraulic pressure in the cylinder.
   • Disconnect or shut off the power source to the hydraulic system to prevent accidental activation.
3. Drain Hydraulic Fluid:
   • Position the hydraulic cylinder in a way that allows the hydraulic fluid to drain into the container.
   • Loosen and remove any plugs or fittings from the cylinder to facilitate drainage.
4. Remove External Components:
   • Remove any external components attached to the hydraulic cylinder, such as hoses, fittings, brackets, or mounting hardware.
   • Use appropriate tools to loosen and disconnect these components carefully.
5. Secure the Cylinder:
   • Secure the hydraulic cylinder in a vise or with clamps, ensuring it is held firmly and stable during the disassembly process.
   • Use protective materials or soft jaws to prevent damage to the cylinder's surface.
6. Disassemble the End Cap:
   • Identify the end cap of the hydraulic cylinder.
   • Use wrenches or suitable tools to loosen and remove the bolts or fasteners securing the end cap.
   • If needed, gently tap the end cap with a rubber mallet to break any seal or adhesive bond.
7. Separate the Cylinder Components:
   • Once the end cap is removed, carefully slide the piston and piston rod out of the cylinder barrel.
   • Pay attention to any seals, bearings, or bushings that may be present and remove them as necessary.
   • Inspect and document the condition of each component for reference during reassembly.
8. Remove the Cylinder Barrel:
   • With the piston and piston rod removed, focus on the cylinder barrel.
   • Use a pry bar or suitable tool to carefully separate the cylinder barrel from any mounting brackets or connections.
   • Gently tap the cylinder barrel if needed to break any seal or adhesive bond.
9. Clean and Inspect:
   • Thoroughly clean all disassembled components using a suitable solvent or cleaner.
   • Inspect each component for signs of wear, damage, or contamination.
   • Replace any damaged or worn components with new ones to ensure proper performance.
