05B Chain Sprockets

05B Chain Sprockets

Raydafon Group's 05B Chain Sprockets deliver precision power transmission for industrial machinery, ensuring smooth and efficient operation. Crafted from premium materials for durability and minimal wear, these sprockets are ideal for engineers and manufacturers in automation and production lines. Experience enhanced performance and reliability, solving common alignment and wear issues. Unlike competitors, they feature optimized tooth designs for reduced noise and longer service life. Discover how Raydafon Group can elevate your equipment's efficiency today!
Send Inquiry
Product Description
Size 05B chain is the third smallest British Standard roller chain made. Because of this, high-precision tolerances are necessary not only for manufacturing the chain but manufacturing the sprockets as well. Our sprockets are made with these high-precision tolerances using state of the art modern equipment, they are also constructed out of a high-quality high-strength steel so not only are the 05B sprockets effectively high-performance, they also out-last other brands. Standard configurations for these sprockets include A-Plate and B-Hub (hub on one side), while stock bores will range from 5mm up to 20mm and outside diameters range from 24mm to 322.5mm.05B Chain Sprockets

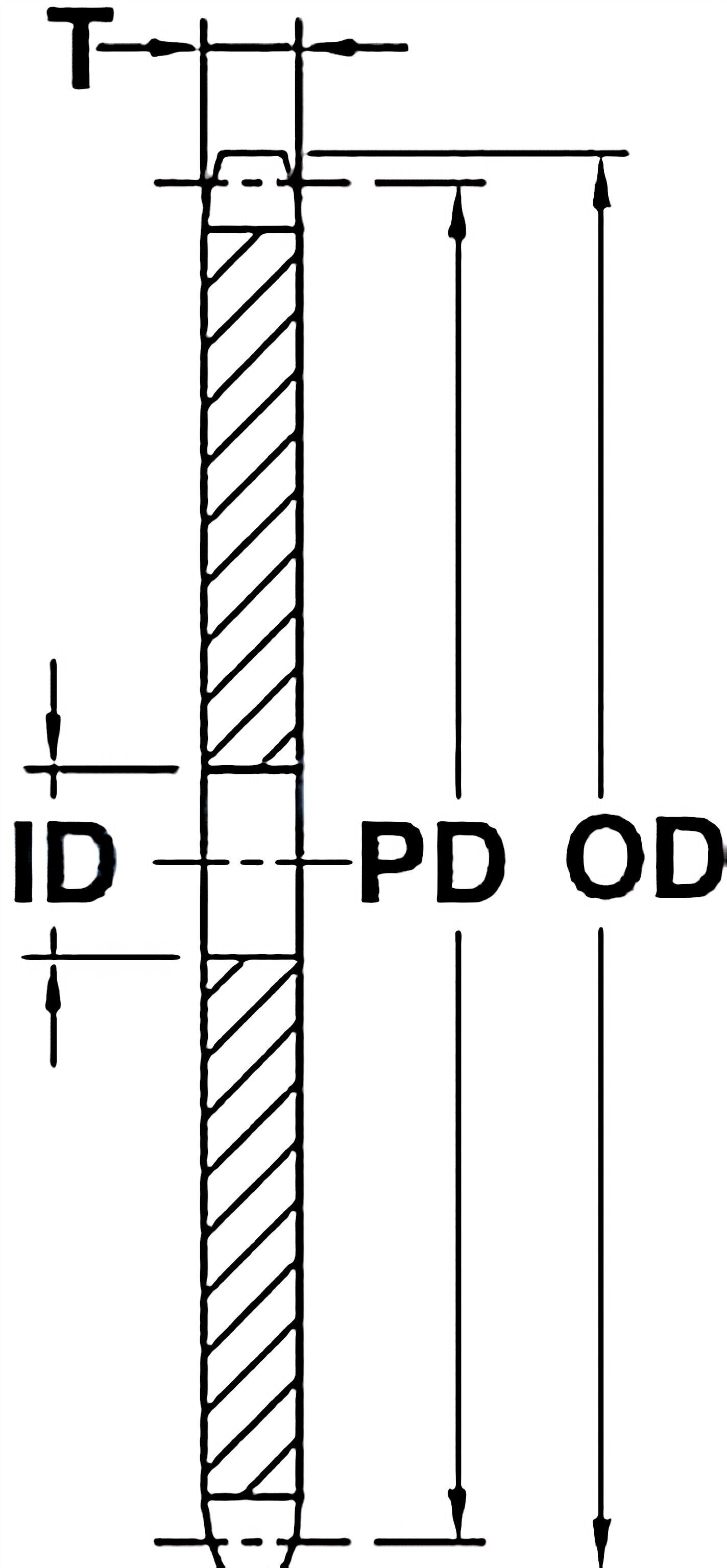

05B A-plate Sprockets

05B Chain Sprockets
Sprocket Size
Tooth Count
Outside Diameter (OD)
Pitch Diameter (PD)
Stock Bore (ID)
Thickness (T)
Weight (kg)
05A8824.0mm20.90mm6mm2.8mm0.006
05A9926.6mm23.39mm6mm2.8mm0.007
05A101029.2mm25.89mm8mm2.8mm0.009
05A111131.7mm28.39mm8mm2.8mm0.011
05A121234.2mm30.91mm8mm2.8mm0.010
05A131336.7mm33.42mm8mm2.8mm0.018
05A141439.2mm35.95mm8mm2.8mm0.019
05A151541.7mm38.48mm8mm2.8mm0.024
05A161644.3mm41.01mm8mm2.8mm0.024
05A171746.8mm43.53mm8mm2.8mm0.025
05A181849.3mm46.07mm8mm2.8mm0.026
05A191951.9mm48.61mm8mm2.8mm0.031
05A202054.4mm51.14mm8mm2.8mm0.038
05A212157.0mm53.67mm8mm2.8mm0.040
05A222259.5mm56.21mm8mm2.8mm0.045
05A232362.0mm58.75mm8mm2.8mm0.050
05A242464.6mm61.29mm8mm2.8mm0.060
05A252567.5mm63.83mm8mm2.8mm0.066
05A262669.5mm66.37mm10mm2.8mm0.068
05A272772.2mm68.91mm10mm2.8mm0.076
05A282874.8mm71.45mm10mm2.8mm0.080
05A292977.3mm73.99mm10mm2.8mm0.085
05A303079.8mm76.53mm10mm2.8mm0.087
05A313182.4mm79.08mm10mm2.8mm0.090
05A323284.9mm81.61mm10mm2.8mm0.093
05A333387.5mm84.16mm10mm2.8mm0.108
05A343490.0mm86.70mm10mm2.8mm0.120
05A353592.5mm89.24mm10mm2.8mm0.125
05A363695.0mm91.79mm10mm2.8mm0.130
05A373797.6mm94.33mm10mm2.8mm0.145
05A3838100.2mm96.88mm10mm2.8mm0.160
05A3939102.7mm99.42mm10mm2.8mm0.180
05A4040105.2mm101.97mm10mm2.8mm0.200
05A4141107.8mm104.51mm12mm2.8mm0.170
05A4242110.4mm107.05mm12mm2.8mm0.185
05A4343112.9mm109.60mm12mm2.8mm0.200
05A4444115.5mm112.14mm14mm2.8mm0.210
05A4545118.0mm114.69mm12mm2.8mm0.220
05A4646120.6mm117.23mm12mm2.8mm0.240
05A4747123.1mm119.77mm12mm2.8mm0.251
05A4848125.6mm122.32mm12mm2.8mm0.270
05A4949128.2mm124.86mm12mm2.8mm0.320
05A5050130.7mm127.41mm12mm2.8mm0.340
05A5151133.3mm129.95mm14mm2.8mm0.380
05A5252135.8mm132.49mm14mm2.8mm0.360
05A5353138.4mm135.04mm14mm2.8mm0.375
05A5454140.9mm137.59mm14mm2.8mm0.385
05A5555143.5mm140.13mm14mm2.8mm0.400
05A5656146.0mm142.68mm14mm2.8mm0.425
05A5757148.6mm145.22mm14mm2.8mm0.450
05A5858151.0mm147.77mm14mm2.8mm0.465
05A5959153.6mm150.31mm14mm2.8mm0.490
05A6060156.2mm152.85mm14mm2.8mm0.500
05A6262162.0mm157.95mm16mm2.8mm0.520
05A6464167.1mm163.04mm16mm2.8mm0.550
05A6565169.2mm165.58mm16mm2.8mm0.620
05A6666172.2mm168.13mm16mm2.8mm0.650
05A6868177.3mm173.22mm16mm2.8mm0.680
05A7070182.4mm178.31mm20mm2.8mm0.730
05A7272187.5mm183.41mm20mm2.8mm0.800
05A7575195.1mm191.04mm20mm2.8mm0.820
05A7676197.7mm193.59mm20mm2.8mm0.850
05A7878202.8mm198.68mm20mm2.8mm0.870
05A8080207.9mm203.77mm20mm2.8mm0.800
005A8585220.6mm216.50mm20mm2.8mm1.070
05A9090233.4mm229.23mm20mm2.8mm1.210
05A9595246.1mm241.96mm20mm2.8mm1.325
05A100100258.9mm254.68mm20mm2.8mm1.535
05A110110284.3mm280.15mm20mm2.8mm1.600
05A114114294.5mm290.33mm20mm2.8mm1.700
05A120120310.0mm305.61mm20mm2.8mm1.800
