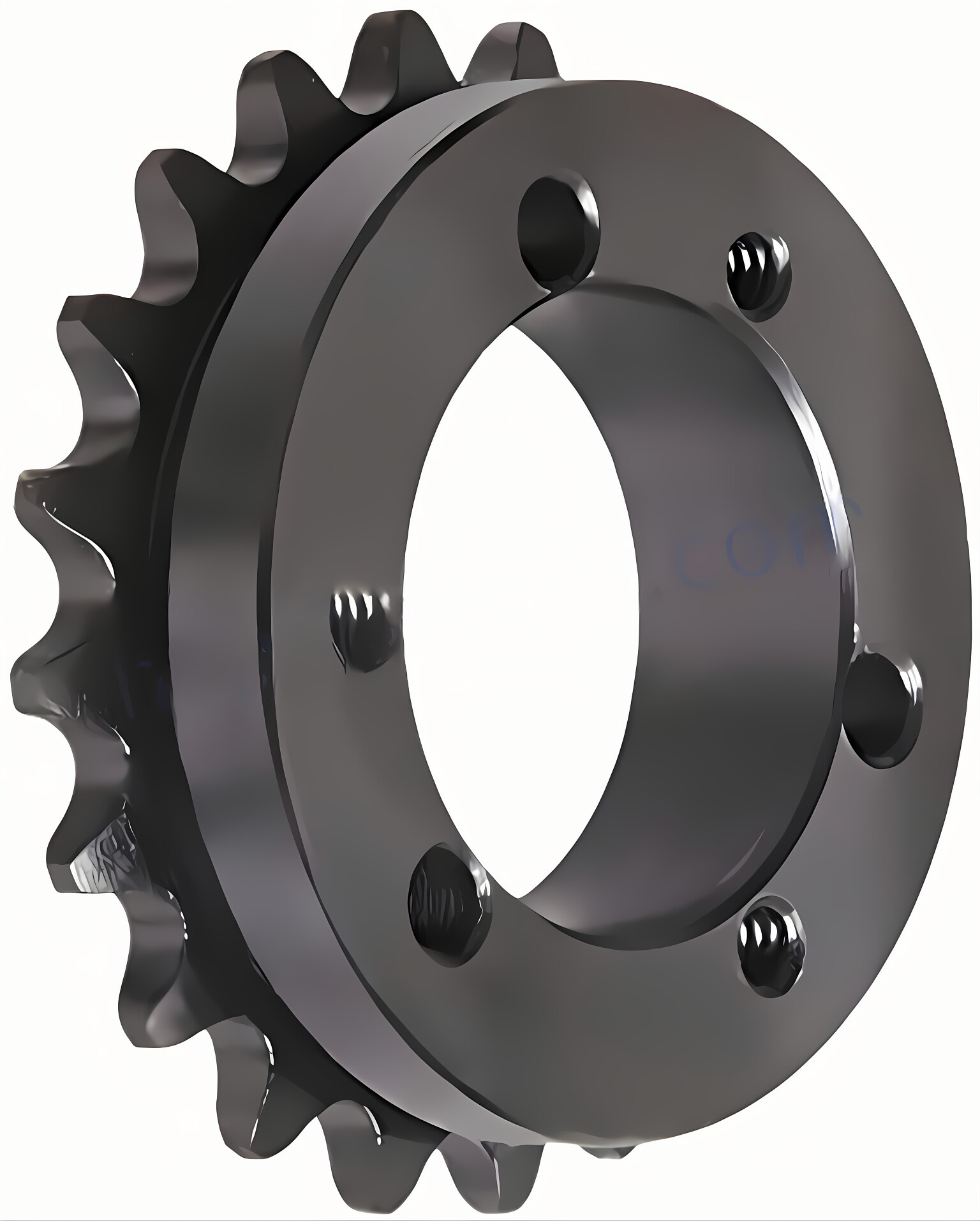

06B-3 Metric Roller Chain Sprockets

Raydafon Group's 06B-3 Metric Roller Chain Sprockets deliver precision and durability for industrial machinery, crafted from high-grade steel to minimize wear and noise. Ideal for engineers and manufacturers, they ensure reliable power transmission, solving alignment issues and enhancing operational efficiency. With superior design and consistent performance, they stand out in demanding applications, offering peace of mind and long-lasting value.

Send Inquiry

Product Description

06B-3 roller chain sprockets are manufactured for metric 06B-3 roller chain and are manufactured in accordance with ISO, DIN, and BS228 standards. Our sprockets are precision manufactured from high-quality steel, directly interchange with other manufacturers, and are engineered for superb performance and durability. Common styles of these sprockets include B-Hub, C-Hub, and taper bushed type but others are available upon request. The below charts show our standard sizes for 06B-3 sprockets, if you don't see the exact sprocket you need we also custom manufacture sprockets. 06B-3 Metric Roller Chain Sprockets

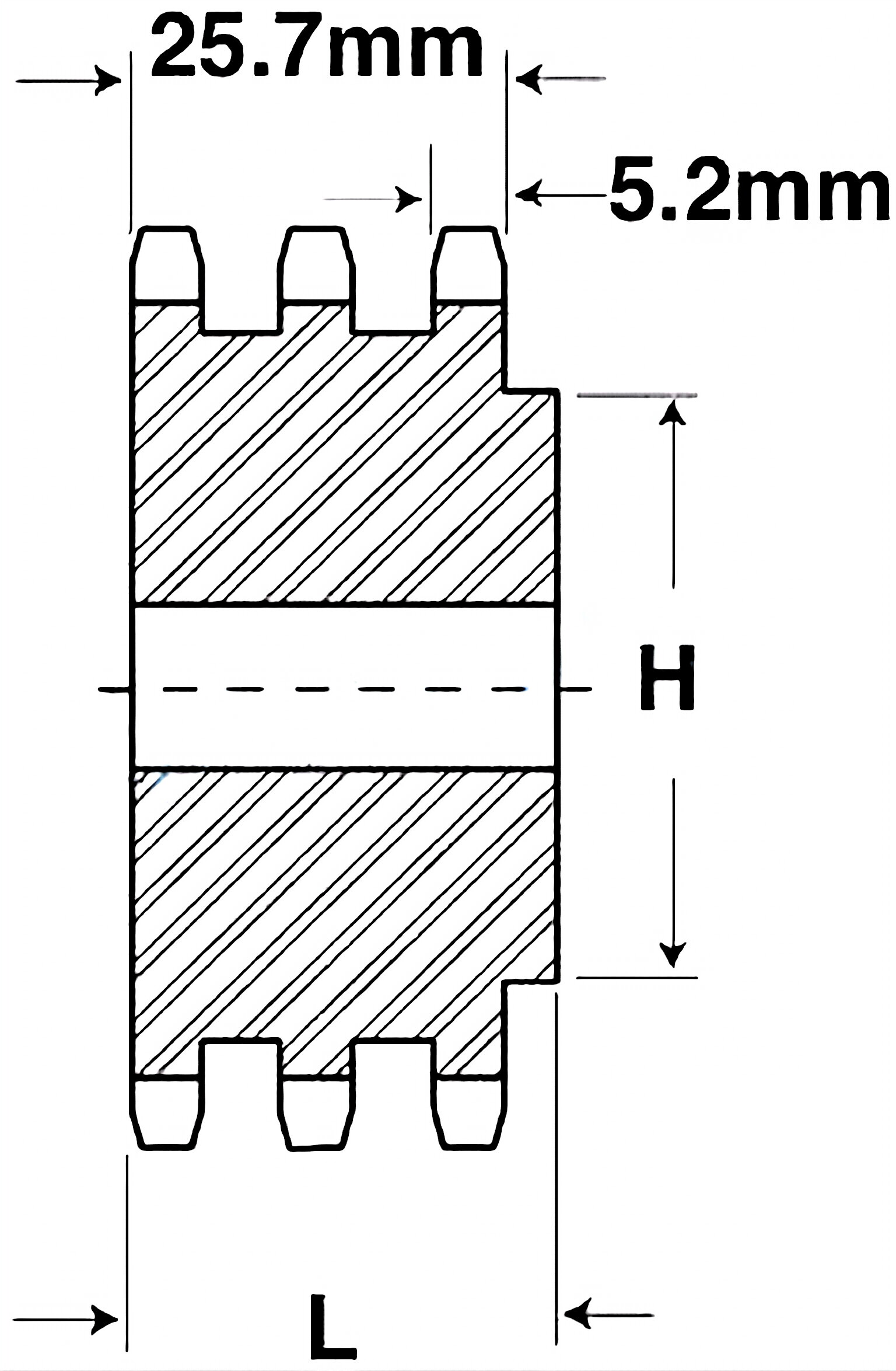

06B-3 B-Hub Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Maximum Bore	Hub Diameter (H)	Length Thru Bore (L)	Sprocket Weight (kg)
E06B12	12	36.80mm	12mm	16mm	25mm	35mm	0.23
E06B13	13	39.80mm	12mm	18mm	28mm	35mm	0.27
E06B14	14	42.80mm	12mm	18mm	31mm	35mm	0.32
E06B15	15	45.81mm	12mm	20mm	34mm	35mm	0.36
E06B16	16	48.82mm	12mm	20mm	37mm	35mm	0.45
E06B17	17	51.84mm	12mm	24mm	40mm	35mm	0.54
E06B18	18	54.84mm	12mm	25mm	43mm	35mm	0.64
E06B19	19	57.87mm	12mm	28mm	46mm	35mm	0.72
E06B20	20	60.89mm	12mm	30mm	49mm	35mm	0.77
E06B21	21	63.91mm	14mm	30mm	52mm	40mm	0.86
E06B22	22	66.93mm	14mm	35mm	54mm	40mm	0.95
E06B23	23	69.95mm	14mm	38mm	58mm	40mm	1.04
E06B24	24	72.97mm	14mm	39mm	61mm	40mm	1.18
E06B25	25	76.00mm	14mm	40mm	64mm	40mm	1.27
E06B26	26	79.02mm	14mm	42mm	67mm	40mm	1.31
E06B27	27	82.02mm	14mm	45mm	70mm	40mm	1.36
E06B28	28	85.07mm	14mm	48mm	73mm	40mm	1.50
E06B29	29	88.10mm	14mm	50mm	76mm	40mm	1.68
E06B30	30	91.12mm	14mm	52mm	80mm	40mm	1.72
E06B32	32	97.18mm	16mm	52mm	80mm	48mm	2.00
E06B35	35	106.26mm	16mm	52mm	80mm	48mm	2.25
E06B36	36	109.29mm	16mm	60mm	90mm	40mm	2.33
E06B38	38	115.34mm	16mm	60mm	90mm	40mm	2.49
E06B40	40	121.40mm	16mm	52mm	90mm	48mm	2.65
E06B42	42	127.46mm	19mm	60mm	90mm	48mm	2.81
E06B45	45	136.55mm	19mm	60mm	90mm	48mm	3.00
E06B48	48	145.64mm	19mm	60mm	90mm	48mm	3.20
E06B52	52	157.75mm	19mm	60mm	90mm	48mm	3.46
E06B57	57	172.91mm	19mm	60mm	90mm	48mm	4.77
E06B60	60	182.00mm	19mm	60mm	80mm	48mm	5.02
E06B68	68	206.24mm	19mm	60mm	90mm	48mm	5.69
E06B72	72	218.37mm	19mm	60mm	90mm	48mm	6.02
E06B76	76	230.49mm	19mm	64mm	100mm	48mm	8.48
E06B84	84	254.74mm	19mm	64mm	100mm	48mm	9.37
E06B95	95	288.08mm	25mm	64mm	100mm	54mm	13.61
E06B96	96	291.11mm	25mm	64mm	100mm	54mm	13.75
