Product Description

08B-3 roller chain sprockets are manufactured for metric 08B-3 roller chain and are manufactured in accordance with ISO, DIN, and BS228/3 standards. Our sprockets are precision manufactured from high-quality steel, directly interchange with other manufactures, and are engineered for superb performance and durability. Common styles of these sprockets include B-Hub, C-Hub, and taper bushed type but others are available upon request. 08B-3 Metric Roller Chain Sprockets

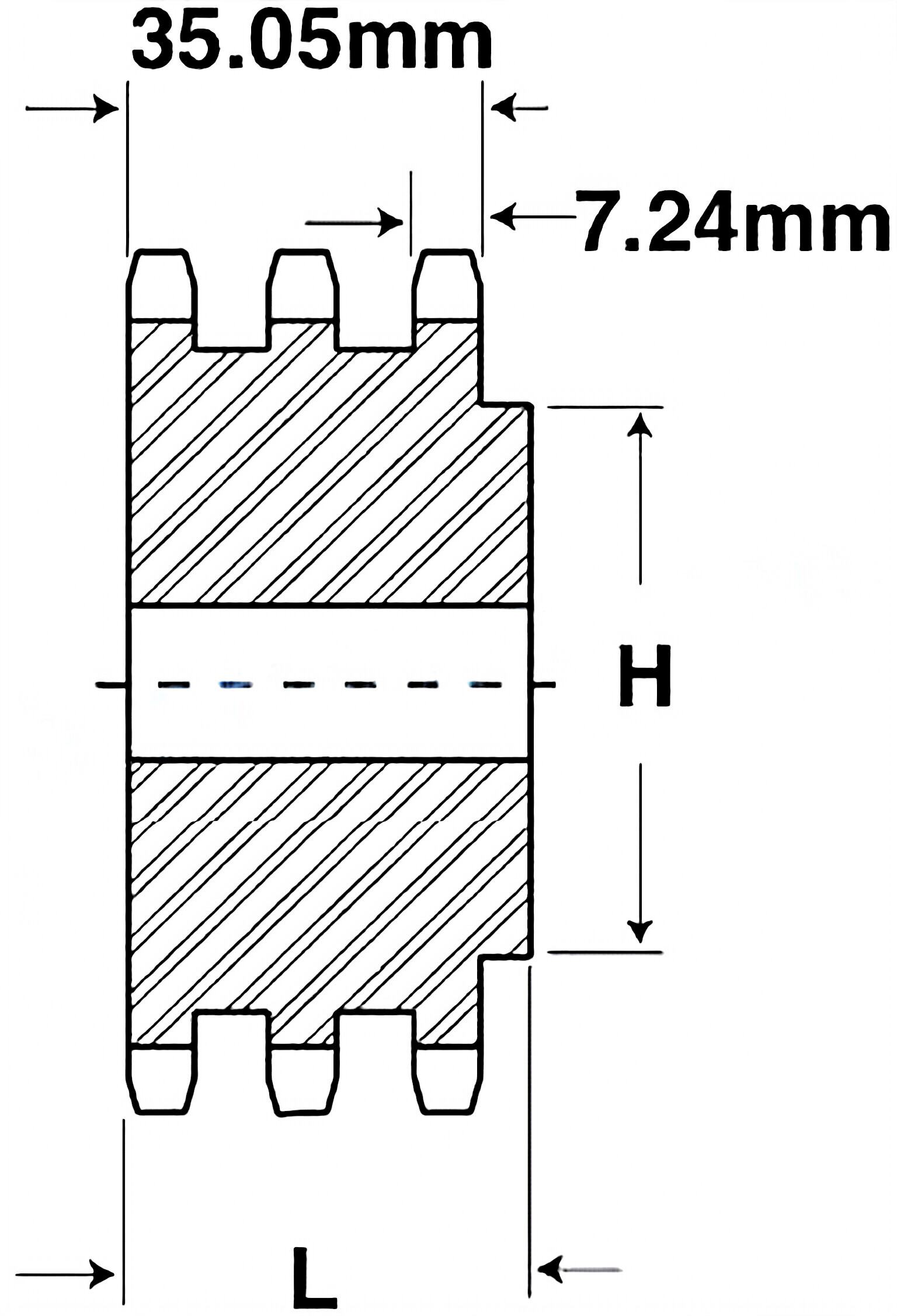

08B-3 B-Hub Sprockets:、

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Maximum Bore	Hub Diameter (H)	Length Thru Bore (L)	Sprocket Weight (kg)
*E08B11*	11	45.08mm	14mm	22mm	30mm	50mm	0.32
*E08B12*	12	49.07mm	14mm	24mm	34mm	50mm	0.45
*E08B13*	13	53.06mm	14mm	25mm	38mm	50mm	0.59
*E08B14*	14	57.07mm	14mm	28mm	42mm	50mm	0.72
*E08B15*	15	61.08mm	14mm	31mm	46mm	50mm	0.81
*E08B16*	16	65.10mm	16mm	35mm	50mm	50mm	0.90
*E08B17*	17	69.12mm	16mm	36mm	54mm	50mm	1.04
*E08B18*	18	73.14mm	16mm	38mm	58mm	50mm	1.22
*E08B19*	19	77.16mm	16mm	40mm	62mm	50mm	1.41
*E08B20*	20	81.18mm	16mm	40mm	66mm	50mm	1.58
*E08B21*	21	85.21mm	20mm	45mm	70mm	55mm	1.81
*E08B22*	22	89.24mm	20mm	45mm	70mm	55mm	2.03
*E08B23*	23	93.27mm	20mm	45mm	70mm	55mm	2.27
*E08B24*	24	97.30mm	20mm	50mm	75mm	55mm	2.44
*E08B25*	25	101.33mm	20mm	52mm	80mm	55mm	2.54
*E08B26*	26	105.36mm	20mm	56mm	85mm	55mm	2.85
*E08B27*	27	109.40mm	20mm	56mm	85mm	55mm	2.85
*E08B28*	28	113.43mm	20mm	60mm	90mm	55mm	3.16
*E08B29*	29	117.46mm	20mm	62mm	95mm	55mm	3.34
*E08B30*	30	121.50mm	20mm	64mm	100mm	55mm	3.48
*E08B35*	35	141.68mm	20mm	73mm	110mm	55mm	4.79
*E08B36*	36	145.72mm	25mm	80mm	120mm	55mm	5.43
*E08B38*	38	153.79mm	25mm	80mm	120mm	60mm	6.49
*E08B42*	42	169.94mm	25mm	80mm	120mm	60mm	7.17
*E08B45*	45	182.06mm	25mm	80mm	120mm	60mm	7.69
*E08B48*	48	194.18mm	25mm	80mm	120mm	60mm	8.20
*E08B52*	52	210.34mm	25mm	80mm	120mm	60mm	8.88
*E08B54*	54	218.43mm	25mm	80mm	120mm	60mm	9.22
*E08B57*	57	230.54mm	25mm	80mm	120mm	60mm	12.62
*E08B60*	60	242.66mm	25mm	85mm	130mm	65mm	13.84
*E08B68*	68	274.99mm	25mm	85mm	130mm	65mm	15.69
*E08B72*	72	291.15mm	25mm	85mm	130mm	65mm	16.61
*E08B76*	76	307.32mm	30mm	85mm	130mm	65mm	22.23
*E08B84*	84	339.65mm	30mm	85mm	130mm	65mm	24.57
*E08B95*	95	384.11mm	30mm	85mm	130mm	65mm	33.11
*E08B114*	114	460.91mm	30mm	85mm	130mm	65mm	41.90
