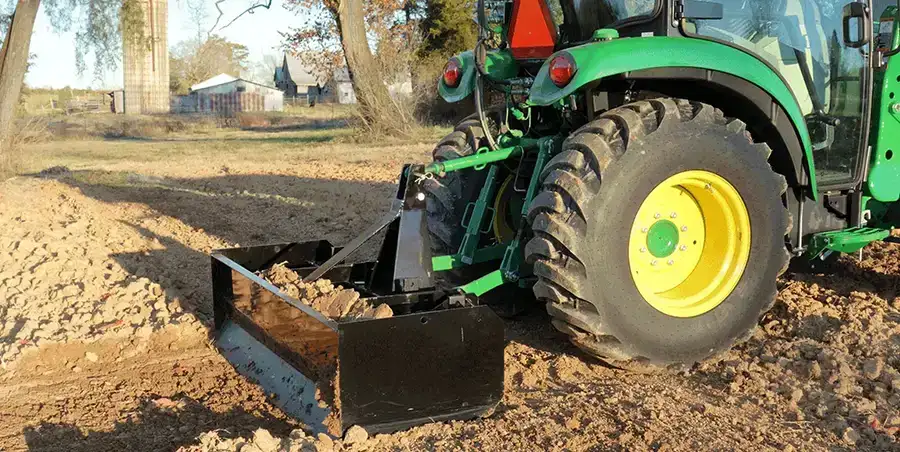

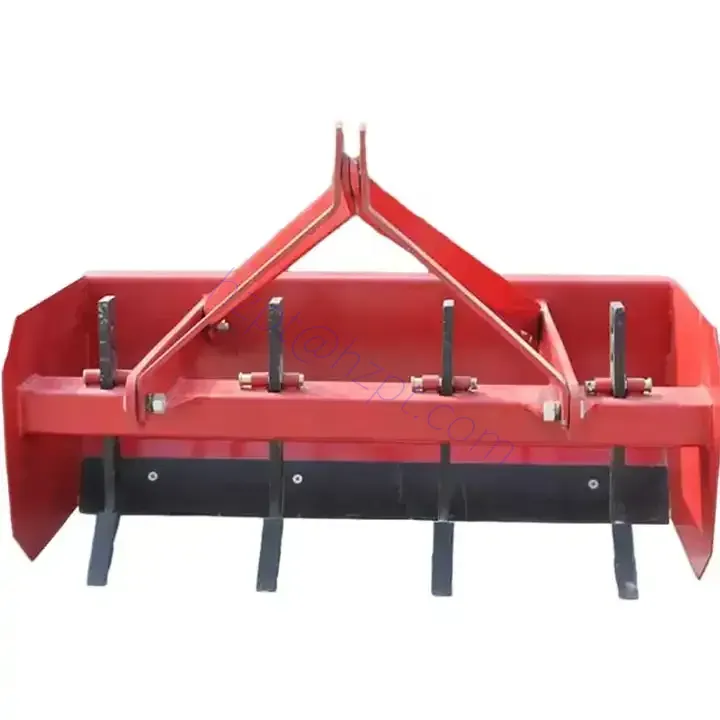

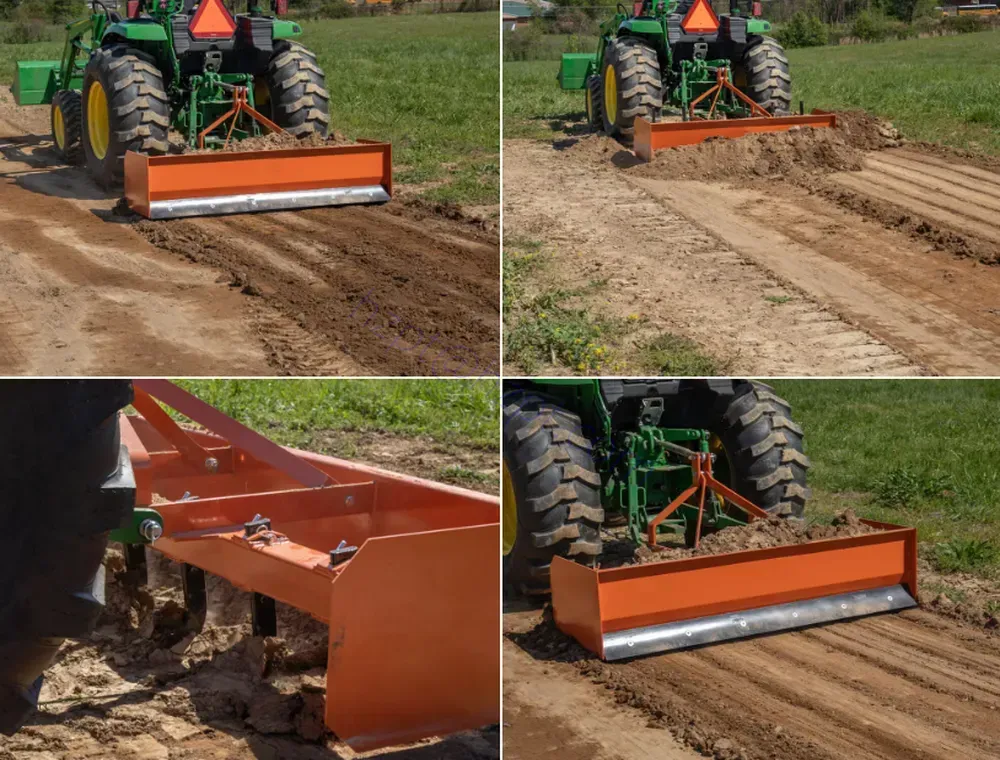

1.5m Agricultural Machine Land Leveler 3 Point Hitch Rear Box Scraper

The 1.5m agricultural machine 3 point hitch land leveler, often referred to as a box scraper, is a versatile implement used primarily in farming and landscaping to level and grade land. Designed to attach to the three-point hitch system of a tractor, this tool is essential for maintaining smooth and even surfaces across fields, driveways, and other large areas. Constructed with a robust steel frame, the land leveler features a wide, flat blade that spans 1.5 meters. This blade is adjustable, allowing operators to set the depth and angle to suit specific tasks. The box scraper's design includes sidewalls that help contain the material, such as soil or gravel, as it's moved, ensuring efficient redistribution and leveling. This implement is particularly beneficial for preparing seedbeds, spreading material, or even tackling light grading tasks. Its compatibility with the standard three-point hitch system makes it easy to attach and detach, providing convenience and flexibility for farmers and landscapers. The box scraper enhances productivity by enabling precise control over terrain shaping and maintenance tasks. [embed]https://youtu.be/jb-DqBKXXms[/embed]

Specification of 3 Point Hitch Land Leveler

Model	SBX-4	SBX-5	SBX-6	SBX-7	SBX-8
Working width(mm)	1220	1530	1830	2135	2440
Overall depth(mm)	547
Matched power(hp)	18-25	20-25	25-40	30-40	35-45
Weight(kg)	135	170	206	229	258

Key Features of the Agricultural Machine Land Leveler

The agricultural machine land leveler, also known as a land grader or box scraper, boasts several key features that make it a valuable tool for land preparation and maintenance in agricultural settings. Some of its key features include:

1. Adjustable Blade Angle: The adjustable blade angle allows operators to tailor the land leveler's performance to specific tasks, such as smoothing, grading, or contouring. By changing the angle, you can optimize the tool for different soil conditions and desired outcomes. This flexibility enhances the precision and effectiveness of the leveling process, making it suitable for varied agricultural needs.
2. Scarifiers or Ripper Teeth: Equipped with scarifiers or ripper teeth, the land leveler can break up compacted soil and penetrate hard surfaces. These teeth are adjustable and can be raised or lowered depending on the task. This feature is particularly useful for preparing seedbeds or loosening soil before leveling, ensuring the land is adequately conditioned for planting.
3. Three-Point Hitch Compatibility: The land leveler's compatibility with a standard three-point hitch system ensures easy attachment and detachment from tractors, facilitating quick transitions between tasks. This compatibility allows for seamless integration with a wide range of tractors, enhancing the tool's versatility and making it a convenient addition to any agricultural equipment lineup.
4. Heavy-Duty Construction: Built with heavy-duty materials, the land leveler is designed to withstand the rigors of agricultural work. Its robust construction ensures longevity and reliable performance even under challenging conditions. The durable frame and components are engineered to handle the stresses of regular use, providing a dependable solution for various land management tasks.

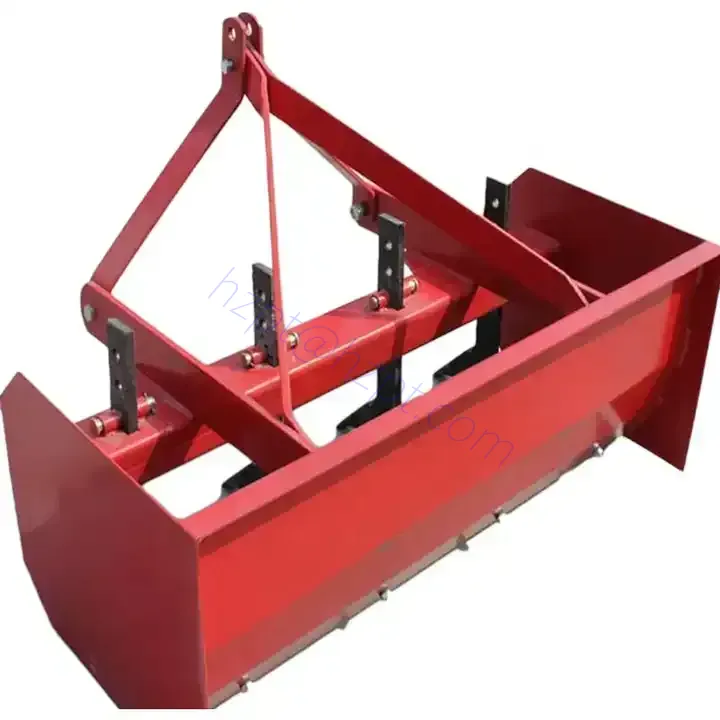

5. Box Scraper Design: The box scraper design incorporates sidewalls, which effectively contain and distribute material like soil or gravel. This design helps achieve a consistent and even surface while minimizing material loss. By efficiently moving and leveling the material, the box scraper design enhances productivity and precision, making it an essential tool for land preparation and maintenance.
6. Versatility Applications: The land leveler is a versatile tool suitable for a wide range of applications, from agricultural fields to construction sites. Its ability to perform tasks such as grading, leveling, and soil preparation makes it invaluable for farmers, landscapers, and contractors. This versatility ensures that the land leveler can adapt to diverse environments and project needs.

Common Applications of 3 Point Hitch Box Scrapers

3 point hitch box scrapers, also known as land levelers or box blades, are versatile agricultural implements commonly used for various applications in farming, landscaping, and land maintenance. Some of the common applications of 3 point hitch box scrapers include:

• Land Leveling: Box scrapers are essential for land leveling, providing a smooth and even surface across fields, driveways, and construction sites. By adjusting the blade angle, operators can efficiently redistribute soil and gravel, correcting uneven terrain. This application is vital for preparing land for planting, construction, or any activity requiring a flat surface.
• Seedbed Preparation: In seedbed preparation, box scrapers help create an ideal planting surface by breaking up clumps and smoothing the soil. This process ensures optimal seed-to-soil contact, promoting better germination and growth. By using scarifiers, the scraper can also loosen compacted soil, enhancing aeration and drainage, which are crucial for healthy crop development.
• Dirt and Gravel Spreading: Box scrapers are highly effective in spreading dirt and gravel evenly over large areas. This capability is particularly useful for maintaining driveways, pathways, and parking areas. By containing and distributing materials efficiently, the scraper helps achieve a uniform layer, reducing potholes and washouts and ensuring long-lasting surface quality.
• Irrigation Management: In irrigation management, box scrapers are used to shape and maintain channels and ditches, ensuring efficient water flow. Properly graded surfaces facilitate even distribution of water, preventing pooling and erosion. By maintaining these water pathways, box scrapers help optimize irrigation systems, enhancing water conservation and crop yield.
• Clearing Weeds: Box scrapers can assist in clearing weeds by scraping the ground surface and uprooting unwanted vegetation. This mechanical approach to weed control reduces reliance on chemical herbicides and prepares the land for further cultivation. By removing weeds effectively, the scraper contributes to healthier crop environments and improved land management practices.
• Road Construction Maintenance: Box scrapers play a key role in road construction and maintenance by leveling and grading surfaces for temporary or permanent roads. They help distribute materials like gravel or dirt, creating a stable and even driving surface. Regular maintenance with a box scraper can prolong the life of rural roads and reduce repair costs.

Working Principle:

The working principle of a tractor 3-point mounted land leveler involves a series of steps that enable the implement to efficiently level land surfaces for agricultural or landscaping purposes. Here is an overview of how a tractor-mounted land leveler operates for land leveling:

1. Attachment to Tractor: The land leveler is attached to the tractor using the three-point hitch system. This secure connection allows for easy maneuverability and stability during operation. The hitch system ensures that the leveler can be raised or lowered as needed, providing precise control over the depth and angle of the leveling blade.
2. Adjustment of Blade Angle: Before starting, the blade angle of the land leveler is adjusted according to the specific task requirements. By tilting the blade forward or backward, operators can control the aggressiveness of the cut and the amount of material moved. This adjustability is crucial for tackling various soil conditions and achieving desired leveling outcomes.
3. Driving Across the Land: Once set up, the tractor is driven across the land at a steady pace. The movement of the tractor, combined with the leveler's positioning, ensures even coverage of the area. Operators maintain a consistent speed and path to efficiently manage the distribution of soil or gravel, creating a uniform surface.

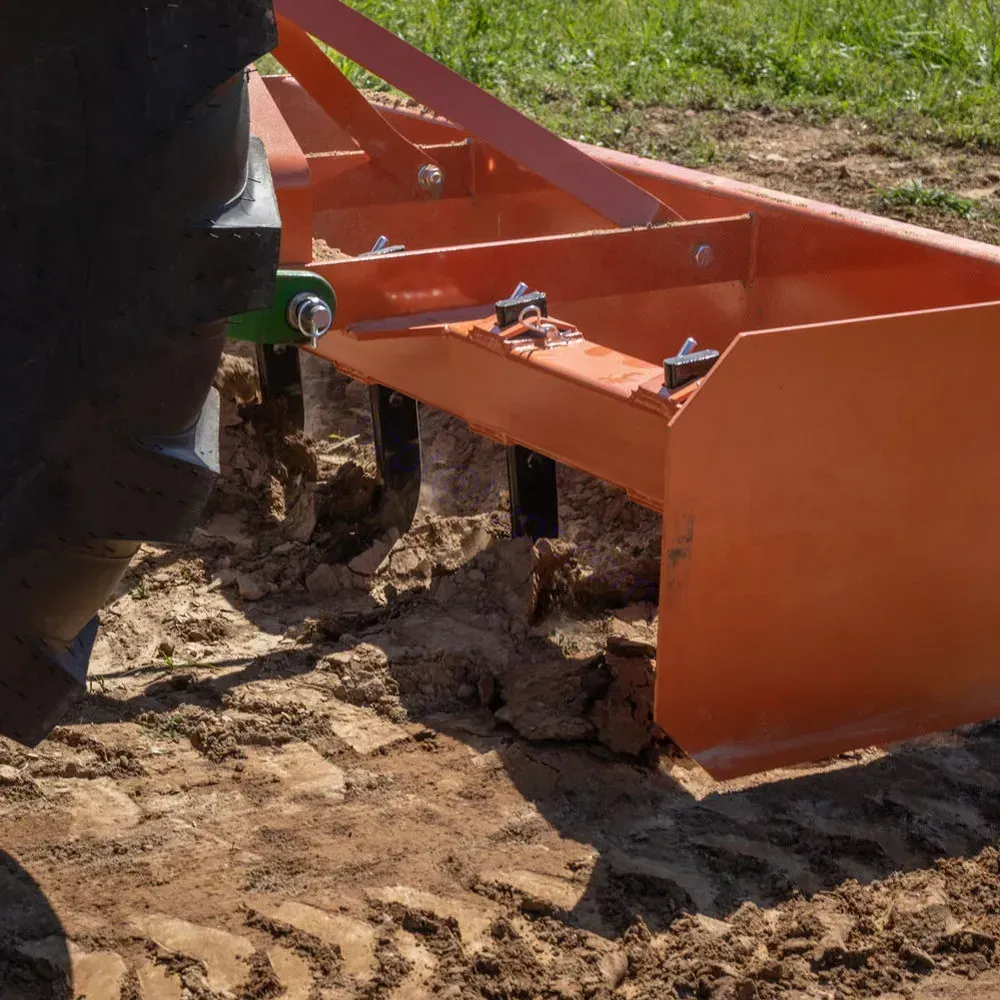

4. Cutting and Scraping Action: As the tractor moves, the leveler's blade cuts into the soil, scraping away high spots and collecting material. This cutting action is facilitated by the weight and design of the leveler, which ensures effective penetration into the ground. The scraped material is then held within the confines of the box scraper for redistribution.
5. Filling Low Spots: The collected material is strategically redistributed to fill low spots in the terrain. By adjusting the blade height and angle, operators can control the flow of material, ensuring it fills depressions evenly. This process helps create a level surface, ideal for planting or construction activities.
6. Repeating Passes: For optimal results, multiple passes may be necessary. Each pass allows for further refinement of the terrain, gradually eliminating irregularities. Operators may alter the angle or depth between passes to address specific areas more effectively, ensuring comprehensive leveling across the entire field or site.
7. Finishing Touches: In the final stages, minor adjustments and finishing touches are made to perfect the surface. This might involve smoothing out any remaining uneven areas or refining edges. The goal is to achieve a consistent, flat surface that meets the specific requirements of the task, whether for agriculture, landscaping, or construction.

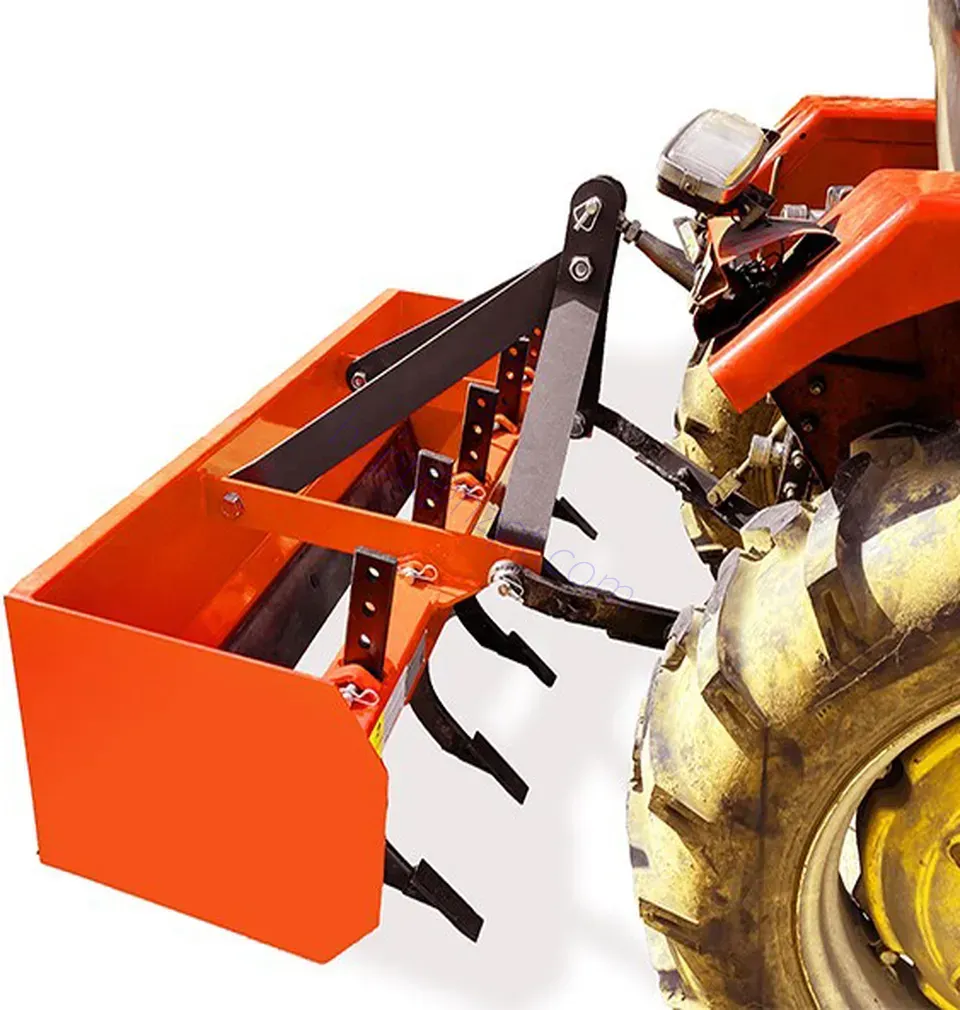

Installation Steps of 3 Point Hitch Box Scraper for Tractor

Installing a 3-point hitch box scraper onto a tractor involves several steps to ensure proper attachment and safe operation. Here are the general installation steps for mounting a box scraper to a tractor:

• Position the Tractor: Begin by parking the tractor on a flat, stable surface. Ensure the tractor is turned off and the parking brake is engaged for safety. Having the tractor on level ground makes the attachment process easier and safer, providing a stable base for connecting the box scraper.
• Align the Box Scraper: Position the box scraper behind the tractor, aligning it with the three-point hitch. Make sure the scraper is centered and the tractor's hitch arms are at the correct height. This alignment is crucial for a smooth attachment process, preventing any strain or misalignment once connected.
• Attach the Lower Links: Connect the tractor’s lower hitch arms to the lower pins on the box scraper. Secure them using lynch pins or locking clips to ensure they are firmly in place. This step is essential for maintaining stability and control during operation, as these connections bear the brunt of the load.
• Connect the Top Link: Attach the top link from the tractor to the upper connection point on the box scraper. Adjust the top link to ensure the scraper is level when lowered to the ground. This adjustment is key for effective operation, allowing the blade to maintain consistent contact with the ground for even leveling.
• Adjusting Height and Angle: Raise the 3-point hitch to lift the box scraper off the ground. Adjust the height and angle of the box scraper as needed for the specific task or terrain conditions.
• Check and Test: Double-check all connections to ensure they are secure and properly fastened. Once confirmed, start the tractor and gently lift and lower the box scraper to test its range of motion. This test ensures that the implement is correctly attached and functioning properly before beginning any work.

Operation Tips:

When operating a tractor with a 3-point mounted land leveler, it's important to follow these tips to ensure smooth and efficient operation:

1. Inspect the Equipment: Before starting, thoroughly inspect the land leveler and tractor for any signs of damage or wear. Check connections, hydraulic lines, and blades to ensure they are in good condition. Regular maintenance and inspections help prevent breakdowns and ensure the equipment operates efficiently and safely during use.
2. Adjust Blade Settings: Set the blade angle and height according to the task requirements. Different soil conditions may require varying adjustments to achieve optimal results. Properly configuring the blade ensures effective cutting and leveling, allowing you to manage the material smoothly and achieve a consistent finish across the land.
3. Maintain a Steady Speed: Operate the tractor at a steady, consistent speed to ensure uniform leveling. Sudden changes in speed can lead to uneven surfaces and inefficient material distribution. Maintaining a constant pace allows the leveler to perform optimally, providing a smooth and even finish across the field or work site.
4. Monitor Material Flow: Keep an eye on the amount of material being moved and deposited. Adjust the blade height or angle if necessary to control the flow and prevent excessive buildup. Proper management of material flow helps fill low spots effectively and ensures that the leveling process is evenly distributed.
5. Make Multiple Passes: For best results, consider making multiple passes over the area. Each pass allows for further refinement, smoothing out any remaining uneven spots. Adjust the blade settings between passes if needed to address specific areas more effectively, ensuring a comprehensive and thorough leveling process.
6. Avoid Overloading: Be cautious not to overload the box scraper with too much material at once. Excessive loads can strain the equipment and reduce efficiency. By managing load sizes appropriately, you maintain better control and reduce wear on the machinery, extending its lifespan and effectiveness.

Why Choose Raydafon's Land Levelers?

Raydafon is a leading manufacturer and supplier specializing in the production and sale of high-quality land levelers. With a robust infrastructure and advanced technology, our company stands at the forefront of the agricultural equipment industry. We boast a team of experienced professionals dedicated to innovation and quality. Our state-of-the-art production facilities are equipped with cutting-edge machinery, ensuring that we deliver superior products that meet international standards. Our land levelers serve as ideal replacements for renowned brands such as John Deere, Land Pride, Kubota, Case IH, New Holland, King Kutter, Bush Hog, Agri-Fab, Caterpillar, Frontier, Mahindra, Befco, Woods Equipment, Kioti, and many others. These products are engineered to provide exceptional performance and durability, making them suitable for a wide range of agricultural applications. The versatility and precision of our land levelers enhance soil preparation, ensuring optimal results for farmers and agricultural professionals worldwide. At Raydafon, we pride ourselves on our expertise and influence in the land leveler sector. Our commitment to excellence is reflected in our comprehensive range of products, which includes PTO shafts, agricultural gearboxes, large round balers, mini round balers, hay square balers, PTO wood chippers, diesel wood chippers, drum mowers, disc mowers, rotary hay rakes, fertilizer spreaders, lawn mowers, sickle bar mowers, flail mowers, rotary mower, rotary tillers, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvesters, corn seeders, wheat seeders, vegetable seeders, post hole diggers, boom sprayers, subsoiler, trailers, finger wheel rake, snow blower, road sweeper, and more. We offer custom solutions tailored to meet the specific needs of our clients. With international certifications and a focus on customer satisfaction, our after-sales service ensures that we maintain long-lasting relationships with our clients. Whether it's through our innovative designs or our reliable support, Raydafon remains a trusted name in the agricultural equipment industry.

FAQs:

Q: What is a land leveler used for? A: A land leveler is used for leveling and grading land, preparing seedbeds, spreading soil or gravel, and maintaining driveways and paths. It is an essential tool for ensuring smooth, even surfaces in agricultural and landscaping applications. Q: How do I attach a land leveler to my tractor? A land leveler is typically attached using a three-point hitch system. First, align the leveler with the tractor’s hitch arms, connect the lower links, and then attach the top link. Ensure all connections are secure before operation. Q: Can a land leveler be used on uneven terrain? A: Yes, a land leveler is designed to work on uneven terrain. Its adjustable blade allows you to cut high spots and fill low areas, creating a smooth and consistent surface. Q: What are the advantages of using a land leveler? A: Land levelers provide efficient soil distribution, improve water drainage, and enhance the appearance and functionality of land. They save time and labor compared to manual methods and ensure precise control over terrain shaping. Q: How do I maintain my land leveler? A: Regularly inspect the blade for wear and damage, tighten all bolts and connections, and lubricate moving parts. Proper maintenance extends the lifespan of the equipment and ensures optimal performance. Q: Can land levelers replace other brands? A: Yes, our land levelers are designed to be compatible replacements for brands like John Deere, Kubota, and others. They offer similar performance and durability, making them versatile for various equipment types. Q: Are customizations available for land levelers? A: Yes, many manufacturers, including us, offer customization options to meet specific requirements. This can include different blade sizes or configurations to suit particular tasks or terrains. Q: What other equipment can be used with a land leveler? A: In addition to land levelers, we offer a wide range of agricultural equipment, including PTO shafts, gearboxes, mowers, and seeders, to complement your land management needs. Author: Yjx
