10B-2 Metric Roller Chain Sprockets

Raydafon Group's 10B-2 Metric Roller Chain Sprockets deliver precision power transmission with rugged durability. Crafted from high-grade steel, these sprockets ensure smooth, reliable operation in industrial machinery, reducing downtime for engineers and maintenance teams. Ideal for harsh environments, they offer superior wear resistance and easy installation, solving your chain drive challenges. Stand out with Raydafon's quality guarantee—upgrade your system today for unmatched performance.

Send Inquiry

Product Description

10B-2 roller chain sprockets are manufactured for metric 10B-2 roller chain and are manufactured in accordance with ISO, DIN, and BS228/3 standards. Our sprockets are precision manufactured from high-quality steel, directly interchange with other manufactures, and are engineered for superb performance and durability. Common styles of these sprockets include B-Hub, C-Hub, and taper bushed type but others are available upon request. 10B-2 Metric Roller Chain Sprockets

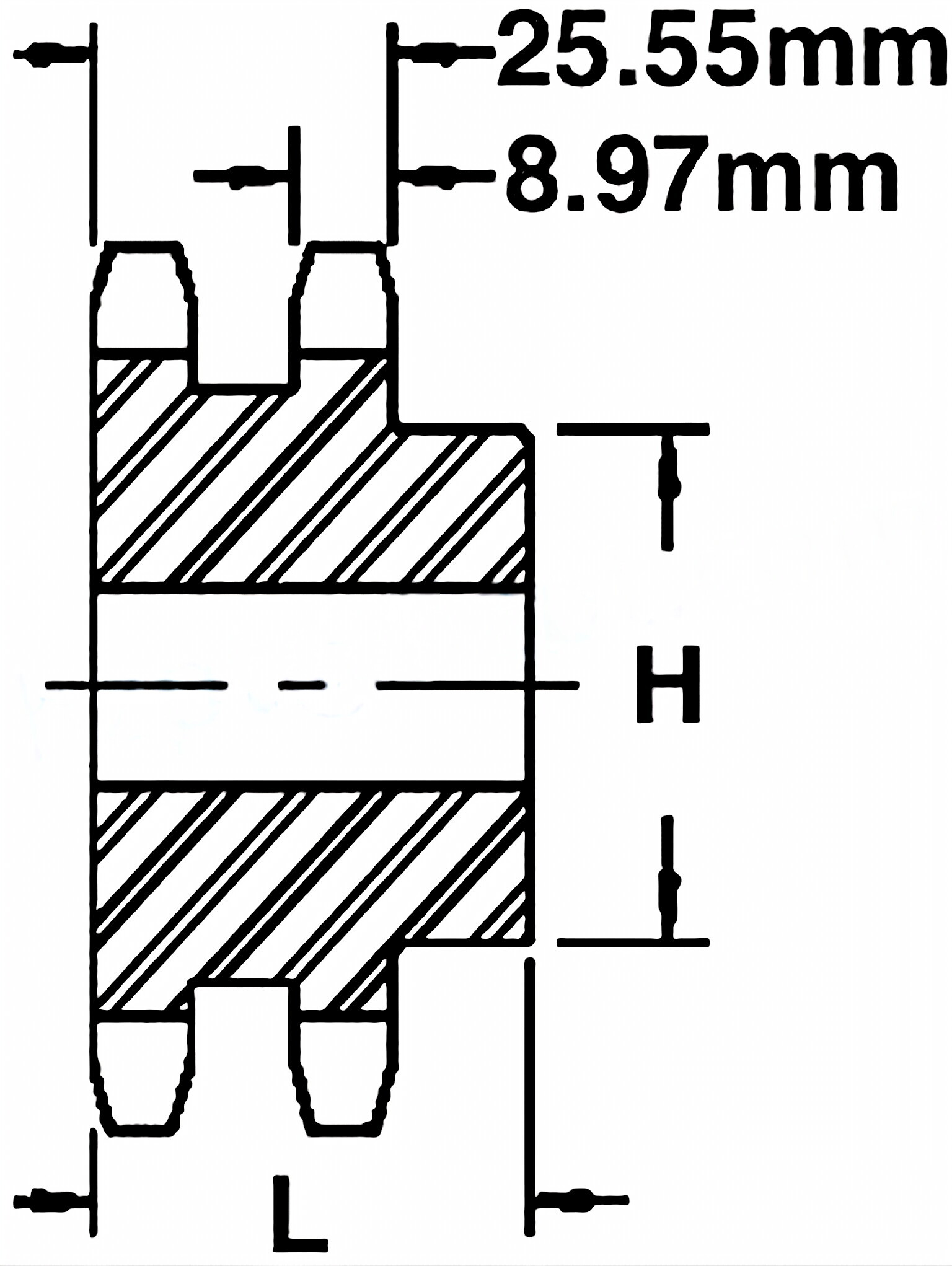

10B-2 B-Hub Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Maximum Bore	Hub Diameter (H)	Length Thru Bore (L)	Sprocket Weight (kg)
*D10B11*	11	56.34mm	14mm	24mm	37mm	40mm	18.3mm
*D10B12*	12	61.34mm	14mm	25mm	44mm	40mm	0.57
*D10B13*	13	66.32mm	14mm	29mm	49mm	40mm	0.70
*D10B14*	14	71.34mm	14mm	35mm	53mm	40mm	0.84
*D10B15*	15	76.36mm	14mm	35mm	59mm	40mm	0.99
*D10B16*	16	81.37mm	16mm	40mm	63mm	45mm	1.23
*D10B17*	17	86.39mm	16mm	40mm	69mm	45mm	1.47
*D10B18*	18	91.42mm	16mm	48mm	73mm	45mm	1.68
*D10B19*	19	96.45mm	16mm	46mm	79mm	45mm	1.90
*D10B20*	20	101.49mm	16mm	56mm	84mm	45mm	2.10
*D10B21*	21	106.52mm	16mm	55mm	85mm	45mm	2.31
*D10B22*	22	111.55mm	16mm	60mm	90mm	45mm	2.58
*D10B23*	23	116.58mm	16mm	55mm	95mm	45mm	2.85
*D10B24*	24	121.62mm	16mm	64mm	100mm	45mm	3.14
*D10B25*	25	126.66mm	16mm	55mm	105mm	45mm	3.44
*D10B26*	26	131.70mm	20mm	73mm	110mm	45mm	3.69
*D10B27*	27	136.75mm	20mm	55mm	110mm	45mm	3.95
*D10B28*	28	141.78mm	20mm	76mm	115mm	45mm	4.25
*D10B29*	29	146.83mm	20mm	76mm	115mm	45mm	4.55
*D10B30*	30	151.87mm	20mm	58mm	120mm	45mm	4.87
*D10B32*	32	161.95mm	20mm	80mm	120mm	45mm	4.95
*D10B35*	35	177.10mm	20mm	80mm	120mm	45mm	5.08
*D10B36*	36	182.15mm	20mm	80mm	120mm	45mm	5.11
*D10B38*	38	192.24mm	20mm	58mm	120mm	45mm	5.20
*D10B40*	40	202.34mm	30mm	80mm	120mm	50mm	5.41
*D10B45*	45	227.58mm	30mm	60mm	100mm	50mm	5.94
*D10B48*	48	242.73mm	30mm	80mm	120mm	60mm	7.27
*D10B57*	57	288.18mm	29mm	60mm	100mm	56mm	8.61
*D10B60*	60	303.32mm	32mm	85mm	130mm	60mm	9.30
*D10B70*	70	353.84mm	32mm	85mm	130mm	60mm	9.99
*D10B76*	76	384.16mm	29mm	85mm	100mm	63mm	10.68
*D10B80*	80	404.35mm	32mm	85mm	130mm	60mm	11.00
*D10B95*	95	480.14mm	32mm	85mm	130mm	60mm	12.00
*D10B114*	114	576.13mm	32mm	85mm	130mm	60mm	13.00

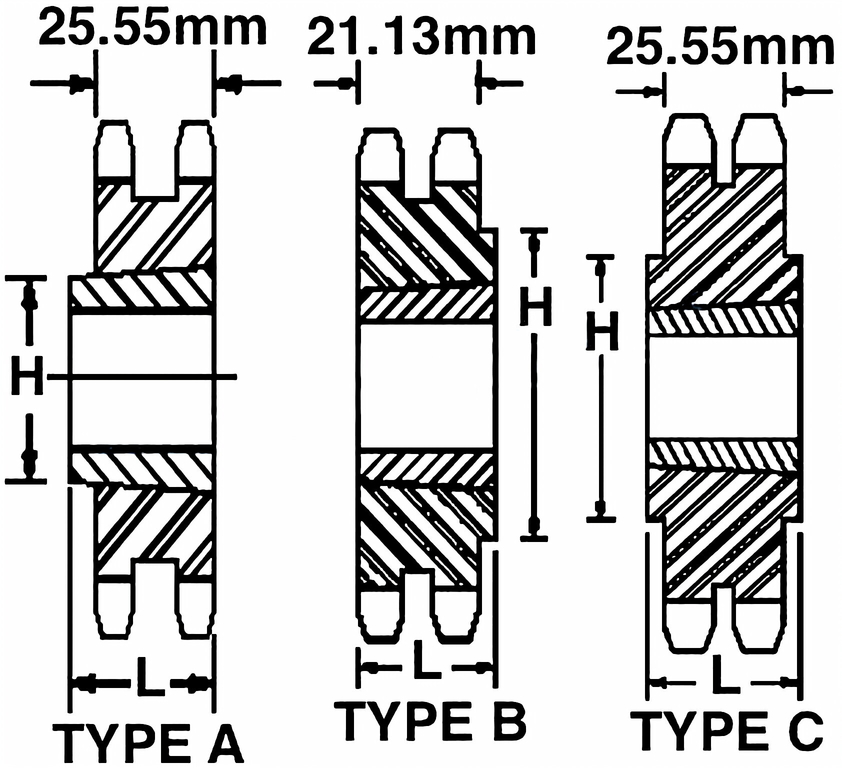

10B-2 Taper Bushed Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Bushing Number	Bushing Max. Bore	Dimension (L)	Dimension (H)	Sprocket Weight (kg)	Bushing Weight (kg)
D10ATB14	14	71.34mm	1008	25.4mm	22.2mm	--	0.43	0.09
D10ATB15	15	76.36mm	1210	31.8mm	25.4mm	--	0.39	0.21
D10ATB16	16	81.37mm	1610	41.3mm	25.4mm	--	0.35	0.31
D10ATB17	17	86.39mm	1610	41.3mm	25.4mm	--	0.46	0.31
D10ATB18	18	91.42mm	1610	41.3mm	25.4mm	--	0.62	0.31
D10ATB19	19	96.45mm	1610	41.3mm	25.4mm	--	0.75	0.31
D10BTB20	20	101.49mm	1610	41.3mm	25.4mm	--	0.87	0.31
D10BTB21	21	106.52mm	1610	41.3mm	25.4mm	--	1.05	0.31
D10BTB22	22	111.55mm	1610	41.3mm	31.8mm	--	1.2	0.31
D10BTB23	23	116.58mm	1610	41.3mm	31.8mm	--	1.38	0.31
D10BTB24	24	121.62mm	2012	50.8mm	31.8mm	--	1.43	0.59
D10BTB25	25	126.66mm	2012	50.8mm	31.8mm	90.0mm	1.62	0.59
D10BTB26	26	131.70mm	2012	50.8mm	31.8mm	90.0mm	1.79	0.59
D10BTB27	27	136.75mm	2012	50.8mm	31.8mm	90.0mm	2.00	0.59
D10BTB28	28	141.78mm	2012	50.8mm	31.8mm	90.0mm	2.20	0.59
D10BTB29	29	146.83mm	2012	50.8mm	31.8mm	90.0mm	2.43	0.59
D10BTB30	30	151.87mm	2012	50.8mm	44.5mm	108.0mm	2.66	0.59
D10CTB36	36	182.15mm	2517	63.5mm	44.5mm	108.0mm	4.33	1.30
D10CTB38	38	192.24mm	2012	50.8mm	44.5mm	108.0mm	4.88	0.59
D10CTB42	42	212.44mm	2517	63.5mm	44.5mm	108.0mm	5.99	1.30
D10CTB45	45	227.58mm	2517	63.5mm	44.5mm	108.0mm	6.83	1.30
D10CTB48	48	242.73mm	2517	63.5mm	44.5mm	108.0mm	7.66	1.30
D10CTB57	57	288.18mm	2517	63.5mm	44.5mm	108.0mm	10.15	1.30
D10CTB60	60	303.32mm	2517	63.5mm	44.5mm	108.0mm	10.99	1.30
D10CTB68	68	343.74mm	2517	63.5mm	44.5mm	108.0mm	13.21	1.30
D10CTB76	76	384.16mm	2517	63.5mm	44.5mm	108.0mm	15.43	1.30
D10CTB84	84	424.57mm	2517	63.5mm	44.5mm	108.0mm	17.65	1.30
D10CTB95	95	480.14mm	2517	63.5mm	44.5mm	108.0mm	20.70	1.30
D10CTB114	114	576.13mm	2517	63.5mm	44.5mm	108.0mm	25.97	1.30
