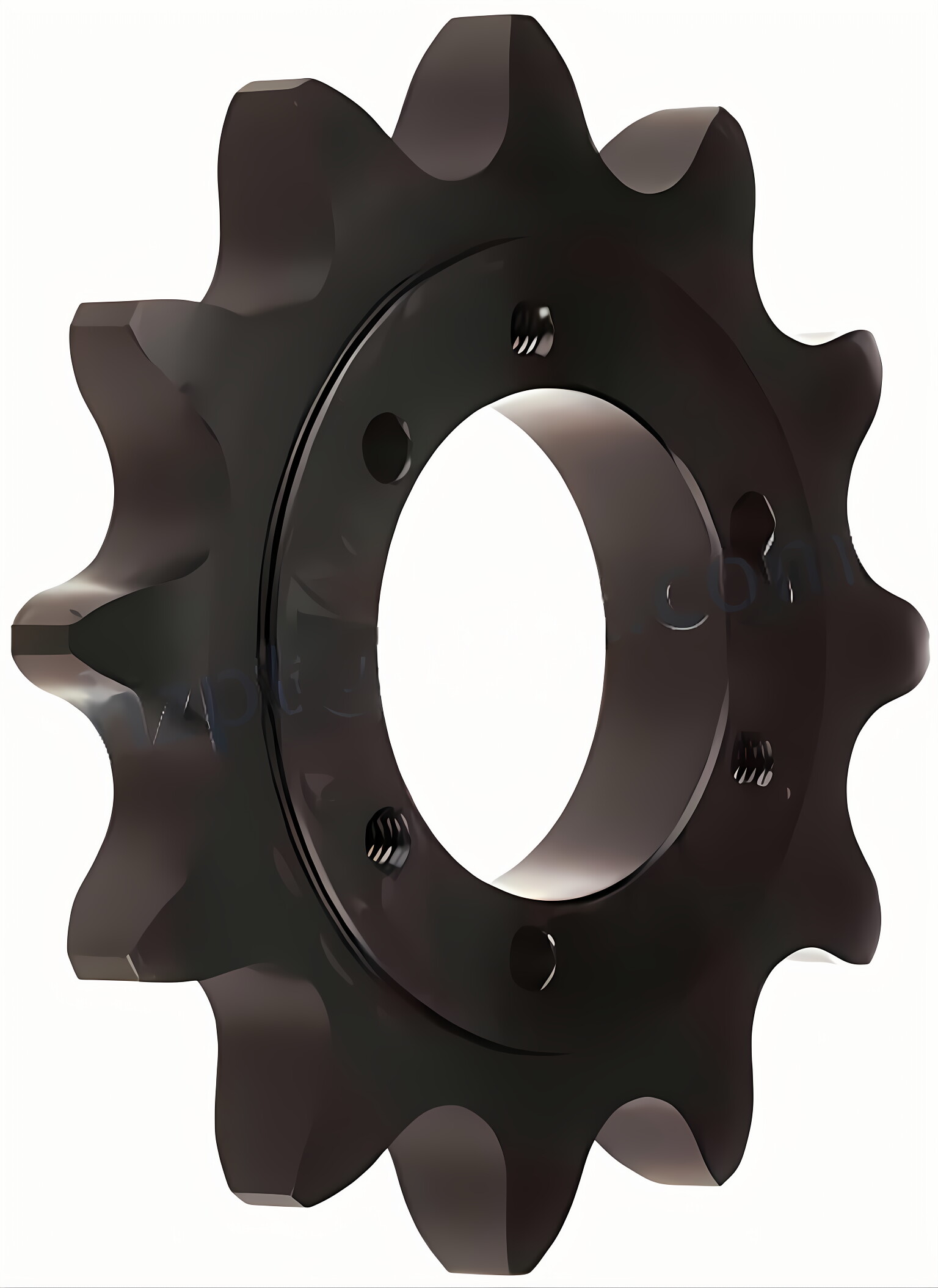

10B Metric Roller Chain Sprockets

Raydafon Group presents 10B Metric Roller Chain Sprockets, engineered for seamless power transmission in industrial machinery. Crafted from durable materials with precise design, these sprockets ensure reliability and efficiency for engineers and manufacturers, reducing downtime. Experience superior performance that sets a benchmark in the industry. Trust Raydafon Group for your mechanical needs.

Send Inquiry

Product Description

10B roller chain sprockets are manufactured for metric 10B roller chain and is manufactured in accordance with ISO, DIN, and BS228 standards. All of our sprockets are precision manufactured from high-quality steel, and the majority of them are black oxide coated, and have hardened teeth on tooth counts 30 or less. Something important to know note is that on tooth counts 31 and up hardened teeth make little to no performance increase, this is why it is not standard. 10B Metric Roller Chain Sprockets

10B A-Plate Sprockets

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Sprocket Weight (kg)
10A12	12	61.34mm	12mm	0.15
10A13	13	66.33mm	12mm	0.19
10A14	14	71.33mm	12mm	0.23
10A15	15	76.36mm	12mm	0.25
10A16	16	81.37mm	12mm	0.31
10A17	17	86.39mm	12mm	0.35
10A18	18	91.42mm	12mm	0.39
10A19	19	96.45mm	12mm	0.43
10A20	20	101.48mm	16mm	0.48
10A21	21	106.51mm	16mm	0.51
10A22	22	111.55mm	16mm	0.59
10A23	23	116.59mm	16mm	0.65
10A24	24	121.62mm	15mm	0.68
10A25	25	126.66mm	15mm	0.73
10A26	26	131.70mm	15mm	0.78
10A27	27	136.74mm	18mm	0.89
10A28	28	141.79mm	18mm	0.93
10A29	29	146.86mm	18mm	1.07
10A30	30	151.87mm	18mm	1.15
10A31	31	156.92mm	18mm	1.23
10A32	32	161.96mm	18mm	1.27
10A33	33	167.01mm	18mm	1.42
10A34	34	172.05mm	18mm	1.45
10A35	35	177.10mm	18mm	1.51
10A36	36	172.15mm	18mm	1.73
10A37	37	187.19mm	18mm	1.81
10A38	38	192.24mm	18mm	1.88
10A39	39	197.29mm	18mm	2.00
10A40	40	202.33mm	18mm	2.02
10A41	41	207.38mm	18mm	2.20
10A42	42	212.43mm	18mm	2.26
10A43	43	217.48mm	18mm	2.38
10A44	44	222.53mm	18mm	2.46
10A45	45	227.58mm	18mm	2.69
10A46	46	232.63mm	18mm	2.91
10A47	47	237.68mm	18mm	2.95
10A48	48	242.73mm	24mm	2.98
10A49	49	247.78mm	24mm	3.20
10A50	50	252.82mm	24mm	3.22
10A51	51	257.87mm	24mm	3.32
10A52	52	262.92mm	24mm	3.62
10A53	53	267.97mm	24mm	3.67
10A54	54	273.03mm	24mm	3.76
10A55	55	278.08mm	24mm	3.88
10A56	56	283.13mm	24mm	4.04
10A57	57	288.18mm	24mm	4.25
10A58	58	293.23mm	24mm	4.67
10A59	59	298.28mm	24mm	4.76
10A60	60	303.33mm	24mm	4.90
10A70	70	353.84mm	24mm	6.35
10A72	72	363.94mm	24mm	6.91
10A76	76	384.15mm	24mm	9.11
10A80	80	404.36mm	24mm	9.53
10A84	84	424.57mm	24mm	10.02
10A95	95	480.14mm	24mm	12.25
10A96	96	485.19mm	24mm	12.43
10A112	112	566.03mm	24mm	17.10
10A114	114	576.13mm	24mm	17.84

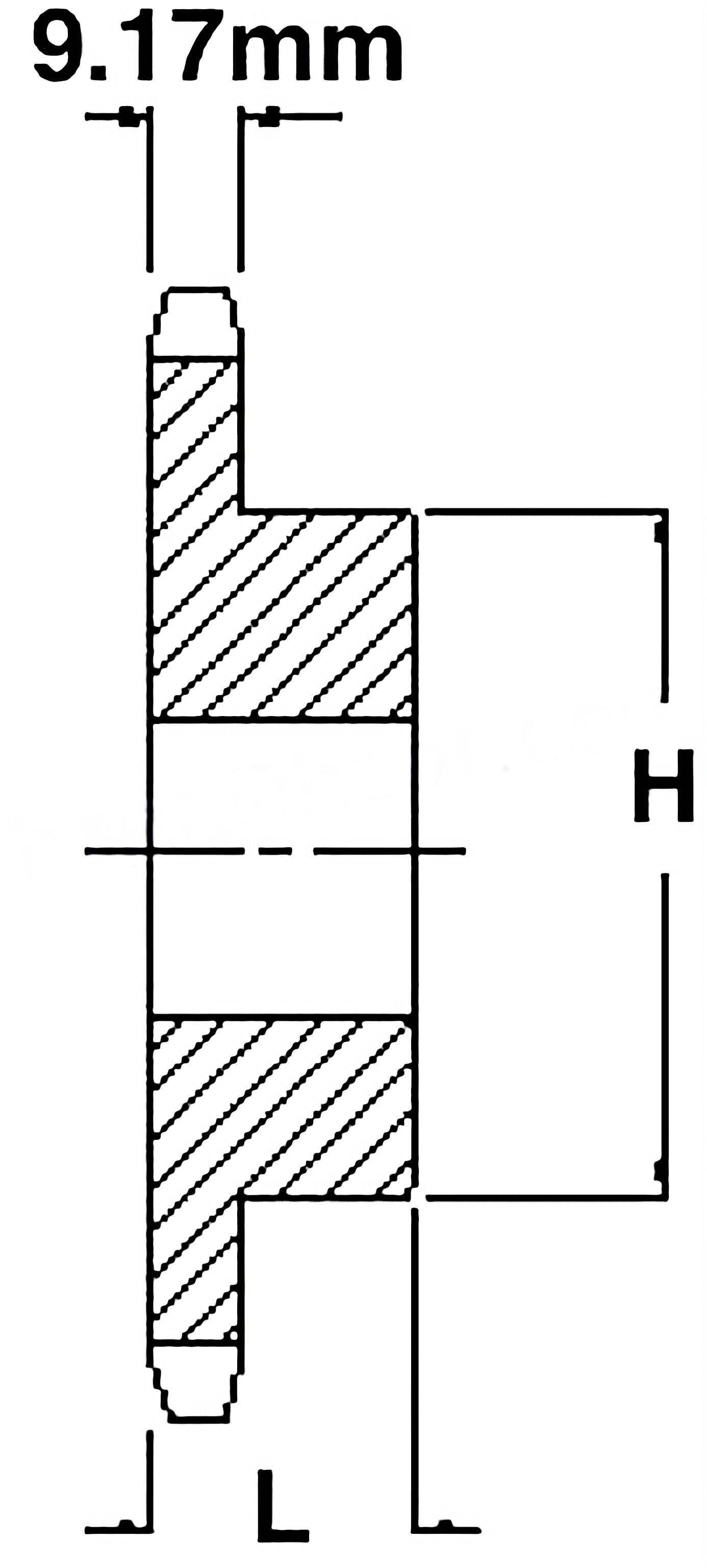

10B B-Hub Sprockets

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Max. Bore	Hub Diameter (H)	Length Thru Bore (L)	Weight (kg)
10B8	8	41.48mm	12mm	16mm	22mm	25mm	0.09
10B9	9	46.42mm	12mm	19mm	27mm	25mm	0.14
10B10	10	51.37mm	12mm	22mm	32mm	25mm	0.23
10B11	11	56.35mm	12mm	25mm	37mm	25mm	0.27
10B12	12	61.34mm	12mm	32mm	43mm	25mm	0.32
10B13	13	66.33mm	12mm	33mm	48mm	25mm	0.36
10B14	14	71.34mm	12mm	36mm	53mm	25mm	0.45
10B15	15	76.36mm	12mm	38mm	57mm	25mm	0.59
10B16	16	81.37mm	12mm	44mm	63mm	25mm	0.68
10B17	17	86.39mm	12mm	47mm	67mm	25mm	0.82
10B18	18	91.42mm	12mm	48mm	73mm	25mm	0.91
10B19	19	95.45mm	16mm	51mm	76mm	25mm	1.04
10B20	20	101.48mm	16mm	51mm	76mm	25mm	1.13
10B21	21	106.51mm	16mm	51mm	76mm	25mm	1.18
10B22	22	111.55mm	16mm	51mm	76mm	25mm	1.27
10B23	23	116.59mm	16mm	51mm	76mm	25mm	1.45
10B24	24	121.62mm	16mm	51mm	76mm	32mm	1.50
10B25	25	126.66mm	16mm	51mm	76mm	32mm	1.59
10B26	26	131.70mm	16mm	51mm	76mm	32mm	1.63
10B27	27	136.74mm	19mm	51mm	76mm	32mm	1.68
10B28	28	141.79mm	19mm	51mm	76mm	32mm	1.72
10B29	29	146.83mm	19mm	51mm	76mm	32mm	1.91
10B30	30	151.87mm	19mm
