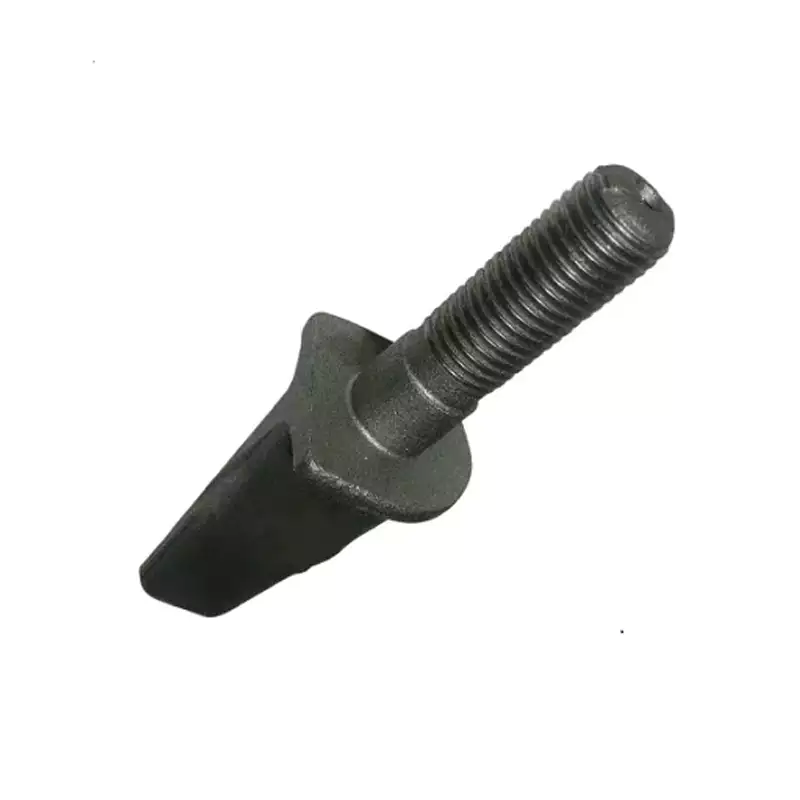

113010010000 Cylinder Spike Tooth For Combine Harvesters Concave

113010010000 Cylinder Spike Tooth For Combine Harvesters Concave

Introduction

The cylinder spike tooth is a component used in agricultural machinery, specifically in combine harvesters. It is responsible for separating the grain from the stalks. This efficient process is crucial in saving time and resources during the harvesting process.

Below is a table that lists the specifications for the 113010010000 Cylinder Spike Tooth:

Applications

The Cylinder spike tooth is primarily used in combine harvesters, and it is located in the concave.

Here is an image showing the Cylinder spike tooth in action:

Compatibility

The 113010010000 Cylinder Spike Tooth is compatible with various brands and models of combine harvesters. Here is a table that lists the compatible brands and models:

In addition to the Cylinder spike tooth, we offer a wide range of agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, and more. You can find all the parts you need for your farming equipment with us.

Signs of Replacement

It is crucial to identify the signs of wear and tear on your Cylinder spike tooth parts to ensure maximum efficiency during the harvesting process. Here are some signs to look out for:

1. Decreased Threshing Efficiency: If you notice that the threshing efficiency has reduced, it could be a sign that the spike tooth is worn out and can no longer provide the necessary cutting and threshing force.
2. Visible Wear: Check for broken or missing spike teeth, excessive wear and deformation of the teeth, or a significant reduction in tooth height.
3. Damage from Foreign Objects: If the machine takes in stones, metal fragments or other hard materials during operation, the spike tooth can break or become damaged, significantly affecting the threshing function.
4. Unusual Noise: Unusual noise coming from the thresher section may indicate abnormal contact or collision between damaged spike teeth and other parts.
5. Increased Power Consumption: If the spike teeth are worn out, the machine may require more power to achieve the same threshing effect, resulting in increased fuel consumption or engine load.

Here is an image that shows some of the signs of Cylinder spike tooth wear:

Choosing the Right Cylinder Spike Tooth

Choosing the correct Cylinder spike tooth can have a significant impact on the harvesting process. Here are some factors to consider when choosing the right spike tooth:

1. Crop Type: Different crops have different requirements for spike teeth. For example, crops with smaller grains and softer stalks, like wheat or rice, require spike teeth that are better suited for fine threshing. Crops with larger grains and harder stalks, like corn, require spike teeth that are more durable and have stronger penetration.
2. Shape and Arrangement of Teeth: Spike teeth come in various shapes, including straight, oblique, and curved. Each shape has specific applications. The density of the teeth also affects the threshing efficiency and the degree of damage to the crop. Generally, high-density arrangements are suitable for fine threshing, while low-density arrangements are beneficial in reducing damage to the stalks.
3. Material and Hardness: The material of the spike teeth should be wear-resistant, corrosion-resistant, and have a certain toughness to ensure long-term stability. The choice of hardness is also crucial. Too hard teeth may wear out prematurely or damage the crop too quickly, while too soft teeth may wear out quickly, affecting their service life.

Author: Miya
