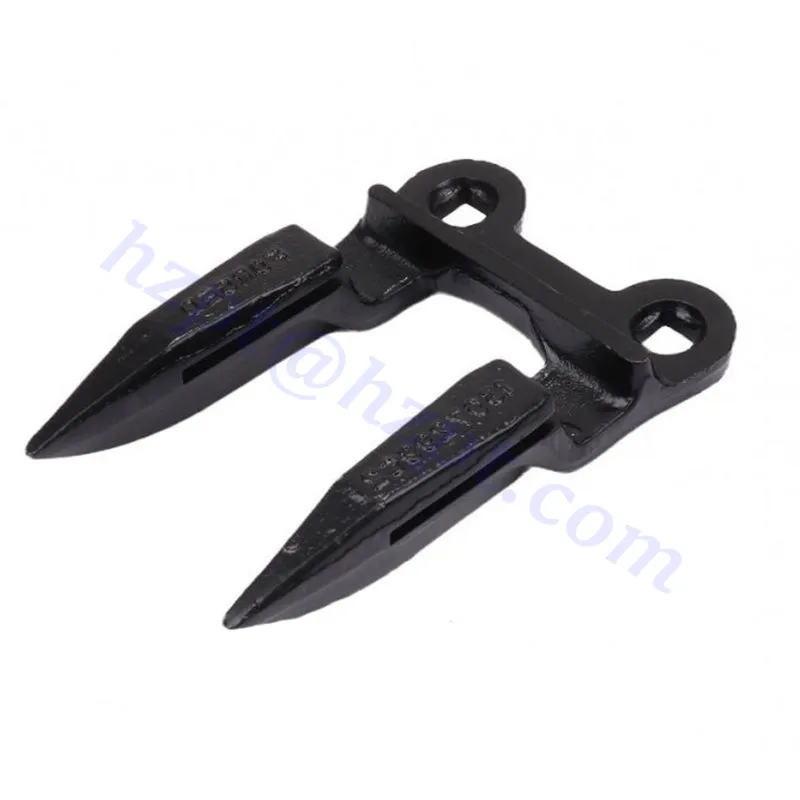

1307299C2 Double Knife Guard for Case-IH Combine Harvesters

Product Specifications

Application	CASE-IH Header: 1010, 2020
SKU	1307299C2
Reference Code	1307299C1, 1307299C2, 334305A1
Manufacturer	Raydafon Group
Brand	EP
Weight	0.964KG
Finishing	Painting Green Color or Red or Galvanize or OEM
Packing	Carton or Wooden box or Iron Box

Note: Our products are replacement parts and not original equipment. We provide perfect replacement products for original equipment. If you need to purchase the original equipment, please contact the original supplier.

Overview of 1307299C2 Double Knife Guard for Case-IH Combine Harvesters

The 1307299C2 Double Knife Guard is a critical component designed for use in Case-IH combine harvesters, such as models 1010 and 2020. specifically engineered to enhance the efficiency and reliability of the cutting system during harvesting operations. This double knife guard is part of the cutter bar assembly and serves as a protective mechanism for the sickle sections, ensuring they are well-aligned and safeguarded from external damage caused by debris, rocks, or other obstructions commonly encountered in agricultural fields. Made from high-strength, durable steel, the 1307299C2 is designed to withstand the rigors of heavy-duty harvesting over long periods. Its double-guard configuration provides added stability and precision, enabling the knives to make clean, efficient cuts through crops such as wheat, soybeans, or corn. The dual structure improves the cutting mechanism’s performance by reducing knife flex and ensuring consistent crop flow into the combine's feeder system.

Function and Use of 1307299C2 Double Knife Guard for Case-IH Combine Harvesters

The 1307299C2 Double Knife Guard is a vital component of the cutter bar system in Case-IH combine harvesters. Its primary function is to protect and guide the sickle sections (cutting blades) as they move back and forth to cut crops during harvesting. This double knife guard plays a dual role: safeguarding the cutter bar system from damage caused by field debris while ensuring efficient and precise cutting of crops. It is specifically engineered to enhance the functionality, durability, and reliability of the harvesting system. The double knife guard helps maintain the alignment and stability of the sickle sections, ensuring they operate at peak efficiency. Positioned along the cutter bar, the guard acts as a stationary component that holds the sickle sections in place while preventing flexing or misalignment during operation. This design allows for a clean and consistent cutting action, reducing crop loss and improving the flow of material into the combine’s feeder system. Furthermore, its dual-point configuration ensures enhanced stability compared to single guards, allowing it to handle tougher conditions and heavier crop loads. Constructed from high-strength steel, the 1307299C2 is built to endure the rigors of demanding agricultural environments. It resists wear and tear caused by regular usage, as well as impacts from rocks, soil, and other debris commonly encountered in the field. This durability increases the lifespan of the knife guard and contributes to the overall longevity of the combine harvester’s cutting system.

Advantages of 1307299C2 Double Knife Guard for Case-IH Combine Harvesters

The 1307299C2 Double Knife Guard for Case-IH Combine Harvesters offers several advantages that contribute to the efficient and effective operation of the harvesting equipment. Some of the key benefits of this component include:

1. Enhanced Protection for Sickle Sections: The 1307299C2 double knife guard acts as a protective barrier for the sickle sections, shielding them from potential damage caused by rocks, debris, or other obstructions in the field. By preventing direct impacts on the cutting blades, the guard reduces wear and extends the lifespan of the cutting system, minimizing downtime and repair costs.
2. Improved Cutting Precision: This knife guard ensures the sickle sections remain properly aligned and stable during operation. The enhanced stability minimizes vibration and blade flexing, allowing for clean, precise cuts. This improves the overall efficiency of the harvester and ensures that crops are cut at the right height, reducing crop loss and waste during harvesting.
3. Durability and Resistance to Wear: Constructed from high-strength, durable steel, the 1307299C2 is designed to withstand the demanding conditions of agricultural work. It resists bending, cracking, and general wear, even when exposed to tough crops or harsh field conditions, ensuring long-lasting performance and reducing the need for frequent replacements.
4. Dual Guard Configuration for Stability: The double guard design provides superior stability compared to single knife guards. This configuration ensures that both sides of the sickle sections are supported, reducing the risk of misalignment or uneven cutting. The added stability is particularly beneficial when working with heavier crops or in challenging field conditions.
5. Improved Crop Flow Efficiency: By ensuring a clean and consistent cut, the 1307299C2 double knife guard helps optimize the flow of harvested material into the combine’s feeder system. This prevents blockages and enables the harvester to operate at its full capacity, improving overall field efficiency and reducing time spent clearing jams.

How to Replace a Damaged 1307299C2 Double Knife Guard for Case-IH Combine Harvester

Replacing a damaged knife guard is an important maintenance task for Case-IH Combine Harvesters. A damaged guard can affect the performance and efficiency of the harvester, as well as pose safety risks. Follow these steps to replace a damaged 1307299C2 Double Knife Guard:

1. Inspect the Cutter Bar System: Begin by carefully inspecting the cutter bar system to identify the damaged 1307299C2 knife guard. Look for signs of cracks, bends, or excessive wear that may affect cutting performance. While inspecting, also check other guards and sickle sections to determine if additional components need repair or replacement.
2. Remove Obstructions and Debris: Clear any crop residue, dirt, or debris from the cutter bar area. This will provide better visibility and access to the knife guard, reducing the chance of complications during the replacement process. Use a brush or compressed air to clean hard-to-reach areas around the guard and sickle sections.
3. Loosen and Remove the Damaged Guard: Using the appropriate tools, locate and loosen the bolts securing the damaged knife guard to the cutter bar. Carefully remove the bolts and any washers or spacers, keeping them in a safe place if they are reusable. Gently slide or lift the damaged guard off the cutter bar, ensuring you do not disturb neighboring components.
4. Inspect the Mounting Surface: Before installing the replacement guard, inspect the mounting surface on the cutter bar for damage, wear, or debris. Clean the area thoroughly and make any necessary repairs to ensure a secure fit for the new knife guard. This step prevents improper installation or future issues with alignment.
5. Install the New 1307299C2 Knife Guard: Align the replacement knife guard with the mounting holes on the cutter bar. Insert the bolts and any required washers or spacers, tightening them securely with the appropriate tools. Ensure the guard is properly seated and parallel to the cutter bar for optimal performance and durability during operation.
6. Recheck Alignment of the Cutter Bar: After securing the new knife guard, inspect the alignment of the entire cutter bar system. Verify that the sickle sections move freely and are properly supported by all guards. Adjust any misaligned components as needed to ensure smooth and efficient cutting performance during operation.
7. Test the Harvester Before Use: Once the replacement is complete, reconnect the engine and perform a test run of the combine harvester. Operate the cutter bar at a low speed to ensure the new guard is functioning correctly and there are no unusual noises or vibrations. Resume regular harvesting operations once you are satisfied with the repair.

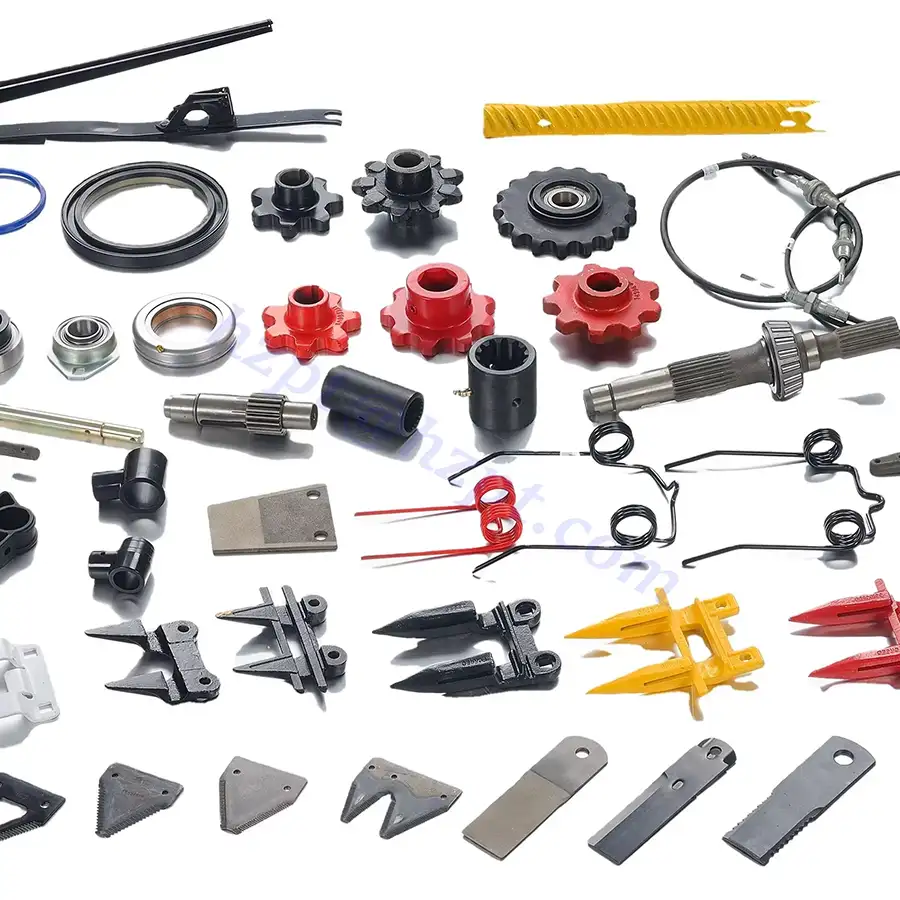

Other Replacement Combine Harvester Parts for Case-IH

Combine harvesters are complex machines that rely on various components to ensure optimal performance during harvesting operations. Over time, these parts may wear out or get damaged, requiring replacement to maintain efficiency and minimize downtime. Below are some essential replacement parts commonly used in Case-IH combine harvesters: 1. Idler Pulley: The idler pulley is a crucial part of the belt drive system in combine harvesters. It helps to maintain proper tension and alignment of the belts, ensuring smooth power transmission to various parts of the machine. A worn or damaged idler pulley can lead to belt slippage, reduced efficiency, or machine downtime, making timely replacement essential for optimal performance. Idler pulleys are available in various sizes and materials, depending on the specific requirements of the machine. 2. Drive Pulley: The drive pulley is responsible for transmitting power from the engine to other mechanical systems within the combine harvester. It works in tandem with the belts, ensuring that the machine's components operate efficiently. Over time, drive pulleys can wear down, causing reduced power transfer or belt misalignment, necessitating replacement to maintain smooth operation. Drive pulleys are available in different sizes and materials, depending on the specific requirements of the machine. 3. Gears: Gears are essential for transferring power within the drivetrain and cutting systems of combine harvesters. They are precision-engineered to handle high loads and ensure synchronized operation of various moving parts. Damaged or worn gears can lead to inefficient power transmission, increased wear on other components, and reduced machine reliability, requiring prompt replacement. Gears are available in various sizes, materials, and configurations, depending on the specific requirements of the machine. 4. Drive Shaft: The drive shaft transmits rotational power from the engine to various parts of the combine harvester, such as the cutting platform or threshing mechanism. It is designed to handle heavy loads and continuous use. A failing drive shaft can cause vibrations, loss of power, or complete system failure, making it a key component that requires proper maintenance and replacement when needed. Drive shafts are available in different lengths, diameters, and materials, depending on the specific requirements of the machine. 5. Drive Hub: The drive hub connects the drive shaft to other rotating components, such as the cutting blades or threshing drum. It ensures smooth and reliable power transfer while maintaining alignment. A damaged drive hub can lead to misalignment, excessive wear on connected parts, or uneven operation, necessitating its timely replacement. Drive hubs are available in various sizes, materials, and configurations, depending on the specific requirements of the machine. 6. Knife Blade: Knife blades are crucial for cutting crops during harvesting. These sharp, durable components are mounted on the cutting platform and work in conjunction with knife guards. Over time, knife blades can dull or break due to contact with rocks or tough vegetation, requiring replacement to ensure clean, efficient cutting and prevent crop loss. Knife blades are available in various sizes, shapes, and materials, depending on the specific requirements of the machine. 7. Drive Sprocket: The drive sprocket is a key component in the chain-driven systems of combine harvesters. It transmits power to chains that drive various mechanisms, such as the feeder or threshing system. Worn sprocket teeth can result in chain slippage or breakage, reducing operational efficiency and requiring replacement to maintain functionality. Drive sprockets are available in different sizes, materials, and configurations, depending on the specific requirements of the machine. 8. Idler Sprocket: The idler sprocket maintains proper chain tension and alignment in chain-driven systems. It ensures that the drive chain operates smoothly without excessive slack or wear. A damaged or misaligned idler sprocket can lead to chain failure and downtime, making regular inspection and replacement critical for reliable operation of the combine harvester. Idler sprockets are available in various sizes, materials, and configurations, depending on the specific requirements of the machine.

Why Choose Raydafon's Forged Knife Guard?

As one of the leading manufacturers and wholesale distributors of aftermarket replacement parts for combine harvesters, balers, tractors, and corn heads in domestic and global markets, Raydafon has a comprehensive range of agricultural spare parts. Our product range consists of best quality aftermarket spare parts for combine harvesters such as John Deere, New Holland, Case, Claas, Welger, KMC, Amadas, Gallignani, Kubota, Laverda, MTZ, Ford, Maschio, Goldoni, Howard, BCS; which are all the world’s leading brands in the agricultural machinery industry. You can view our entire product range in detail on our product page. Our company supplies products to its local customers in the whole world. Over time, it has come a long way in this field, too. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. We continue to work with all our strengths to provide the best service to our business partners with our professional human resources, strong infrastructure, and customer-oriented service approach. When it comes to the Double Knife Guard for Case-IH Combine Harvesters, Raydafon is your best choice. Our product is crafted with precision and high-quality materials to ensure durability and performance. We adhere to stringent quality standards, ensuring each part meets the demands of rigorous agricultural operations. With our efficient manufacturing and strategic partnerships, we offer top-quality products at competitive prices, providing exceptional value without compromising on quality. At Raydafon, customer satisfaction is our priority. Our dedicated team is ready to assist with inquiries, orders, and technical support. We focus on building long-term relationships through personalized service and expert advice. We understand the importance of timely delivery in agriculture, and our efficient logistics network ensures that orders are delivered promptly, minimizing downtime during critical operations. What's more, we offer tailored solutions by welcoming customer specifications and designs. Provide drawings or samples, and our expert team will create customized parts to meet your unique needs, ensuring optimal performance. Choose Raydafon for quality products, a wide range of options, competitive prices, excellent customer service, fast delivery, and customization options. Contact us today to learn more about how we can meet your agricultural machinery replacement part needs.
