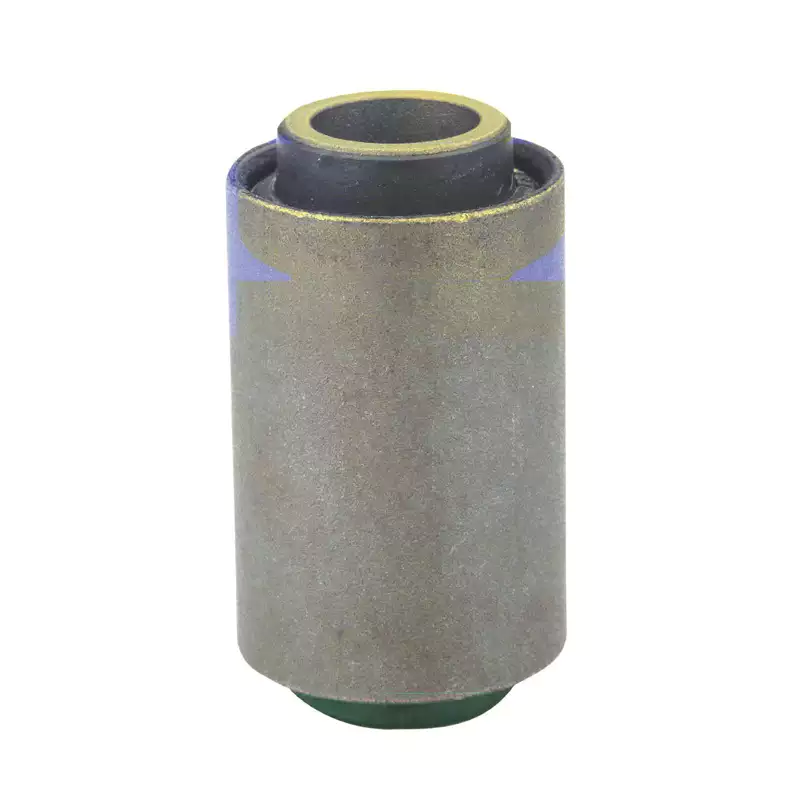

1330324C1 Silent Block Rubber Bushing

1330324C1 Silent Block Rubber Bushing

Silent Block Rubber Bushing is a type of rubber component that is widely used in agricultural machinery. This component acts as a shock absorber and helps reduce vibrations during the operation of the machine.Here is a list of where Silent Block Rubber Bushing is generally used in agricultural machinery:

Suspension System

Silent Block Rubber Bushing is used in the suspension systems of agricultural tractors and other farm machinery, such as harvesters and seeders. It is used to connect the chassis with the suspension arm or the suspension arm with the agricultural implement, providing cushioning and shock absorption.

Power Transmission System

Silent Block Rubber Bushing is used to connect the engine and the gearbox, the gearbox and the drive shaft, and the drive shaft and the wheel hub. The rubber component reduces the transmission of vibrations during power transfer.

Operating Mechanism

Silent Block Rubber Bushing is used in the steering linkages, braking system, and hydraulic operating mechanism. The rubber component reduces the impact and vibration of the moving parts.

Working Device Connection Point

Silent Block Rubber Bushing is used in various agricultural implements, such as plows, harrow disks, and cutter bars, to connect them to the mainframe. The rubber component reduces the impact on the main structure and adapts to uneven working conditions.Silent Block Rubber Bushing can be adapted to different brands and models of agricultural machinery. Here is a list of compatible models:

Compatible Models

Brand	Model
John Deere	4230, 4430, 4440
Case IH	7110, 7120, 7130
New Holland	TJ275, TJ325, TJ375

We also provide various agricultural machinery components, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, and more.Here are some signs that indicate it's time to replace Silent Block Rubber Bushing:

Signs of Wear and Tear

1. Abnormal Vibration and Noise: When Silent Block Rubber Bushing fails, the vibration that it absorbed will transfer to the entire machine structure, causing noise, such as "clicking" or "clanging."
2. Decreased Accuracy: If the machine's operation is less precise than before, such as unstable steering or difficulty in maintaining a straight line, it could be due to the wear and tear of the suspension or working device connection point.
3. Obvious Wear and Tear: If there are cracks, fractures, severe wear, deformation, or complete breakage on the surface of the rubber component, it needs to be replaced.
4. Decreased Performance: If the machine feels more bumpy during operation, the riding comfort is greatly reduced, or the agricultural implement has trouble sticking to the soil, it could be due to the failure of Silent Block Rubber Bushing, affecting the normal operation of the suspension or working device connection point.

When choosing the appropriate Silent Block Rubber Bushing, consider the following factors:

How to Choose the Right Silent Block Rubber Bushing

1. Size: Accurately measure the internal and external dimensions, as well as the length of the original bushing to ensure the new bushing matches the installation position.
2. Installation Method: Pay attention to the design of the bushing, including whether it has threads, flanges, or other special installation structures.
3. Material: High-quality Silent Block Rubber Bushing is often made of fatigue-resistant and wear-resistant synthetic rubber, such as Nitrile Rubber (NBR), Hydrogenated Nitrile Rubber (HNBR), and Fluorine Rubber (FKM), depending on the specific working conditions.
4. Damping Requirements: Choose rubber materials with suitable damping characteristics according to the vibration characteristics of the agricultural machinery to effectively absorb the vibration energy.
5. Weather Resistance: If the agricultural machinery works outdoor for an extended period, the bushing needs to have good resistance to UV, ozone, grease, and chemical corrosion.
