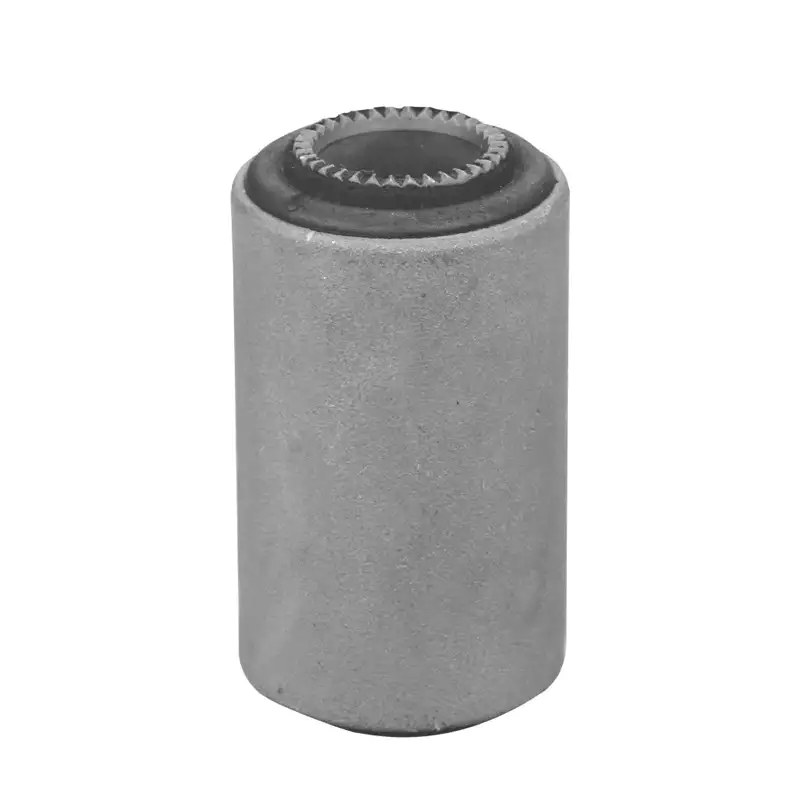

1330324C2 Silent Block Rubber Bushing

1330324C2 Silent Block Rubber Bushing

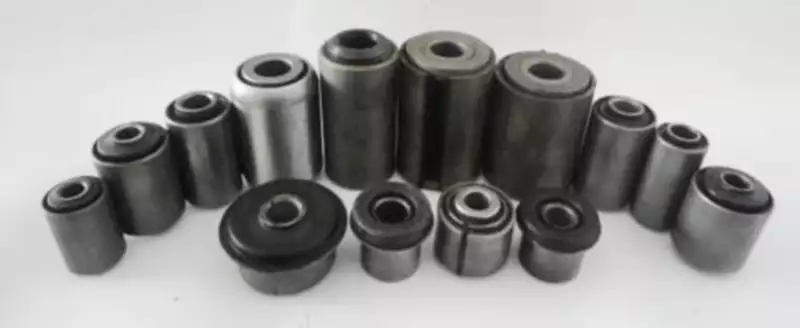

Silent Block Rubber Bushing is a type of mechanical component made of rubber and metal. In agricultural machinery, it is mostly used in the suspension system, power transmission system, control mechanism, and work device connection points. Its main function is to reduce vibration and absorb shock. Here is a specification table of 1330324C2 Silent Block Rubber Bushing for your reference:[ninja_tables id="409883"]

Suspension System

Silent Block Rubber Bushing is commonly used in the suspension system of agricultural tractors and other farm machinery, such as harvesters and seeders. It connects the chassis with the suspension arm or the implement with the suspension arm to reduce shock and cushion the vibration.

Power Transmission System

The connection shafts between the engine and gearbox, gearbox and drive shaft, and drive shaft and wheel hub in the power transmission system may use rubber bushings to reduce vibration transmission.

Control Mechanism

Silent Block Rubber Bushing can also be used in the steering linkages, brake systems, and hydraulic control mechanisms to reduce the impact and vibration of moving parts.

Work Device Connection Points

Various parts of agricultural machinery, such as plowshares, harrow blades, and cutter bars, are connected to the main frame using rubber bushings to adapt to the uneven working conditions and reduce the impact on the main structure.

Compatible Brands and Models

1330324C2 Silent Block Rubber Bushing is compatible with various agricultural machinery brands and models, including but not limited to:

Brand	Model
CASE IH	585, 685, 785, 885, 485XL, 585XL, 685XL, 785XL, 885XL, 956XL, 1056XL, 1255XL, 1455XL, CX70, CX80, CX90, CX100, MX80C, MX90C, MX100, MX100C, MX110, MX120, MX135, MXU100, MXU110, MXU115, MXU125, MXU135, 4210, 4220, 4230, 4240, 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250, 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 8910, 8920, 8930, 8940, 8950, 9310, 9330, 9350, 9370, 9380, 9390, MXM120, MXM130, MXM140, MXM155, MXM175, MXM190, MXU135, MXU175, MXU215
McCormick	CX75, CX85, CX95, CX105, CX75L, CX85L, CX95L, CX105L, MC90, MC100, MC105, MC110, MC115, MC120, MC135, MTX110, MTX125, MTX140, MTX155, MTX175, MTX185, MTX200, MTX215, XTX145, XTX165, XTX185
New Holland	TM115, TM120, TM125, TM130, TM135, TM140, TM150, TM155, TM165, TM175, TM190, TS90, TS100, TS110, TS115, TS125A, TS130A, TS135A, TS90A, 4835, 5635, 6635, 7635, 8160, 8260, 8360, 8560, 8670, 8770, 8870, 8970, TG210, TG215, TG230, TG245, TG255, TG275, TG285, T6010, T6020, T6030, T6050, T6070, T6080, T7030, T7040, T7050, T7060, T7070, TL70, TL80, TL90, TL100, TV140, TV145, TV6070

Other Agricultural Machinery Parts

Besides the Silent Block Rubber Bushing, we also offer a wide range of agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, and more. You can find all the parts you need from us.

Signs for Replacing Silent Block Rubber Bushing

It is essential to replace the Silent Block Rubber Bushing when the following signs appear:

Abnormal Vibration and Noise

When the rubber bushing fails, the vibration that was once absorbed by it will transmit to the whole machinery structure, resulting in noise such as "click" and "clang."

Decreased Precision

If the operation precision of the agricultural machinery decreases, such as unstable steering or difficulty maintaining a straight line during field operation, it may be caused by the wear and tear of the rubber bushing at the suspension system or work device connection points, leading to parts' displacement.

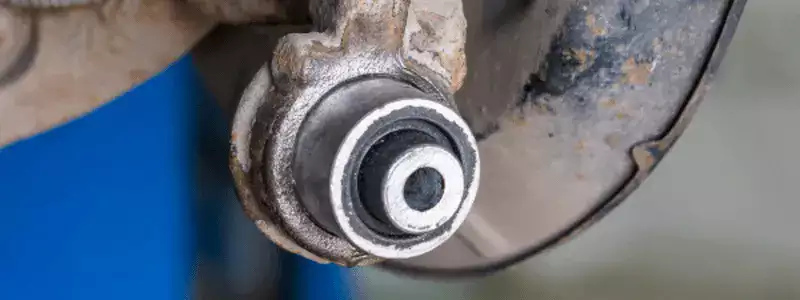

Obvious Wear and Tear

When inspecting the agricultural machinery regularly, if the rubber bushing's surface shows cracks, fractures, severe wear, deformation, or complete rupture, it indicates that the bushing has lost its function and needs to be replaced.

Reduced Performance

If the agricultural machinery feels more bumpy during operation and the ride comfort decreases significantly, or the implement's contact with the soil worsens, it may be caused by the failure of the rubber bushing, affecting the normal operation of the suspension system or work device.

How to Choose the Right Silent Block Rubber Bushing

To choose the suitable Silent Block Rubber Bushing, pay attention to the following aspects:

Inner and Outer Diameter Dimensions

Measure the inner and outer diameters and length of the original rubber bushing accurately to ensure that the new one can match the installation position tightly.

Installation Method

Pay attention to the design of the rubber bushing, including whether it has threads, flanges, or other special installation structures.

Material

High-quality rubber bushings are usually made of synthetic rubber that is resistant to fatigue and wear, such as NBR, HNBR, FKM, etc. Choose the appropriate material according to the specific working conditions.

Damping Requirements

Select rubber materials with suitable damping characteristics according to the agricultural machinery's vibration characteristics to effectively absorb vibration energy.

Weather Resistance

If the agricultural machinery works outdoors for a long time, the rubber bushing needs to have good resistance to UV, ozone, grease, and chemical corrosion.Author: Miya
