14 Series PTO Shaft-Replacement of Weasler PTO Shaft

Upgrade your equipment with Raydafon Group's 14 Series PTO Shaft, a direct replacement for Weasler PTO shafts. Engineered with premium materials for superior durability and performance, it ensures smooth power transfer in demanding agricultural and industrial applications. Experience enhanced reliability and efficiency today.

Send Inquiry

Product Description

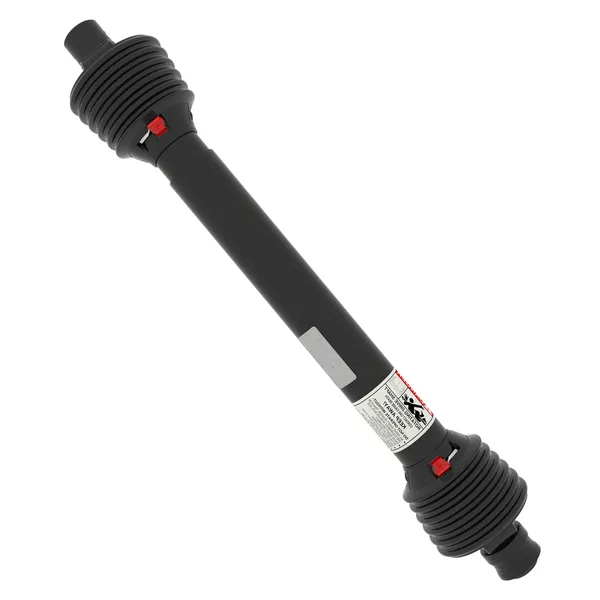

14 Series PTO Shaft-Replacement of Weasler PTO Shaft

The Replacement of Weasler 14 series PTO shaft is a type of power take-off (PTO) shaft used in agricultural and industrial machinery to transfer power from a tractor or other power source to an attached implement. The "14 Series" designation refers to the standardized dimensions of the shaft. The Replacement of Weasler 14 series PTO shaft has a standard 1-3/8 inch 6-spline on the tractor side and a 1-3/8 inch smooth bore with either a 1/2 inch or 3/4 inch shear pin on the implement side. The Replacement of Weasler 14 series PTO shaft is typically made of steel and can vary in length depending on the specific application.It is important to use the correct size and type of PTO shaft for your machinery to ensure safe and efficient operation. It is also important to regularly inspect and maintain PTO shafts to prevent accidents and prolong their lifespan. If you are looking for a high-performance, reliable, and safe PTO shaft, our Replacement of Weasler 14 series PTO shaft is a great option. 14 Series PTO Shaft-Replacement of Weasler PTO Shaft

Replacement of Weasler 14 Series PTO Shaft Design Features

The Replacement of Weasler 14 series PTO shaft is designed with several key features that make it a popular choice for agricultural and industrial machinery:1. Standardized dimensions: The Replacement of Weasler 14 series PTO shaft has standardized dimensions, which ensures that it can be easily interchanged between different machines and implements.2. Spline design: The 6-spline design on the tractor side of the Replacement of Weasler 14 series PTO shaft provides a secure and efficient transfer of power from the tractor to the implement. The splines also allow for easy attachment and detachment of the shaft.3. Shear pin: The implement side of the Replacement of Weasler 14 series PTO shaft typically features a 1/2 inch or 3/4 inch shear pin, which is designed to break if the implement becomes jammed or overloaded. This helps to prevent damage to the machinery and ensures the safety of the operator.4. Telescoping design: Some Replacement of Weasler 14 series PTO shafts feature a telescoping design, which allows the shaft to be adjusted to different lengths to accommodate different implements and machines. This can help to reduce the need for multiple PTO shafts and make it easier to switch between implements.5. Safety shields: The Replacement of Weasler 14 series PTO shafts can be dangerous if not properly guarded, as they can spin at high speeds and cause serious injury or even death. Many Replacement of Weasler 14 series PTO shafts come with safety shields that cover the shaft and protect the operator from contact with the moving parts.

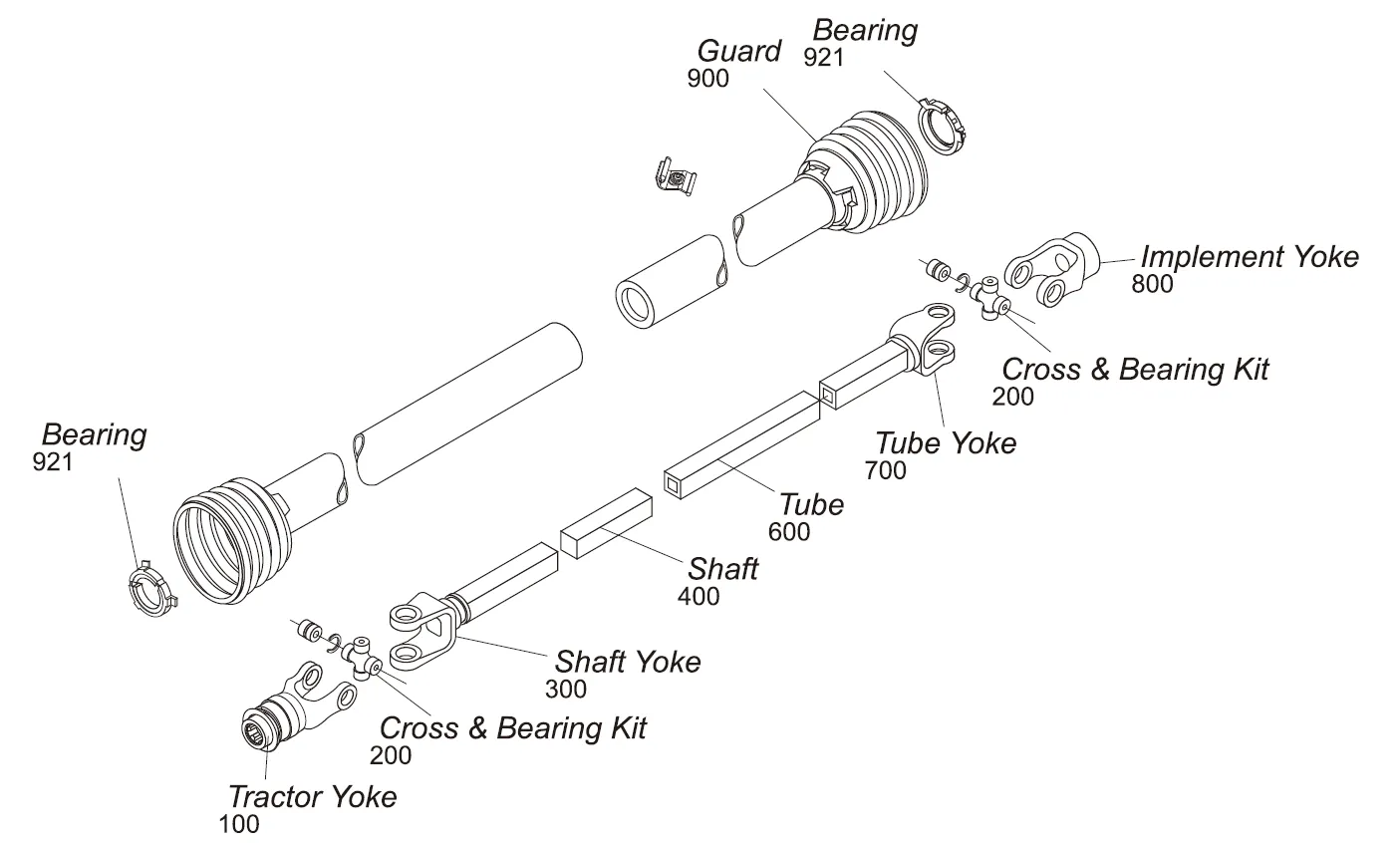

Replacement of Weasler 14 Series PTO Shaft Parts

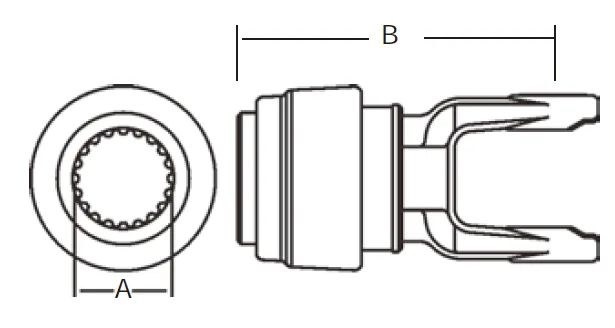

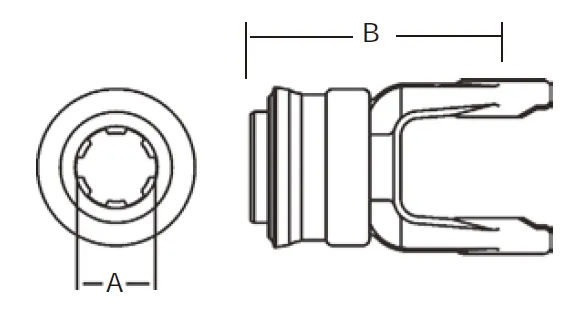

Replacement of Weasler 14 Series PTO Shaft Tractor Yokes

	Dim. “A” Bore	Dim. “B”
Spring-Lok	1 3/8” × 6 Spl.	4 5/16”
Spring-Lok	1 3/8” × 21 Spl.	4 5/16”
Safety Slide Lock	1 3/4” × 20 Spl.	5 5/8”

	Dim. “A” Bore	Dim. “B” Bore	Dim. “C”

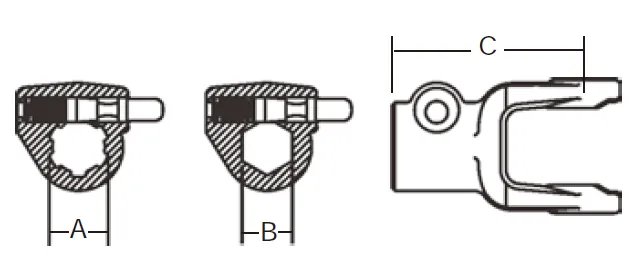

Quick Disconnect	1 3/8” × 6 Spl.		4 5/16”
		1 1/8” Hex	4 5/16”
	1 3/8” × 21 Spl.		4 5/16”

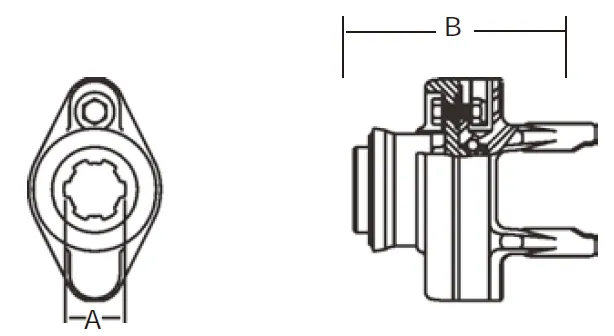

	Dim. “A” Bore	Dim. “B”	Shear Bolt
Ball Shear Device With Spring-lok	1 3/8” × 6 Spl.	4 5/8”	5/16” - 18 Gr. 5
Ball Shear Device With Spring-lok	1 3/8” × 21 Spl.	4 5/8”	5/16” - 18 Gr. 5

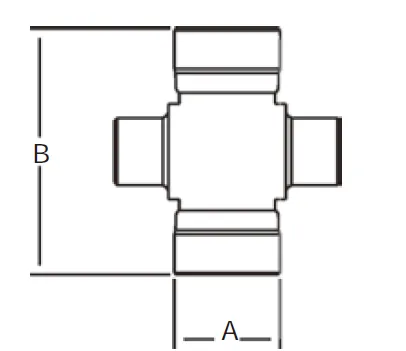

Replacement of Weasler 14 Series PTO Shaft Cross & Bearing Kit

	Dim. “A”	Dim. “B”
	1 1/8”	2 5/8”

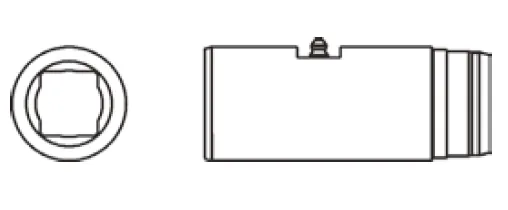

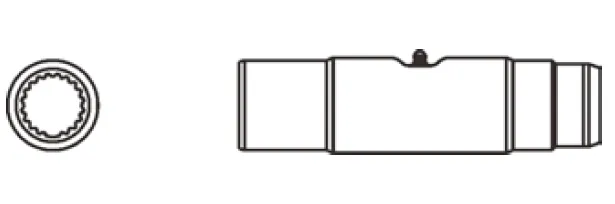

Replacement of Weasler 14 Series PTO Shaft Slip Sleeve

	Length	Fits Tube Size
1” × 1 1/8” Rectangular With Grease Groove	5”	2” (.083 Wall)
1 5/16” × 20 Spline With Grease Reservoir	8”	2” (.083 Wall)

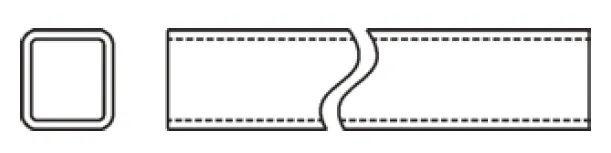

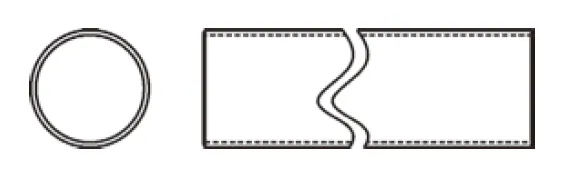

Replacement of Weasler 14 Series PTO Shaft Tube

	Length	Fits Shaft
1 1/4” × 1 3/8” Rectangular O.D.	6’	1” × 1 1/8”
1 1/4” × 1 3/8” Rectangular O.D.	3’	1” × 1 1/8”
2” (.083 Wall)	6’
2” (.083 Wall)	3’

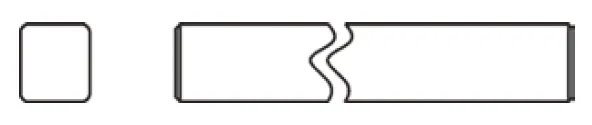

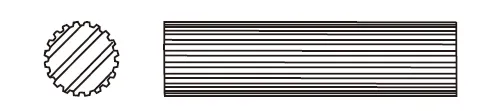

Shaft for Replacement of Weasler 14 Series PTO Shaft

	Length	Major Dim.
1” × 1 1/8” Rectangular	6'/3'	/
1 5/16” × 20 Spline	3'	1.380/1.375

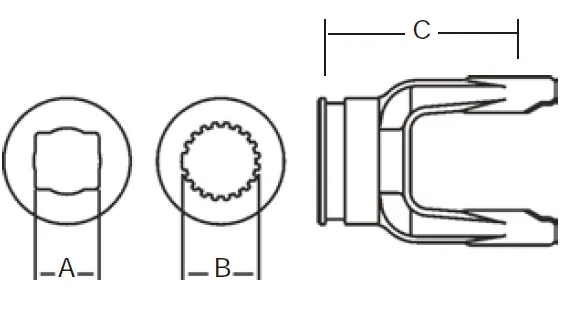

Replacement of Weasler 14 Series PTO Shaft Weld Yoke

	Dim. “A” Bore	Dim. “B” Bore	Dim. “C”
With Bearing Groove	1” × 1 1/8”		3 3/8”
With Bearing Groove		1 5/16” × 20 Spl.	3 3/8”

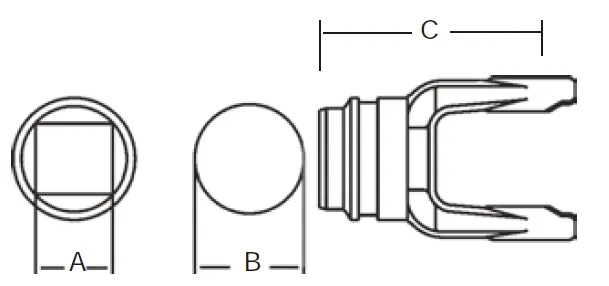

Replacement of Weasler 14 Series PTO Shaft Tube Weld Yoke

	Dim. “A” Bore	Dim. “B” Fits Tube Size	Dim. “C”
With Bearing Groove	1 1/4” × 1 3/8”	/	3 3/8”
With Bearing Groove	/	2” (.083 Wall)	3 7/8”

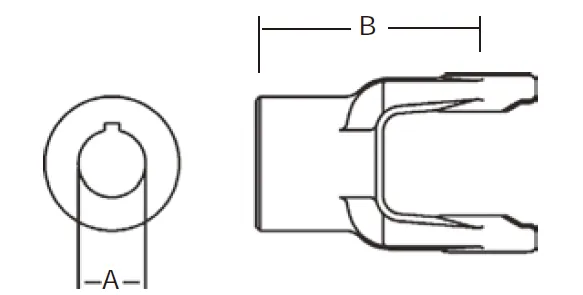

Replacement of Weasler 14 Series PTO Shaft Implement Yoke

	Dim. “A” Bore	Dim. “B”	Standard Keyway
Round Bore With Keyway & Set Screw	1”	3 7/8”	1/4”
	1 1/8”	3 7/8”	1/4”
	1 3/16”	3 7/8”	1/4”
	1 1/4”	3 7/8”	1/4”
	1 3/8”	3 7/8”	5/16”
	1 7/16”	3 7/8”	3/8”
	1 1/2”	3 7/8”	3/8”
	Dim. “A” Bore	Double Keyway	Dim. “B”
Double Keyway & Set Screw	1 1/8”	1/4” & 5/16”	3 7/8”
	1 3/16”	1/4” & 5/16”	3 7/8”
	1 1/4”	1/4” & 5/16”	3 7/8”

	Dim. “A” Bore	Dim. “B”

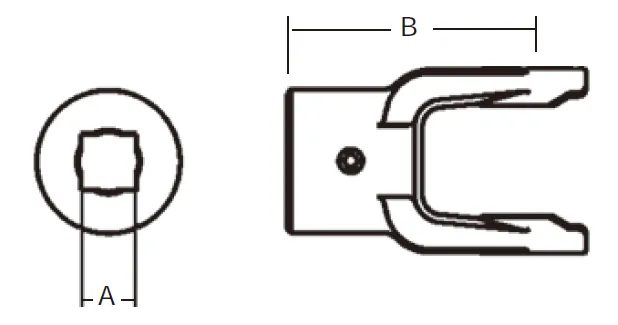

Square Bore With Set Screw	7/8”	3 7/8”
	1”	3 7/8”
	1 1/8”	3 7/8”
	1 3/16”	3 7/8”
	1 1/4”	3 7/8”

	Dim. “A” Bore	Dim. “B”

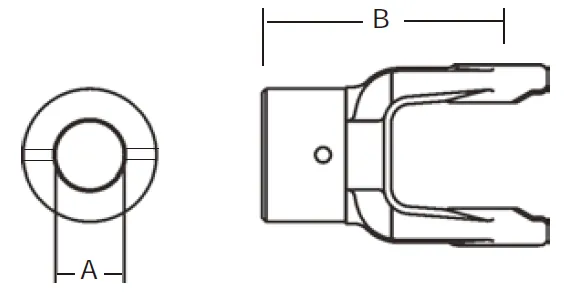

Shear pin With 1/4'' Pin Hole	1 1/8''	3 7/8”
	1 1/4''	3 7/8”
	1 3/8''	3 7/8”
	1 1/2”	3 7/8”

	Dim. “A” Bore	Dim. “B”

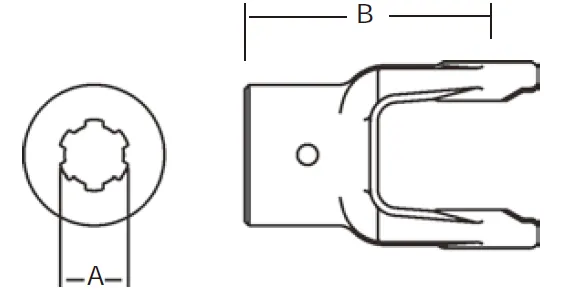

Spline Bore With 21/64” Pin Hole	1 3/8” × 6 Spl.	3 7/8”
	1 1/8” × 6 Spl.	3 7/8”
	1 1/4” × 6 Spl.	3 7/8”
	1 3/8” × 21 Spl.	3 7/8”

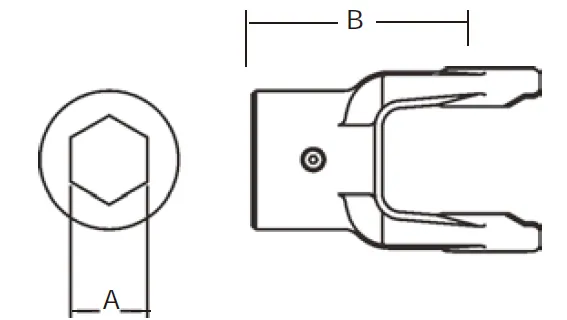

	Dim. “A” Bore	Dim. “B”
Hexagon Bore With Set Screw	1 1/8”	3 7/8”
Hexagon Bore With Set Screw	1 1/4”	3 7/8”

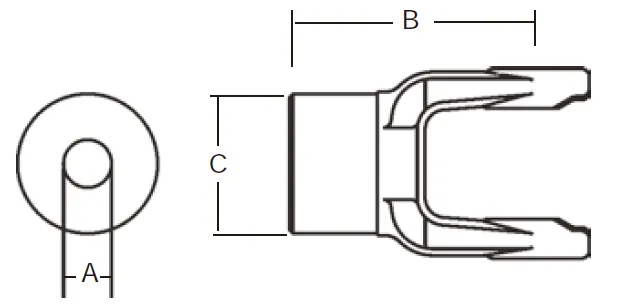

	Dim. “A” Bore	Dim. “B”	Dim. “C”
Stock Bore With Hub O. D. Turned	3/4”	3 7/8”	2 1/8”

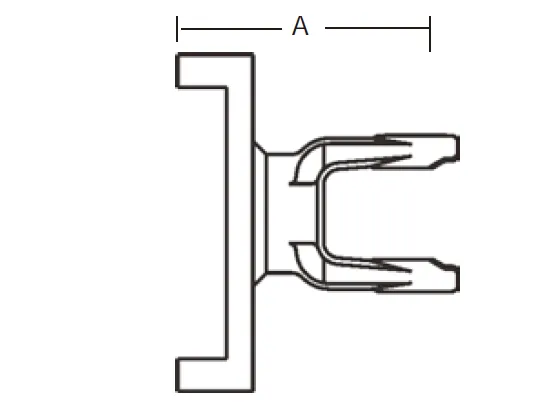

	Dim. “A” Bore
Torque Limiter Flange	4 1/2”

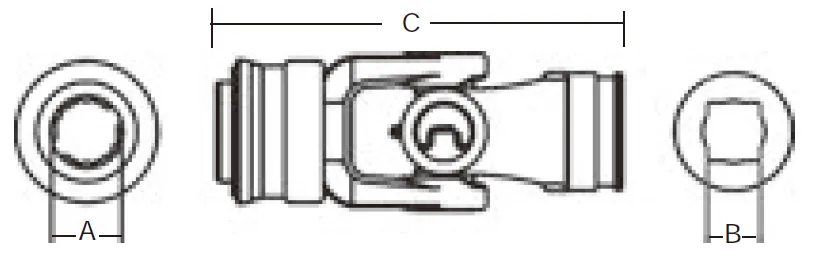

Replacement of Weasler 14 Series PTO Shaft Universal Joints

	Dim. “A” Bore	Dim. “B”	Dim. “C”
Spring Lok to Shaft Weld Yoke	1 3/8” × 6 Spl.	1” × 1 1/8” Rect.	7 3/4”

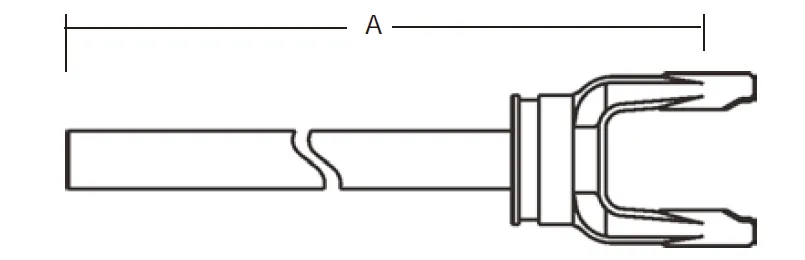

Replacement of Weasler 14 Series PTO Shaft Yoke & Shaft Assembly

	Dim. “A”
1” × 1 1/8” Shaft	26.12”
	35.62”
	47.62”

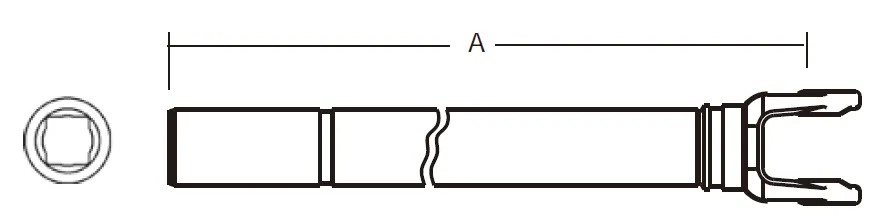

Replacement of Weasler 14 Series PTO Shaft Yoke, Tube & Sleeve Assembly

	Dim. “A”
1” × 1 1/8” Rectangular	26.12”
	36.12”
	48.12”

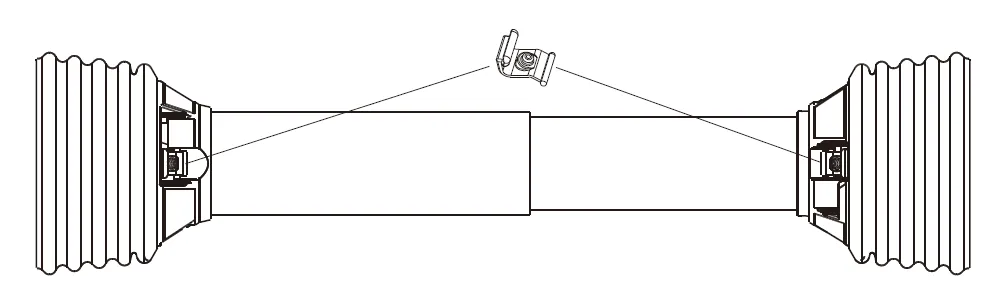

Replacement of Weasler 14 Series PTO Shaft Guard


Overall Driveline Length	Bearing Kit (4 per kit)
48”	921-1200
60”	921-1200
Easy Lock Replacement Kit

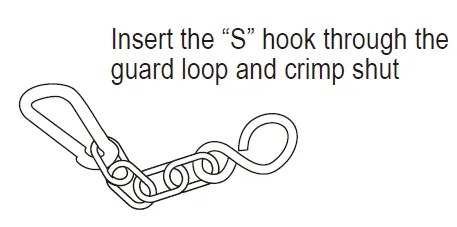

Guard Chain Kit

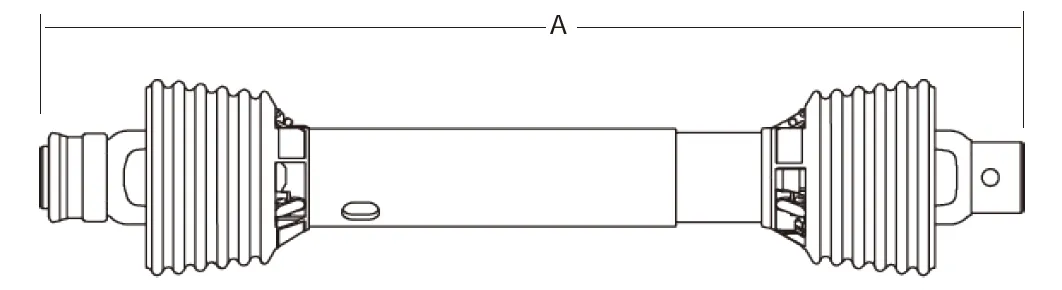

Replacement of Weasler 14 Series PTO Shaft Drivelines


Tractor Yoke	Implement Yoke	Overall Compressed Length Dim. “A”	Max Running Length	Application
1 3/8” × 6 Spl. Spring Lok	1 3/8” Round 1/2” Shear Pin Hole	30 3/16”	39.5”	4 ft. Lift Type Rotary Cutter
1 3/8” × 6 Spl. Spring Lok	1 3/8” Round 1/2” Shear Pin Hole	37 3/16”	53.5”	5 ft. Lift Type Rotary Cutter
1 3/8” × 6 Spl. Spring Lok	1 3/8” Round 1/2” Shear Pin Hole	56 3/16”	76.5”	5 & 6 ft. Pull Type Rotary Cutter
1 3/8” × 6 Spl. Spring Lok	1 1/4” Round 1/4” Keyway	48”
