The Grain Elevator Roller Chain Assembly Conveyor Rubber Steel Chain Paddle is a critical component in agricultural machinery. It is primarily used to drive the conveyor belts in grain elevators and other similar equipment. The chain is made of high-quality steel and rubber, which makes it strong, durable, and resistant to wear and tear.

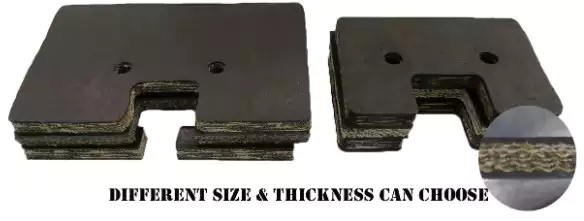

Material： Rubber: natural rubber. No use circle tire- Core of cable : canvas. No nylon line. Description： New natural rubber, hardness 40 HD, high wear-resistingCanvas in middle to provide enough strength Size & Thickness： Different sizes and thickness can choose to match your demand

PRODUCT SPECIFICATIONS



Item Name	Rubber paddle
COMBINE No.	4G1117
OEM Ref. No.	1318493C2
Size	102*192 *11
Weight	0.32kg
Application	Case-IH COMBINE: 1680,1682, 2188, 2377, 2388,2588

Item Name	Rubber paddle
COMBINE No.	4G1084
OEM Ref. No.	1317480C2
Size	144*102*11
Weight	0.086kg
Application	CASE1640,1644,1660,1666,1670,2144,2166,2344,2366

Item Name	Rubber paddle
COMBINE No.	4G1085
OEM Ref. No.	1303116C1
Size	146*71*9
Weight	0.150kg
Application	CASE 1420,1440,1460,1470,1480,1482,1620,1640,1644,1660,1666, 1670,1680,1682,1688,2144,2166,2188,2344,2366,2377,2388

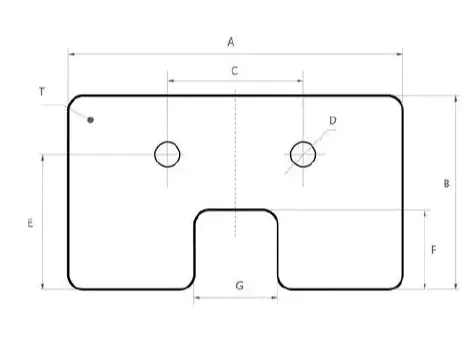

Ref. No.	A	B	C	D	E	F	G	T
101622-B	190	100	113	10	48	38	21	9
H135235	150	80	80	10	39	33	37	12
397856	154	80						9
60545.0	154	100	52	8.5	33	22	36	9
619298.2	107	80	52	8.5	33	22	36	9
642644	154	124	52	8.5	33	22	36	9
H137276	147	107	77	10	37	32	34	12
H137277	195	108	77	10	39	39	35	12
	204	100	88	8.5	45	40	42	9
H1303116C1	145	60	78	10	29	29	39	9
036276	154	78						9
69.9245	110	84						11
71.5466	93	80						11
	107	80	52	8.5	45	29	35	9
	154	100	52	8.5	40	26	34	9
	154	78	52	8.5	43	29	34	9
	154	124	52	8.5	41	26	34	9
	154	127	60	8.5	64	50	34	9
	134	39	52	8.5	53	30	40	9
	184	101	88	8.5	46	15	42	9
	152.5	80	54.5	6.5	34	30	32.5	9
	152	80	88	8.5	37	36	40	9
	120	109	88	8.5	41	33	40	9
	146	110	88	8.5	42	34	40	9
	186	100	88	8.5	41	34	40	9
	148	86	58	6.5	40	35	36	9
	174	85	58	6.5	40	35	34	9
	109	85	58	6.5	39	35	37	9
	146	71	79.4	8.5	44	32	37.4	9
	145	104	79.4	8.5	42	38	39	9

- The data are presented for your reference. - More sizes can be supplied according to your specification.

Applications

• Grain elevators
• Conveyor systems
• Agricultural machinery

It is primarily used in the drive system of these machines and is responsible for moving the grain and other agricultural products from one place to another. The chain is designed to withstand the harsh conditions of agricultural work and can operate for extended periods without any issues.

Compatible Brands and Models

Brand	Model
John Deere	9770STS
Case IH	Axial-Flow 2588
New Holland	CR9090

In addition to the Grain Elevator Roller Chain Assembly Conveyor Rubber Steel Chain Paddle, we also offer a wide range of other agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, PTO shaft, concave, and more. Whatever agricultural machinery part you need, you can find it here.

Signs that the Chain Assembly Needs Replacement

• Excessive wear on the chain links
• Chain is making unusual noises
• Chain is slipping or coming loose
• Chain is rusted or corroded
• Chain is not moving smoothly

If you notice any of these signs, it's time to replace the Grain Elevator Roller Chain Assembly Conveyor Rubber Steel Chain Paddle.

How to Choose the Right Chain Assembly

• Check the manufacturer's specifications for your machine
• Determine the size and length of the chain needed
• Choose a chain with the right strength and durability rating
• Consider the working conditions of your machine

Choosing the right Grain Elevator Roller Chain Assembly Conveyor Rubber Steel Chain Paddle is crucial to ensure that your agricultural machinery operates smoothly and efficiently. Author: Miya
