16B Metric Roller Chain Sprockets

Raydafon Group presents the 16B Metric Roller Chain Sprockets, engineered for precision in industrial machinery and automotive applications. Crafted from durable materials, these sprockets ensure smooth power transmission with minimal wear. Ideal for engineers and mechanics, they enhance performance in demanding settings. Experience reliability and efficiency, solving operational challenges with exceptional quality.

Send Inquiry

Product Description

16B roller chain sprockets are manufactured for metric 16B roller chain and are manufactured in accordance with ISO, DIN, and BS228/3 standards. Our sprockets are precision manufactured from high-quality steel, directly interchange with other manufactures, and are engineered for superb performance and durability. Common styles of these sprockets include; A-Plate, B-Hub, C-Hub, and taper bushed type but others are available upon request. The below charts show our standard sizes for 16B sprockets, if you don't see the exact sprocket you need we also custom manufacture sprockets. 16B Metric Roller Chain Sprockets

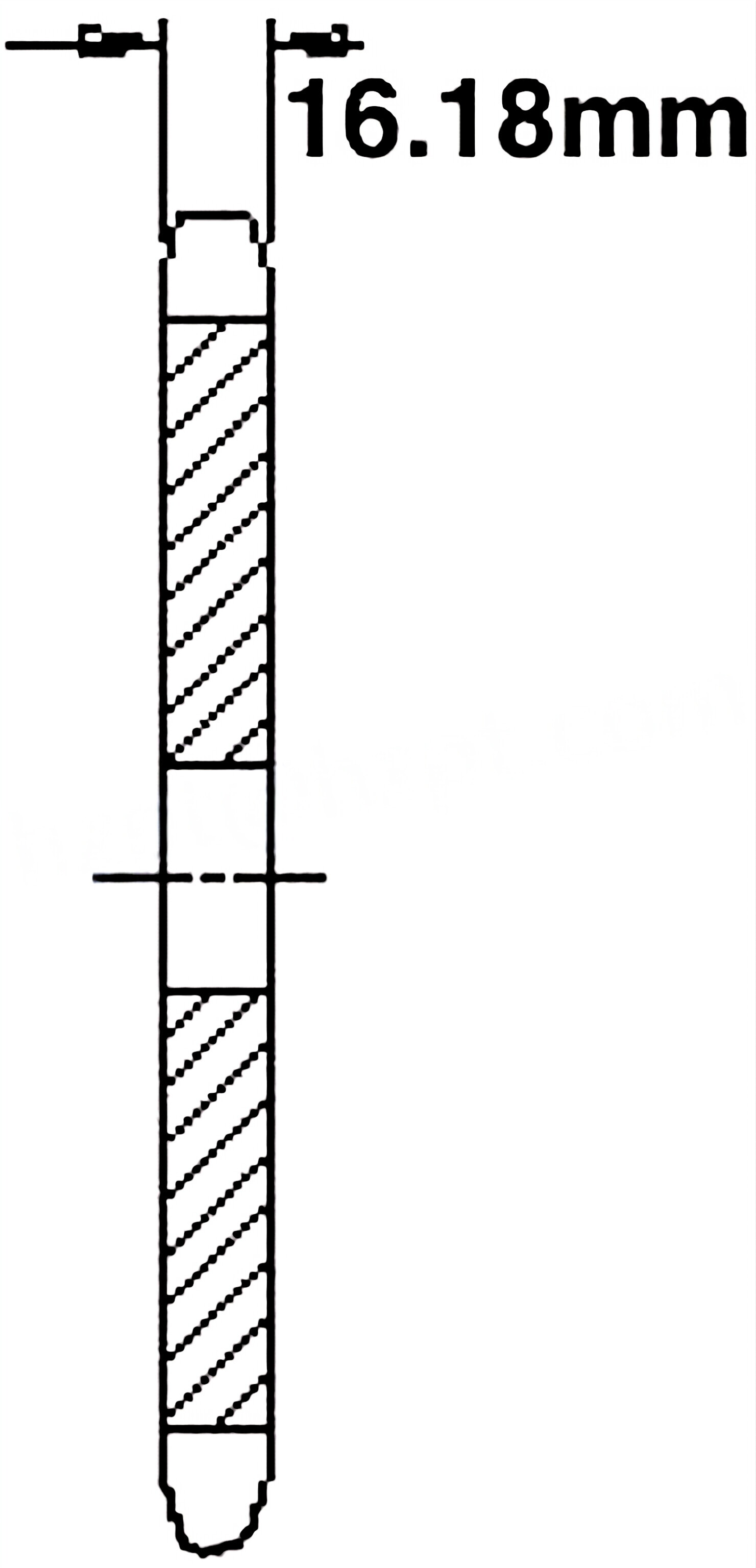

16B A-Plate Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Sprocket Weight (kg)
16A11	11	90.16mm	14mm	0.82
16A12	12	98.14mm	14mm	0.91
16A13	13	106.14mm	14mm	1.04
16A14	14	114.15mm	14mm	1.22
16A15	15	122.17mm	14mm	1.36
16A16	16	130.20mm	14mm	1.54
16A17	17	138.23mm	14mm	1.81
16A18	18	146.27mm	24mm	2.00
16A19	19	154.32mm	24mm	2.13
16A20	20	162.37mm	24mm	2.49
16A21	21	170.42mm	24mm	2.63
16A22	22	178.48mm	24mm	2.82
16A23	23	186.56mm	24mm	3.04
16A24	24	194.60mm	24mm	3.45
16A25	25	202.66mm	24mm	3.63
16A26	26	210.72mm	30mm	3.90
16A27	27	218.79mm	30mm	4.31
16A28	28	226.86mm	30mm	4.58
16A29	29	234.93mm	30mm	4.81
16A30	30	243.00mm	32mm	5.22
16A31	31	251.07mm	32mm	5.56
16A32	32	259.14mm	32mm	5.90
16A33	33	267.21mm	32mm	6.24
16A34	34	275.28mm	32mm	6.58
16A35	35	283.36mm	32mm	6.92
16A36	36	291.43mm	32mm	7.26
16A37	37	299.51mm	32mm	7.60
16A38	38	307.58mm	32mm	7.94
16A39	39	315.66mm	32mm	8.48
16A40	40	323.74mm	32mm	9.01
16A41	41	331.81mm	32mm	9.55
16A42	42	339.89mm	32mm	10.09
16A43	43	347.97mm	32mm	10.62
16A44	44	356.05mm	32mm	11.16
16A45	45	364.12mm	32mm	11.70
16A46	46	372.20mm	32mm	12.23
16A47	47	380.28mm	32mm	12.77
16A48	48	388.36mm	32mm	12.31
16A49	49	396.44mm	32mm	13.85
16A50	50	404.52mm	32mm	14.38
16A54	54	436.84mm	32mm	16.53
16A57	57	461.08mm	32mm	18.14
16A60	60	485.33mm	32mm	19.75
16A65	65	525.73mm	32mm	22.43
16A70	70	566.15mm	40mm	25.47
16A72	72	582.31mm	40mm	27.94
16A76	76	614.64mm	40mm	32.89
16A80	80	646.97mm	40mm	37.84
16A84	84	679.30mm	40mm	42.78
16A90	90	727.80mm	40mm	50.21
16A95	95	768.22mm	40mm	56.39
16A96	96	766.31mm	40mm	57.63
16A114	114	921.81mm	40mm	76.36

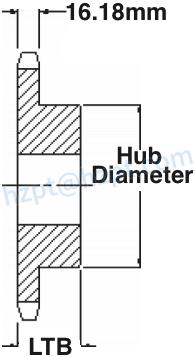

16B B-Hub Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Maximum Bore	Hub Diameter	Length Thru Bore (LTB)	Sprocket Weight (kg)
16B11	11	90.16mm	16mm	41mm	63mm	40mm	1.45
16B12	12	98.14mm	16mm	47mm	72mm	40mm	1.82
16B13	13	106.14mm	16mm	52mm	79mm	40mm	1.82
16B14	14	114.15mm	16mm	60mm	88mm	40mm	2.09
16B15	15	122.17mm	16mm	62mm	96mm	40mm	2.59
16B16	16	130.20mm	20mm	67mm	100mm	45mm	3.00
16B17	17	138.23mm	25mm	67mm	102mm	45mm	3.18
16B18	18	146.27mm	25mm	70mm	108mm	45mm	3.77
16B19	19	154.32mm	25mm	70mm	108mm	45mm	3.86
16B20	20	162.37mm	25mm	70mm	108mm	45mm	4.09
16B21	21	170.42mm	25mm	70mm	108mm	50mm	4.54
16B22	22	178.48mm	25mm	70mm	108mm	50mm	4.99
16B23	23	186.56mm	25mm	70mm	108mm	50mm	5.08
16B24	24	194.60mm	25mm	70mm	108mm	50mm	5.54
16B25	25	202.66mm	25mm	70mm	108mm	50mm	5.76
16B26	26	210.72mm	32mm	80mm	120mm	50mm	7.03
16B27	27	218.79mm	32mm	80mm	120mm	50mm	7.53
16B28	28	226.86mm	32mm	80mm	120mm	50mm	7.58
16B29	29	234.93mm	32mm	80mm	120mm	50mm	7.94
16B30	30	243.00mm	32mm	80mm	120mm	50mm	8.26
16B31	31	251.07mm	32mm	80mm	120mm	50mm	8.62
16B32	32	259.14mm	32mm	80mm	120mm	50mm	8.98
16B33	33	267.21mm	32mm	80mm	120mm	50mm	9.33
16B34	34	275.28mm	32mm	80mm	120mm	50mm	9.69
16B35	35	283.36mm	32mm	80mm	120mm	50mm	10.05
16B36	36	291.43mm	32mm	80mm	120mm	50mm	10.41
16B37	37	299.51mm	32mm	80mm	120mm	50mm	10.76
16B38	38	307.58mm	32mm	80mm	120mm	50mm	11.12
16B39	39	315.66mm	32mm	80mm	120mm	50mm	11.48
16B40	40	323.74mm	32mm	80mm	120mm	50mm	11.83
16B41	41	331.84mm	32mm	80mm	120mm	50mm	12.19
16B42	42	339.89mm	32mm	80mm	120mm	50mm	12.55
16B43	43	347.97mm	32mm	80mm	120mm	50mm	12.91
16B44	44	356.05mm	32mm	80mm	120mm	50mm	13.27
16B45	45	364.12mm	32mm	80mm	120mm	50mm	13.62
16B46	46	372.20mm	32mm	80mm	120mm	50mm	13.98
16B47	47	380.28mm	32mm	80mm	120mm	50mm
