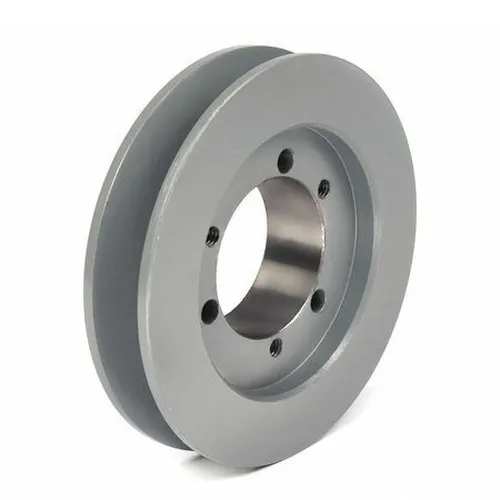

1B QD Bushed Sheaves Pulleys for "A" and "B" Belts

1B series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75" to 20.35" in diameter. Depending on the pulley size, they are made to use with SH, SDS, or SK QD bushings, which we also stock. Most of our single-groove 1B QD bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation. The main benefit of using a QD (quick detachable) pulley is that if the bushing (hub) breaks, you don't have to replace the whole assembly, or if just the pulley gets worn out, the same principle applies. The other significant benefit is that there is a broader range of bore options with QD pulleys than with the "fixed-bore" style.

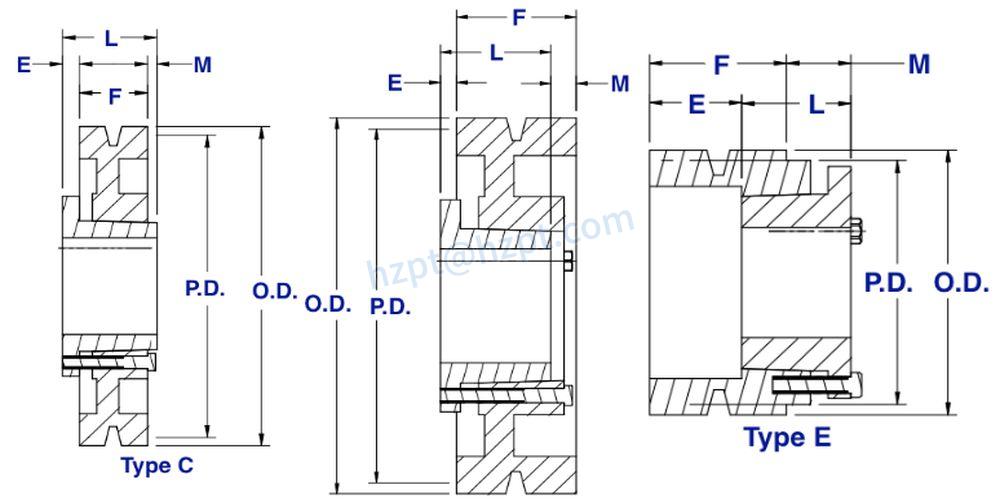

1B Style QD Bushed Pulley Size Chart

Size	Bushing Type	Type	Pitch Diameter (4L/A)	Pitch Diameter (5L/B)	Outside Diameter	(E)	(F)	(L)	(M)	Pulley Weight (LBS)
1B34SH	SH	E	3.0"	3.4"	3.75"	7/32"	7/8"	1-5/16"	21/32"	2.0
1B36SH	SH	D	3.2"	3.6"	3.95"	19/32"	7/8"	1-5/16"	5/32"	2.2
1B38SH	SH	D	3.4"	3.8"	4.15"	19/32"	7/8"	1-5/16"	5/32"	2.4
1B40SH	SH	C	3.6"	4.0"	4.35"	11/32"	7/8"	1-5/16"	3/32"	2.7
1B42SH	SH	C	3.8"	4.2"	4.55"	11/32"	7/8"	1-5/16"	3/32"	2.9
1B44SH	SH	C	4.0"	4.4"	4.75"	11/32"	7/8"	1-5/16"	3/32"	3.4
1B46SDS	SDS	C	4.2"	4.6"	4.95"	11/32"	7/8"	1-5/16"	3/32"	4.0
1B48SDS	SDS	C	4.4"	4.8"	5.15"	11/32"	7/8"	1-5/16"	3/32"	4.3
1B50SDS	SDS	C	4.6"	5.0"	5.35"	11/32"	7/8"	1-5/16"	3/32"	4.7
1B52SDS	SDS	C	4.8"	5.2"	5.55"	11/32"	7/8"	1-5/16"	3/32"	5.0
1B54SDS	SDS	C	5.0"	5.4"	5.75"	11/32"	7/8"	1-5/16"	3/32"	5.3
1B56SDS	SDS	C	5.2"	5.6"	5.95"	11/32"	7/8"	1-5/16"	3/32"	5.6
1B58SDS	SDS	C	5.4"	5.8"	6.15"	11/32"	7/8"	1-5/16"	3/32"	5.9
1B60SDS	SDS	C	5.6"	6.0"	6.35"	11/32"	7/8"	1-5/16"	3/32"	6.2
1B62SDS	SDS	C	5.8"	6.2"	6.55"	11/32"	7/8"	1-5/16"	3/32"	6.5
1B64SDS	SDS	C	6.0"	6.4"	6.75"	11/32"	7/8"	1-5/16"	3/32"	6.8
1B66SDS	SDS	C	6.2"	6.6"	6.95"	11/32"	7/8"	1-5/16"	3/32"	7.2
1B68SDS	SDS	C	6.4"	6.8"	7.15"	11/32"	7/8"	1-5/16"	3/32"	7.5
1B70SDS	SDS	C	6.6"	7.0"	7.35"	11/32"	7/8"	1-5/16"	3/32"	7.8
1B74SDS	SDS	D	7.0"	7.4"	7.75"	17/32"	1"	1-5/16"	7/32"	8.8
1B80SDS	SDS	D	7.6"	8.0"	8.35"	17/32"	1"	1-5/16"	7/32"	9.6
1B86SDS	SDS	D	8.2"	8.6"	8.95"	17/32"	1"	1-5/16"	7/32"	10.0
1B94SDS	SDS	D	9.0"	9.4"	9.75"	17/32"	1"	1-5/16"	7/32"	10.5
1B110SDS	SDS	D	10.6"	11.0"	11.35"	17/32"	1"	1-5/16"	7/32"	11.0
1B124SDS	SDS	D	12.0"	12.4"	12.75"	17/32"	1"	1-5/16"	7/32"	12.0
1B136SDS	SDS	D	13.2"	13.6"	13.95"	17/32"	1"	1-5/16"	7/32"	14.0
1B154SK	SK	C	15.0"	15.4"	15.75"	21/32"	1"	1-15/16"	9/32"	16.0
1B160SK	SK	C	15.6"	16.0"	16.35"	21/32"	1"	1-15/16"	9/32"	16.6
1B184SK	SK	C	18.0"	18.4"	18.75"	21/32"	1"	1-15/16"	9/32"	18.0
1B200SK	SK	C	19.6"	20.0"	20.35"	21/32"	1"	1-15/16"	9/32"	20.0

B-Section V-Belt Pulleys

When looking for BK, 2BK, BKH, and 2BKH pulley styles, turn to the professionals at Raydafon. Each V-belt pulley type-B product comes with quality artistry that shows. For instance, phosphate covers the metal construction so that corrosion is never an issue. If you're not a fan of standard grade 25 metal for your B-belt pulley, you'll find a solution with our stock of grade 35 cast-iron B-section V-belt pulleys.Consider a double B-belt pulley that's always manufactured to ARPM standards for those specialty applications. Rely on our B-series belt pulley products to work with BX cogged belts, classic V-belts, and 5L FHP belts. Each part comes with a dynamically balanced construction tested several times before entering your facility. Don't be surprised if your machinery seems to work even better when you swap out just one pulley. Smooth operations and less wear on your machinery equate to higher productivity rates and fewer investments in parts repairs.Don't forget that these pulleys also work interchangeably with A-section V-belts. Raydafon doesn't compromise on quality or inventory levels. Challenge us with a B-series pulley order today. We'll deliver the parts you need in record time.

Why Choose Our QD Bushed Pulley?

Quick detachable (QD) bushings allow easy installation and removal, minimizing downtime without sacrificing the protection your machinery needs. Get the most out of your drive system by matching your QD bushings to QD bushed sheaves.Not sure which are for you? Raydafon offers a wide selection of QD-bushed sheaves available for purchase online. Filter sheaves by the number of grooves, outside diameter, and belt type, including 5V, 3V, A Section, and B Section belts. View V-belt pulley dimensions, weight, and shipping details on the product pages. If you don't see the QD sheaves you need or want a second set of eyes on your project, request information or email us today.

Technological Processing

Company Profile

Raydafon is a professional manufacturer of mechanical parts. Our main products are belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.

FAQ

Q1. Are you a manufacturer or a trading company?A: We are a manufacturer and trading company.Q2. What is your sample policy?A: We can supply the sample if we have finished parts in stock, but customers need to pay for the sample cost and shipping fee.Q3. Can you produce according to the samples?A: We can produce power transmission parts according to your samples or technical drawings. We can build the molds and fixtures.Q4. Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.Q5. Can you customize pulleys?A: Yes, please send us your drawing for an accurate quotation.Q6. How long is your delivery time and shipment?A: 1. Sample Lead-times: 10-20 days.2. Production Lead-times: 30-45 days after the order is confirmed.Q7. How do you make our business a long-term and good relationship?A: 1. We keep good quality and competitive price to ensure our customers' benefits ;2. We respect every customer as our friend and sincerely do business and make friends with them, no matter where they come from.Q8: What are your advantages?1. The most competitive price and good quality.2. Perfect technical engineers give you the best support.3. OEM is available.
