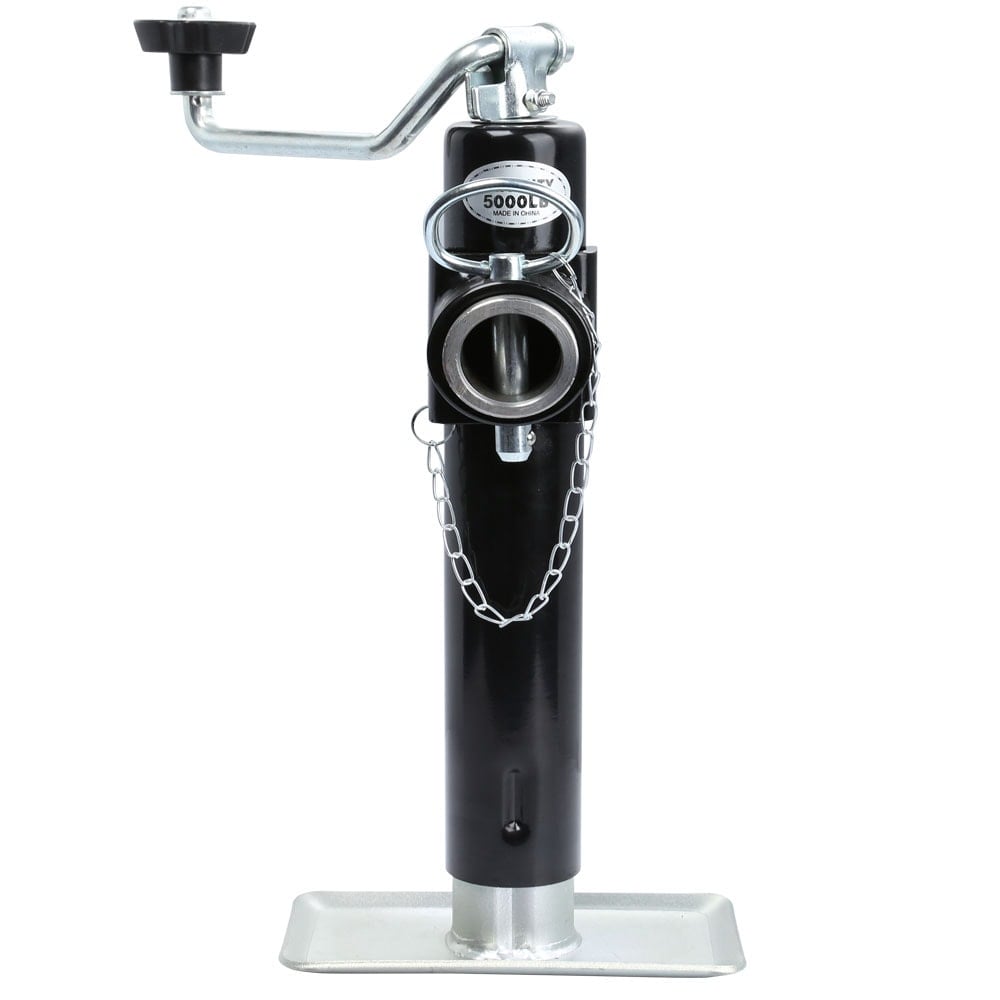

1BJY-TJ-13 Weld-On Pipe-Mount Swivel Trailer Jack, 5000 lbs. 10 Inches Vertical Travel

1BJY-TJ-13 Weld-On Pipe-Mount Swivel Trailer Jack, 5000 lbs. 10 Inches Vertical Travel

Item No.??

1BJY-TJ-13

Capacity:

5000LBS

Finished:

Black

Travel

10"

Handle Type

Top

Wheel Size

Foot

Feature

Round

Product Information:

Dependable Strength:

This trailer jack is designed to support up to 5,000 pounds of trailer tongue weight, providing you with dependable strength for your towing needs.

Swivel Design:

The swivel bracket equipped on this trailer jack stand ensures plenty of clearance while towing your trailer. The jack swings up and out of the way for towing and features a pull pin to securely lock into place.

Easy Operation:

This trailer tongue jack allows for 10 inches of vertical movement and operates using a top-wind handle. The integrated grip allows for easy raising and lowering, making it simple to operate.

Corrosion-Resistant:

For long-lasting corrosion resistance against water, dirt, road salt and more, this trailer jack is protected in a durable black powder coat and zinc-plated finish. This makes it reliable and can withstand harsh weather conditions.

Secure Install:

This trailer tongue jack is designed to mount onto the trailer frame with a weld-on installation. It comes with a raw steel pipe bracket for ready welding, ensuring a secure installation to your trailer.

Trailer Jack Applications and Purposes:

• The trailer jack is used to lift the trailer hitch off the ground for easier hitching and unhitching.
• It also helps in leveling the trailer when parked on uneven ground.
• This trailer jack is useful for repairing and maintaining the trailer.

Compatibility with Trailers and Towing Vehicles:

This trailer jack is compatible with various types of trailers, including boat trailers, utility trailers, and horse trailers. It can be used with tow vehicles, including cars, trucks, and SUVs, so it is versatile and can be used with different trailers and towing vehicles.

Installation of Trailer Jack:

1. Choose the right location on your trailer frame to install the trailer jack.
2. Weld the raw steel pipe bracket to the trailer frame for a secure installation.
3. Attach the trailer jack onto the welded pipe bracket and make sure it's tightly secured.

Operation Guide and Precautions:

• Before using the trailer jack, make sure it's securely attached to the trailer frame.
• Do not exceed the maximum weight capacity of the trailer jack.
• When using the trailer jack, make sure the ground is level and firm.
• Always use the top-wind handle for raising and lowering the trailer jack.
• Do not use the trailer jack as a permanent trailer support.
• Keep the trailer jack clean and dry to prevent rust and corrosion.

Maintenance and Inspection:

• Regularly inspect the trailer jack for any signs of wear or damage.
• Check the bolts and nuts to make sure they are tightly secured.
• Grease the moving parts of the trailer jack to ensure smooth operation.
• Store the trailer jack in a dry place when not in use to prevent rust and corrosion.

About Raydafon Trailer:

Established in 2009, Raydafon Trailer is a professional manufacturer specializing in the research, development, production, and sales of trailer and automotive parts. Our factory is located in Ningbo, China, adjacent to Beilun Port, which provides us with convenient transportation.

Our strong R&D team, leading technology, and excellent product performance are the team's inexhaustible source. Raydafon has introduced advanced production equipment and continuously trained employees to have professional operating standards, thereby achieving first-class cutting-edge technology and fully meeting customers' requirements for product performance and high-quality stability. Our main products include trailer balls, couplers, ball mounts, hand winches, jacks, safety chains, hydraulic engine mounts, gearbox mounts, supports, and control arms, which are widely used in the automotive and trailer fields.

To pursue high quality and ensure that all products are reliable and high-performance, we have strict quality testing and inspection processes from materials to finished products. Our factory has passed ISO9001 and SAEJ2638 certification, providing products and services to more than 50 countries and regions, including Europe, America, and Asia.
