24B-2 Metric Roller Chain Sprockets

Discover the exceptional 24B-2 Metric Roller Chain Sprockets from Raydafon Group, engineered for industrial durability and precision. Made from high-quality steel, these sprockets offer superior strength and longevity, ensuring smooth, reliable performance in machinery and conveyor systems. Ideal for engineers, manufacturers, and maintenance teams, they solve alignment and wear issues, boosting efficiency and reducing downtime with a professional, confident touch. Stand out with our advanced design and trusted quality—upgrade your equipment today and experience seamless operation.

Send Inquiry

Product Description

24B-2 roller chain sprockets are manufactured for metric 24B-2 roller chain and is manufactured in accordance with ISO, DIN, and BS228 standards. All of our sprockets are precision manufactured from high-quality steel, and the majority of them are black oxide coated, and have hardened teeth on tooth counts 30 or less. Something important to know note is that on tooth counts 31 and up hardened teeth make little to no performance increase, this is why it is not standard. 24B-2 Metric Roller Chain Sprockets

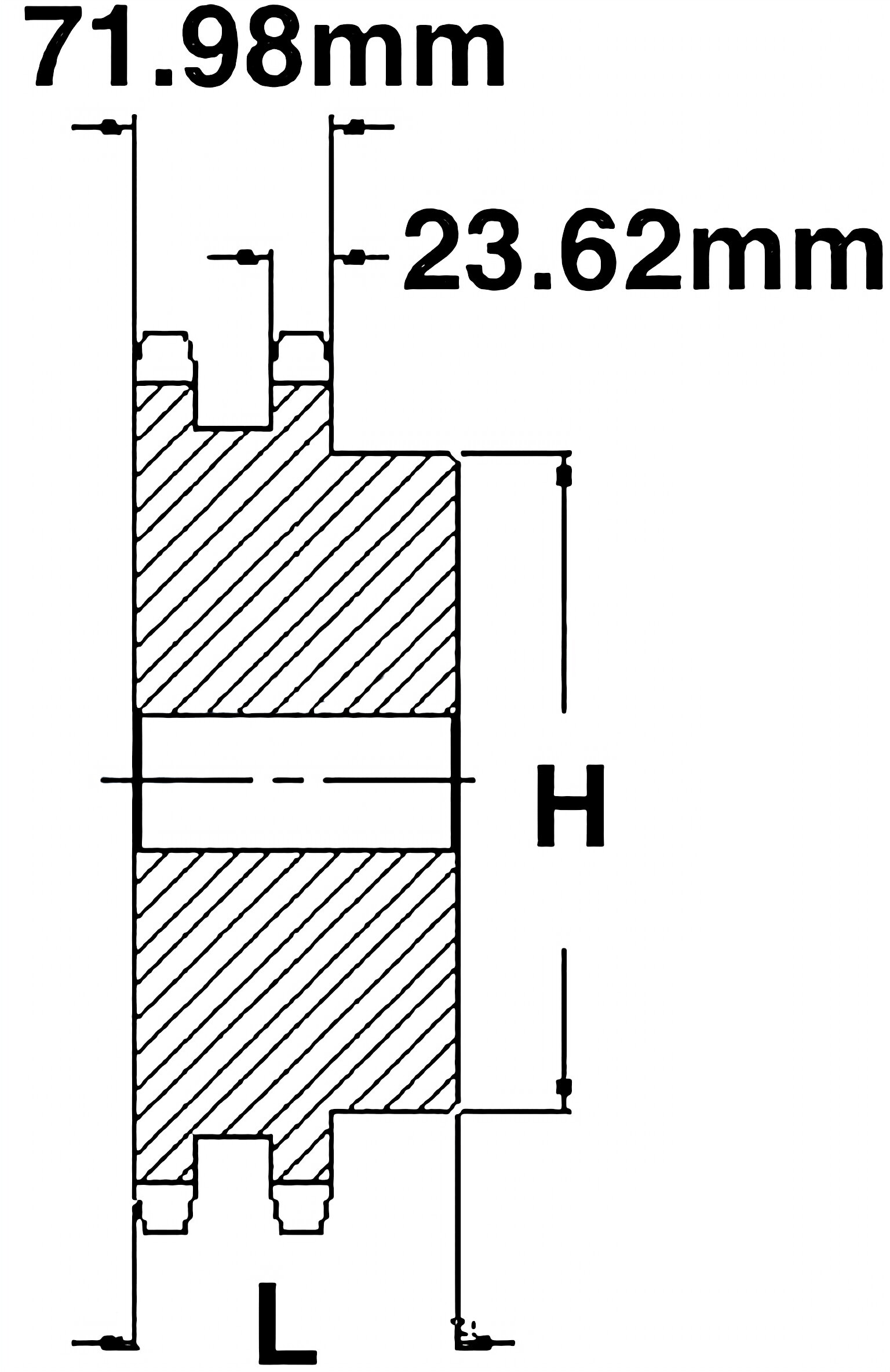

24B-2 B-Hub Sprockets

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Max. Bore	Hub Diameter (H)	Length Thru Bore (L)	Weight (kg)
D24B11	11	135.23"	32"	60"	90"	100"	6.50
D24B12	12	147.21"	32"	67"	102"	100"	8.13
D24B13	13	159.20"	32"	76"	114"	100"	9.92
D24B14	14	171.22"	32"	84"	128"	100"	11.98
D24B15	15	183.25"	32"	93"	140"	100"	14.13
D24B16	16	195.29"	32"	100"	150"	100"	16.35
D24B17	17	207.35"	40"	100"	150"	100"	17.85
D24B18	18	219.41"	40"	108"	160"	100"	20.35
D24B19	19	231.48"	40"	108"	160"	100"	22.56
D24B20	20	243.55"	40"	108"	160"	100"	24.78
D24B21	21	255.63"	40"	108"	160"	100"	26.99
D24B22	22	267.72"	40"	108"	160"	102"	29.74
D24B23	23	279.80"	40"	108"	160"	102"	32.87
D24B24	24	291.90"	40"	108"	160"	102"	36.00
D24B25	25	303.99"	40"	108"	160"	102"	39.13
D24B26	26	316.09"	40"	108"	160"	102"	42.26
D24B27	27	328.19"	40"	108"	160"	102"	45.40
D24B28	28	340.2"	40"	108"	160"	102"	48.53
D24B29	29	352.39"	40"	108"	160"	102"	51.66
D24B30	30	364.49"	40"	108"	160"	102"	54.79
D24B32	32	388.71"	40"	108"	160"	102"	61.05

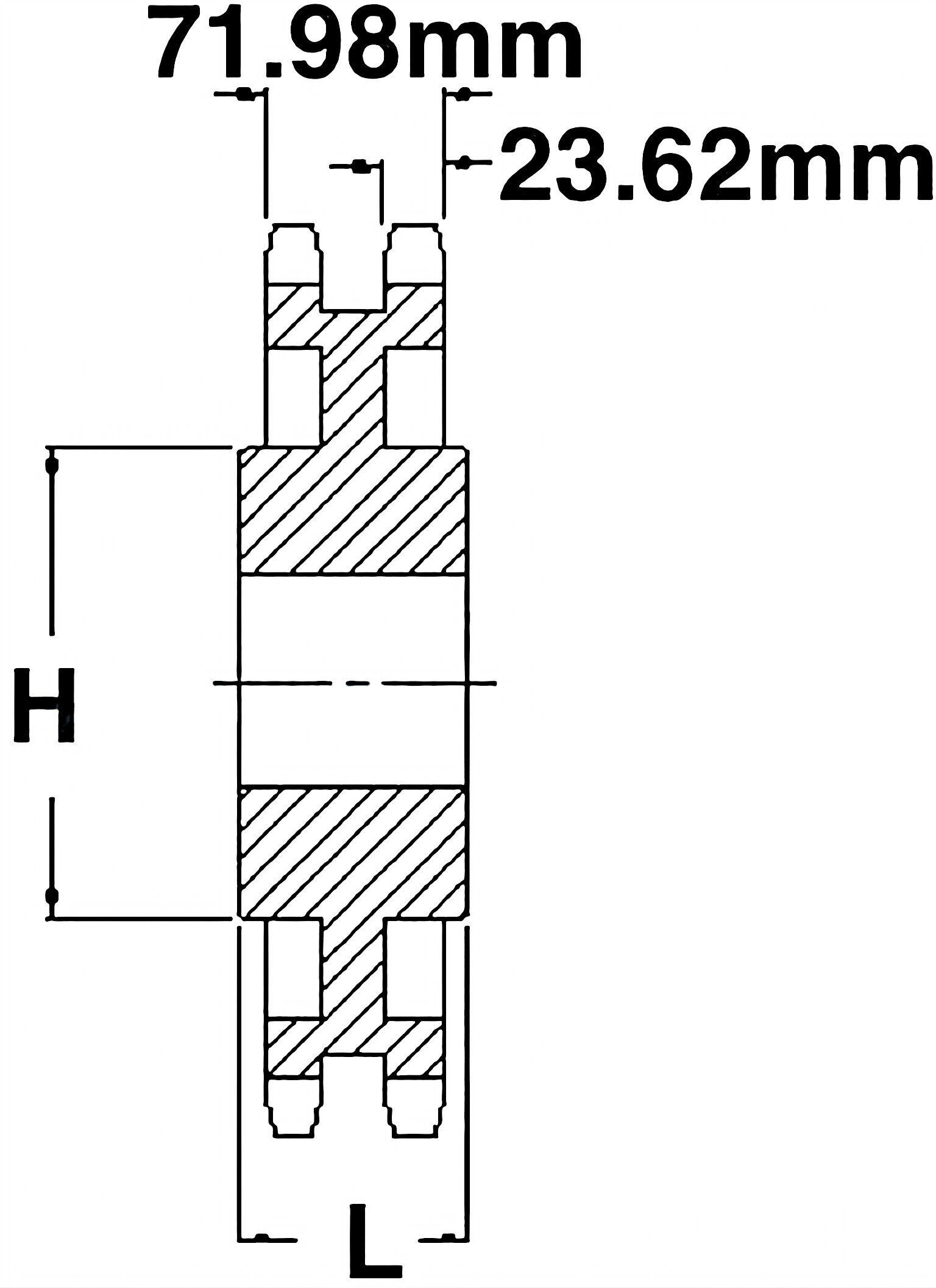

24B-2 C-Hub Sprockets

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Max. Bore	Hub Diameter (H)	Length Thru Bore (L)	Weight (kg)
D24B11	11	135.23"	32"	60"	90"	100"	6.50
D24B12	12	147.21"	32"	67"	102"	100"	8.13
D24B13	13	159.20"	32"	76"	114"	100"	9.92
D24B14	14	171.22"	32"	84"	128"	100"	11.98
D24B15	15	183.25"	32"	93"	140"	100"	14.13
D24B16	16	195.29"	32"	100"	150"	100"	16.35
D24B17	17	207.35"	40"	100"	150"	100"	17.85
D24B18	18	219.41"	40"	108"	160"	100"	20.35
D24B19	19	231.48"	40"	108"	160"	100"	22.56
D24B20	20	243.55"	40"	108"	160"	100"	24.78
D24B21	21	255.63"	40"	108"	160"	100"	26.99
D24B22	22	267.72"	40"	108"	160"	102"	29.74
D24B23	23	279.80"	40"	108"	160"	102"	32.87
D24B24	24	291.90"	40"	108"	160"	102"	36.00
D24B25	25	303.99"	40"	108"	160"	102"	39.13
D24B26	26	316.09"	40"	108"	160"	102"	42.26
D24B27	27	328.19"	40"	108"	160"	102"	45.40
D24B28	28	340.2"	40"	108"	160"	102"	48.53
D24B29	29	352.39"	40"	108"	160"	102"	51.66
D24B30	30	364.49"	40"	108"	160"	102"	54.79
D24B32	32	388.71"	40"	108"	160"	102"	61.05
