28283060 Agricultural spare parts for Harvester Professional guide

PRODUCT SPECIFICATIONS

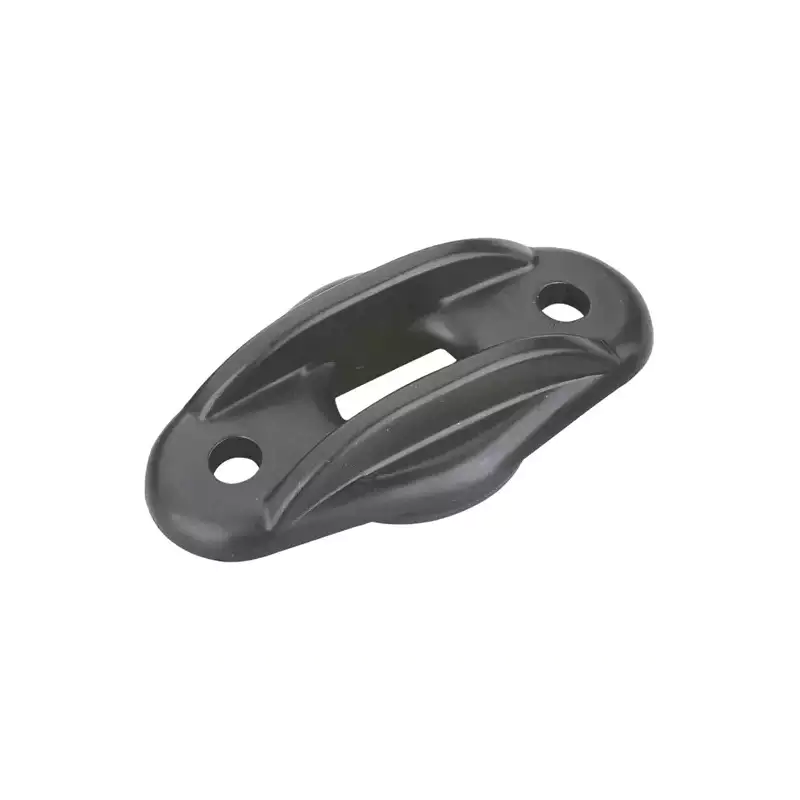

NO.:	4G2076
Reference NO.:	Z30752
Application:	JD 80, 330/430, 530/630, 730, 925/935/945, 930/940, 932/942 , 950/960/970, 952, 955, 965/965H/968H, 975/975HY/4, 985/985HY/4,1032/1042/1052, 1055, 1065/1068H, 1072/1075/1075HY/4, 1085/1085HY/4, 9540/9560/9580, 9640/9660/9680
WT(kg/pc):	0.021



NO.:	4G2080
Reference NO.:	Z30955
Application:	JD 1055, 1174, 2258, 975, 1065, 1177, 2264, 985, 1072, 1188, 2266, 1075, 2054, 940, 1085, 2056, 945, 1155, 2058, 950, 1157, 2064,955, 1158, 2066, 960, 1166, 2254, 965, 1169, 2256, 970
WT(kg/pc):	0.062



NO.:	4G2083
Reference NO.:	H87044
Discription:	Matching with H87069, diameter finger H87069
Application:	JD 200, 218 , 50, 50A, 3300, 4400, 6600, 7700, 4420, 6620, 7720, 8820
WT(kg/pc):	0.017



NO.:	4G2138
Reference NO.:	H85241
Description:	Material: PA6 Matching with 5/8" diameter finger
Application:	JD '6601, 6602, 6622, 5200, 5440, 5460, 5830, 5730, 5720, 6622, 7722, 9500, 9650
WT(kg/pc):	0.025



NO.:	4G2120
Reference NO.:	H77515
Application:	JD 6601, 6602
WT(kg/pc):	0.021



NO.:	4G2121
Reference NO.:	H168206
Application:	JD 600 series, 615P, 900 series, 914P
WT(kg/pc):	0.077

Introduction

Agricultural spare parts for harvester are essential components that ensure the smooth operation of the machine. These spare parts are designed to enhance the efficiency of the harvester and increase its longevity.

Product Description

The agricultural spare parts for harvester are used in different parts of the harvester. They include:

• Main Cutting Blades
• Concave
• Threshing Drum
• Separtion Sieves
• Cleaning Fan Blades
• Hydraulic Cylinders
• Bearings
• Air, Fuel and Oil Filters

These parts work in harmony to ensure that the harvester delivers the expected results. The agricultural spare parts are produced with precision and are designed to replace most of the commonly used models. They can also be customized to meet specific needs.

Our Advantages

As a leading agricultural spare parts manufacturer, we take pride in:

1. Providing top-quality spare parts that are durable, reliable, and efficient.
2. Offering a wide range of products that are compatible with different harvester brands and models.
3. Providing custom-made spare parts at affordable prices.

Compatible Brands and Models

Brand	Model
John Deere	S670, S680, S690
Case IH	Axial-Flow 9240, Axial-Flow 240
Claas	Lexion 770, Lexion 780, Lexion 760, Tucano 450

Common Wear and Tear Parts

Harvesters have several parts that are prone to wear and tear. These parts include:

1. Cutting Blades/Parts: Main Cutting Blades, Skid Plates, and Cutting Drive Belts
2. Threshing Drum and Concave
3. Separation Sieves and Cleaning Fan Blades
4. Conveyor Chains and Sprockets
5. Rubber Tracks or Tires
6. Hydraulic Components: Hydraulic Cylinders, Hoses, and Seals
7. Bearings
8. Filters: Air Filters, Fuel Filters, and Oil Filters

Here is a breakdown of these parts and what they do:

1. Cutting Blades/Parts: These are located in the header and are responsible for cutting the crop. They need to be sharp and in good condition to achieve optimal results. Skid plates and Cutting Drive Belts help in maintaining stability and efficiency.
2. Threshing Drum and Concave: These parts are located in the threshing section of the harvester. They are responsible for separating the grain from the stalks and husks.
3. Separation Sieves and Cleaning Fan Blades: These parts are located in the cleaning section of the harvester. They are responsible for separating the grain from the remaining debris and cleaning the grain for storage.
4. Conveyor Chains and Sprockets: These are located in the auger section of the harvester. They are responsible for transporting the grain from the threshing section to the cleaning section.
5. Rubber Tracks or Tires: These help to provide traction and stability to the harvester. They need to be replaced when they wear out or develop cracks.
6. Hydraulic Components: These are responsible for powering the harvester's moving parts. They need to be in good condition to ensure the harvester's optimal performance.
7. Bearings: These are responsible for providing support and reducing friction in moving parts. They need to be replaced when they wear out.
8. Filters: These are responsible for protecting the engine from harmful contaminants. They need to be replaced regularly to ensure optimal engine performance.

When to Replace Parts

Here are some common signs that indicate that a particular part needs replacement:

1. Poor Harvesting: This may be an indication that the threshing drum and concave are worn out and need replacement.
2. Reduced Engine Power: This may be an indication of a clogged air filter or a malfunctioning cooling system.
3. Reduced Harvesting Efficiency: This may be an indication of a worn-out conveyor chain or sprockets.
4. Difficulty in Movement or Increased Noise: This may indicate a problem with bearings or worn-out rubber tracks/tires.
5. Unstable Hydraulic System: This may be an indication of a malfunctioning pump, cylinder, valve, or seal and requires immediate attention.
6. Oil Leaks: These indicate failed seals or other damaged parts that need to be replaced immediately.

Author: Miya
