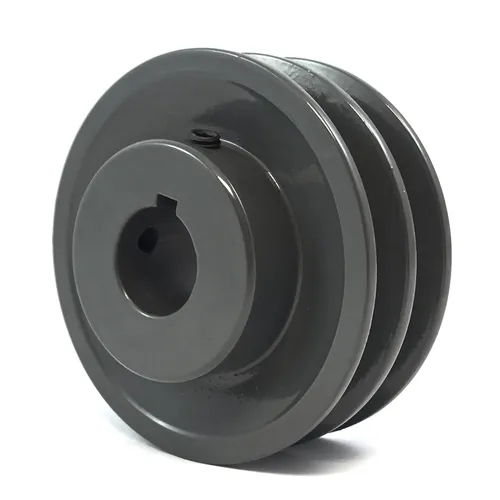

2AK Series Cast Iron Double Groove Sheaves Pulleys for "4L" or "A" Belts

2AK double groove pulleys are manufactured for two banded A-series v-belts or two single A-series v-belts, as well as multiple 3L v-belts can also be used with these pulleys. 2AK double groove sheave pulleys are commonly known as double AK pulleys and range in diameter from 2.00" to 18.25," but custom ones are also available upon request. Double AK series pulleys are typically used in medium to heavy-duty agricultural and industrial applications. Our double v-belt pulleys are manufactured using state-of-the-art techniques combined with premium high-performance and high-strength features like grade 35 cast iron instead of grade 25.

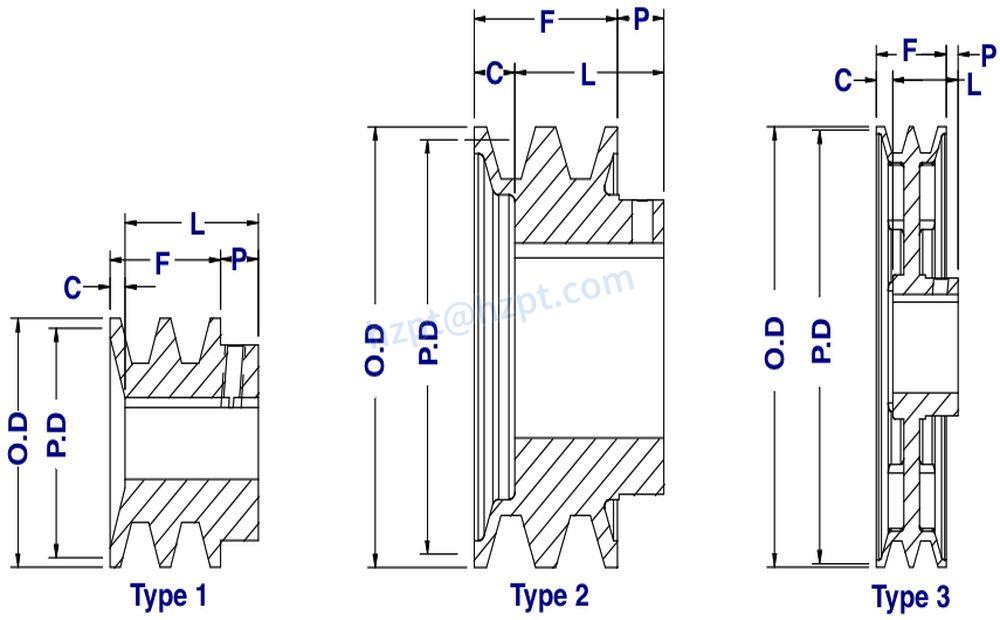

2AK Series Pulley Size Chart

Size	Outside Diameter	Pitch Diameter (4L/A)	Pitch Diameter (3L)	Type	Dimension (F)	Dimension (L)	Dimension (P)	Dimension (C)	Pulley Weight
2AK20	2.00"	1.80"	1.46"	1	1-3/8"	1-21/32"	15/32"	3/16"	0.8 LBS
2AK21	2.15"	1.90"	1.56"	1	1-3/8"	1-21/32"	15/32"	3/16"	0.9 LBS
2AK22	2.25"	2.00"	1.66"	1	1-3/8"	1-21/32"	15/32"	3/16"	0.9 LBS
2AK23	2.35"	2.10"	1.76"	1	1-3/8"	1-21/32"	15/32"	3/16"	1.1 LBS
2AK25	2.55"	2.30"	1.96"	1	1-3/8"	1-21/32"	15/32"	3/16"	1.3 LBS
2AK26	2.65"	2.40"	2.06"	1	1-3/8"	1-21/32"	15/32"	3/16"	1.4 LBS
2AK27	2.75"	2.50"	2.16"	1	1-3/8"	1-21/32"	15/32"	3/16"	1.5 LBS
2AK28	2.85"	2.60"	2.26"	1	1-3/8"	1-21/32"	15/32"	3/16"	1.8 LBS
2AK30	3.05"	2.80"	2.46"	1	1-3/8"	1-21/32"	15/32"	3/16"	1.8 LBS
2AK32	3.25"	3.00"	2.66"	1	1-3/8"	1-21/32"	15/32"	3/16"	2.1 LBS
2AK34	3.45"	3.20"	2.86"	1	1-3/8"	1-21/32"	15/32"	3/16"	2.3 LBS
2AK39	3.75"	3.50"	3.16"	2	1-3/8"	1-11/32"	15/32"	1/2"	2.6 LBS
2AK41	3.95"	3.70"	3.36"	2	1-3/8"	1-11/32"	15/32"	1/2"	2.9 LBS
2AK44	4.25"	4.00"	3.66"	2	1-3/8"	1-11/32"	15/32"	1/2"	3.0 LBS
2AK46	4.45"	4.20"	3.86"	2	1-3/8"	1-11/32"	15/32"	1/2"	3.1 LBS
2AK49	4.75"	4.50"	4.16"	2	1-3/8"	1-11/32"	15/32"	1/2"	3.6 LBS
2AK51	4.95"	4.70"	4.36"	2	1-3/8"	1-11/32"	15/32"	1/2"	3.8 LBS
2AK54	5.25"	5.00"	4.66"	2	1-3/8"	1-11/32"	15/32"	1/2"	3.3 LBS
2AK56	5.45"	5.20"	4.86"	2	1-3/8"	1-11/32"	15/32"	1/2"	3.4 LBS
2AK59	5.75 "	5.50"	5.16"	2	1-3/8"	1-11/32"	15/32"	1/2"	3.5 LBS
2AK61	5.95"	5.70"	5.36"	3	1-3/8"	1-11/32"	15/32"	1/2"	3.6 LBS
2AK64	6.25"	6.00"	5.66"	3	1-3/8"	1-19/32"	11/32"	1/8"	4.8 LBS
2AK74	7.25"	7.00"	6.66"	3	1-3/8"	1-19/32"	11/32"	1/8"	5.6 LBS
2AK84	8.25"	8.00"	7.66"	3	1-3/8"	1-19/32"	11/32"	1/8"	6.4 LBS
2AK94	9.25"	9.00"	8.66"	3	1-3/8"	1-19/32"	11/32"	1/8"	7.3 LBS
2AK104	10.25"	10.00"	9.66"	3	1-3/8"	1-19/32"	11/32"	1/8"	8.1 LBS
2AK114	11.25"	11.00"	10.66"	3	1-3/8"	1-19/32"	11/32"	1/8"	9.0 LBS
2AK124	12.25"	12.00"	11.66"	3	1-3/8"	1-19/32"	11/32"	1/8"	9.8 LBS
2AK134	13.25"	13.00"	12.66"	3	1-3/8"	1-19/32"	11/32"	1/8"	12.3 LBS
2AK144	14.25"	14.00"	13.66"	3	1-3/8"	1-19/32"	11/32"	1/8"	13.9 LBS
2AK154	15.25"	15.00"	14.66"	3	1-3/8"	1-19/32"	11/32"	1/8"	14.3 LBS
2AK184	18.25"	18.00"	17.66"	3	1-3/8"	1-19/32"	11/32"	1/8"	17.4 LBS

Usage of 2AK Series Pulley

2AK series double groove pulleys sheaves can be used on small diesel engine power, farm vehicle, tractor, car, mining equipment, processing equipment, textile machinery, packing machinery, lathe, forging machine, small horsepower motorcycle's powertrain, the transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

Technological Processing

Company Profile

Raydafon is a professional manufacturer of mechanical parts. Our main products are belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million US dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
