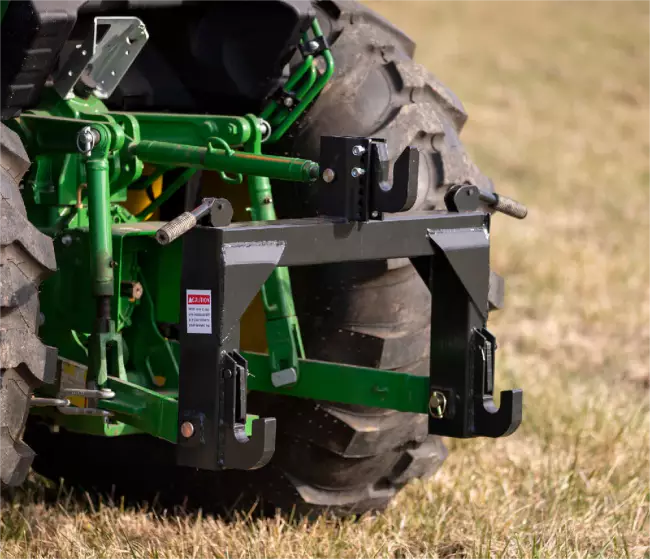

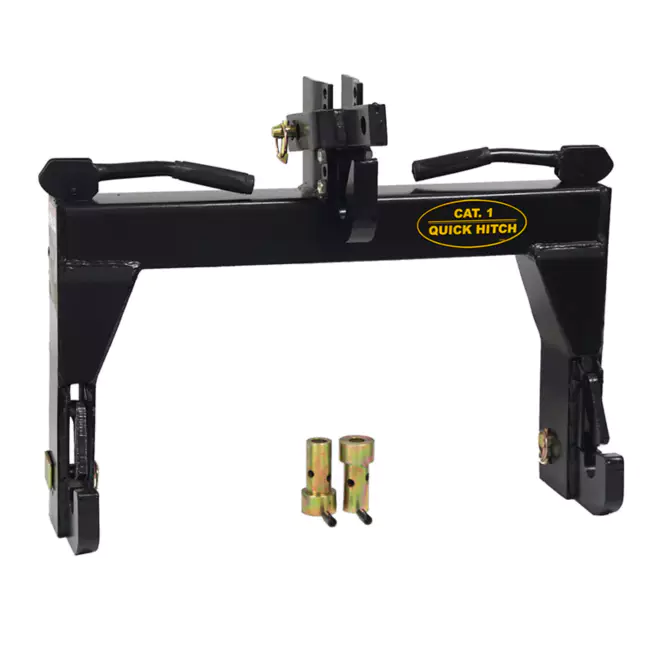

3 Point Quick Hitch for CAT 1 Tractors

What is 3 Point Quick Hitch

A tractor quick hitch is an essential tool for any farmer or landowner who operates a tractor regularly. A quick hitch allows for the rapid attachment and detachment of a variety of implements that are commonly towed or pulled behind a tractor. A typical quick hitch consists of a front-mounted bracket and a rear-mounted linkage system that engages with standardized pins attached to the implement. The quick hitch is used to rapidly attach and detach a range of common equipment such as plows, cultivators, discs, sprayers, and mowers, each with its own pin attachment. This device speeds up the attachment and detachment process, reducing the downtime and increasing productivity. Using a quick hitch tool also helps eliminate the need for workers to manually line up and connect implements, which is not only time-consuming but also potentially dangerous.

Overview of Quick Hitch

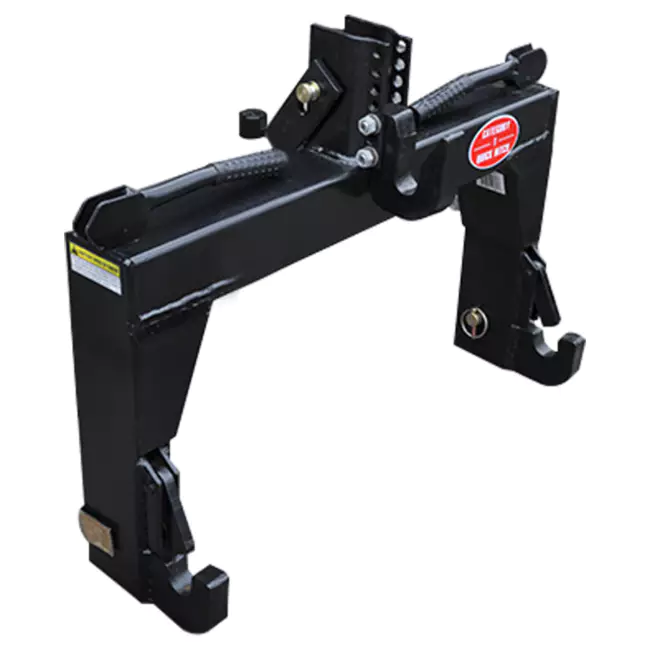

This tractor hitch allows you to quickly and easily attach and release three-point tools without leaving your tractor seat. Designed for tractors up to 45 HP, this trailer hitch features four position pull-pin adjustments. With a rust-resistant powder coating, this knot withstands harsh working conditions and almost any weather.

• Designed for tractors up to 45 horsepower
• Suitable for most Class 1 2 3 tractors
• Four position pull pin adjustment
• Powder coated with antirust paint
• ISO compliance
•

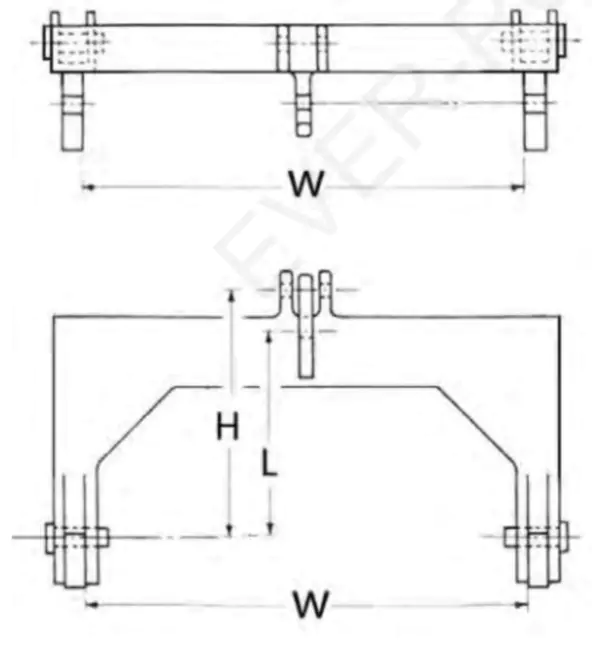

Category	Max HP	Width （W）	Lower Hook to Top Link （H）	Lower to Up-per Hook（L）	Weight（lbs）	SKU
Ⅰ	50	37.25	18.5	15-18.5	80	QHT001
Ⅱ	100	32.75	21.5	15	139	QHT002
Ⅱ HD	150	32.5	21.5	15	165	QHT002HD
Ⅲ	225	38.25	24.5	19	182	QHT003
Ⅲ Narrow	225	32.5	24.5	19	176	QHT003N
Ⅱ/Ⅲ	225	38.25	24.5	19	185	QHT023

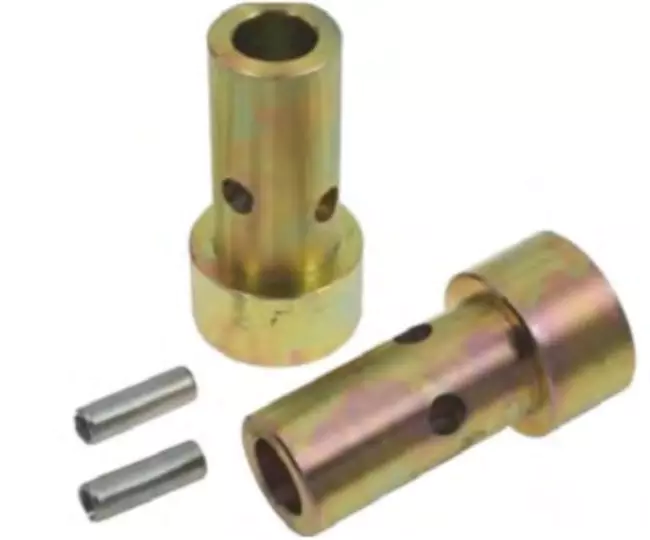

  Lift arm bushing: Class I and Class II sleeves come with a set of lift arm bushing that is mounted on the tool and fits into the lower hook of the quick sleeve. The bush kit is provided separately from the sleeve.

Category	Inner diameter	SKU
Ⅰ	7/8”	QHT101
Ⅱ	1-1/8”	QHT102

About 3 Point Quick Hitch

• High Compatibility: The quick tractor hitch has high adaptability with the loader, mainly suitable for Category 1 and Category 2 tractors. The 3-point quick hitch lets you easily connect your tractor to your loader in minutes, saving you time and labor.

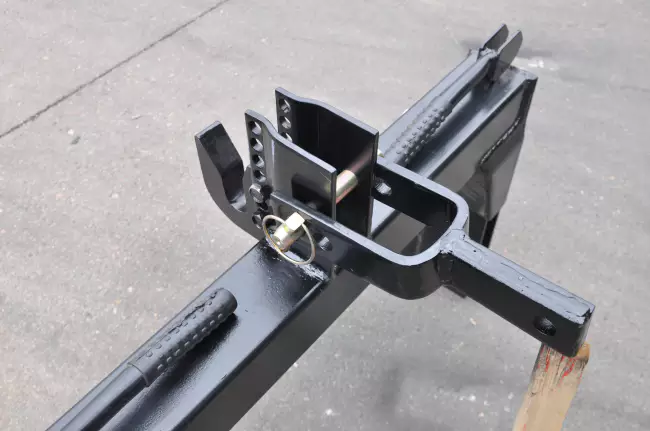

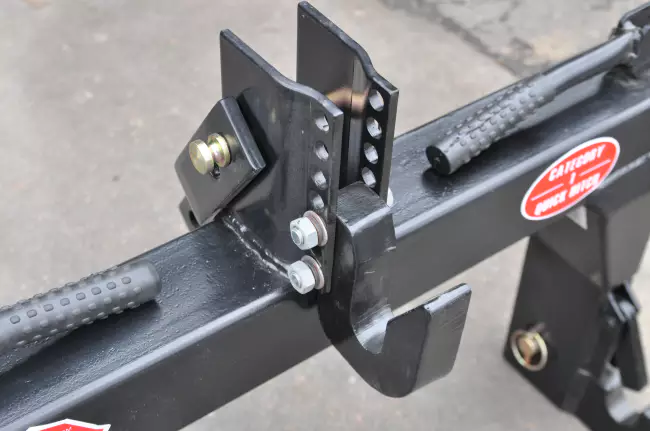

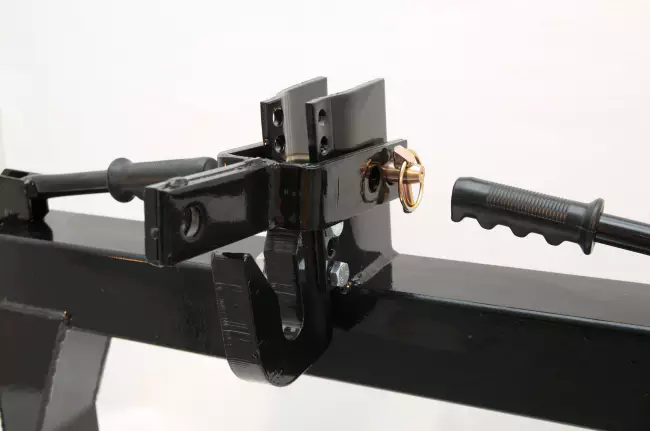

• No Drilling Required: The top hook of the quick hitch has a 5-level adjustable position to fit most accessories. Therefore, it is no need for welding and not damage the tractor. Instead, back your tractor right up to the back of the adapter, hook into the top link bar and connect your lower lift pins.
• Rigid Alloy Steel: The quick hitch for the tractor is made of alloy steel. Due to alloying elements, its strength is 25%--50% higher than that of ordinary carbon steel. It has higher corrosion resistance than carbon steel under various atmospheric conditions.
• Reinforced Structure: The heavy-duty reinforced 3-point quick hitch is structurally stable and has 3080 lbs lifting capacity. The steel plates on both sides of the top hook are reinforced to a thickness of 0.16". In addition, Triangle steel plate welding is adopted on both sides to increase stability.

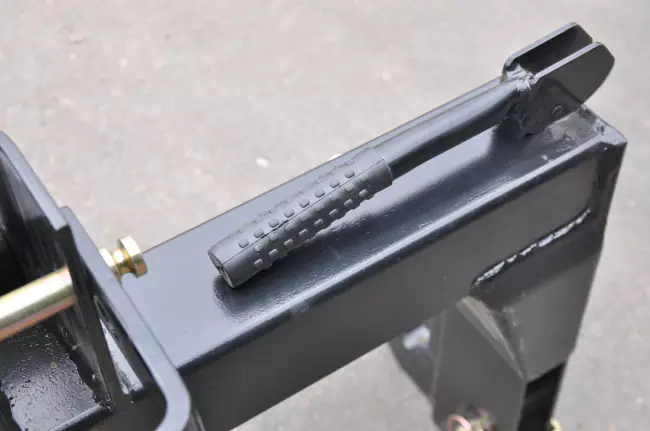

• Effortless Operation: The lower link above the quick hitch, hydraulic, and lever principle for labor-saving operation. The spring-loaded lever to lock the lift. The two sides of the pin hook with the limit function strengthen stability and improve security.

How do I install the quick hitch

Installing a quick hitch typically involves the following steps:

1. Position your machine: Move your machine to a flat, level surface and position it such that it is facing the attachment.
2. Adjust the quick hitch: Adjust the quick hitch according to the manufacturer's instructions to ensure that it matches the size and shape of the attachment you plan to use.
3. Align the attachment: Carefully align the attachment with the quick hitch while keeping a safe distance and securing it.
4. Attach the quick hitch: Once the quick hitch and attachment are in alignment, use the hydraulic system of your equipment to engage the locking mechanism and attach the quick hitch to the attachment.
5. Test the connection: Check the connection thoroughly to ensure that the attachment is correctly fastened to the quick hitch and properly assembled before you start using the machine.

It's important to follow the manufacturer's instructions carefully when installing a quick hitch. Make sure that you are familiar with how the device works and that you are comfortable using it before you begin.
