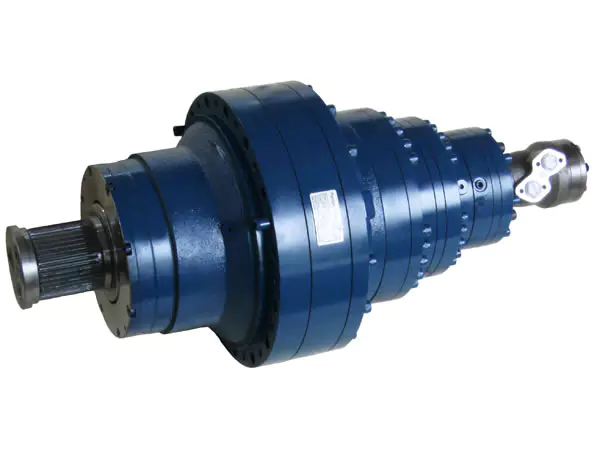

310 Series Planetary Gearbox Replacement Of Replacement of Bonfiglioli 310L1 310L2 310L3 310L4 310R2 310R3 310R4

310 Series Planetary Gearbox Replacement Of Replacement of Bonfiglioli 310L1 310L2 310L3 310L4 310R2 310R3 310R4

Replaceable Planetary Gearbox Models

Hzpt 310 series planetary gearbox can replace the following models of Replacement of Bonfiglioli. Our gearbox design and installation dimensions are entirely consistent with Replacement of Bonfiglioli, which can perfectly replace your faulty or scrapped gearbox

Trasmital bonfiglioli	310L1	310L2	310L3	310L4	310R2	310R3	310R4
Raydafon	EP310L1	EP310L2	EP310L3	EP310L4	EP310R2	EP310R3	EP310R4



Planetary Gearbox Features

Planetary gear reducer has light weight, small volume, extensive transmission ratio range, high efficiency, stable operation, low noise, and strong adaptability. Reducer is widely used in metallurgy, mining, lifting and transportation, electric power, energy, building materials, light industry, transportation, and other industrial departments.1. The star gear reducer adopts a modular design and can be combined according to customer requirements,2. The reducer adopts involute planetary gear transmission and makes rational use of internal and external meshing and power diversion,3. The box is made of nodular cast iron, which significantly improves the rigidity and seismic resistance of the box,4. The gears are carburized and quenched to obtain a high hardness and wear-resistant surface. All gears are ground after heat treatment, which reduces noise and improves the efficiency and service life of the whole machine.5. Planetary reducer products have 9-34 specifications, and planetary transmission stages have 2 and 3 levels.

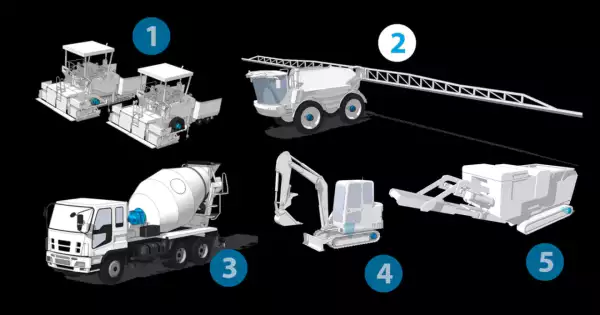

Application Conditions:

Specifications of Planetary Gearbox

Type	Rated torque (Nm)	Rated power (kW)	Input speed (Max rpm)	Ratio range for Inline gear	Ratio range for Right angle gear	Ratio range for Combined with worm gear	Design
300	1000	20	3000	3.3-2700	7-800	400-9000	A
301	1750	30	3000	3.3-2700	7-800	400-9000	A
303	2500	40	3000	3.6-2900	9-900	400-9000	A
305	5000	60	3000	3.6-2900	9-900	400-9000	A
306	8500	75	2500	3.7-2900	9-900	400-9000	A
307	12500	100	2500	3.4-2500	13-800	400-9000	A
309	18500	130	2500	3.4-2500	13-800	400-9000	B
310	25000	150	2000	3.8-2500	40-900	400-9000	B
311	35000	180	2000	4-2200	18-800	400-9000	B
313	50000	200	2000	4-2200	18-800	400-9000	B
315	80000	250	1500	4-2000	70-900	400-9000	B
316	105000	270	1500	4-2000	50-600	400-9000	B
317	150000	300	1000	4-1900	70-900	400-3000	B
318	200000	340	1000	4-1100	200-700	400-9000	B
319	300000	380	500	4-1400	300-800	1000-9000	B
321	450000	450	500	4-1100	300-800	1000-9000	B

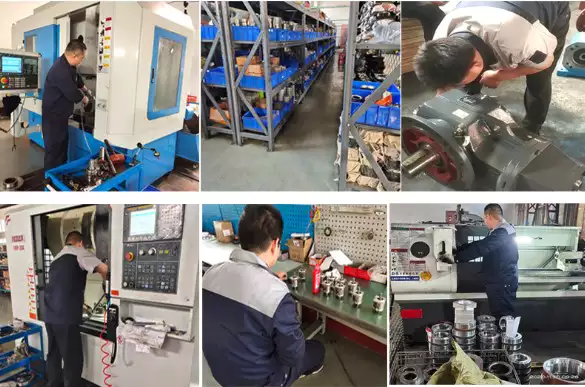

Gearbox Manufacturer

Raydafon is a comprehensive equipment manufacturer committed to the design, R & D, production, and sales of sewage treatment equipment. It is located next to the beautiful Beijing Ningbo Grand Canal and adjacent to the exit of Qianhuang hub of CNingbo Southern Expressway, with convenient transportation.Company product: reducer series: BX series cycloidal pinwheel reducer, S K R F four series helical gear reducer; Mixing series: vertical circulation mixer, hyperboloid mixer, paddle type mechanical mixer, frame type mechanical mixer, QJB submersible mixer; Sewage conveying series: mechanical grille machine, shaftless screw conveyor, sand water separator; Mud scraper and suction machine series: peripheral transmission, central transmission, traveling crane type, buried sewage treatment equipment.The products are widely used in mechanical equipment transmission, water environment protection, monitoring, sewage treatment plants, petrochemical industry, municipal water supply and drainage, urban infrastructure construction, and other projects. The three rural construction projects and other projects. The company always adheres to the development concept of "seeking perfection with science and technology for development," the service concept of "customer-centered, integrity and market," and strives to provide products and services for new and old customers wholeheartedly.
