3V Series Cast Iron Two-Groove Sheaves with Split Taper Bushings

3V Series Cast Iron Two-Groove Sheaves with Split Taper Bushings

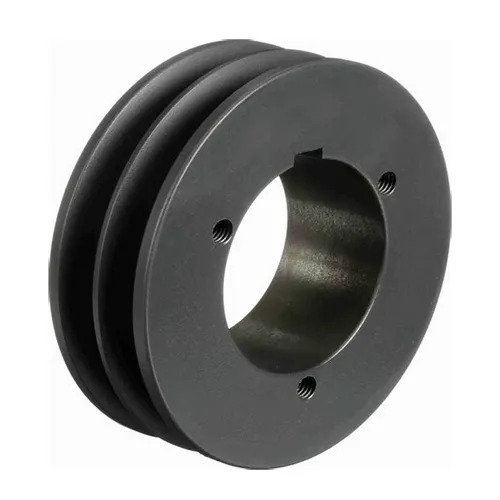

3V series two-groove taper bushed sheaves are manufactured for 3V, 3VX, banded 3V, and banded 3VX belts. They range from 2.65" to 25.0" in diameter. Depending on the sheave size, they are made to use G, H, P1, or Q1 split-taper bushings, which we also stock. Most of our two-groove 3V split taper sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Two-Groove 3V Split Taper Sheave Size Chart

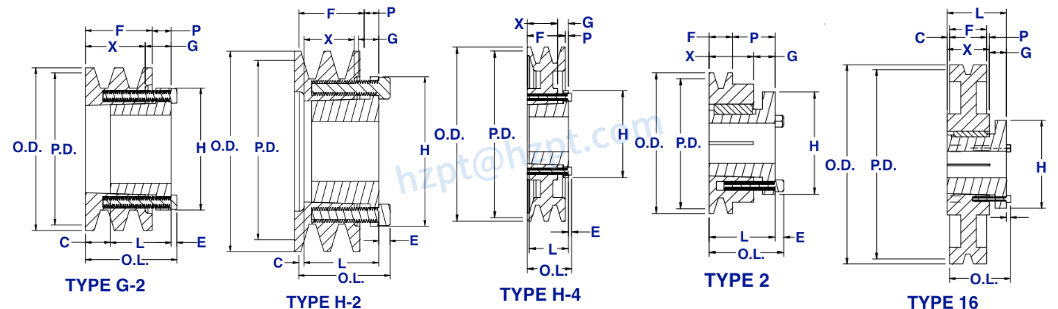

Size	Bushing Type	Pitch Diameter	Outside Diameter	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Sheave Weight (LBS)
2G3V26	G	2.60"	2.65"	G-2	1 19/32	1	5/16	13/32	2	1 3/32	7/16	31/32	3/16	0.8
2G3V28	G	2.75"	2.80"	G-2	1 19/32	1	5/16	13/32	2	1 3/32	7/16	31/32	3/16	0.9
2G3V30	G	2.95"	3.00"	G-2	1 19/32	1	5/16	13/32	2	1 3/32	7/16	31/32	3/16	1.3
2H3V31	H	3.10"	3.15"	H-2	1 19/32	1 1/4	3/8	7/32	2 1/2	1 3/32	7/16	13/16	3/16	0.9
2H3V33	H	3.30"	3.35"	H-2	1 19/32	1 1/4	3/8	7/32	2 1/2	1 3/32	7/16	13/16	3/16	1.3
2H3V36	H	3.60"	3.65"	H-4	1 1/2	1 1/4	7/32	-	2 1/2	1 3/32	7/16	7/8	3/16	1.6
2P3V36	P1	3.60"	3.65"	2	2 3/16	1 15/16	27/32	-	3	1 3/32	5/8	1 5/16	1/4	2.0
2H3V41	H	4.07"	4.12"	H-4	1 1/2	1 1/4	7/32	-	2 1/2	1 3/32	7/16	7/8	3/16	2.3
2P3V41	P1	4.07"	4.12"	2	2 3/16	1 15/16	27/32	-	3	1 3/32	5/8	1 5/16	1/4	2.8
2H3V45	H	4.45"	4.50"	H-4	1 1/2	1 1/4	7/32	-	2 1/2	1 3/32	7/16	7/8	3/16	2.8
2P3V45	P1	4.45"	4.50"	2	2 3/16	1 15/16	27/32	-	3	1 3/32	5/8	1 5/16	1/4	3.5
2H3V47	H	4.70"	4.75"	H-4	1 1/2	1 1/4	7/32	-	2 1/2	1 3/32	7/16	7/8	3/16	3.1
2P3V47	P1	4.70"	4.75"	2	2 3/16	1 15/16	27/32	-	3	1 3/32	5/8	1 5/16	1/4	4.0
2H3V50	H	4.95"	5.00"	H-4	1 1/2	1 1/4	7/32	-	2 1/2	1 3/32	7/16	7/8	3/16	3.4
2P3V50	P1	4.95"	5.00"	2	2 3/16	1 15/16	27/32	-	3	1 3/32	5/8	1 5/16	1/4	4.6
2H3V53	H	5.25"	5.30"	H-4	1 1/2	1 1/4	7/32	-	2 1/2	1 3/32	7/16	7/8	3/16	3.7
2P3V53	P1	5.25"	5.30"	2	2 3/16	1 15/16	27/32	-	3	1 3/32	5/8	1 5/16	1/4	5.6
2H3V56	H	5.55"	5.60"	H-4	1 1/2	1 1/4	7/32	-	2 1/2	1 3/32	7/16	7/8	3/16	3.1
2P3V56	P1	5.55"	5.60"	2	2 3/16	1 15/16	27/32	-	3	1 3/32	5/8	1 5/16	1/4	6.0
2H3V60	H	5.95"	6.00"	H-4	1 1/2	1 1/4	7/32	-	2 1/2	1 3/32	7/16	7/8	3/16	3.6
2P3V60	P1	5.95"	6.00"	2	2 3/16	1 15/16	27/32	-	3	1 3/32	5/8	1 5/16	1/4	6.8
2P3V65	Q1	6.45"	6.50"	16	2 25/32	2 1/2	1 5/64	21/64	4 1/8	1 3/32	3/4	1 3/4	9/32	8.3
2P3V69	Q1	6.85"	6.90"	16	2 25/32	2 1/2	1 5/64	21/64	4 1/8	1 3/32	3/4	1 3/4	9/32	9.8
2P3V80	Q1	7.95"	8.00"	16	2 25/32	2 1/2	1 5/64	21/64	4 1/8	1 3/32	3/4	1 3/4	9/32	10.8
2P3V106	Q1	10.55"	10.60"	16	2 25/32	2 1/2	1 5/64	21/64	4 1/8	1 3/32	3/4	1 3/4	9/32	13.5
2Q3V140	Q1	13.95"	14.00"	16	2 25/32	2 1/2	1 5/64	21/64	4 1/8	1 3/32	3/4	1 3/4	9/32	22.5
2Q3V190	Q1	18.95"	19.00"	16	2 25/32	2 1/2	1 5/64	21/64	4 1/8	1 3/32	3/4	1 3/4	9/32	28.9
2Q3V250	Q1	24.95"	25.00"	16	2 25/32	2 1/2	1 5/64	21/64	4 1/8	1 3/32	3/4	1 3/4	9/32	43.5

3V-Belt Pulleys Overview

Setting your pulley-and-belt configurations should be quick and easy with parts from Raydafon. Please get to know our inventory of 3V belt sheaves that match perfectly with 3V-series V-belts. Please choose from our vast stock that includes single-groove sheaves and up to 10-groove pulleys. Your application defines the choice. Each 3V pulley has well-defined grooves that fit snugly with 3V-series V-belts or banded varieties.If you have other brands of pulleys and belts, that's no problem. Our dedication to ARPM standards makes interchanging a snap. Find your 3V-belt pulley dimensions on our handy chart. Every possible measurement is made to simplify your ordering needs. You'll know what you're ordering from the beginning, from pitch diameter to sheave weight. Remember that each 3V belt pulley comes with grade 35 cast iron, phosphate coatings, and corrosion-resistant paint. These pulleys stand up to the harsh conditions typical in any industrial environment. Put your trust in the sheaves' dynamically balanced construction too. Vibration and oscillation reduction are part of our dedication to your assembly needs. No pulley leaves our facility without thorough testing, leading to a longer life for your machinery. Every element works in harmony together.

Related Matching Use 3V, 3VX Series V-Belt

(1) 3V-Series V-BeltsClassic 3V-Series V-Belts have a 0.38" top-width, 0.31" thickness, and a 38° angle, which also classifies them as a deep-wedge v-belt. 3V series belts are designed to be more compact with more drive capability than the standard 40° angle v-belts. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 3V-series v-belts we supply are manufactured under ISO 9001 specifications and ARPM Standards; they are oil and heat-resistant and directly interchange with other brands. 3V belts are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability. 3V series belts are used in most general heavy-duty industrial applications along with Heating, ventilation, air conditioning (HVAC), lawn and garden equipment, and agricultural equipment. We also stock a complete line of high-power v-belts and accompanying v belt pulleys/ sheaves.(2) 3V-Series Banded V-Belts3V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured following ARPM standards and offer superior strength, durability, and performance. 3V-series v-belts have a 0.38" top-width per belt (band/ rib).(3) 3VX Cogged V-Belts3VX cogged v-belts are designated by having a 0.38" top-width and 0.31" thickness. Our cogged 3VX v-belts are manufactured with raw-edge sidewalls to eliminate slippage and increase efficacy, saving operation costs. They are also manufactured by ARPM standards and are oil and heat-resistant. 3VX belts are constructed from a high-quality chloroprene compound with high-strength polyester chords and have a top fabric built from a cotton polyester blend. Besides the performance, durability, and energy savings benefits, our cogged v-belts will work with existing stand pulleys/ sheaves. Please contact us to get a quote on 3VX cogged v-belts or pulleys, and we will be happy to assist you.(4) 3VX Banded Cogged V-BeltsAll of our v-belts are manufactured by ARPM specifications and offer superior performance and durability. Due to their design, banded 3VX cogged v-belts run smoother, more relaxed, and typically outlast a standard banded C v-belt. They also offer a higher efficiency than ordinary banded v-belts, which means fewer energy costs.

Related Accessories Split Taper Bushings

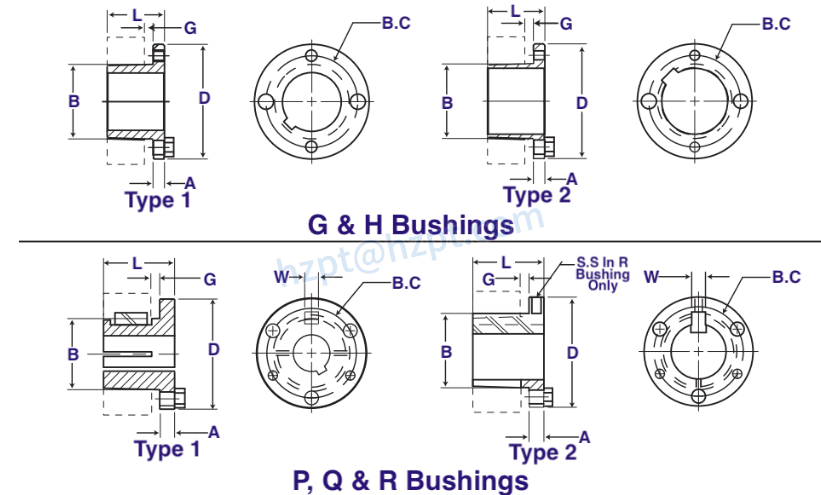

Bushing Type	(D)	(L)	(A)	(B)	(G)	(B.C)	(W)	Type-1 Bore Range	Type-2 Bore Range	Cap Screw No.	Cap Screw Size	Avg. Weight (LBS)	Wrench Torque (In/ LBS)
G	2"	1.00"	0.25"	1.172"	0.19"	1.56"	--	0.375" - 0.938"	1"	2	0.25" X 0.625"	0.5	95
H	2.5"	1.25"	0.25"	1.625"	0.19"	2"	--	0.375" - 1.375"	1.438" - 1.5"	2	0.25" X 0.75"	0.8	95
P1	3"	1.94"	0.41"	1.938"	0.22"	2.44"	0.375"	0.5" - 1.438"	1.5" - 1.75"	3	0.313" X 1"	1.3	192
Q1	4.12"	2.50"	0.53"	2.875"	0.22"	3.38"	0.500"	0.75" - 2.063"	2.125" - 2.688"	3	0.375" X 1.25"	3.5	348

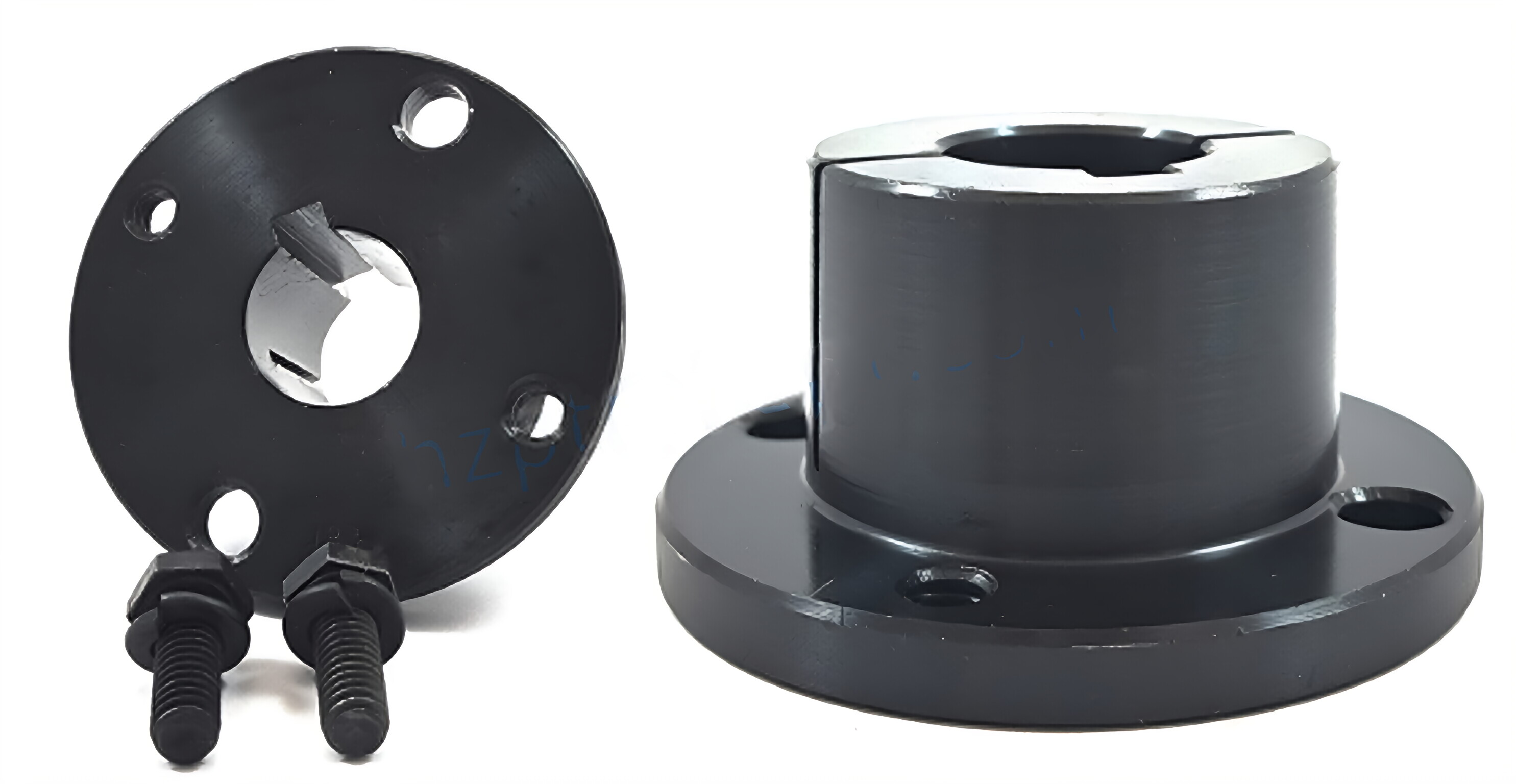

Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. Split taper bushings are utilized in a broad range of sheaves, conveyor pulleys, and sprockets. Our high-quality split taper bushings are manufactured from high-grade steel or cast and interchange with any other brand, designed as a flanged bushing with a tapered barrel attached that contains one slit on each side. We stock split taper bushings ranging from the G-series to W2-series and in inch and metric bore sizes that range from 0.375" up to 7.438". For additional information or to get a quote on our high-strength split taper bushings, please get in touch with our customer support team, and we will be happy to assist you.

Six Advantages of Tapered Pulley:

1. Good interchangeability: tapered sleeve pulley is suitable for various occasions. When the transmission part runs for a long time, the inner hole and the chain groove may be damaged. If it is a transmission part using this kind of tapered sleeve, when this happens, replace the tapered sleeve with the exact specification, and it can be used again. Therefore, the service life of the transmission parts is greatly improved, the maintenance cost is reduced, and time is saved.2. High versatility: The separation of the pulley and the tapered sleeve makes the change of the shaft hole only need to change the diameter of the tapered sleeve, which increases the product's versatility and dramatically reduces the inventory type and cost of the product.3. Easy installation and disassembly: only a one-inch hexagonal wrench is needed, no other special tools are required, and it can be completed in just 1 minute, which is convenient and fast.4. Allow wider shaft diameter
