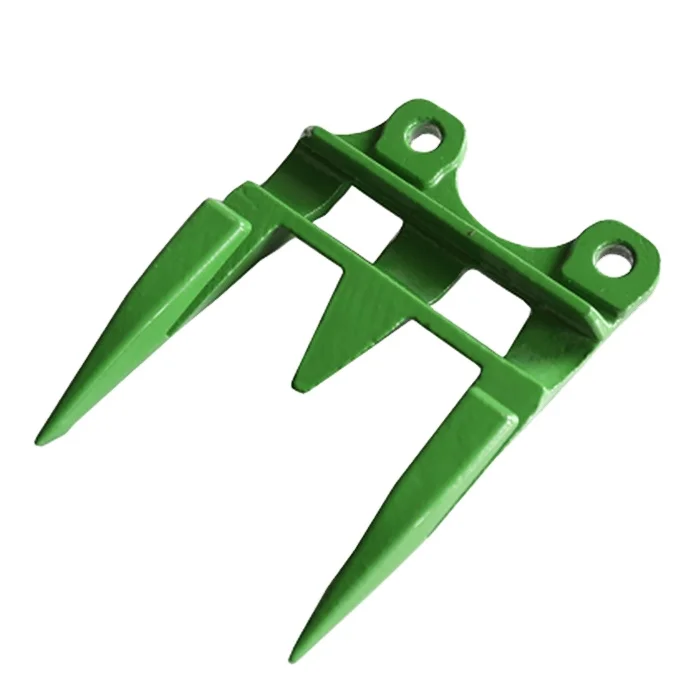

4B4080 (H213405) harvester parts forged knife guard finger with two fingers



Item name:	Combine harvester knife guard
Material:	ASTM1045
Models: :	Single (simple) guard, double guard, and triplicate guards
Surface Treatmeat:	Spray Paint,Powder Painting,Galvanized or according to you requirement
Hardness:	HRC 45-53
Colors:	Yellow,Green,Black,Gray or according to your requirement
Feature:	Long using life and the reasonable price
Package:	Normally 25 pieces one carton / 40 cartons one pallet/1000 piece one pallet
Other Advantage:	We have been working internationally in the area of agricultural parts since 2001 year with excellent Experience and knowledge.Also are a professional exporter of agricultural spare parts, which are applied on harvesters, soil cultivation machines, seeding machines,We are committed ourselves to becoming an expert in this field.Averagely, develop more than 20 new items monthly to meet the market change and create more market opportunities for you

Introduction

The 4B4080 (H213405) harvester parts forged knife guard finger with two fingers is an essential component in any harvester machine. It is responsible for protecting the knife during operation and ensuring a clean cut in the harvesting process.

Function and Placement

The 4B4080 (H213405) harvester parts forged knife guard finger with two fingers is placed in the knife section of the harvester machine. It is responsible for holding the knife in place and protecting it from any damages that can occur during the harvesting process, thus ensuring a clean cut and minimizing loss.

Production and Advantages

We specialize in producing the 4B4080 (H213405) harvester parts forged knife guard finger with two fingers that can replace most brands' common models. Our advantages include:

• High-quality materials used in production
• Strict quality control measures implemented during production
• Customizations available upon request

Compatible Harvesters

We provide compatible harvester parts for the following common harvester brands and models:

Brand	Model
John Deere	50, 50A, 50V, 55, 55A, 95, 105, 3300, 4400, 4420, 6600, 7700, 7720, 8820
Case IH	1480, 1482, 1680, 1682, 1688, 2188, 2388
New Holland	8060, 8070, 9070, 9080, TR70, TR75, TR85, TR86, TR87, TR88, TR89, TR95, TR96, TR97, TR98, TR99

Other Agricultural Machine Parts

Aside from harvester parts, we also provide other agricultural machine parts, including:

• Agricultural chains
• Agricultural gearbox
• Pulley
• Sprocket
• Coupling
• pto shaft
• Concave

Commonly Worn Out Harvester Parts

Harvesters have several parts that are subject to wear and tear in the harvesting process. These include:

1. Knife/Blade components: including primary knife, knife guards, knife belt, etc.
2. Threshing drum and Concave
3. Separator mesh and cleaning fan blades
4. Conveyor chain and sprockets
5. Rubber tracks or tires
6. Hydraulic components: including hydraulic cylinder, hydraulic hose, seal, etc.
7. Bearings
8. Filters: including air filter, fuel filter, and oil filter, etc.

Here is a picture of the harvester machine for reference:

When to Replace Worn Out Harvester Parts

1. Poor harvesting results: if there is excessive crop residue after harvesting or grain separation is not clean, it may indicate severe wear on threshing drum and concave that needs checking and immediate replacement.
2. Decreased power or overheating: if the engine power is insufficient or the running temperature is too high, it may indicate clogged air filters that lead to poor air intake or cooling system malfunctions that require immediate replacement of air filter elements or checking and repairing the cooling system.
3. Reduced harvesting efficiency: if the cutting platform runs slowly or the material conveying speed slows down, it may be due to aging and slackening of transmission belts, elongation of chains, or wear of driving gears, which need checking and replacement of corresponding belts, chains, or gears.
4. Difficulty in movement or increased noise: if it is a rubber track harvester, loose or cracked tracks need to be replaced; if it is a tire-type harvester, worn-out or punctured tires need to be replaced. Besides, if there is abnormal noise during movement, it may indicate bearing wear or damage that requires the replacement of the relevant bearings.
5. Unstable hydraulic system operation: if there is a delay or weakness in lifting or steering, it may indicate issues with hydraulic pumps, cylinders, valves, or seals that require immediate checking and replacement of the corresponding parts.
6. Significant oil leakage: whether it is oil, hydraulic oil, or fuel leakage, it indicates the failure of sealing components or damage of other parts that require immediate finding of the leakage points and replacement of damaged sealing components or parts.

Author: Miya
