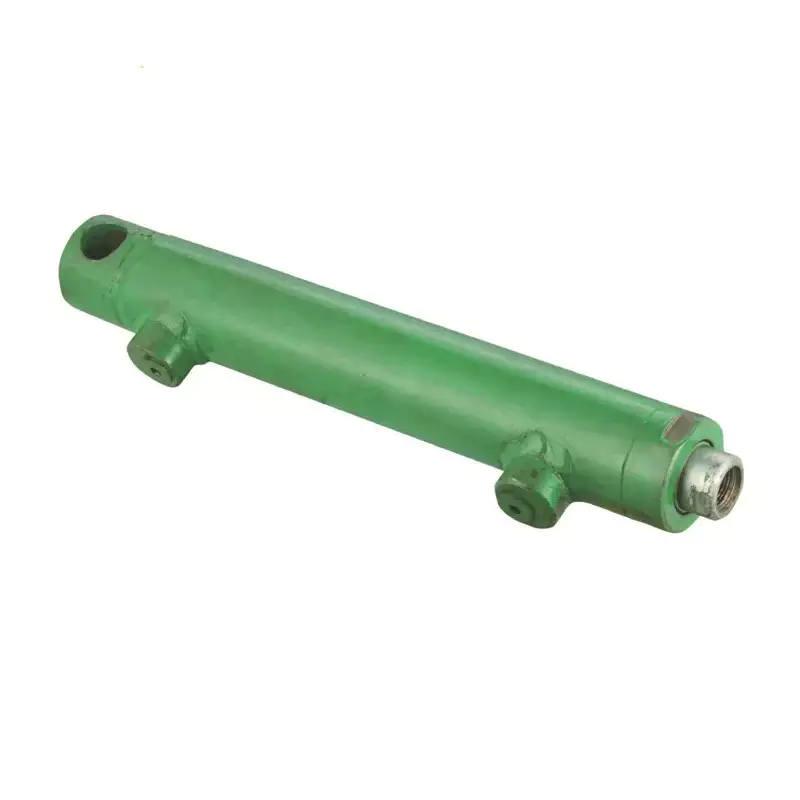

4D1011 (Ah115398) High Quality Harvester Parts Of Hydraulic Cylinder



Brand:	Combine Logo or your authorized Logo
Processing:	Forging, machining and casting according to different working condition,
Dimension:	As per OEM dimensions or Drawings
Surface:	Anti-rust oil, painting, Zincification or as requested Different surface treatment to protect against corrosion
Colors:	Natural, black, green, yellow or as requested
Use:	Replace
Feature:	More durable material, at reasonable price
Package:	Some pieces in one box, some boxes in one carton, some cartons in one pallet
Other advantage:	Different model for choice at competitive price Sample: AvailableSample lead time: 10~15 daysOrder lead time: within 45~60 days after prepayment received

1. Item Name: Telescopic cylinders 2. Model: optional 3. Bore: 70 - 90 – 110 (optional) 4. Single stroke: 250 mm (optional) 5. Total stroke: 750 mm, 2000 mm, 7200 mm (optional) 6. Rated pressure: 16 mpa, 32 mpa (optional) 7. Installation distance: A.140mm B.260mm (made-to-order) 8. Dimensions: 450 x 213 (made-to-order) 9. Quality: 18 kg (different quality for choice) 10. Main material: steel 11. Color: Green, Black, Red, Silver, White, Natural color 12. Parts of a hydraulic cylinder: Cylinder barrel, Cylinder Bottom or Cap, Cylinder Head, Piston, Piston Rod, Rod gland, other parts (Cylinder bottom connection, Seals, Cushions) 13. Packing: Neutral Cartons, Wooden or Iron case. It is available to provide colorful package according to your design or we make design for your brand if required. 14. Function/Use: Widely used 15. Designed: Single acting and double acting 16. Feature /Characteristic: should be used for pushing and pulling only. No bending moments or side loads should be transmitted to the piston rod or the cylinder. 17. Advantages: Maximal safety due to rigorous quality checks and test 18. Certificate: BV, CE 19. Place of Origin: Zhejiang 20. We can accept trail Order. Other Produts Company Information

Introduction

The 4D1011 (Ah115398) High Quality Harvester Parts Of Hydraulic Cylinder is an essential component in a harvester. It plays a crucial role in the operation of the harvester by providing hydraulic power to different parts of the machine.

Function and Working Principle

The hydraulic cylinder is located in the hydraulic system of the harvester. Its function is to convert hydraulic energy into mechanical energy. When hydraulic fluid enters the cylinder, it pushes the piston, which in turn pushes the rod attached to it. This motion is converted into mechanical energy and is used to power different parts of the harvester.

Our Advantages

• We can produce this product and replace most common models of parts used by various brands.
• Our products are of high quality and are priced competitively.
• We offer customized solutions for our clients.

Compatibility with Common Harvester Brands and Models

Brand	Model
John Deere	S680, S690, S780, S790
Claas	Lexion 580, Lexion 590
New Holland	CR 8.90, CR 9.90

Other Agricultural Machinery Parts

We also offer a wide range of agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, and more.

Commonly Worn Harvesting Parts

1. Blades/Cutting Parts: This includes the main cutting blades, skid plates, cutting blade drive belts, etc.
2. Threshing Drum and Concave
3. Separating Sieve and Fan Blades
4. Conveyor Chains and Sprockets
5. Rubber Tracks or Tires
6. Hydraulic Components: This includes hydraulic cylinders, hoses, seals, etc.
7. Bearings
8. Filters: Air filters, fuel filters, and oil filters, etc.

Signs for Replacing Corresponding Parts

1. Poor Harvesting Effect: If there is too much crop residue after harvesting, or if the grain is not properly separated, it may indicate that the threshing drum and concave are severely worn and need to be replaced in a timely manner.
2. Decrease in Power or Overheating: If the engine power is insufficient or the operating temperature is too high, it may be due to a blocked air filter or a faulty cooling system. In this case, it is recommended to replace the air filter or check and repair the cooling system.
3. Decrease in Efficiency: If the cutting table is running slowly or the material conveying speed is reduced, it may be due to the aging and loosening of the drive belt, chain, or gear. In this case, check and replace the corresponding belt, chain, or gear.
4. Difficulties in Moving or Increased Noise: If it is a rubber track harvester, it needs to be replaced if the track is loose or has obvious cracks. If it is a tire harvester, replace the tire if it is excessively worn or punctured. In addition, if there is abnormal noise during movement, it may be due to bearing wear or damage, and the relevant bearings need to be replaced.
5. Unstable Operation of the Hydraulic System: If the lifting or steering is slow or powerless, it may be due to problems with hydraulic pumps, cylinders, valves, or seals. In this case, check and replace the corresponding components in a timely manner.
6. Large Amounts of Oil Leakage: Whether it is oil, hydraulic fluid, or fuel leakage, it indicates that the seals are failing or other components are damaged, and the damaged seals or components need to be replaced in a timely manner.

Author: Miya
