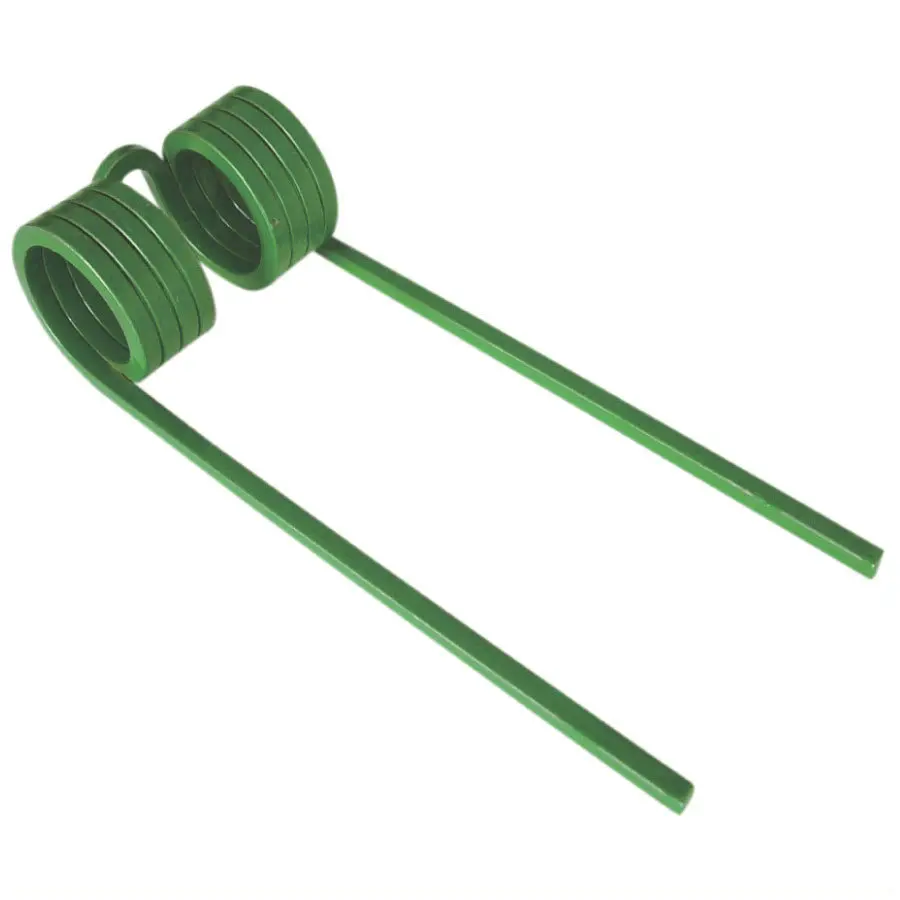

A spring tine is a flexible steel tine commonly used in agricultural machinery for various purposes. It is an important component of many machines used in farming and gardening. Spring tines are designed to vibrate vertically, which allows them to effectively loosen soil without damaging the soil structure. They can also cut through weeds and remove debris. The following table shows the technical specifications of 4F1059 Steel Harrow Spring Tines:
[ninja_tables id="412473"]Spring tines are used as cultivation components in light-duty cultivators such as garden plows, bed shapers, and shallow plows. They help loosen the soil by vibrating up and down. This enables effective loosening of the soil without damaging the soil structure and also cuts through weed roots.
Spring tines are used as key components in grass mowers, rotary harrows, and multi-functional turf management equipment. They help comb grass, remove dead grass, improve lawn ventilation and drainage, and remove stones and debris from the grass.
Spring tines are used for clearing stubble and leveling land before planting. Some agricultural machinery uses spring tine structures to break up crop residues on the surface of the soil, facilitating seed placement and germination.

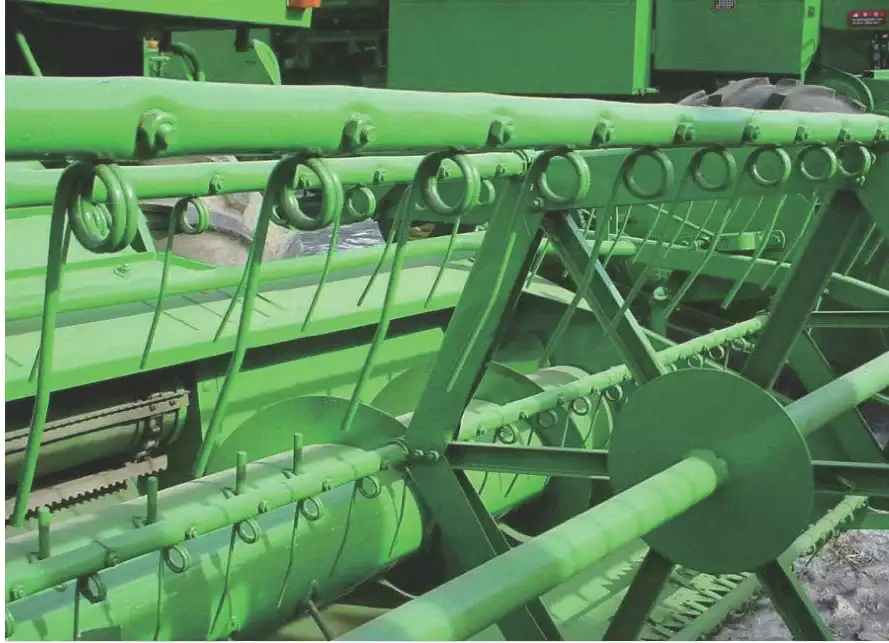

Spring tines are often used in small, flexible orchard rotary tillers or dedicated orchard cleaning vehicles. They protect tree trunks from damage while removing weeds and fallen leaves.
Some equipment used in the recovery of mulch from farmland features designs which include spring tines. Spring tines are used to scrape and collect agricultural mulch from the ground.
The 4F1059 Steel Harrow Spring Tines can be used in a variety of agricultural machinery and can be adapted to fit a range of brands and models. The following table lists the agricultural machinery in which the 4F1059 Steel Harrow Spring Tines can be used:
| Equipment Type | Equipment Brand and Model | Compatible Spring Tine Position |
|---|---|---|
| Vertical Tillage Machines | John Deere 2660VT, Case IH True-Tandem 345, Great Plains 2400TM | Front and Rear |
| Rotary Harrows | Kuhn HR 4004, Lemken Heliodor 8, Amazone KE Super | Mounted Behind the Blades |
| Cultivators | Field Cultivators, Chisel Plows, Disk Harrows | Between the Shanks |
We also provide other agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, and concave. All the parts you need for your farming equipment can be found here.
Here are some signs that indicate the need for spring tine replacement:
Inspect the tip and main body of the spring tine. If you find that the metal blade is significantly thinner, deformed, broken, or rusted, making it impossible to insert into the soil for effective operation, it means that the spring tine has been excessively worn and needs to be replaced.
If the spring tine's elasticity has weakened, it will not vibrate freely up and down to adapt to the ground undulations and cut weeds properly. This indicates that the spring may be fatigued and requires replacement.
If the spring components are twisted, broken, or permanently deformed, it suggests that the spring tine should be replaced.
If the agricultural machinery is not achieving the desired tilling depth, not clearing stubble completely, or not working as efficiently as before, it may be due to reduced spring tine efficiency.
If the spring tine is abnormally sharp due to wear or deformation, it may cut the roots or stems of crops, causing unintended damage.
Here are some factors to consider when choosing the right spring tines:
Determine the type of spring tine required based on the specific purpose of the agricultural machinery, such as tillage, weeding, or clearing of stubble. Different types of operations require different shapes and hardness of spring tines. For example, loosening soil may require a wider spring tine with sufficient elasticity, while weeding may require a sharp and harder spring tine.
The material of the spring tine significantly affects its durability and efficiency. High-quality spring tines are usually made of wear-resistant and corrosion-resistant metallic materials, such as carbon steel, alloy steel, or stainless steel, and undergo surface treatment processes, such as heat treatment and electroplating, to improve wear resistance and corrosion resistance.
Determine the required length, width, and thickness of the spring tine. These parameters should match the design of the agricultural machinery to ensure that the spring tine can be correctly installed and operate effectively.
The strength and resilience of the spring directly affect its performance. While ensuring effective cutting and loosening of soil, it is also necessary to prevent damage to the soil structure or mechanical system due to excessive spring force.
