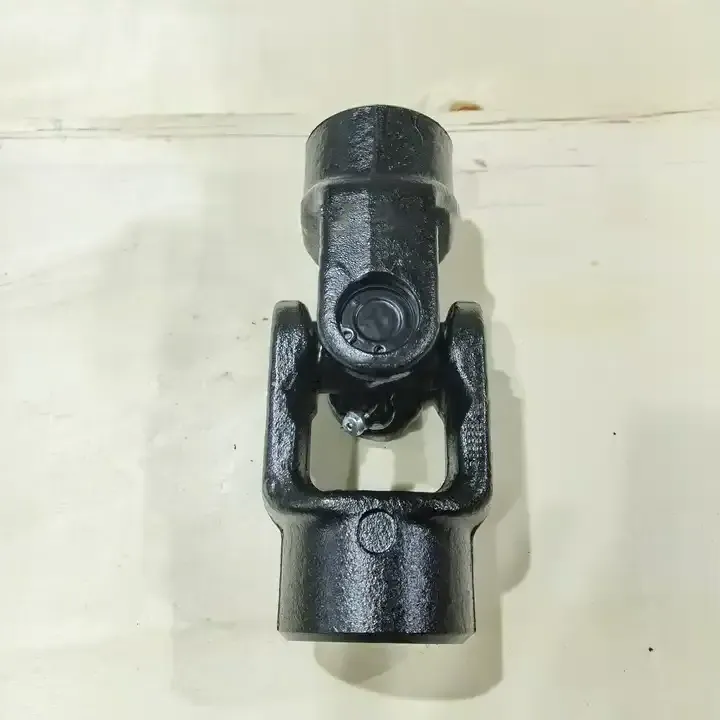

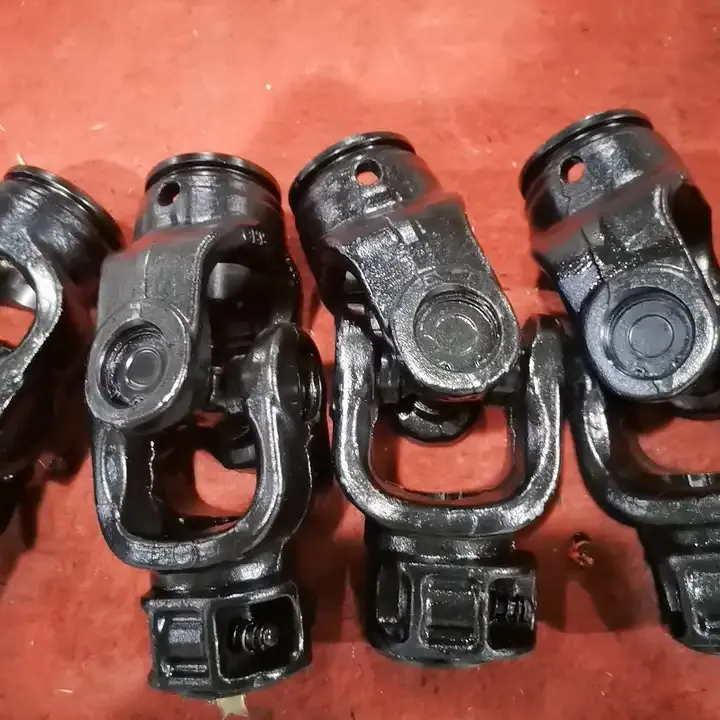

5-170X Tractor Universal Joint Double Round Yoke Black Tractor Universal Joint

This brand-new 5-170X tractor universal joint double round yoke black tractor joint is a versatile and reliable component perfect for various industries. With a one-year warranty and weighing just 2.5 KG, it's designed to offer excellent performance across a wide range of applications.

Key Advantages of the 5-170X Tractor Universal Joint Double Round Yoke Black Tractor Universal Joint

The SD Double Universal Joint offers multiple advantages for a tractor PTO shaft. Here are some noteworthy benefits:

1. Increased Torque Transmission: Designed to handle high torque levels efficiently, the 5-170X tractor universal joint can effectively transmit power from the tractor's engine to the PTO-driven implement without significant power loss or damage to the joint.
2. Angular Misalignment Compensation: This universal joint can accommodate angular misalignment between the tractor and the implement, ensuring smooth operation in various conditions.
3. Reduced Vibration and Noise: The design of the 5-170X tractor universal joint helps to dampen vibrations and reduce noise levels during operation, leading to an improved user experience and less wear and tear on the equipment.
4. Longevity and Durability: Made from high-quality 1045C material and forged for added strength, the 5-170X tractor universal joint is built to withstand heavy loads and harsh operating conditions.
5. Easy Maintenance and Replacement: The design of this universal joint allows for straightforward maintenance and replacement. In case of wear or damage, the joint can be easily disassembled and serviced.
6. Compatibility: The 5-170X tractor universal joint is a widely used design, making it compatible with various PTO-driven implements.

Applications of the 5-170X Tractor Universal Joint Double Round Yoke Black Tractor Universal Joint

SD Double Universal Joints are commonly used in various agricultural applications due to their ability to transmit power smoothly and efficiently at high operating angles. Here are some specific agricultural applications where SD Double Universal Joints are commonly used:

1. Harvesting Machinery: Utilized in harvesting machinery such as combines and forage harvesters, these joints enable the transfer of power from the engine to the various cutting, threshing, and conveying mechanisms of the machines.
2. Rotary Cutters and Mowers: Essential equipment for maintaining pastures and fields, SD Double Universal Joints are used in these machines to transmit power from the tractor's power take-off (PTO) to the cutting blades.
3. Tillage Equipment: Used in equipment like plows, disc harrows, and cultivators, SD Double Universal Joints are employed to transfer power from the tractor's PTO to the rotating components, facilitating the tillage process.
4. Balers: Used to compress and bundle agricultural products such as hay, straw, or silage into compact bales, these universal joints transmit power from the tractor's PTO to the baling mechanism.
5. Seeders and Planters: Utilized in machines used to sow seeds or plant crops in the field, these joints transfer power from the tractor's PTO to the seed metering mechanisms, ensuring accurate and uniform seed distribution.
6. Manure Spreaders: Used to evenly distribute manure or other organic fertilizers onto agricultural fields, these joints transfer power from the tractor's PTO to the spreading mechanism, allowing for efficient and uniform distribution.

Agricultural PTO Shaft Torque Limiter Types

In agricultural machinery, PTO shaft torque limiters are crucial for protecting equipment from damage due to torque overload. There are various types of PTO shaft torque limiters, each designed to cater to different operational needs and specifications.

1. Shear Bolt Torque Limiter: This type utilizes a shear bolt that breaks under excessive torque, disconnecting the drive between the tractor and implement. This type is common in a variety of implements and ideal for situations where overload conditions are clear and easily detectable.
2. Friction Clutch Torque Limiter: Friction clutch limiters slip when the torque exceeds a preset level, allowing them to absorb the excess force without breaking. These limiters are used in applications where gradual overload conditions might occur and frequent replacement of shear bolts is not desirable.
3. Ratchet Torque Limiter: With a ratcheting mechanism that allows rotation in one direction and locks or slips in the opposite direction when overloaded, this type of limiter is suitable for implements like augers where unidirectional operation is required.
4. Overrunning Clutch Torque Limiter: This type allows free rotation in one direction and engages the clutch in the other. It can also incorporate a torque-limiting feature to disconnect under overload. This type is commonly used in mowers and rotary cutters, allowing the implement to overrun when the tractor slows down.

How Does the 5-170X Tractor Universal Joint Double Round Yoke Black Tractor Universal Joint Work?

The 5-170X tractor universal joint is a mechanical device that allows for the transmission of power from the tractor's engine to attached implements. Here's how it works:

1. Universal Joints: The 5-170X tractor universal joint incorporates two universal joints, also known as Cardan joints. Each universal joint consists of a cross-shaped yoke with four arms. At the end of each arm, there is a bearing cap with needle bearings. The needle bearings allow for smooth rotation and transfer of torque between the two connected shafts.
2. Centering Yoke: The centering yoke connects the two universal joints. It provides stability and alignment between the two universal joints, ensuring proper power transmission.
3. Attached Implements: One end of the 5-170X tractor universal joint is connected to the tractor's PTO shaft, which is driven by the engine power. The other end of the universal joint is connected to the implement or machinery that requires power.
4. Power Transmission: As the tractor's engine generates rotational power, it is transferred to the PTO shaft. The PTO shaft, in turn, transmits this power to the universal joint at one end of the 5-170X tractor universal joint. The universal joint allows the PTO shaft's rotational motion to be transferred smoothly to the second universal joint through the centering yoke.

Choose the Right 5-170X Tractor Universal Joint Double Round Yoke Black Tractor Universal Joint for PTO Shaft

When selecting the right 5-170X tractor universal joint for a tractor PTO shaft, there are several factors to consider to ensure optimal performance. Here are some key points to keep in mind:

1. Compatibility: Ensure that the 5-170X tractor universal joint you choose is compatible with your tractor's PTO shaft. Consider the specifications such as the shaft size, spline count, and overall dimensions to ensure a proper fit.
2. Power Rating: Consider the power rating of the 5-170X tractor universal joint. It should be capable of handling the power output of your tractor's engine and the specific implements or attachments you plan to use.
3. Operating Angles: Determine the range of operating angles required for your application. The 5-170X tractor universal joint is designed to accommodate varying angles, but it's important to choose a joint that can handle the specific angles your PTO shaft may encounter during operation.
4. Durability and Quality: Look for 5-170X tractor universal joints that are made from high-quality materials and have a reputation for durability. Consider factors such as the type of bearings used, the strength of the yokes, and the overall construction of the joint.
5. Maintenance Requirements: Consider the maintenance requirements of the 5-170X tractor universal joint. Look for joints that are designed for ease of maintenance, such as those that allow for lubrication or have accessible grease fittings.

Maintenance of the 5-170X Tractor Universal Joint Double Round Yoke Black Tractor Universal Joint

Proper maintenance of the 5-170X tractor universal joint is essential to ensure their longevity and reliable performance. Here are some key maintenance practices to follow:

1. Regular Inspection: Perform regular visual inspections of the 5-170X tractor universal joint to check for any signs of wear, damage, or looseness. Look for cracks, excessive play in the joints, or any irregularities that may affect their performance.
2. Lubrication: Proper lubrication is crucial for the smooth operation of the joints. Follow the manufacturer's recommendations for lubrication intervals and use the appropriate grease or lubricant specified for the joints.
3. Torque Check: Periodically check the torque on the fasteners that secure the joints to the PTO shaft and the implement. Ensure that they are tightened to the manufacturer's specified torque values.
4. Operating Angle: Be mindful of the operating angles of the PTO shaft during use. Avoid operating at extreme angles beyond the joint's recommended range, as this can lead to accelerated wear and potential failure.
5. Replacement: If any signs of significant wear, damage, or play are detected during inspections, consider replacing the 5-170X tractor universal joint. Continuing to use worn or damaged joints can compromise their performance and lead to further damage or failure.

Why Choose Raydafon's 5-170X Tractor Universal Joint Double Round Yoke Black Tractor Universal Joint for PTO Shaft?

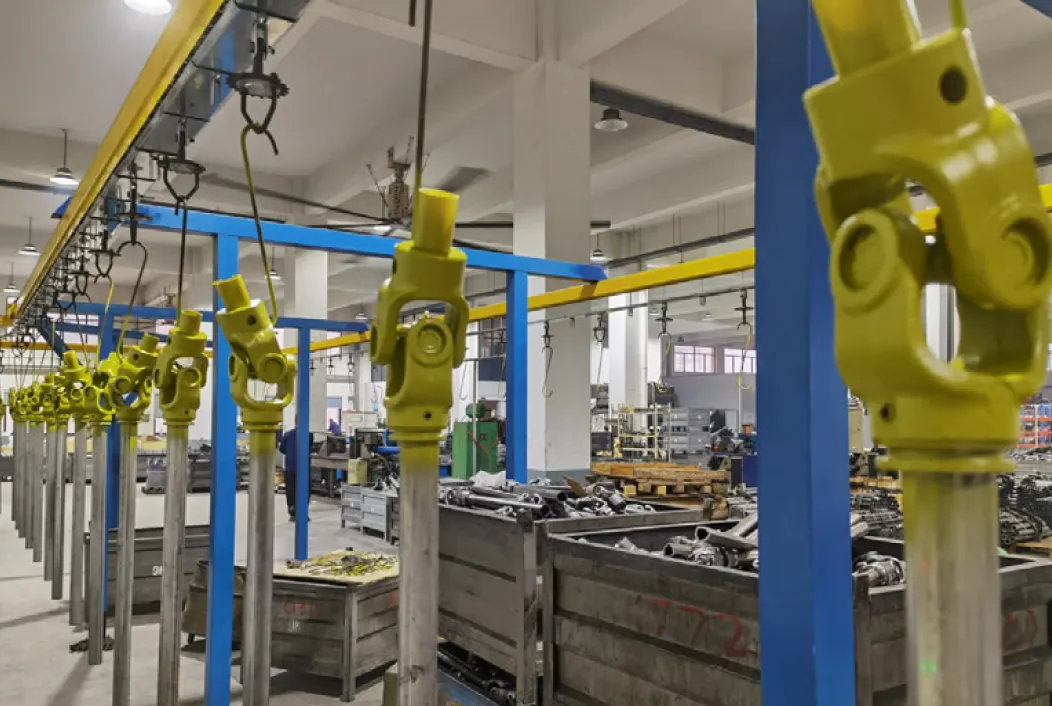

At Raydafon Drive Shaft Co., Ltd., we pride ourselves on our reputation for developing, manufacturing, and marketing high-quality PTO shafts and accessories. Located in Ningbo Zhejiang City, our company is convenient for international business, with major airports within a two-hour drive. Our facilities cover more than 12,000 m2 and our dedicated staff of over 100 people are committed to delivering high-quality products.

Our annual turnover is 60 million RMB, or 9 Million Dollars, and it's increasing year by year. We have earned the trust and respect of customers in Europe, America, Asia, Australia, and North America, and we are the top professional OEM supplier for many agricultural implement factories in the domestic market.

We adhere to our principles of Quality first, Deliver quickly, and Price Competitive. We hold CE, TS/16949, and ISO9001 certificates, emphasizing our commitment to quality and efficiency. With our systematic manufacturing equipment and dedicated QC team, we guarantee the quality and timely delivery of our products.

We warmly welcome every friend to visit us and establish mutually beneficial long-term relationships. Currently, our company exports its products to valued customers in more than 50 countries across five continents. With the best-in-class brands in our product range, Raydafon continues to strive to become a global leader in our field.

Video Introduction of 5-170X Tractor Universal Joint Double Round Yoke Black Tractor Universal Joint

For a more in-depth look at our 5-170X tractor universal joint, please view the video below:
