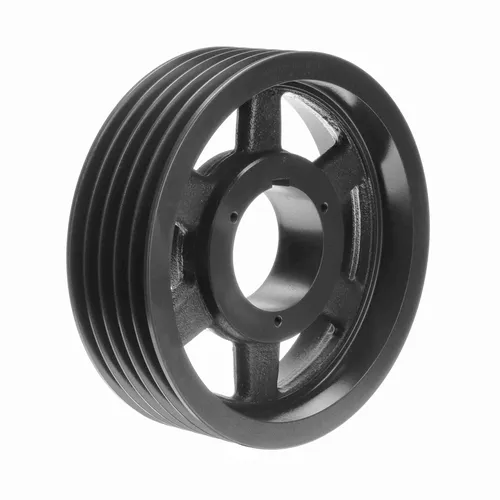

5V Series Cast Iron Five-Groove Sheaves with Split Taper Bushings for “5V” Belts

5V Series Cast Iron Five-Groove Sheaves with Split Taper Bushings for "5V" Belts

5V series five-groove taper bushed sheaves are manufactured for 5V, 5VX, banded 5V, and banded 5VX belts. They range from 4.60" to 50.0" in diameter. Depending on the sheave size, they are made to use Q2, R1, S1, or U1 split-taper bushings, which we also stock. Most of our five-groove 5V split taper sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

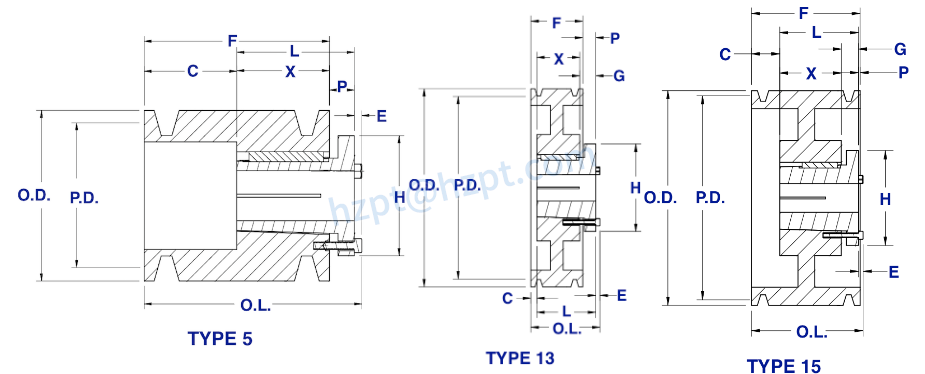

Five-Groove 5V Split Taper Sheave Size Chart

Size	Bushing Type	Pitch Diameter	Outside Diameter	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Sheave Weight (LBS)
5Q5V44	Q2	4.50"	4.60"	5	5 15/16"	3 1/2"	3/4"	2 5/16"	4 1/8"	3 3/4"	-	2 3/4"	9/32"	8.9
5Q5V46	Q2	4.80"	4.90"	5	5 3/8"	3 1/2"	3/4"	1"	4 1/8"	3 3/4"	-	2 3/4"	9/32"	9.2
5Q5V52	Q2	5.10"	5.20"	5	4 25/32"	3 1/2"	3/4"	1"	4 1/8"	3 3/4"	3/4"	2 3/4"	9/32"	9.0
5Q5V55	Q2	5.40"	5.50"	5	4 25/32"	3 1/2"	3/4"	1"	4 1/8"	3 3/4"	3/4"	2 3/4"	9/32"	10.8
5Q5V59	Q2	5.80"	5.90"	13	4 3/32"	3 1/2"	-	1/4"	4 1/8"	3 3/4"	3/4"	2 3/4"	9/32"	13.2
5Q5V63	Q2	6.20"	6.30"	13	4 3/32"	3 1/2"	-	1/4"	4 1/8"	3 3/4"	3/4"	2 3/4"	9/32"	15.9
5Q5V67	Q2	6.60"	6.70"	13	4 3/32"	3 1/2"	-	1/4"	4 1/8"	3 3/4"	3/4"	2 3/4"	9/32"	18.6
5Q5V71	Q2	7.00"	7.10"	13	4 1/32"	3 1/2"	0	1/4"	4 1/8"	3 3/4"	3/4"	2 3/4"	9/32"	22.0
5Q5V75	Q2	7.40"	7.50"	13	4 1/32"	3 1/2"	0	1/4"	4 1/8"	3 3/4"	3/4"	2 3/4"	9/32"	25.0
5R5V80	R1	7.90"	8.00"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	21.7
5R5V85	R1	8.40"	8.50"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	25.1
5R5V90	R1	8.90"	9.00"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	25.4
5R5V92	R1	9.15"	9.25"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	28.4
5R5V97	R1	9.65"	9.75"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	31.8
5R5V103	R1	10.20"	10.30"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	32.5
5R5V109	R1	10.80"	10.90"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	35.1
5R5V118	R1	11.70"	11.80"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	38.8
5R5V125	R1	12.40"	12.50"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	41.8
5R5V132	R1	13.10"	13.20"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	37.1
5R5V140	R1	13.90"	14.00"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	41.6
5R5V150	R1	14.90"	15.00"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	45.0
5R5V160	R1	15.90"	16.00"	15	4 1/32"	2 7/8"	0	7/8"	5 3/8"	3 3/4"	7/8"	2"	9/32"	48.0
5S5V212	S1	21.10"	21.20"	13	4 31/32"	4 3/8"	27/32"	1 1/16"	5 3/8"	3 3/4"	1 1/16"	3 5/16"	3/8"	90.0
5S5V250	S1	24.90"	25.00"	13	4 31/32"	4 3/8"	27/32"	1 1/16"	6 3/8"	3 3/4"	1 1/16"	3 5/16"	3/8"	105.0
5S5V280	S1	27.90"	28.00"	13	4 31/32"	4 3/8'	27/32"	1 1/16"	6 3/8"	3 3/4"	1 1/16"	3 5/16"	3/8"	120.0
5U5V375	U1	37.40"	37.50"	13	5 13/32"	4 15/16"	1 3/16"	1 3/16"	8 3/8"	3 3/4"	1 3/16"	3 3/4"	15/32"	185.0
5U5V500	U1	49.90"	50.00"	13	5 13/32"	4 15/16"	1 3/16"	1 3/16"	8 3/8"	3 3/4"	1 3/16"	3 3/4"	15/32"	244.0

Matching 5V, 5VX Series V-Belt

(1) 5V-Series V-BeltsClassic 5V-Series V-Belts have a 0.63" top-width, 0.53" thickness, and a 38° angle. Additionally, 5V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 5V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.(2) 5V-Series Banded V-Belts5V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest and most common style belts. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 5V-series v-belts have a 0.63" top-width per belt (band/ rib).(3) 5VX Cogged V-Belts5VX cogged v-belts are designated by having a 0.53" top-width and 0.53" thickness. Our cogged 5VX v-belts are manufactured with raw-edge sidewalls to eliminate slippage and increase efficacy, saving operation costs. They are also manufactured by ARPM standards and are oil and heat-resistant. 5VX belts are constructed from a high-quality chloroprene compound with high-strength polyester chords and have a top fabric built from a cotton polyester blend. Besides the performance, durability, and energy savings benefits, our cogged v-belts will work with existing stand v belt pulleys/ sheaves.(4) 5VX Banded Cogged V-BeltsAll our v-belts are manufactured by ARPM specifications and offer superior performance and durability. Due to their design, banded 5VX cogged v-belts run smoother, more relaxed, and typically outlast a standard banded C v-belt. They also offer a higher efficiency than ordinary banded v-belts, which means fewer energy costs. We can also stock sheaves/ pulleys for 5VX banded belts. For more information or to get a quote, please get in touch with us, and we will be happy to assist you.

Split Taper Bushings Accessories

Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. Split taper bushings are utilized in a broad range of sheaves, conveyor pulleys, and sprockets. We stock split taper bushings ranging from the G-series to W2-series and in inch and metric bore sizes that range from 0.375" up to 7.438".1. Be sure the tapered cone surfaces of the bushing and the inside of the driven product are clean and free of anti-seize lubricants.2. Place the bushing in a sprocket or other part type that accepts the bushing.3. Place cap screws loosely in pull-up holes. The bushing remains loose to ensure sliding fit on the shaft.4. With the key on the shaft, slide the sprocket or other part type to the desired position on the post. Be sure to leave the heads of the cap screws accessible.5. Align the sprocket or part type, and tighten the screws alternatively and progressively until they are tight. At this point, there should be a gap between the bushing flange and sprocket; make sure this gap does not close. Do not use extensions on the wrench handles; do not allow the sprocket or part to be drawn in contact with the bushing flange.1. Loosen and remove cap screws.2. Insert cap screws in tapped removal holes.3. Tighten inserted screws until sprocket or other part type is loose on the shaft.4. Remove sprocket/ part type from the shaft.

5V-Section Sheaves for V-Belts

5V-section sheaves are explicitly manufactured for 5V-series v-belts and banded 5V belts. Our 5V-section v-belt sheaves are dimensionally produced to ARPM standards, so they immediately interchange with other manufacturers. 5V pulleys only can be found in taper lock design and QD (rapid detachable) design for elevated bore variety versatility. What separates our sheaves from other individuals on the market is that most of them are produced from a grade 35 cast iron as a substitute for the standard grade 25. This creates a considerably stronger sheave with more excellent wear resistance. One thing else to note is that these sheaves have been dynamically balanced for a smoother operation and decreased vibration, resulting in longer bearing and machinery existence. Moreover, they can be phosphate and painted for added protection against corrosion.

Usage Scenario of V-Belt Pulleys and V-Belts

Technological Processing

Company Profile

Raydafon is a professional manufacturer of mechanical parts. Our main products are timing pulleys, sprockets, split taper bushings, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
