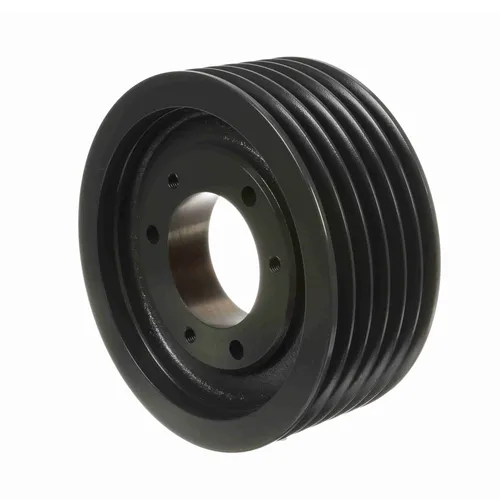

5V series six-groove QD (quick detachable) bushed sheaves are manufactured for 5V, 5VX, banded 5V, and banded 5VX belts. They range from 4.40" to 50.00" in diameter. Depending on the sheave size, they are made to use an SD, SK, SF, E, F, or J QD bushing, which we also stock. Most of our six-groove 5V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Six-Groove 5V QD Sheave Size Chart

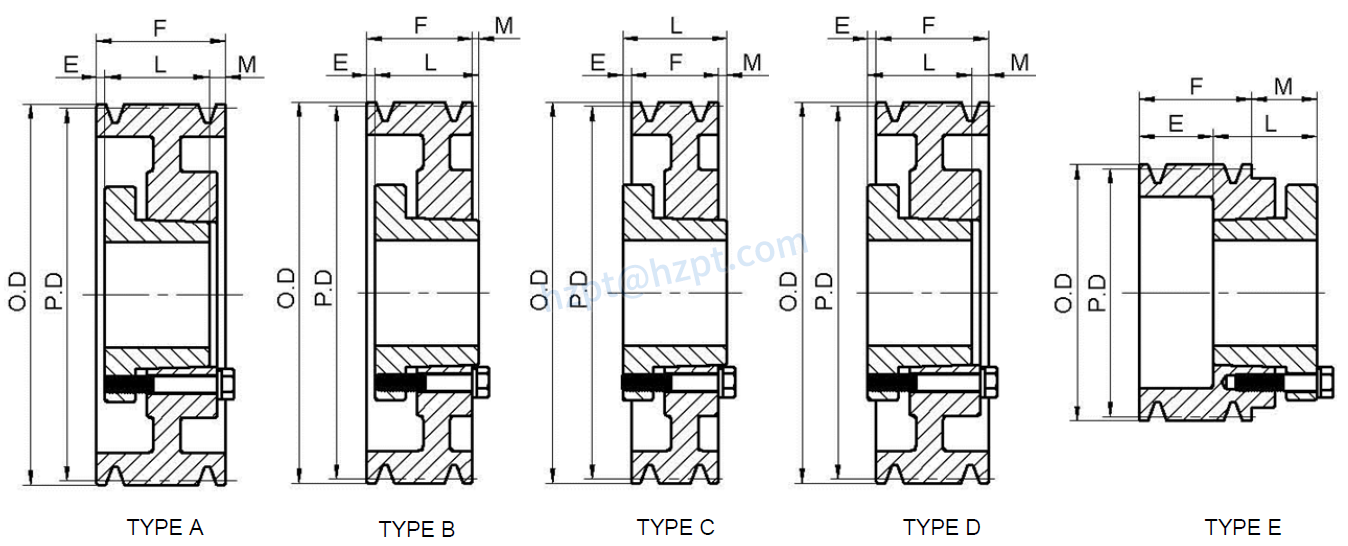

Size	Bushing Type	Type	Pitch Diameter	Outside Diameter	(E)	(F)	(L)	(M)	Weight (LBS)
65V440SD	SD	E	4.30"	4.40"	3 25/32"	4 7/16"	1 13/16"	21/32"	10.1
65V465SD	SD	E	4.55"	4.65"	3 25/32"	4 7/16"	1 13/16"	21/32"	10.4
65V490SD	SD	A	4.80"	4.90"	21/32"	4 7/16"	1 13/16"	1 31/32"	11.2
65V520SD	SD	A	5.10"	5.20"	21/32"	4 7/16"	1 13/16"	1 31/32"	12.1
65V550SD	SD	A	5.40"	5.50"	21/32"	4 7/16"	1 13/16"	1 31/32"	13.3
65V590SK	SK	A	5.80"	5.90"	17/32"	4 7/16"	1 15/16"	1 31/32"	14.6
65V630SK	SK	A	6.20"	6.30"	17/32"	4 7/16"	1 15/16"	1 31/32"	17.4
65V670SF	SF	A	6.60"	6.60"	25/32"	4 7/16"	2 1/16"	1 19/32"	20.0
65V710SF	SF	A	7.00"	7.10"	25/32"	4 7/16"	2 1/16"	1 19/32"	21.9
65V750SF	SF	A	7.40"	7.50"	25/32"	4 7/16"	2 1/16"	1 19/32"	23.4
65V800E	E	A	7.90"	8.00"	27/32"	4 7/16"	2 3/4"	27/32"	24.2
65V850E	E	A	8.40"	8.50"	27/32"	4 7/16"	2 3/4"	27/32"	26.7
65V900E	E	A	8.90"	9.00"	27/32"	4 7/16"	2 3/4"	27/32"	28.5
65V925E	E	A	9.15"	9.25"	27/32"	4 7/16"	2 3/4"	27/32"	30.2
65V975E	E	A	9.65"	9.75"	27/32"	4 7/16"	2 3/4"	27/32"	33.8
65V1030E	E	A	10.20"	10.30"	27/32"	4 7/16"	2 3/4"	27/32"	36.6
65V1090E	E	A	10.80"	10.90"	27/32"	4 7/16"	2 3/4"	27/32"	38.1
65V1130E	E	A	11.20"	11.30"	27/32"	4 7/16"	2 3/4"	27/32"	39.8
65V1180E	E	A	11.70"	11.80"	27/32"	4 7/16"	2 3/4"	27/32"	41.2
65V1250F	F	B	12.40"	12.50"	23/32"	4 7/16"	3 3/4"	1/32"	58.2
65V1320F	F	B	13.10"	13.20"	23/32"	4 7/16"	3 3/4"	1/32"	64.0
65V1400F	F	B	13.90"	14.00"	23/32"	4 7/16"	3 3/4"	1/32"	66.0
65V1500F	F	B	14.90"	15.00"	23/32"	4 7/16"	3 3/4"	1/32"	68.0
65V1600F	F	B	15.90"	16.00"	23/32"	4 7/16"	3 3/4"	1/32"	77.5
65V1870F	F	D	18.60"	18.70"	1/32"	4 7/16"	3 3/4"	23/32"	85.8
65V2120F	F	D	21.10"	21.20"	1/32"	4 7/16"	3 3/4"	23/32"	96.0
65V2360J	J	C	23.50"	23.60"	1/8"	4 7/16"	4 5/8"	1/16"	113.0
65V2800J	J	C	27.90"	28.00"	1/8"	4 7/16"	4 5/8"	1/16"	148.0
65V3150J	J	C	31.40"	31.50"	1/8"	4 7/16"	4 5/8"	1/16"	183.0
65V3750J	J	C	37.40"	37.50"	1/8"	4 7/16"	4 5/8"	1/16"	218.0
65V5000M	M	C	49.90"	50.00"	1 3/32"	4 7/16"	6 3/4"	1 7/32"	310.0

Related Matching 5V, 5VX Series V-Belt

(1) 5V-Series V-BeltsClassic 5V-Series V-Belts have a 0.63" top-width, 0.53" thickness, and a 38° angle. Additionally, 5V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 5V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability. 5V series belts are used in most general heavy-duty industrial applications along with Heating, ventilation, air conditioning (HVAC), lawn and garden equipment, and agricultural equipment.(2) 5VX Cogged V-Belts5VX cogged v-belts are designated by having a 0.53" top-width and 0.53" thickness. Our cogged 5VX v-belts are manufactured with raw-edge sidewalls to eliminate slippage and increase efficacy, saving operation costs. They are also manufactured by ARPM standards and are oil and heat-resistant. 5VX belts are constructed from a high-quality chloroprene compound with high-strength polyester chords and have a top fabric built from a cotton polyester blend. Besides the performance, durability, and energy savings benefits, our cogged v-belts will work with existing stand pulleys/ sheaves. Please contact us for a quote on 5VX cogged v-belts or pulleys, and we will be happy to assist you.(3) 5V-Series Banded V-Belts5V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest and most common style belts. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 5V-series v-belts have a 0.63" top-width per belt (band/ rib).(4) 5VX Banded Cogged V-BeltsAll our v-belts are manufactured by ARPM specifications and offer superior performance and durability. Due to their design, banded 5VX cogged v-belts run smoother, more relaxed, and typically outlast a standard banded C v-belt. They also offer a higher efficiency than ordinary banded v-belts, which means fewer energy costs. We can also stock sheaves/ pulleys for 5VX banded belts.

QD Bushings | Quick Disconnect Bushings

QD bushings are utilized throughout the industrial power transmission and agricultural industry for various sprockets, sheaves, pulleys, and synchronized drives. They are designed for easy installation and easy uninstallation; they are also commonly referred to as quick-disconnect bushings. QD bushings can help conventional mounting with the flange outboard and reverse mounting to where the flange is inboard and utilize a single split that extends through the entire bushing length. Our QD bushings interchange with other brands and are made from high-grade steel precision machined for perfect application fitment. QD bushings' benefits over different styles include; ease of installation/ uninstall, superior holding power, and extreme strengths. We stock all the standard sizes of QD bushings and supply custom QD bushings upon request, including stainless steel ones. QD bushings are found in some of the most rugged applications worldwide; contact our customer service team today for a quote or additional information on our premium QD bushings.

Features of Taper Bush Pulleys

The taper bush pulley is a mechanical connection assembly with a tapered sleeve embedded between the installation shaft and the pulley, in which the pulley is self-locking on the pointed sleeve by the inner hexagon screw, and the tapered sleeve tightly holds the installation shaft. The tapered sleeve is mainly divided into the TB taper sleeve and the QD taper sleeve. The holes where the taper sleeve and the pulley match are all half-sided, and the two light holes on the taper sleeve and the two threaded holes on the pulley, respectively, form a complete. A threaded hole on the tapered sleeve and a smooth hole on the pulley form a complete fix. When assembling, put the two screws in the two threaded holes of the pulley. As the screws are continuously tightened in the threaded holes on the pulley, the thread action pushes the screws to the small end of the tapered hole on the pulley. The tapered sleeve is The two light holes of the screw that are not entirely machined so that when the head of the screw touches the bottom of the straw hole, the force is transmitted to the tapered sleeve. The tapered sleeve moves relative to the pulley to the small end of the tapered hole of the pulley, At this time, because of the taper, the tapered sleeve will continue to wrap the shaft, and the post will react to the tapered sleeve, and then on the pulley. This way, the pulley, taper sleeve, and shaft are tightly assembled.
