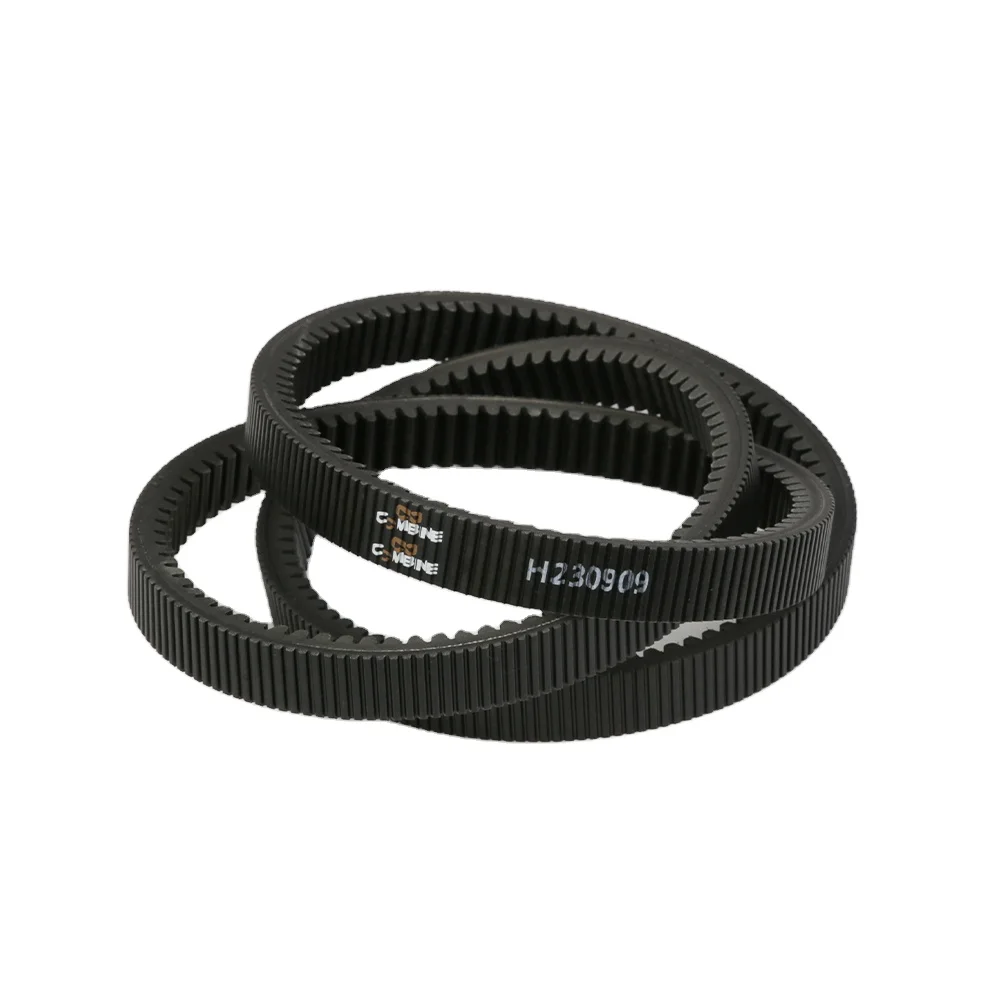

603380 Combine Harvester Machine Rubber Raw Edge Cogged V Belt for Agricultural Machinery Parts

603380 Combine Harvester Machine Rubber Raw Edge Cogged V Belt for Agricultural Machinery Parts

Applications of Agricultural Belt in Farm Machinery

1. Tractor Transmission System

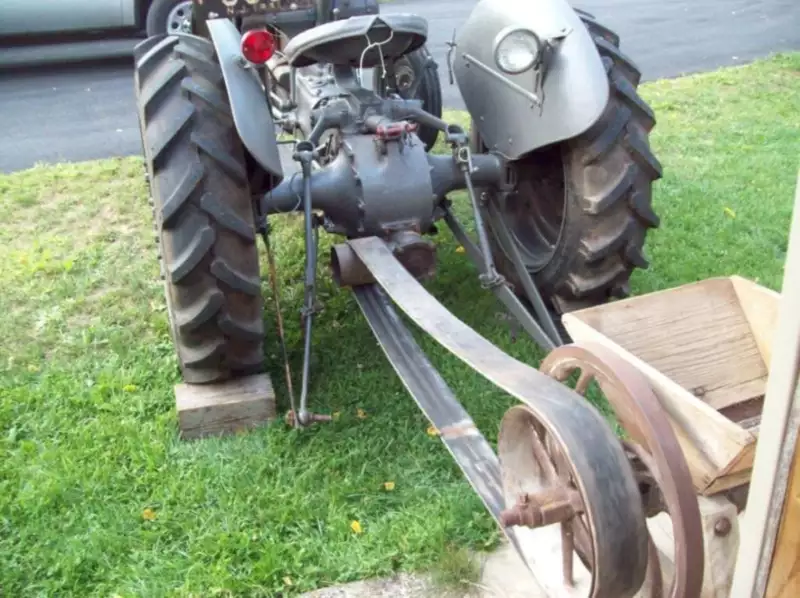

   The Agricultural Belt is mainly used in the PTO (Power Take-Off) part of a tractor, connecting the tractor to external farming equipment such as plows, seeders, harvesters, crushers, water pumps, etc.

2. Combine Harvester

   The Agricultural Belt is used in the main transmission system of a combine harvester, transferring power from the engine to the threshing drum, cutterbar, cleaning system, and other moving parts.

3. Tillage Equipment

   Rotary cultivators, plows, deep tillage machines, etc., use the drive belt to transfer power from the tractor to the working parts of the tillage equipment.

4. Irrigation Equipment

   In power-driven pumps and rotating sprinkler systems, the drive belt transmits the tractor's power to the pump or other driving parts.

5. Feed Processing Machinery

   The drive belt is used to drive mixing, cutting, and other functional modules in feed mixers, silage cutters, and other equipment.

Agricultural Belt Compatibility Chart

Other Agricultural Machinery Parts

Signs That Indicate the Need to Replace Agricultural Belt

1. Visible signs of wear and tear

   Inspect the belt's surface and replace it immediately if there are any cracks, fraying, thinning, rubber block detachment, or fabric exposure, as it indicates severe wear and tear, reduced strength, and stability.

2. Looseness

   The belt should run smoothly under proper tension. Replace the belt if it is too loose, causing it to sag more than the specified value when pressed by hand, or if it stretches and fails to maintain the original tension after continuous use.

3. Slipping

   If you hear a sharp whistling sound from the belt while the machinery is operating, or if you feel a decrease in machine power output and RPM, it may be due to belt slippage. Check the tension and friction of the belt and replace it if necessary.

4. Overheating

   A belt that is too hot to touch may be due to fatigue, internal structural damage, or excessive tension. This condition can accelerate the aging and damage of belts and should be stopped immediately to check and replace the belt.

5. Odor or Burn Marks

   If you smell burning rubber or see melting or scorch marks on a belt, it means that the belt is seriously overloaded, and local or total damage may have already occurred. Replace the damaged belt immediately.

6. Abnormal Vibration or Noise

   Failed or failing belts can cause additional vibration and noise during machinery operation, indicating uneven transmission. Stop the machinery, inspect the cause, and replace the problematic belt immediately.

Tips for Choosing the Right Agricultural Belt

1. Belt Type

   Various belt types, including V-belts, are commonly used in agricultural machinery. It is important to choose the correct width and thickness according to the original equipment manufacturer's specifications or the original belt's model number.

2. Belt Length

   Measure or calculate the exact length of the required belt according to the farm machinery's instructions to ensure smooth installation and appropriate tension.

3. Horsepower/Power Requirement

   Ensure that the new belt's rated horsepower is greater than or equal to the power required by the transmission system.

4. Material

   Choose a drive belt made of high-quality rubber compounds with good wear resistance, high-temperature resistance, oil resistance, and aging resistance.

5. Belt Pulley Groove Size

   The drive belt must match the width and depth of the belt pulley groove to ensure good meshing and avoid slipping or premature wear.
