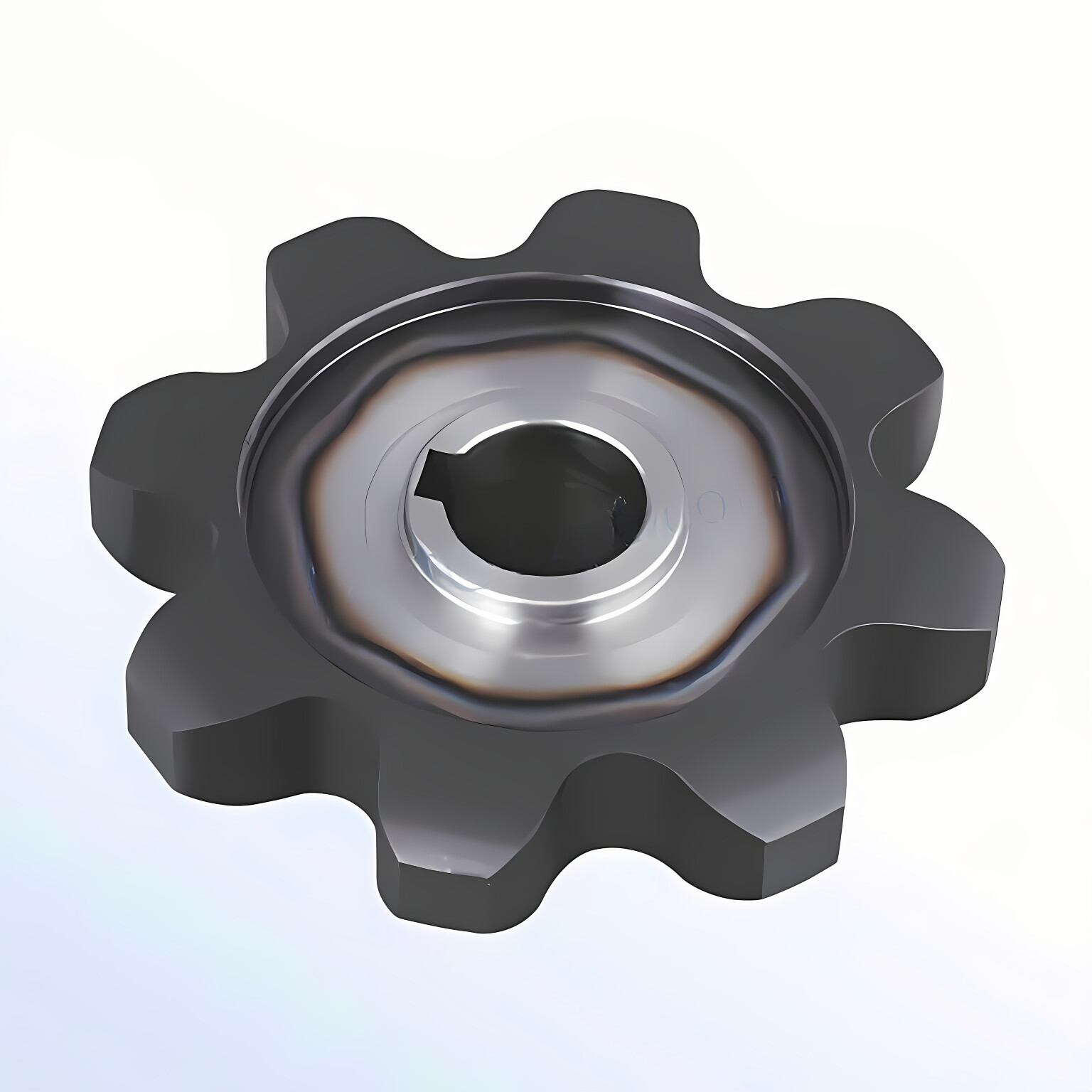

825-Series Sprockets

Raydafon Guoup's 825-Series Sprockets: Precision-engineered for durability and peak performance. Ideal for industrial machinery, these high-quality sprockets offer superior strength and reliability, solving common wear and alignment issues. Experience smoother operations and reduced downtime, our unique design sets us apart.

Send Inquiry

Product Description

825 series engineer class sprocket is used for a wide verity of chain sizes. These sizes include 825 and SR825 size chains. These sprockets are typically supplied as cast material but we can also supply them as steel for longer operation. The below chart shows the standard tooth counts as well as dimensions for each size.

Cast 825-Series Sprockets

Tooth Face at Pitch Line: 1.250" - Roller Diameter: 1.156"

Sprocket Size	Tooth Count	Pitch Diameter	Style	Hub Diameter	Length Thru Bore	Maximum Bore	Weight (LBS)
C825C10	10	12.94"	C	6.00"	4.00"	3.00"	58.0 LBS
C825C11	11	14.20"	C	6.00"	4.00"	3.00"	65.0 LBS
C825C12	12	15.45"	C	6.00"	4.00"	3.00"	78.0 LBS
C825C13	13	16.71"	C	6.00"	4.00"	3.00"	82.0 LBS
C825C14	14	17.98"	C	8.00"	4.00"	3.00"	94.0 LBS
C825C15	15	19.24"	C	8.00"	4.00"	4.00"	112.0 LBS
C825C16	16	20.50"	C	8.00"	4.00"	4.00"	115.0 LBS
C825C19	19	24.30"	C	8.00"	4.00"	4.00"	140.0 LBS

We aslo offer a full range of both precision roller chain and engineered.Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
