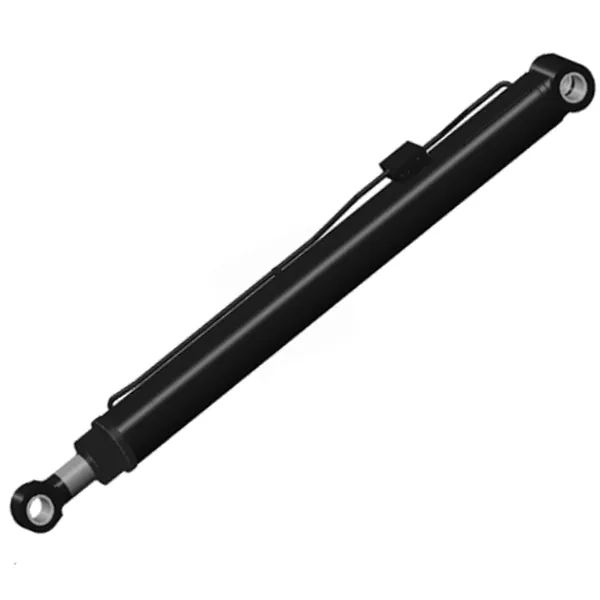

Aerial Work Platform Luffing Cylinder

Aerial Work Platform Luffing Cylinder

An aerial work platform luffing cylinder is a hydraulic cylinder that is used to control the up-and-down pitching rotation of the boom of an aerial work platform. It is the main driving force for lifting the platform and its occupants to a desired working height.

The aerial work platform luffing cylinder is typically located at the top of the boom, and it is connected to the boom through a series of linkages. When the cylinder is extended, it causes the boom to pitch up, and when it is retracted, it causes the boom to pitch down. This allows the operator to control the height and angle of the platform, which is essential for safe and efficient operation.

Aerial work platform luffing cylinders are typically made of high-strength steel and are designed to withstand the high pressures and loads that are associated with aerial work platform operation. They are also equipped with a variety of safety features, such as pressure relief valves and guards, to prevent accidents.

The two basic types of aerial platform hoists are scissor lifts and boom lifts. Scissor lifts are characterized by their two parallel hydraulic rams that extend and retract the platform, while boom lifts have a telescoping boom that is raised and lowered by a hydraulic cylinder.

Aerial Work Platform Luffing Cylinder Dimensions:

Product Name	Aerial Work Platform Luffing Cylinder
Features:	Realizing the up-and-down pitching rotation of the boom is the main driving force for lifting
Bore diameter:	50mm～350mm
Rod diameter:	30mm～300mmStroke≤3000 mm
Pressure：	30MPa（Maximum pressure）
Luffing Cylinder Applications:	Aerial Work Platform

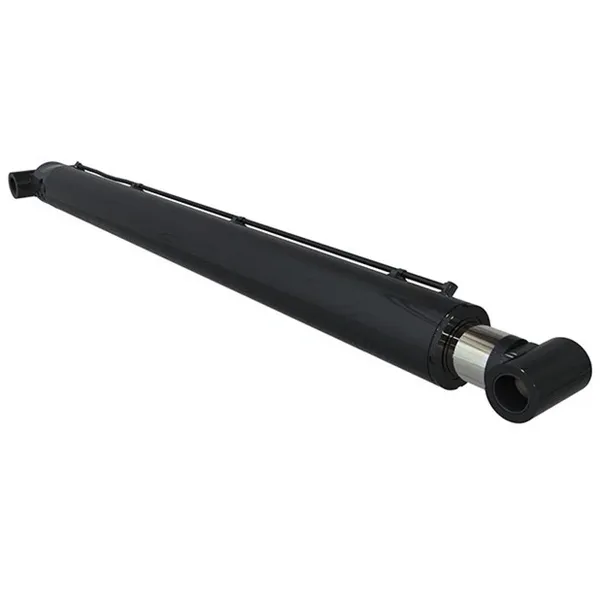

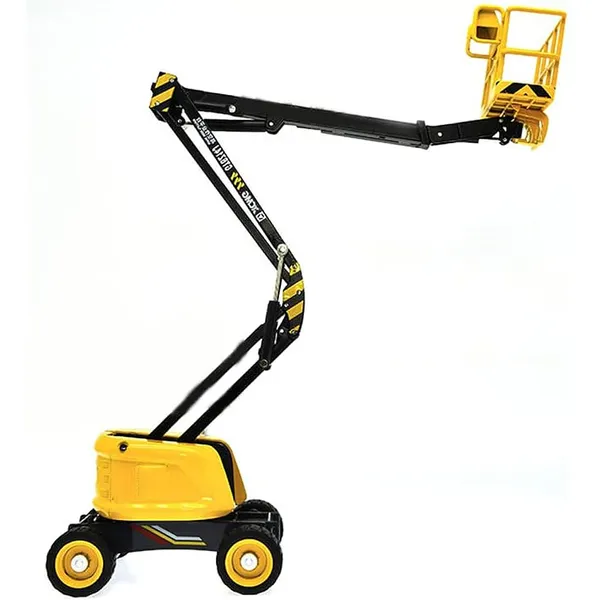

Characteristics of Aerial Work Platform Luffing Cylinder:

The aerial work platform luffing cylinder possesses several key characteristics that contribute to its functionality and effectiveness in operating luffing jib systems. Here are some notable characteristics:1. Strength and Durability: Aerial work platform luffing cylinders are constructed using high-strength materials, such as steel, to withstand the demanding conditions of aerial work platforms. They are designed to handle heavy loads and resist wear and tear over extended periods of use.2. Hydraulic Power: Aerial work platform luffing cylinders rely on hydraulic power to extend and retract the luffing jib. They are connected to the AWP's hydraulic system, which provides the necessary fluid and pressure to control the cylinder's movement. Hydraulic power ensures smooth and precise operation of the luffing jib.3. Extension and Retraction Range: Aerial work platform luffing cylinders offer a wide range of extension and retraction capabilities. They can extend the luffing jib to reach greater heights and retract it to reduce the reach. This flexibility allows operators to position the platform at various elevations and angles, enhancing accessibility to work areas.4. Control and Adjustability: The Aerial work platform luffing cylinder provides precise control and adjustability for positioning the luffing jib. Operators can manipulate the hydraulic flow to extend or retract the cylinder to achieve the desired position of the platform. This control allows for accurate and efficient work execution.5. Safety Features: Aerial work platform luffing cylinders often incorporate safety features to ensure operator and worker safety during AWP operation. These may include pressure relief valves, load-holding valves, or safety locks that prevent unintended movements or provide stability when the platform is elevated.6. Compatibility: Aerial work platform luffing cylinders are available in various sizes and configurations to suit different types of AWPs. Manufacturers produce cylinders with specific specifications and mounting options to ensure compatibility with the corresponding AWP models.

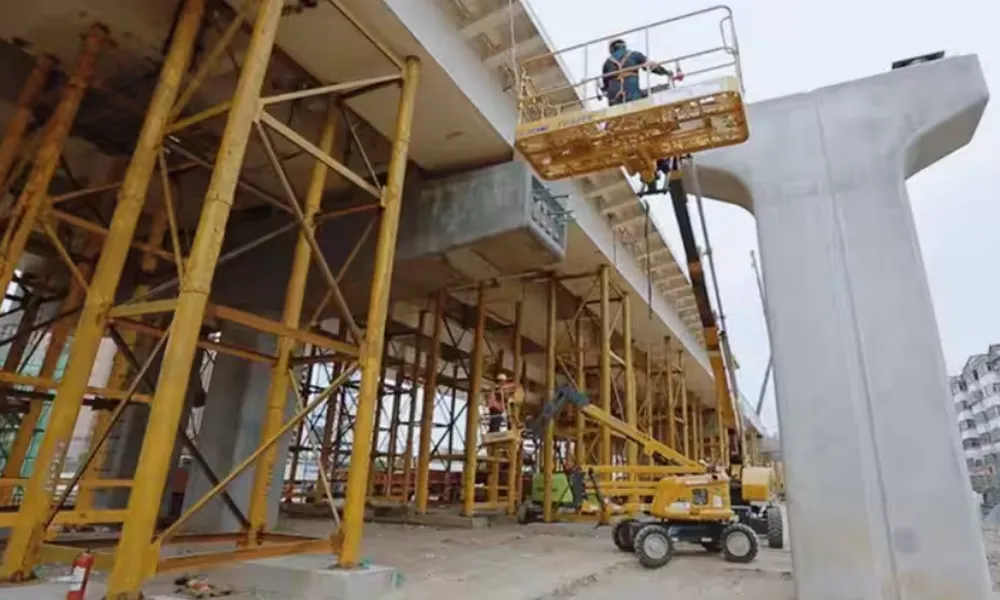

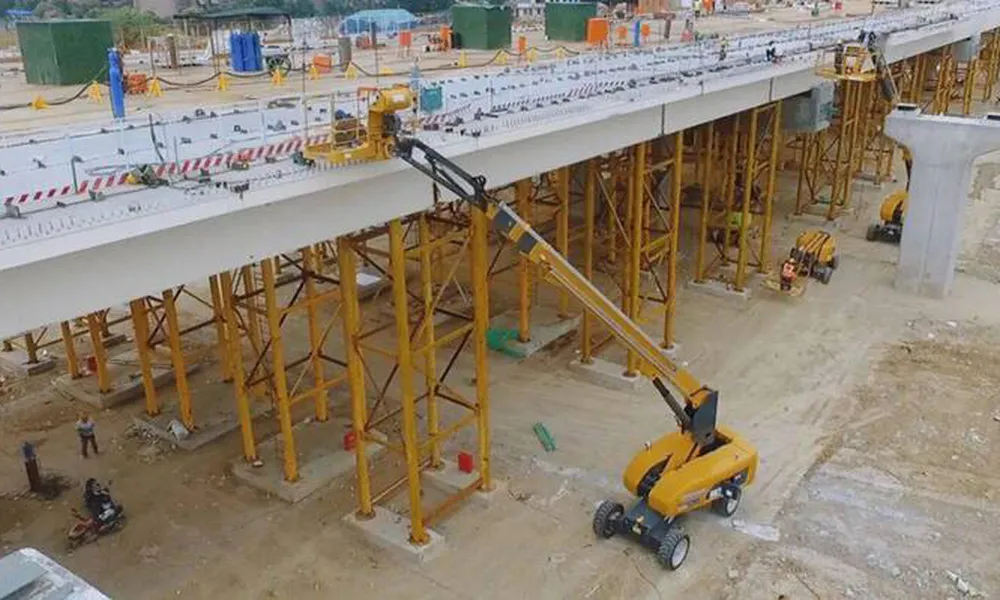

Aerial Work Platform Luffing Cylinder Application Scenarios:

Aerial work platform luffing cylinders are a type of hydraulic cylinder used in aerial work platforms (AWPs) to extend and retract the platform boom. They are essential for providing the reach and flexibility that AWPs need to access difficult-to-reach areas.

Here are some of the application scenarios for aerial work platform luffing cylinders:

(1) Construction and maintenance: Aerial work platform luffing cylinders are used in a variety of construction and maintenance applications, such as building exteriors, bridges, and power lines. They can also be used to install and maintain signage, lighting, and other equipment.(2) Wind energy: Aerial work platform luffing cylinders are used in the construction and maintenance of wind turbines. They allow technicians to access the turbine blades and nacelle, which are located at high altitudes.(3) Telecommunications: Aerial work platform luffing cylinders are used in the construction and maintenance of telecommunications towers. They allow technicians to access the top of the tower to install and maintain antennas and other equipment.(4) Tree care: Aerial work platform luffing cylinders are used in tree care applications, such as trimming and removal. They allow arborists to reach high branches that would otherwise be inaccessible.(5) Firefighting: Aerial work platform luffing cylinders are used by firefighters to access high-rise buildings and other structures. They can also be used to rescue people from burning buildings.

These are just a few of the many application scenarios for aerial work platform luffing cylinders. They are a versatile and essential component of AWPs, and they play a vital role in a wide range of industries.

China Aerial Work Platform Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, small excavator bucket cylinders, construction machinery hydraulic cylinders, forklift hydraulic tilt cylinders, crane hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.Raydafon is committed to providing customers with efficient hydraulic technology solutions and products, maintaining strong partnerships with customers, and leading the development of China’s hydraulic industry through more scientific solutions. Raydafon aims to make more contributions to the sustainable development of society, the construction of green cities, and building a better future.
