An aerial work platform outrigger cylinder is a crucial component of aerial work platforms (AWPs) or aerial lifts, also known as cherry pickers or boom lifts. These machines are used to elevate workers, tools, and equipment to heights for various tasks such as construction, maintenance, and repair work.The outrigger system is an essential feature of aerial work platforms (AWPs) as it provides stability and support during operations. Outriggers are typically hydraulic or mechanical extensions that extend horizontally from the base of the aerial platform to enhance the machine's stability and prevent tipping over. They are deployed to create a wider base of support, especially when the lift is extended to its maximum height or when working on uneven terrain.The aerial work platform outrigger cylinder is a hydraulic device that powers the deployment and retraction of the outriggers. It consists of a cylindrical body, a piston, and hydraulic lines. When activated, the hydraulic fluid is directed into the cylinder, which causes the piston to extend or retract, depending on the desired action. This extension or retraction of the piston controls the movement of the outrigger, allowing it to be positioned securely on the ground.The aerial work platform outrigger cylinders are typically designed to withstand heavy loads and fluctuating environmental conditions. They are engineered to provide stability and support, ensuring the safety of workers operating on the aerial platform. The cylinders are often equipped with safety features such as pressure relief valves and flow control valves to prevent overloading or sudden movements.Regular inspection and maintenance of the aerial work platform outrigger cylinder are essential to ensure its proper functioning and prevent any potential risks. Hydraulic fluid levels, seals, and connections should be checked regularly, and any signs of damage or wear should be addressed promptly.

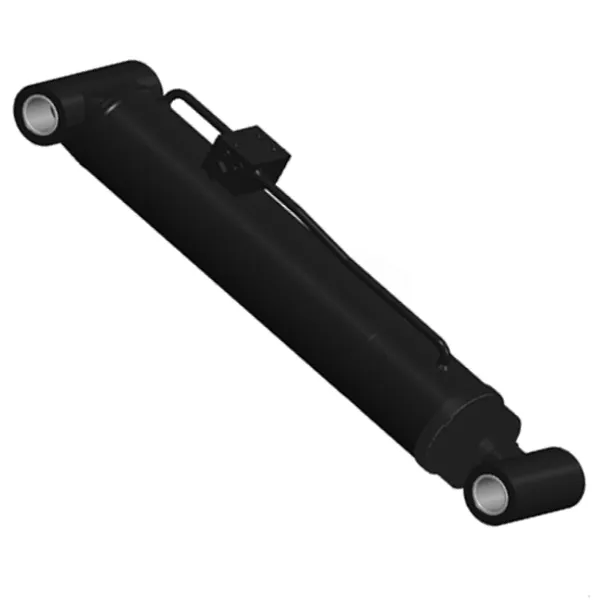

Aerial Work Platform Outrigger Cylinder Specifications:

Product Name	Aerial Work Platform Outrigger Cylinder
Features:	Support the weight of the entire equipment when the crane is lifting
Bore diameter:	45mm～200mm
Rod diameter:	30mm～180mmStroke≤2000mm
Pressure：	30MPa（Maximum pressure）
Outrigger Cylinder Applications:	Aerial Work Platform

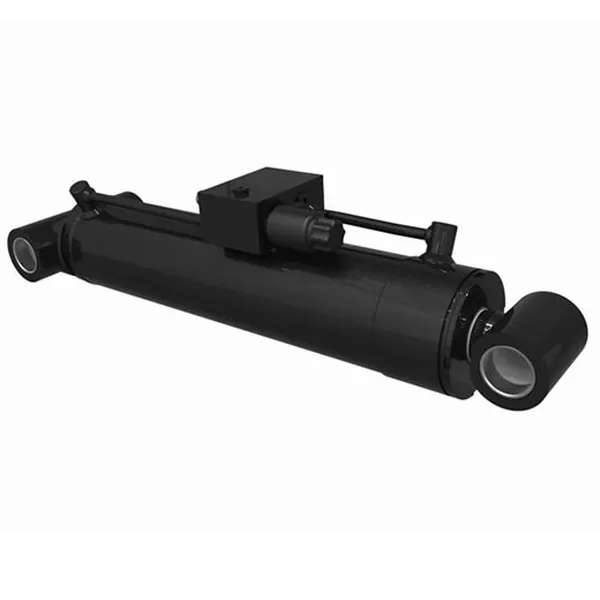

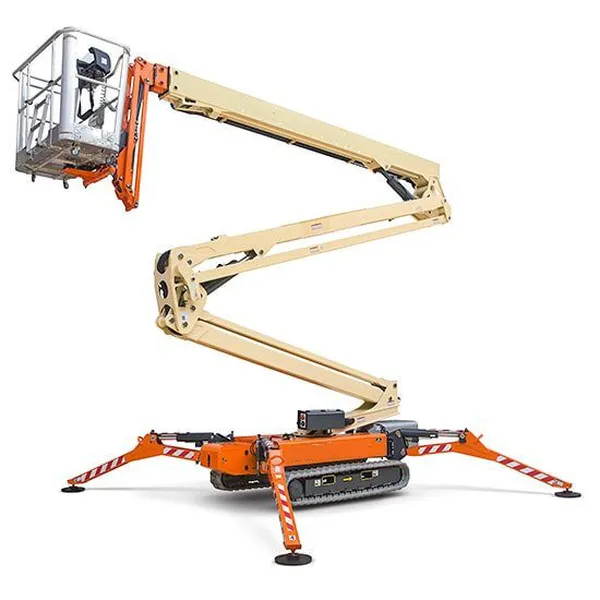

Aerial Work Platform Outrigger Cylinder Advantages:

The aerial work platform outrigger cylinder offers several advantages that contribute to the overall functionality and safety of aerial work platforms. Here are some key benefits:1. Enhanced Stability: The aerial work platform outrigger cylinder enables the extension of outriggers, which significantly increases the stability of the aerial work platform. By creating a wider base of support, the outriggers ensure that the machine remains steady and balanced, even when working at maximum height or on uneven terrain. This stability is crucial for the safety of workers and the prevention of accidents.2. Safety Assurance: The aerial work platform outrigger cylinder plays a vital role in maintaining the safety of aerial work platforms. It allows operators to position the outriggers securely on the ground, minimizing the risk of tipping or overturning. This is especially important when working in challenging or high-risk environments, such as construction sites or areas with strong winds.3. Flexibility and Adaptability: Aerial work platform outrigger cylinders offer increased flexibility and adaptability. The outriggers can be extended or retracted based on the specific requirements of the job site. This enables operators to navigate tight spaces, position the platform close to the work area, or overcome obstacles that may hinder access or operation.4. Ease of Operation: Aerial work platform outrigger cylinders are typically designed to be user-friendly and easy to operate. They can be controlled from the platform itself or through remote control systems, allowing operators to adjust the outriggers quickly and efficiently. This ease of operation enhances productivity and reduces downtime during setup and repositioning.5. Durability and Reliability: Aerial work platform outrigger cylinders are built to withstand heavy loads and harsh working conditions. They are constructed using robust materials and undergo rigorous testing to ensure durability and reliability. This ensures that the cylinders can withstand the demanding requirements of aerial work platforms and provide long-lasting performance.6. Maintenance and Safety Features: Aerial work platform outrigger cylinders often come equipped with safety features such as pressure relief valves and flow control valves. These features help prevent overloading, limit excessive movements, and protect the cylinder from damage. Additionally, regular maintenance and inspection of the cylinders ensure their optimal performance, further enhancing safety and reliability.

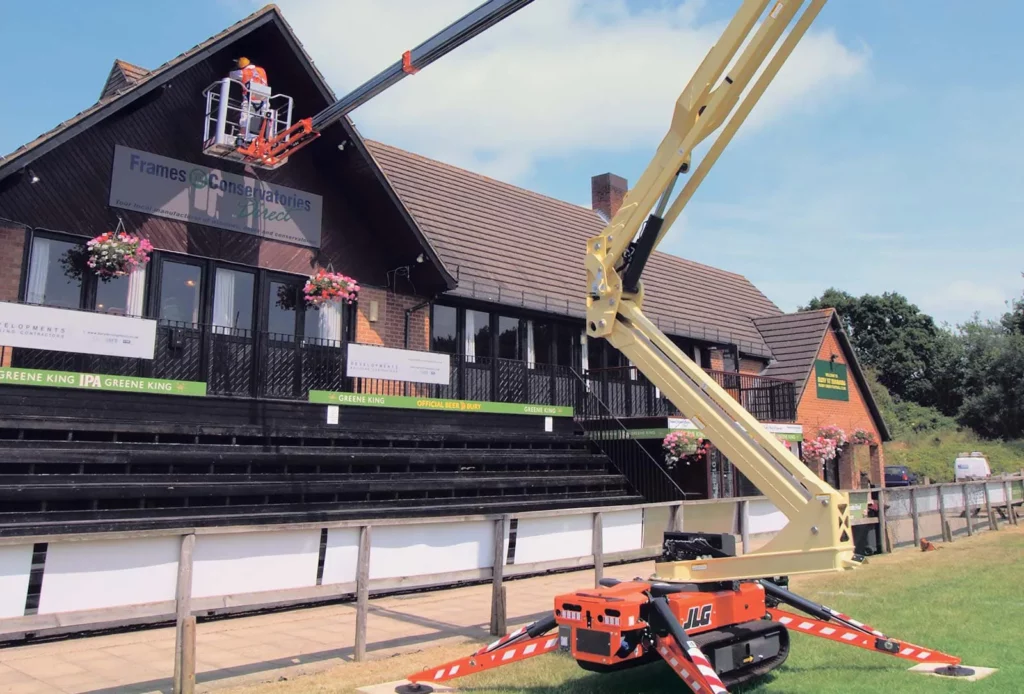

How Does the Aerial Work Platform Outrigger Cylinder Work?

An aerial work platform outrigger cylinder is a hydraulic cylinder that is used to extend and retract the outriggers of an aerial work platform (AWP). The outriggers are the short metal legs that are attached to the AWP and help to keep it stable.

The aerial work platform outrigger cylinder is a double-acting cylinder, which means that it can extend and retract in both directions. When the cylinder extends, hydraulic fluid is pumped into the cylinder, which pushes the piston rod out. When the cylinder retracts, hydraulic fluid is pumped out of the cylinder, which pulls the piston rod in.

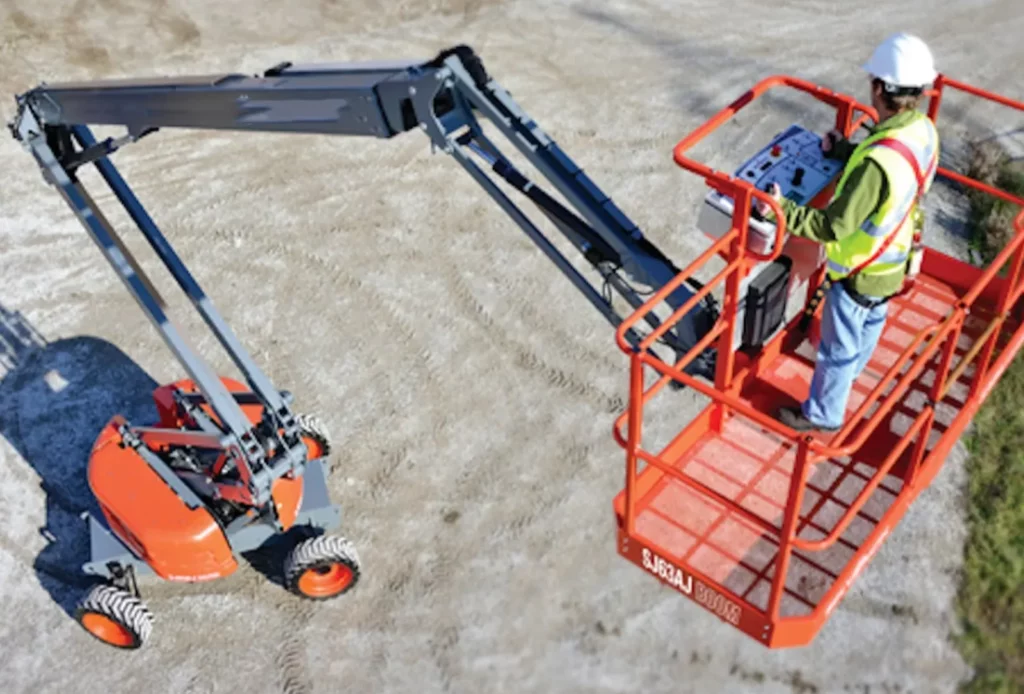

The aerial work platform outrigger cylinder is controlled by the operator of the aerial work platform (AWP). The operator uses a control panel to pump hydraulic fluid into or out of the cylinder. The amount of hydraulic fluid that is pumped determines how far the outriggers extend or retract.

The aerial work platform outrigger cylinder is an important safety feature on aerial work platforms (AWPs). It helps to prevent the aerial work platform from tipping over by spreading the weight of the aerial work platform over a larger area. The outriggers must be extended and properly leveled before the aerial work platform (AWP) is used.

Here are the steps on how an aerial work platform outrigger cylinder works:

1. The operator of the AWP uses a control panel to pump hydraulic fluid into the cylinder.
2. The hydraulic fluid pushes the piston rod out, extending the outriggers.
3. The outriggers are extended until they are level with the ground.
4. The operator stops pumping hydraulic fluid into the cylinder.
5. The outriggers are now locked in place.

To retract the outriggers, the operator pumps hydraulic fluid out of the cylinder. This pulls the piston rod in, retracting the outriggers.

The aerial work platform outrigger cylinder is a vital safety feature on aerial work platforms. It helps to prevent the aerial work platform from tipping over and keeps the operator and others working on the platform safe.
