Aerial Work Platform Steering Cylinder

Aerial Work Platform Steering Cylinder

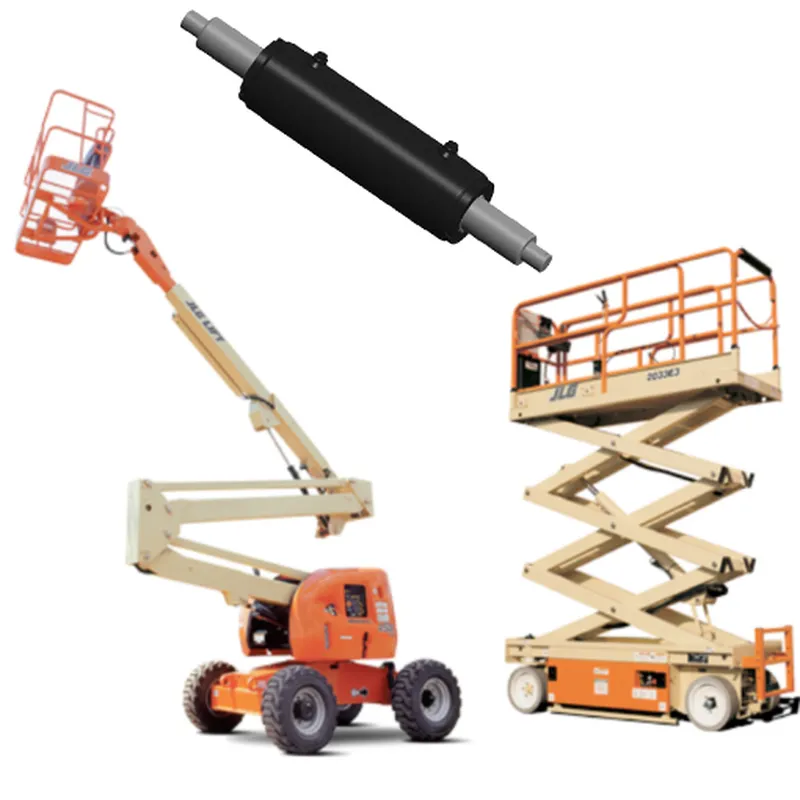

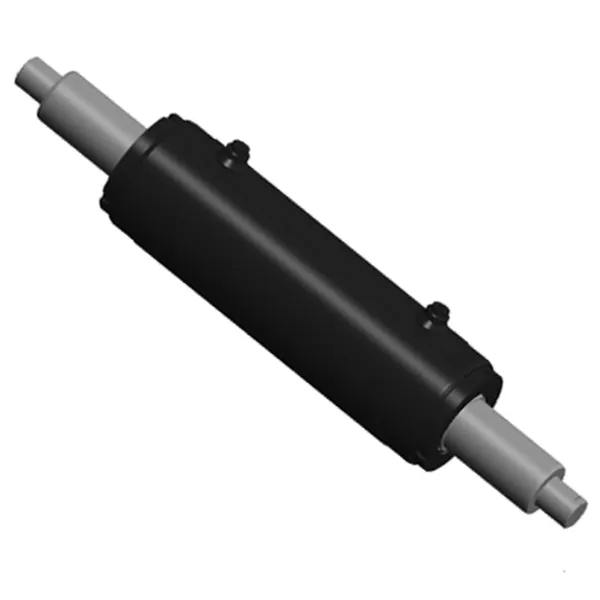

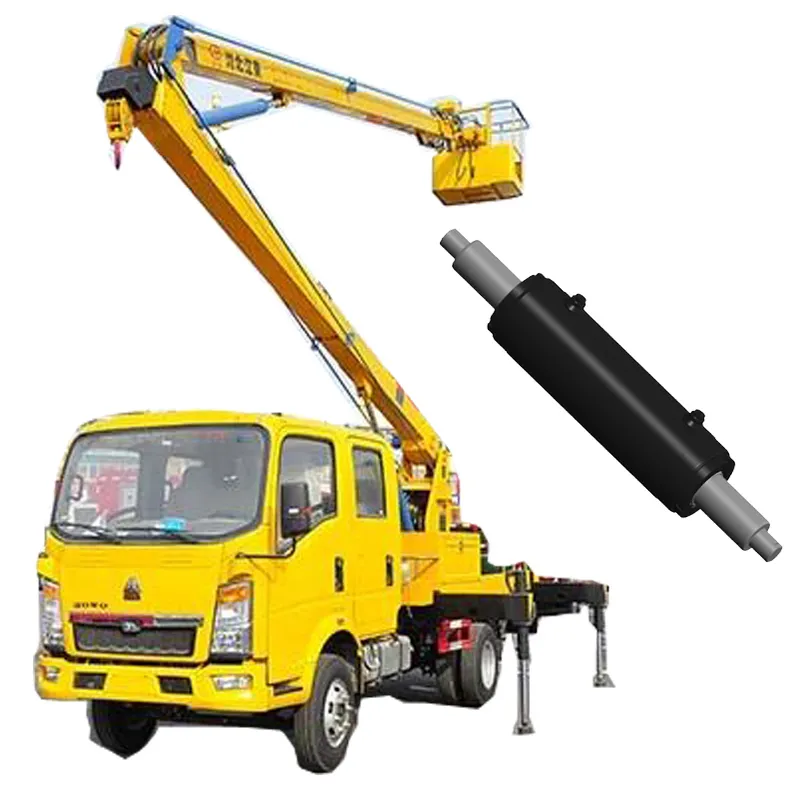

An aerial work platform steering cylinder is a critical component of an aerial work platform (AWP) or commonly known as a boom lift or cherry picker. It plays a crucial role in controlling the steering and movement of the platform, allowing operators to maneuver the AWP safely and precisely.The aerial work platform steering cylinder is a hydraulic actuator that converts hydraulic pressure into mechanical force, enabling the aerial work platform to turn, change direction, and navigate various terrains. It is typically located near the front axle of the platform and is connected to the steering system.The aerial work platform steering cylinder consists of a cylindrical tube, a piston, and hydraulic seals. When hydraulic fluid is supplied to one side of the piston, it pushes the piston rod outward, causing the cylinder to extend. Conversely, when fluid is supplied to the other side of the piston, the piston rod retracts, resulting in the cylinder contracting. By controlling the flow of hydraulic fluid to one side or the other, the aerial work platform can turn left or right.The aerial work platform steering cylinder is designed to withstand the high forces and loads encountered during operation. It is constructed using durable materials such as steel or aluminum alloy to ensure strength and reliability. The hydraulic seals provide a tight seal between the piston and cylinder walls to prevent fluid leakage and maintain consistent hydraulic pressure.Proper maintenance and regular inspection of the aerial work platform steering cylinder are essential to ensure its optimal performance and extend its lifespan. This includes checking for any signs of damage, leaks, or wear on the seals, as well as maintaining the appropriate hydraulic fluid levels and cleanliness.In summary, the aerial work platform steering cylinder is a hydraulic component that enables precise steering and control of an aerial work platform. It allows operators to navigate safely and efficiently while working at heights, making it a crucial part of the overall functionality and safety of the aerial work platform.

Aerial Work Platform Steering Cylinder Specifications:

Product Name	Aerial Work Platform Steering Cylinder
Features:	Steering system for chassis tires of aerial work vehicles
Bore diameter:	63mm～200mm
Rod diameter:	36mm～140mmStroke≤1000mm
Pressure：	30MPa（Maximum pressure）
Hydraulic Steering Cylinder Applications:	Aerial Work Platform

Benefits of Aerial Work Platform Steering Cylinder:

The aerial work platform steering cylinder offers several benefits that contribute to the overall functionality and efficiency of the aerial work platform (AWP). Here are some key advantages of steering cylinder:1. Precise Steering Control: The aerial work platform hydraulic steering cylinder allows operators to have precise control over the steering of the aerial work platform. It enables smooth and accurate maneuverability, making it easier to navigate tight spaces, corners, and confined work areas. The cylinder's hydraulic actuation provides responsive and proportional steering, enhancing operator safety and productivity.2. Versatile Movement: The aerial work platform steering cylinder enables the aerial work platform to move in various directions, including forward, backward, left, and right. This versatility allows operators to position the platform precisely at the desired location, facilitating efficient access to elevated work areas. It provides flexibility in reaching different heights, angles, and positions, maximizing productivity and reducing the need for repositioning.3. Enhanced Stability: The aerial work platform hydraulic steering cylinder plays a crucial role in maintaining stability during aerial work platform operation. It helps distribute the weight evenly and adjust the platform's position, ensuring a stable and balanced configuration. This stability is particularly important when working at heights or on uneven surfaces, minimizing the risk of tipping or instability.4. Improved Safety: The precise control offered by the aerial work platform steering cylinder enhances overall safety during aerial work platform operation. Operators can easily navigate obstacles, avoid collisions, and maintain a safe distance from potential hazards. The cylinder's responsiveness and smooth steering contribute to operator confidence and reduce the likelihood of accidents or incidents.5. Durability and Reliability: Aerial work platform steering cylinders are built to withstand demanding working conditions. They are designed using robust materials and undergo rigorous testing to ensure durability and reliability. This allows them to withstand heavy loads, shocks, vibrations, and harsh environmental conditions, providing long-lasting performance and minimizing downtime for maintenance or repairs.

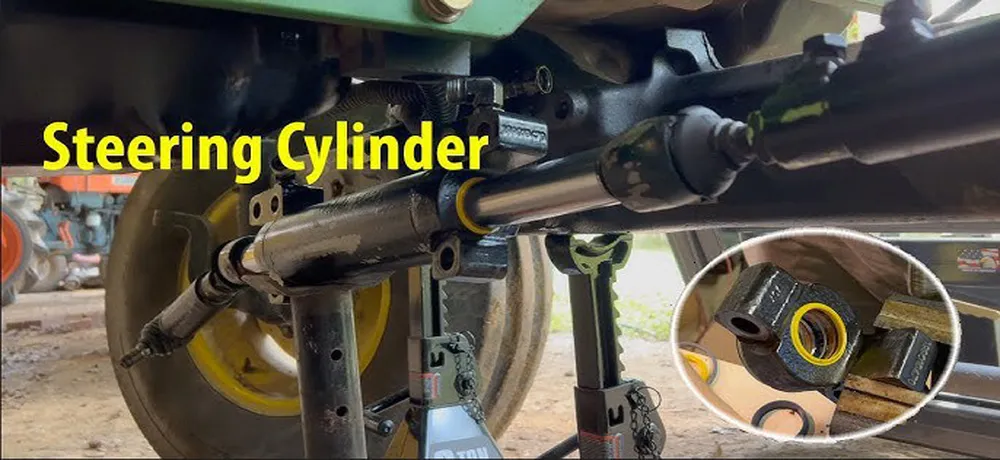

How to Remove Steering Cylinder from Aerial Work Platform?

Here are the steps on how to remove the steering hydraulic cylinder from an aerial work platform:

1. Locate the steering cylinder. The hydraulic steering cylinder is typically located on the side of the aerial work platform, near the operator's station.
2. Disconnect the hydraulic lines. Use a wrench to disconnect the hydraulic lines from the steering cylinder. Be sure to catch any fluid that leaks out.
3. Remove the mounting bolts. Use a wrench to remove the mounting bolts that secure the steering cylinder to the aerial work platform.
4. Lift the steering cylinder out of the mounting bracket. Use a hoist or crane to lift the steering cylinder out of the mounting bracket.
5. Dispose of the steering cylinder properly. The steering cylinder should be disposed of in accordance with local regulations.

Here are some safety precautions to take when removing the steering cylinder from an aerial work platform:

• Make sure the aerial work platform is properly stabilized before you begin work.
• Wear safety glasses and gloves to protect yourself from injury.
• Be careful not to spill any hydraulic fluid.
• Use the correct tools for the job.
• Dispose of the hydraulic steering cylinder properly.

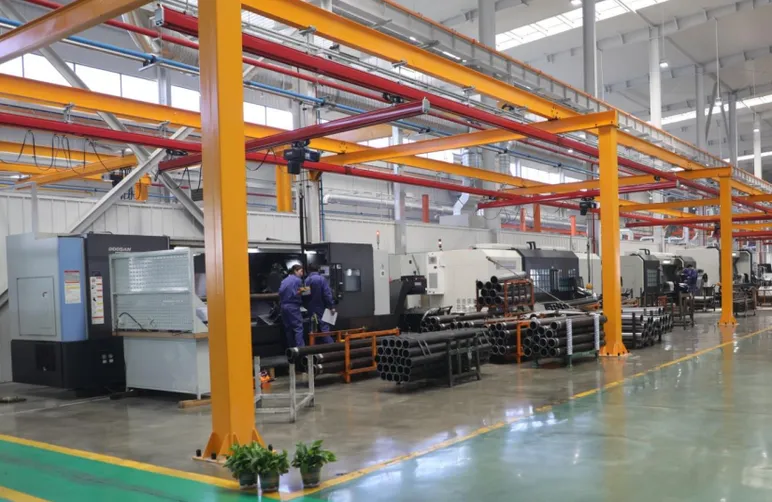

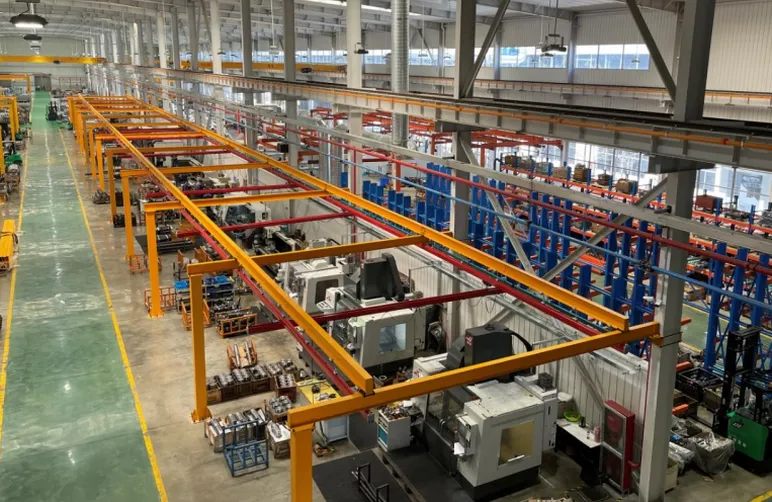

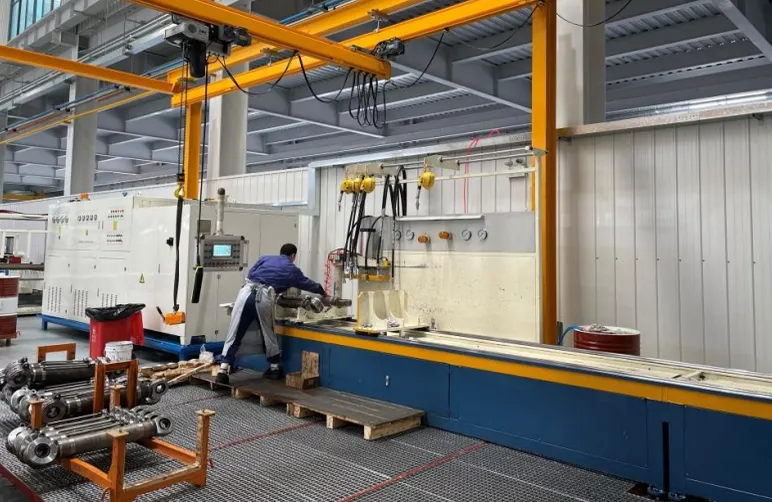

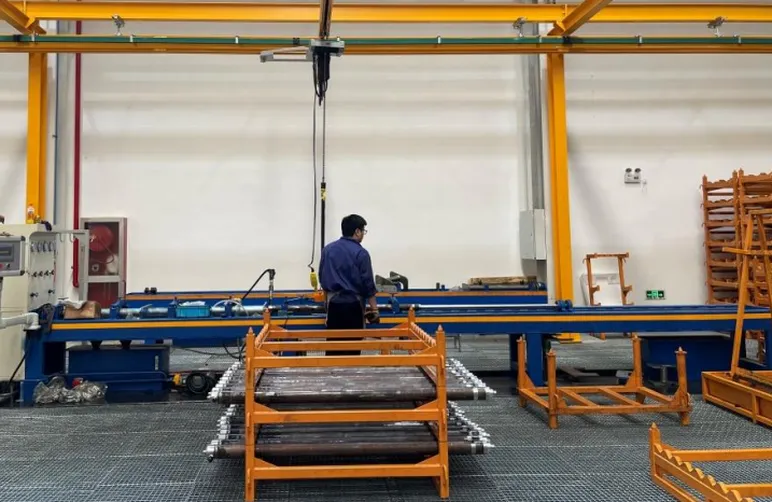

China Aerial Work Platform Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, small excavator bucket cylinders, construction machinery hydraulic cylinders, forklift hydraulic steering cylinders, crane luffing hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.Raydafon is committed to providing customers with efficient hydraulic technology solutions and products, maintaining strong partnerships with customers, and leading the development of China’s hydraulic industry through more scientific solutions. Raydafon aims to make more contributions to the sustainable development of society, the construction of green cities, and building a better future.
