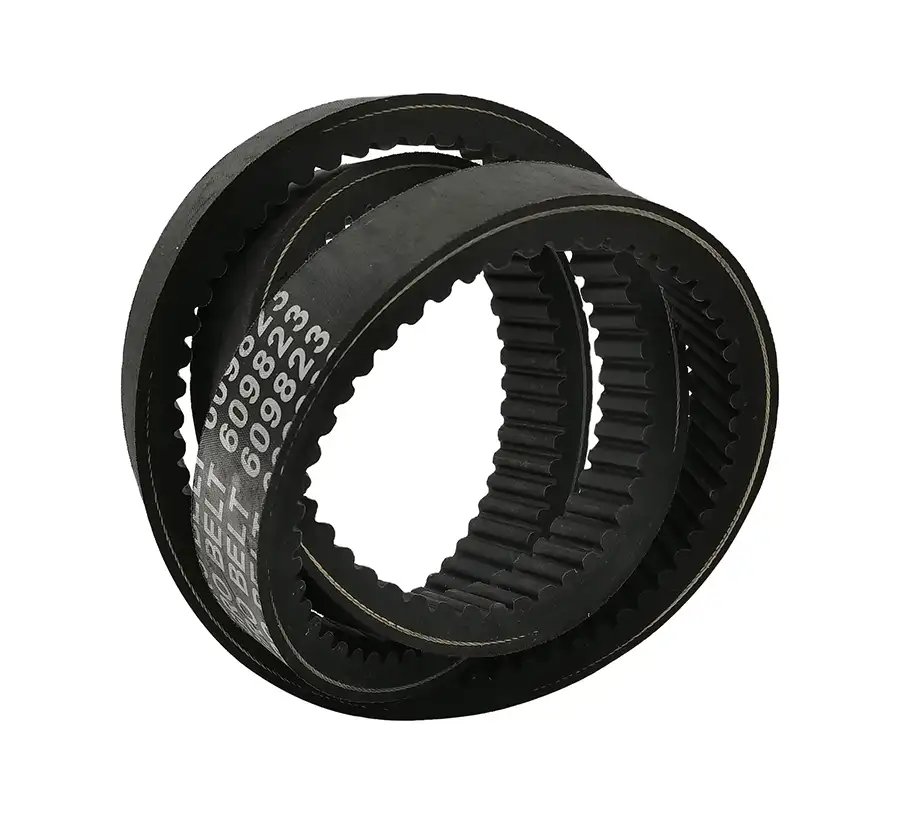

Agricultural belt Original Quality Rubber V Belt replacement for John Deere, CLAAS, CNH

Agricultural Belt Original Quality Rubber V Belt Replacement for John Deere, CLAAS, CNH

An agricultural belt, also known as a V-belt, is an essential component of agricultural machinery. Its primary function is to transmit power from the engine to the various components of the machine.

Applications of Agricultural Belt in Agricultural Machinery

The agricultural belt has numerous applications in agricultural machinery, including:

1. Tractor Transmission System: The agricultural belt is mainly used in the Power Take-Off (PTO) section of the tractor, connecting the tractor to external farming equipment such as plows, seeders, harvesters, crushers, water pumps, etc.

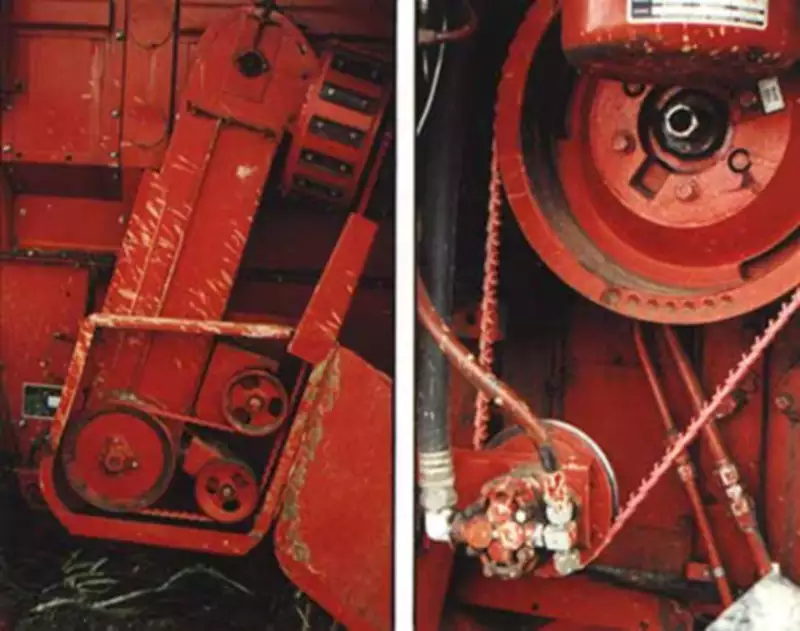

2. Combine Harvester: The belt is used in the main transmission system, which transfers power from the engine to the threshing drum, cutting platform, cleaning system, and other movable components.
3. Tillage Machines: The belt is used to transfer power from the tractor to the working parts of tillage machines such as rotary tillers, plows, and deep tillers.
4. Irrigation Equipment: In power-driven pumps and rotating sprinkler systems, the belt transmits power from the tractor to the water pump or other driving components.
5. Feed Processing Machinery: The belt is used to drive mixing, cutting, and other functional modules in feed mixers, silage cutters, and other equipment.

Agricultural Belt Compatible Brands and Models

The Agricultural Belt Original Quality Rubber V Belt Replacement for John Deere, CLAAS, CNH is compatible with several agricultural machinery brands and models, including:

Other Agricultural Machinery Parts Available

In addition to the Agricultural Belt, we offer a wide range of other agricultural machinery parts. You can find all the agricultural machinery parts you need, including agricultural chains, agricultural gearboxes, pulleys, sprockets, couplings, PTO shafts, concaves, and more.

Signs that It's Time to Replace Agricultural Belt

There are several signs that indicate that it's time to replace your agricultural belt, including:

1. Obvious Wear and Tear: Check the surface of the belt and replace it if you notice cracks, fraying, thinning, rubber chunks falling off, or exposed fabric. These signs indicate that the belt is severely worn, and its strength and stability have significantly decreased.
2. Slackness: The belt should run in an appropriately tensioned state. If you notice that the belt is too slack or sags more than the specified value when pressed by hand, or the belt length cannot maintain the original tension after continuous use due to elongation, it has lost elasticity and tension and needs to be replaced.
3. Slipping: If you hear a sharp screeching noise from the belt during operation, or feel that the machine's power output is insufficient, and the speed is decreasing, it's likely that the belt is slipping. Check the tension and friction of the belt and replace it if necessary.
4. Heat: A normally working belt will have some temperature rise, but if it's too hot to the touch, it may be due to over-fatigue, internal structural damage, or excessive tension, which can accelerate the aging and damage of the belt. It's essential to stop running, check, and replace the belt.
5. Strange Smell or Burn Marks: If you smell burning rubber or see melting or burn marks on the belt, it means that the belt is under severe overload and may have partial or complete damage. It must be replaced immediately.
6. Abnormal Vibration or Noise: When the belt is about to fail or fail, it may sometimes cause additional vibrations or noise during machine operation due to uneven transmission. Stop the machine and check, find the cause, and replace the faulty belt promptly.

How to Choose the Right Agricultural Belt

When selecting the right Agricultural Belt, consider the following factors:

1. Belt Type: V-belts are commonly used in agricultural machinery, and they come in various models such as A, B, C, and D, depending on their width and thickness. Choose a belt that matches the original equipment manufacturer's specifications.

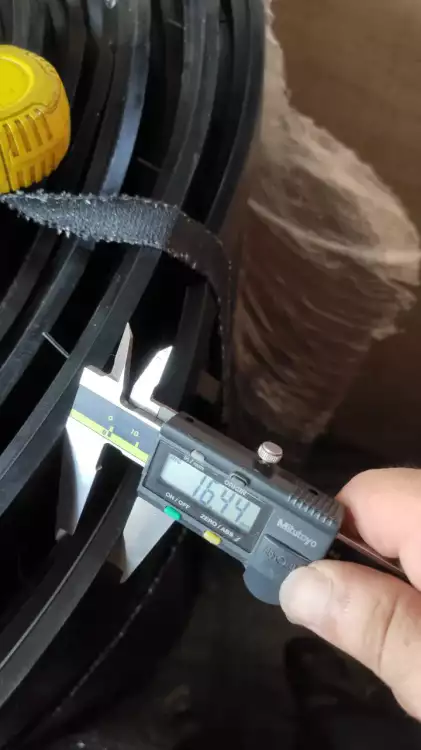

2. Length: Measure or calculate the exact length of the belt required based on the agricultural machinery manual to ensure that the new belt can be smoothly installed and maintain the appropriate tension.
3. Horsepower/Power Requirements: The belt needs to bear the engine output power of the agricultural machinery, so ensure that the new belt's rated power is greater than or equal to the power requirements of the transmission system.
4. Material: Agricultural belts made of high-quality rubber compounds have better wear resistance, heat resistance, oil resistance, and aging resistance properties.
5. Belt Pulley Groove Size: The belt must match the groove width and depth of the belt pulley to ensure good meshing and avoid slipping or premature wear.

Author: Miya
