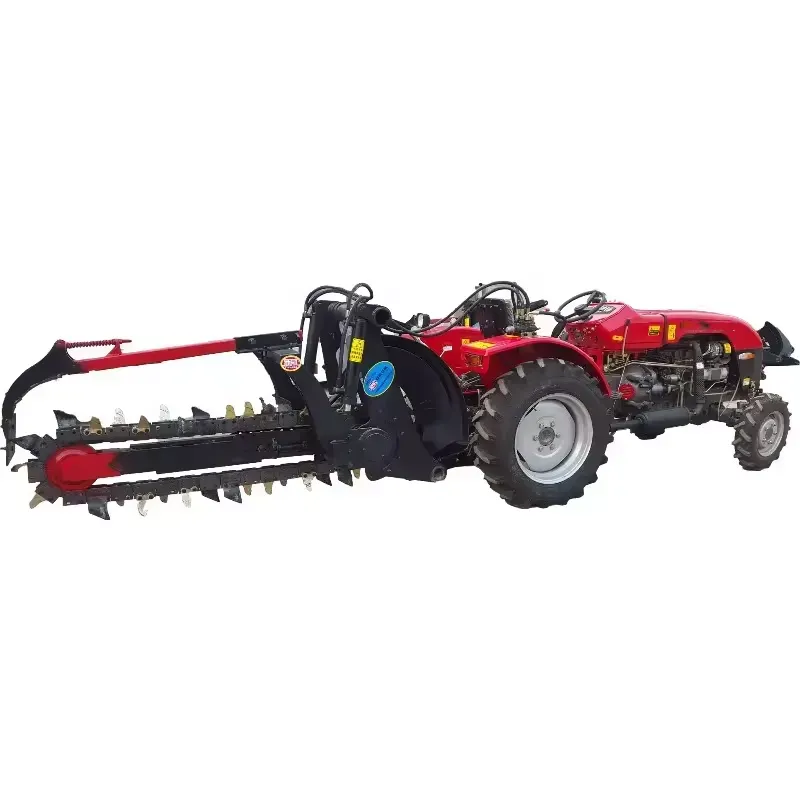

Agricultural Ditcher for Digging Ditch

Raydafon Group's Agricultural Ditcher for Digging Ditch is a robust, durable tool designed to efficiently create precise irrigation channels. Its ergonomic design and high-quality steel construction ensure effortless operation, saving farmers time and labor. Ideal for agricultural professionals and hobbyists, it transforms ditch digging into a smooth, satisfying task, enhancing productivity and land management. Unlike standard models, it offers superior longevity and ease of use. Elevate your farming experience with Raydafon Group's reliable solution.
Introducing our Agricultural Ditcher for sale; a versatile and powerful farming tool with a one-year warranty. This single chain trencher is designed for agricultural trenching operations, providing high productivity and efficiency. Despite its robust capabilities, it weighs a mere 800 KG. This tool is an innovation of 2024, boasting core components such as a gearbox. The ditcher can trench at a depth of 1.5m and a width of 15-20cm. Its power compatibility ranges between 50-80hp, making it a versatile addition to your farming equipment. The material of its knife is either 65Mn Spring steel or a carbide blade, depending on your preference.

Advantages of the Agricultural Ditcher

Equipped with a series of unique features and benefits, the Agricultural Ditcher stands out in the farming industry. Here are six points highlighting its advantages:
  • A one-year warranty guarantees long-term service and value for your investment.
  • The ditcher is compatible with a power range of 50-80hp, making it a flexible tool for various farming operations.
  • It has a high productivity rate, enhancing efficiency in your agricultural activities.
  • The tool is designed for agricultural trenching operations, specifically tailored to meet your farming needs.
  • The Agricultural Ditcher is a new product of 2024, featuring the latest technology and design.
  • It weighs only 800 KG, making it a lightweight yet powerful tool for your farming operations.

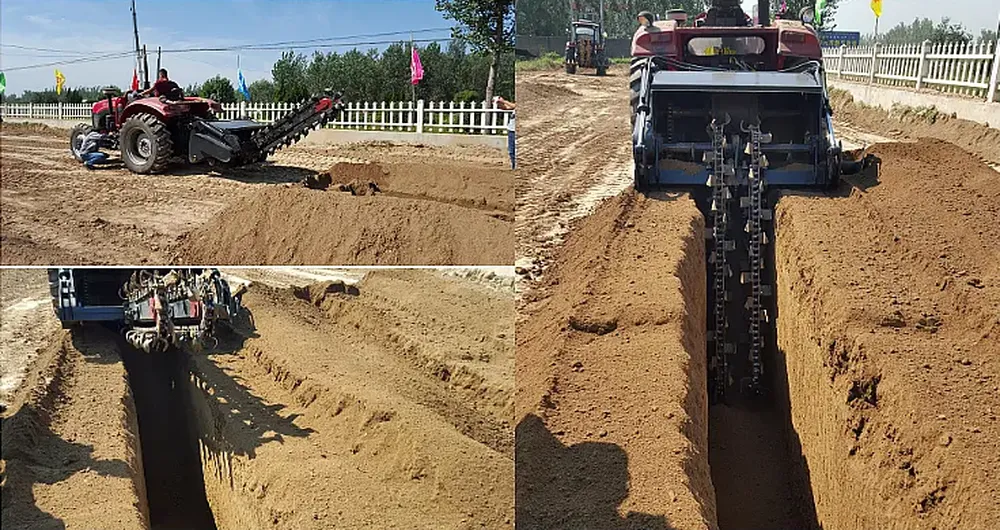

Applications of the Agricultural Ditcher

The Agricultural Ditcher is a versatile tool with a wide range of applications. Here are six primary uses of this farming equipment:
  • It's used in agricultural trenching operations for creating irrigation channels, laying pipes and cables, planting, and more.
  • The ditcher can be used for landscaping and construction purposes, digging precise trenches for various projects.
  • Its high productivity rate makes it an ideal tool for large scale farming operations.
  • With its lightweight design, it's suitable for use in farms with varying terrain conditions.
  • The tool is applicable in farms, showcasing its versatility in different farming environments.
  • It's suitable for use in soft soil and normal land, indicating its adaptability to different soil conditions.
Agricultural Ditcher for Digging Ditch

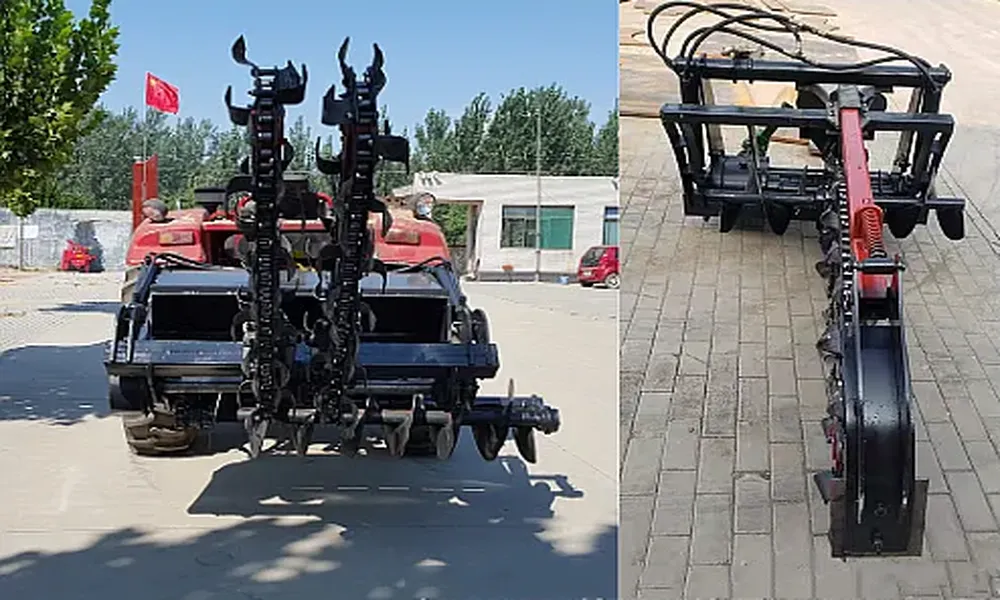

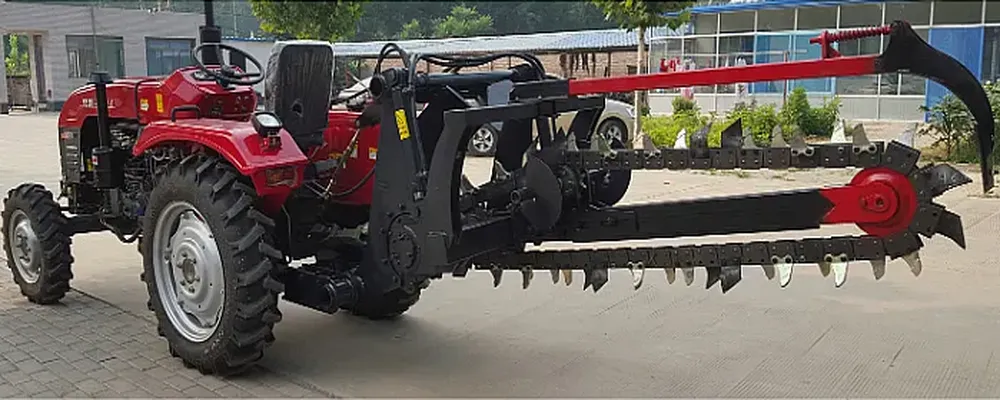

Key Components of the Tractor 3 Point Mounted Chain Trencher

The tractor 3-point mounted chain trencher is a versatile and powerful tool for digging precise trenches. Understanding the key components of this equipment can help users operate it more efficiently and maintain it properly. Here are the essential parts of a 3-point mounted chain trencher:Agricultural Ditcher for Digging Ditch
  1. Three-Point Hitch: Allows the trencher to be attached to the tractor. The three-point hitch is a standard type of linkage system used on tractors to attach implements in a flexible manner.
  2. Power Take-Off (PTO) Shaft: Transfers mechanical power from the tractor to the trencher. The PTO shaft is crucial for driving the trencher's chain mechanism.
  3. Chain with Digging Teeth: The primary digging component, this chain rotates around a metal frame or boom, equipped with teeth that cut through the soil.
  4. Boom: Supports the chain and determines the depth of the trench. The boom length can often be adjusted to change the trench depth.
  5. Drive System: Includes a gearbox and possibly a hydraulic motor, depending on the trencher model. This system translates the power from the PTO shaft to the movement of the chain.
  6. Soil Ejection System: Removes excavated soil from the trench path. This system often consists of a conveyor or auger mechanism, though simpler models may rely on the design of the chain and teeth to throw soil to the side.

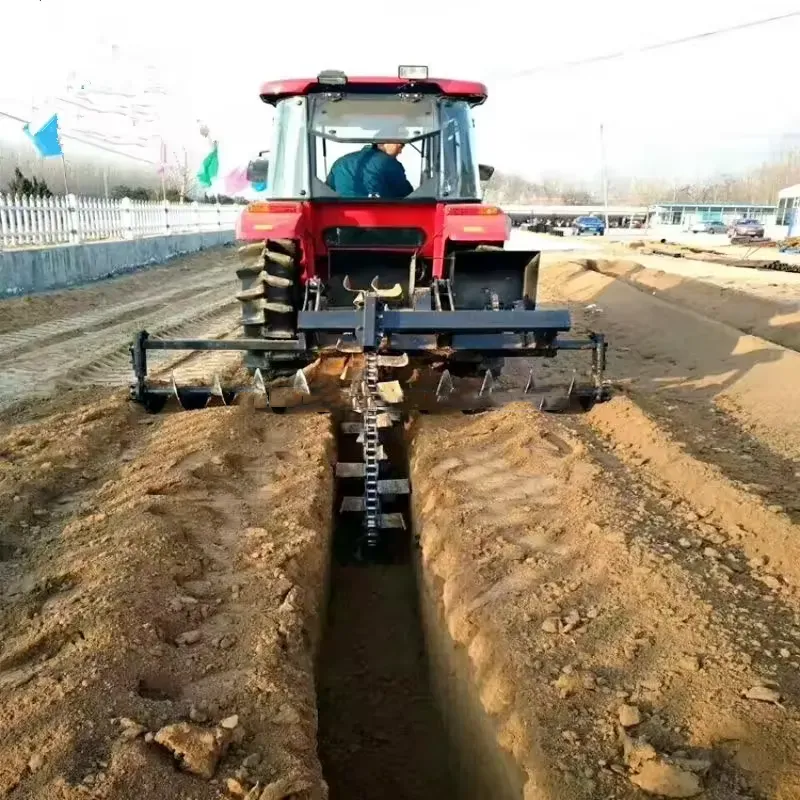

How Does the Tractor 3 Point Mounted Chain Trencher Work?

The tractor 3-point mounted chain trencher works through a combination of tractor power and specialized trenching equipment design. Here??s a step-by-step breakdown of how it operates:Agricultural Ditcher for Digging Ditch
  1. Attachment and Power Source: The trencher is attached to the tractor via the three-point hitch, a standard linkage system on the rear of the tractor that provides a secure and adjustable means of attachment for various implements.
  2. Chain and Boom Operation: When the PTO is engaged, it drives the trencher's chain mechanism. The trencher??s chain is looped around a metal boom and is equipped with cutting teeth. As the chain rotates around the boom, the teeth cut into the soil, breaking it up and removing it from the trench path.
  3. Depth Control: The depth of the trench is controlled by the length of the boom and the adjustment mechanism on the trencher. This can be set manually or through a hydraulic system, depending on the trencher model.
  4. Movement and Trench Formation: As the tractor moves forward, the rotating chain digs a continuous trench in the soil. The speed of the tractor??s movement and the PTO rotation speed are factors that can affect the quality and uniformity of the trench.
Agricultural Ditcher for Digging Ditch

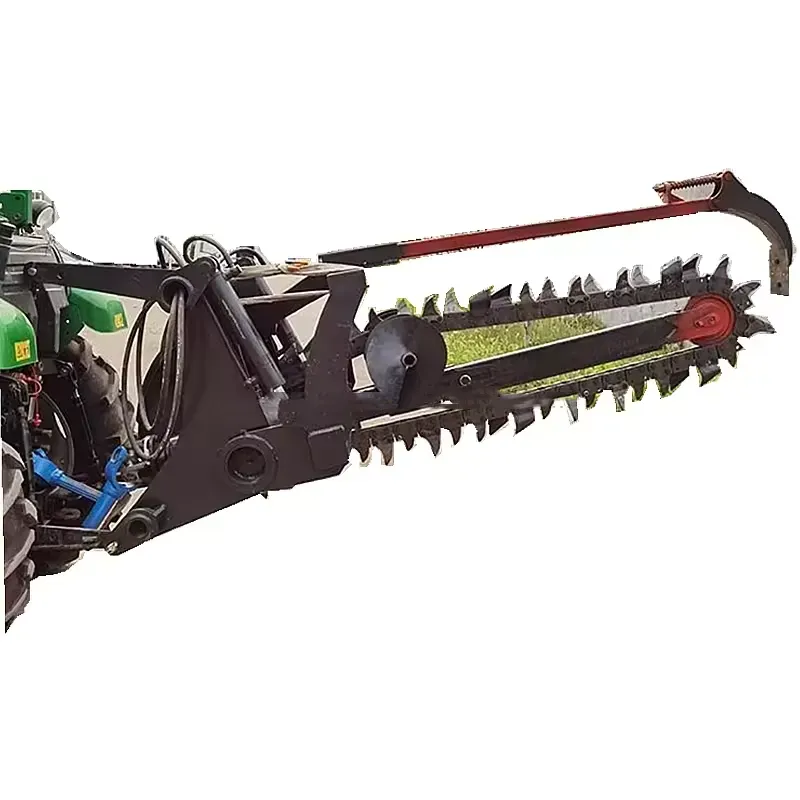

How to Install the 3 Point Mounted Chain Trencher to Tractor

Installing a 3-point mounted chain trencher to a tractor involves several steps to ensure a secure and proper connection. The following steps provide a general overview of how to attach a chain trencher to a tractor:
  1. Read Manuals: Start by thoroughly reading the operator's manuals for both the tractor and the trencher. Familiarize yourself with any specific mounting instructions and safety precautions.
  2. Positioning the Tractor and Trencher: Position the tractor close to the trencher so that the three-point hitch arms of the tractor are near the trencher's mounting points.
  3. Attaching the Trencher: Use the tractor's controls to lower the three-point hitch to a height that aligns with the trencher's mounting brackets. Attach the lower arms of the three-point hitch to the corresponding mounts on the trencher.
  4. Connecting the PTO Shaft: Align the PTO shaft on the trencher with the PTO stub on the tractor. Slide the PTO shaft onto the tractor's PTO stub.
  5. Final Checks: Walk around the tractor and trencher to make a final inspection. Ensure everything is correctly attached and secure.

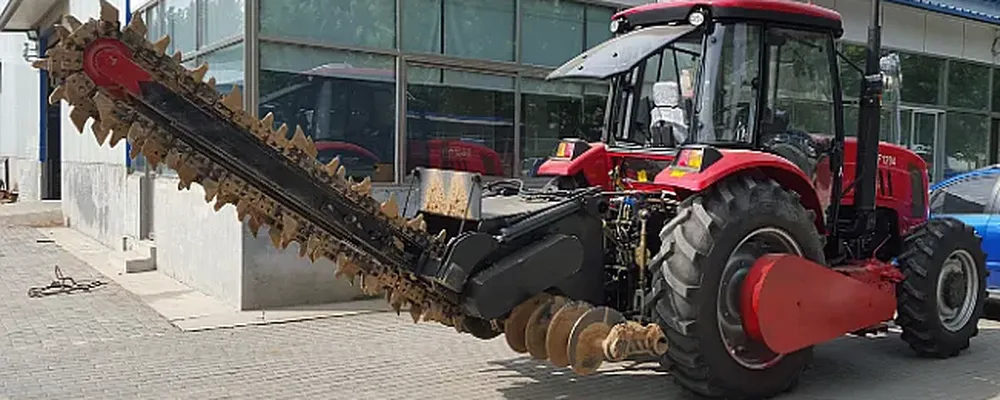

Common Troubleshooting of the Tractor 3 Point Mounted Chain Trencher

Troubleshooting a tractor 3-point mounted chain trencher involves identifying and resolving common issues that may arise during its operation. Here are some common troubleshooting tips for dealing with typical trencher problems:
    1. Trencher Won't Start or Operate: Ensure the PTO shaft is properly connected to both the tractor and the trencher. A loose or incorrect connection can prevent operation.
    2. Trencher Chain Doesn??t Move: Verify that the tractor's PTO is engaged and the tractor is running at the correct RPM. An overly tight or loose chain can hinder movement.
Agricultural Ditcher for Digging Ditch
  1. Inefficient Trenching or Poor Trench Quality: Inspect the chain for worn or missing teeth. Replace them as needed to maintain effective trenching.
  2. Trencher Vibrates Excessively: Check if the chain is evenly tensioned and not missing any teeth, which can cause imbalance.
  3. Excessive Wear on Chain or Teeth: Hard, rocky, or abrasive soil can increase wear. Consider using teeth and chains designed for specific soil types.

Why Choose Raydafon's Tractor Mounted Chain Trencher?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc.Agricultural Ditcher for Digging DitchOur products are complete in specifications, excellent in performance, and reliable in quality. They are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We pride ourselves on our professionalism, international certifications, customized services, advanced production facilities, and comprehensive after-sales services.[embed]https://www.youtube.com/embedf6nv2ByPjb8[/embed]Author: Yjx.
