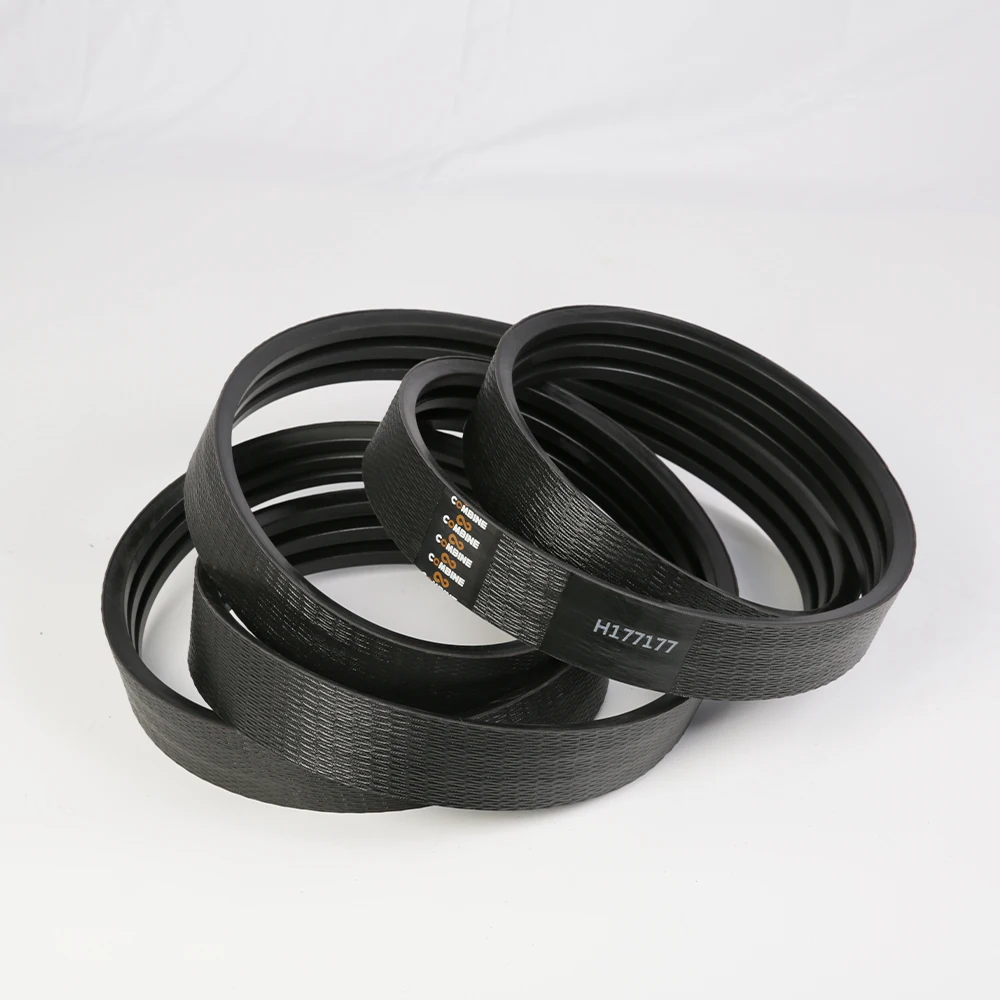

Agricultural drive v-belt and Wrapped banded belt replacement for John Deere Harvester Belts H177177

PRODUCT SPECIFICATIONS

Belt No.	TOP Width	Top Height	Angle(°)	Type			HD	HDJ
HZ	10	8	40	Agriculturalbelt		wrappped V-belt
HA	13	8	40
HB	17	11	40
HC	22	14	40
HD	32	19	40	Variable speed belt	coggedV-belt
HDJ	32	16	40
HI	25.4	12.7	40
HJ	31.8	15.1	40
HK	38.1	17.5	40
HL	44.5	19.8	40
HM	50.8	22.2	40
HO	62	27	40



Belt NO.	TOP Width	Top Height	Angle(°)	Type
2HB	36.1	13.5	40	banded V-belt
3HB	55.2	13.5	40
4HB	74.3	13.5	40
5HB	93.4	13.5	40
2HC	47.9	16.8	40
3HC	73.6	16.8	40
4HC	98.9	16.8	40
5HC	124.1	16.8	40

1. Double cogged V-belts replaced for John-Deere** HIGHLY RECOMMENDED ** H152146 HXE15594 H230909 2. Banded V-belts replaced for John-Deere H157726 H115881 H177177 HXE12426 H175434 HXE12425 H176765 H156541 Z59286 3. Classic Aramid V-belts replaced for John-Deere HXE513000 H155998 Z67285 N110085 H221324 Z235564 H218726 H218645 H175587 4. More V-belts replaced for John-Deere

No.	Replace JD No.	Application
4G3002	H128234	JD 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9660
4G3003	AH96333	JD 8820
4G3004	AH80500/H81975	JD 3300, 4400, 4420
4G3005	H132808	JD 9400, 9410, 9450, 9500 , 9600
4G3006	H96408	JD 6620, 6620, 7700, 7700 , 7720, 7720
4G3007	H96423	JD 6600, 6620, 6620, 7700, 7700, 7720, 7720
4G3008	H110375	JD 6620, 6622, 7720, 7721, 8820
4G3009	H96422	JD 6620, 6622, 7720, 7721, 8820
4G3010	H115881	JD CTS, CTS II, 9400, 9410, 9450, 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9650CTS, 9660,9660CTS
4G3011	H118618	JD CTS, CTS II, 9400, 9410, 9500, 9500SH, 9510, 9510SH, 9550, 9550SH , 9560, 9560SH, 9600, 9610, 9650, 9650CTS, 9660, 9660CTS
4G3012	H145994	JD 9400, 9410, 9450, 9550, 9550SH, 9650CTS, 9660CTS
4G3013	H96421	JD 9400, 9410, 9450, 9550, 9550SH, 9650CTS, 9660CTS
4G3014	H138762/H80103	JD 3300, 4400, 4420, , 6600, 7700
4G3015	H101436	JD 6620, 6622, 7720, 7721, 8820, 9400, 9410, 9450
4G3016	H118730	JD 6620, 7720, 8820
4G3017	H101469	JD 6620, 6622, 7721, 8820
4G3018	H96414	JD 6620, 7720, 8820
4G3019	H27433	JD 6600, 6602, 6620, 6622, 7700, 7701, 7720, 7721, 8820, 9400, 9410, 9450
4G3020	H110300	JD 6620, 6622, 7720, 8820
4G3021	H81222	JD 4400, 4420, 6620 , 7720, 8820
4G3022	H77766	JD 6600, 6620, 7700, 7720
4G3023	E46113	JD 9400
4G3024	H23950	JD 6600, 7700, 7700RH, 6600, 6622, 7700, 7721, 9400, 9500-9500H, 9600 , 9410, 9510, 9510SH, 9610, 9450, 9550, 9550SH, 9560, 9660
4G3025	H103344	JD 6620, 7720, 8820
4G3026	H128010	JD CTS, CTS II, 9400, 9410, 9450, 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9650CTS, 9660,9660CTS
4G3027	H137830	JD 9400, 9500, 9500SH, 9501
4G3028	H141166	JD 9450, 9550, 9550SH, 9560, 9560SH, 9600, 9600, 9650, 9650CTS, 9660, 9660CTS
4G3029	H141167	JD CTS, 9400, 9500, 9500SH, 9501, 9610
4G3030	H131169	JD CTS, CTS II, 9400, 9410, 9450, 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9650CTS, 9660,9660CTS

Introduction

The Agricultural Drive V-Belt and Wrapped Banded Belt are important components of John Deere harvesters. They are responsible for transmitting power from the engine to the harvester's various parts. The Agricultural Drive V-Belt and Wrapped Banded Belt Replacement for John Deere Harvester Belts H177177 that we offer can replace most common models of these parts.

Function and Working Principle

The Agricultural Drive V-Belt and Wrapped Banded Belt Replacement for John Deere Harvester Belts H177177 are located in the harvester's power transmission system. The V-Belt wraps around two pulleys and transmits power between them. The Wrapped Banded Belt has a similar function, but it uses multiple bands to transmit power. Both work by using friction to transfer power from the engine to other parts of the harvester.

Our Advantages

• We can produce Agricultural Drive V-Belt and Wrapped Banded Belt Replacement for John Deere Harvester Belts H177177.
• We can replace most common models of these parts.
• We offer customization services.

Compatible Brands and Models

Brand	Model
John Deere	H177177
CNH Industrial	84358343
Caterpillar	9L6644

Other Agricultural Machinery Parts

In addition to Agricultural Drive V-Belt and Wrapped Banded Belt Replacement for John Deere Harvester Belts H177177, we offer a wide range of other agricultural machinery parts, including agricultural chains, agricultural gearbox, pulleys, sprockets, couplings, pto shafts, concaves, etc.

Commonly Worn Parts of Harvesters

Harvesters have many parts that are subject to wear and tear. These include:

1. Blades/cutting parts: including main cutting blades, skid plates, cutting blade drive belts, etc.
2. Threshing drum and concave
3. Separating sieve and cleaning fan blades
4. Conveyor chains and sprockets
5. Rubber tracks or tires
6. Hydraulic components: including hydraulic cylinders, hoses, seals, etc.
7. Bearings
8. Filters: air filters, fuel filters, and oil filters, etc.

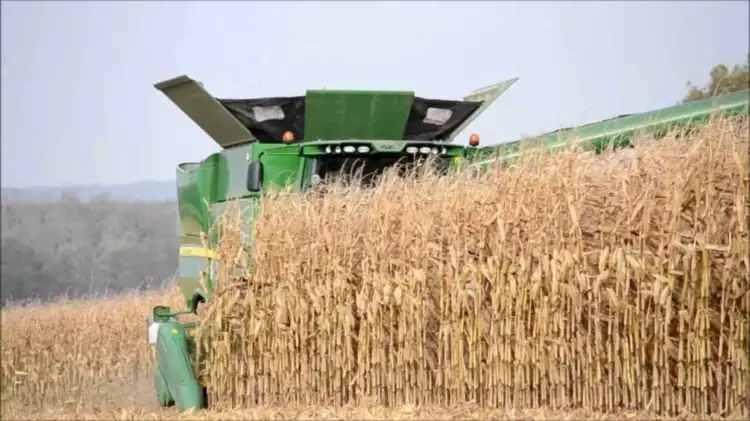

Here is an image of a harvester for reference:

Signs of Wear and Tear

If you notice any of these signs, it may be time to replace the corresponding parts:

1. Poor harvesting performance: If you notice too much crop residue after harvesting or if the grains are not separated properly, it may mean that the threshing drum and concave are worn out and need to be replaced.
2. Power decrease or overheating: If the engine power is insufficient or the operating temperature is too high, it may be due to a clogged air filter or a cooling system malfunction. Consider replacing the air filter or checking and repairing the cooling system as necessary.
3. Decreased harvesting efficiency: If the cutting blade operates slowly or the material conveying speed slows down, it may be due to aging and slackening of the drive belt, chain elongation, or gear wear. Check and replace the corresponding belt, chain, or gear as necessary.
4. Difficulties in moving or increased noise: If it is a rubber track harvester, loose or visibly cracked tracks need to be replaced. If it is a tire harvester, worn-out or punctured tires need to be replaced. If there is abnormal noise during movement, it may be due to bearing wear or damage, and the relevant bearings need to be replaced.
5. Unstable hydraulic system operation: If the lifting or steering is slow or weak, it may be due to problems with the hydraulic pump, cylinder, valve, or seal. Check and replace the relevant parts as necessary.
6. Significant leakage: Whether it is oil, hydraulic oil, or fuel leakage, it indicates that the seal has failed or other parts are damaged. Find the leak point and replace the damaged seal or part in a timely manner.
