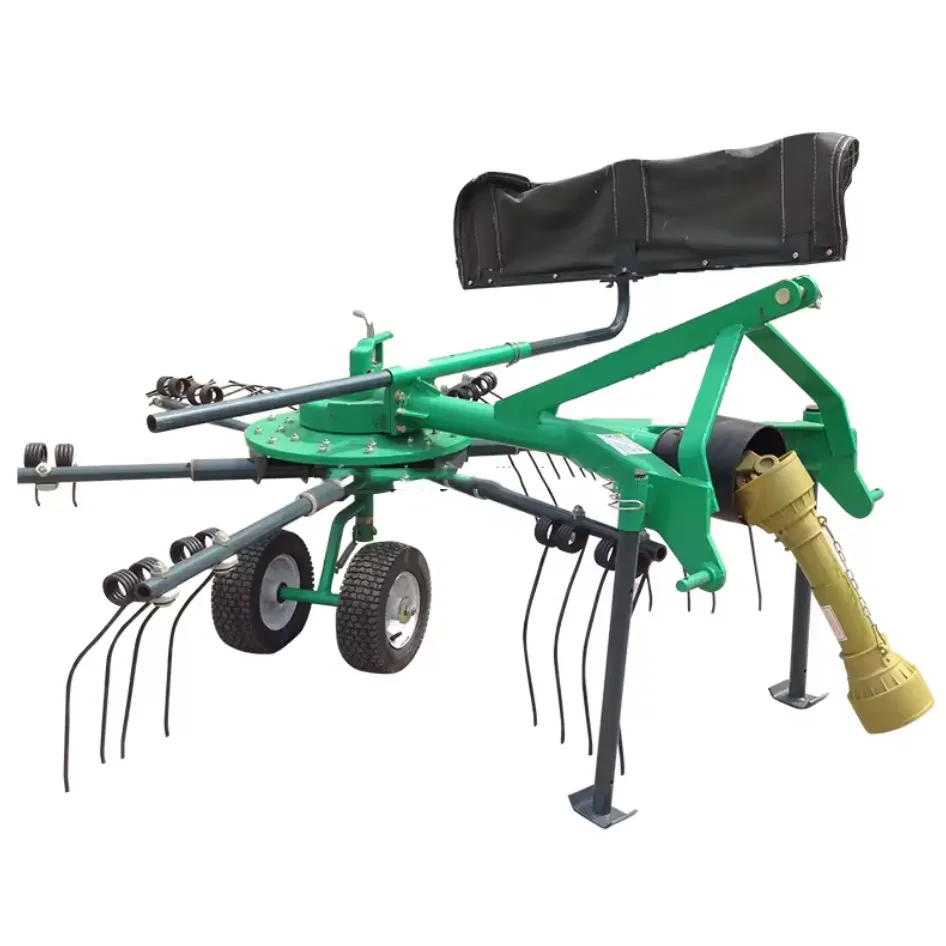

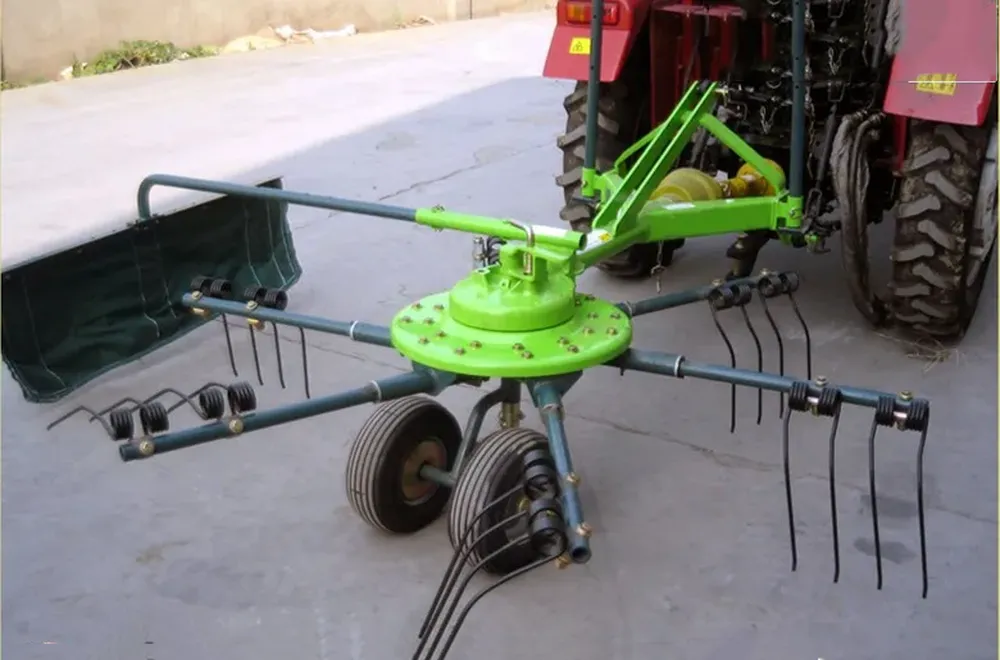

Agricultural Equipment Mini Hay Rake RXHR2500 with PTO for Raking and Tedding Straw

[embed]https://youtu.be/R7EALpVlwwc[/embed]

Agricultural Equipment Mini Hay Rake RXHR2500 with PTO for Raking and Tedding Straw

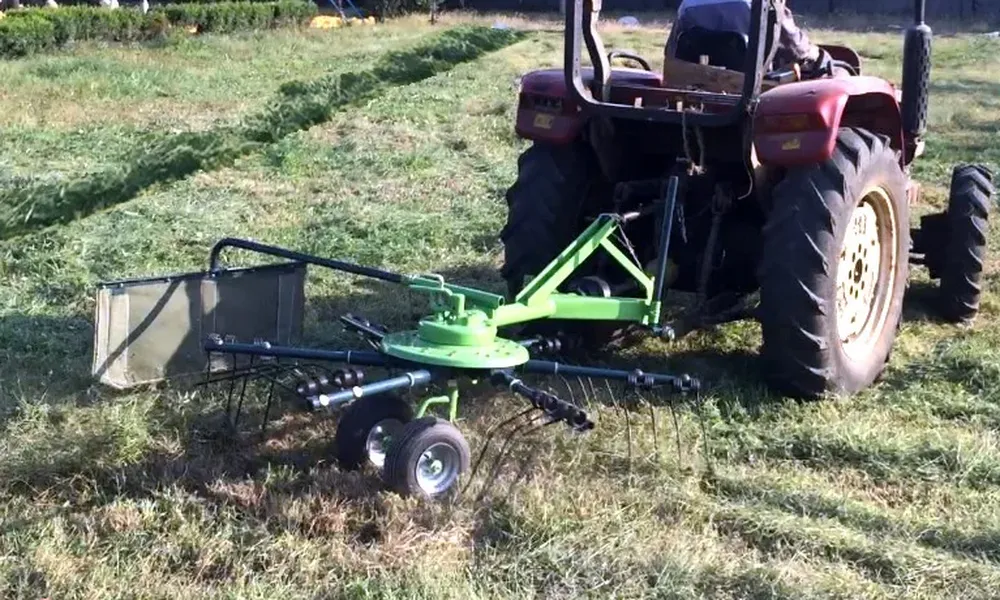

A hay rake with a Power Take-Off (PTO) is a versatile agricultural implement used for raking and tedding straw. It is commonly used in haymaking operations to collect and arrange cut straw into windrows, which are long rows of hay ready for baling or further processing. The PTO-driven mechanism provides the necessary power to operate the hay rake efficiently. The primary purpose of a hay rake is to gather loose straw after it has been cut and dried in the field. By raking the straw into windrows, it becomes easier to handle and transport. The hay rake typically consists of multiple parallel tines or teeth that are attached to a rotating reel. The reel is driven by the PTO, which is connected to the tractor's power source. When the hay rake is in operation, the rotating reel spins and sweeps the tines through the loose straw. The tines lift the straw from the ground and deposit it onto a conveyor belt or a series of wheels, which help arrange the straw into neat windrows. The PTO provides the necessary rotational power to the reel, enabling efficient and thorough raking. In addition to raking, many modern hay rakes with PTO also have tedding capabilities. Tedding is the process of spreading and fluffing the straw to enhance drying. By tedding the straw, the hay rake helps expose it to sunlight and air, speeding up the drying process. This is particularly useful in areas where weather conditions may not be ideal for quick and natural drying. The PTO-driven hay rake offers several advantages to farmers and agricultural workers. It improves efficiency and saves time by automating the raking process. The PTO ensures consistent power supply, allowing the hay rake to operate smoothly even in challenging terrain or heavy straw conditions. Furthermore, the tedding function adds an extra level of convenience and versatility, making the hay rake a multi-purpose tool for haymaking operations.

Mini Hay Rake RXHR2500 Specifications

Specifications for Hay Rake RXHR2500
Model		RXHR2500
Raking width		2500mm
Tedding width		1600mm
Dimensions		2100x2500x950mm
Teeth No.s		12
Working speed		4-8km/h
Matched Power		18-50HP
PTO speed		540rpm
Packaging size		2100x1950x950mm

Features of Hay Rake with PTO for Raking and Tedding Straw

A hay rake with a Power Take-Off (PTO) for raking and tedding straw may have several features that enhance its functionality and efficiency. Here are some common features you might find in such a hay rake: 1. PTO-driven Reel: The hay rake is equipped with a reel that is driven by the PTO of a tractor. The PTO provides the rotational power needed to spin the reel, which is responsible for raking and tedding the straw. 2. Adjustable Reel Speed: The hay rake may have adjustable reel speed settings. This feature allows the operator to control the speed of the reel based on the specific requirements of the straw and field conditions. 3. Parallel Tines or Teeth: The hay rake typically has multiple parallel tines or teeth attached to the reel. These tines move through the straw, lifting and gathering it onto the rake. The parallel configuration ensures efficient raking and tedding. 4. Windrow Adjustment: Many hay rakes offer windrow adjustment capabilities. This feature allows the operator to modify the width and shape of the windrows formed by the rake, accommodating different baling or processing needs. 5. Tedding Functionality: A hay rake with tedding capabilities will have additional features to facilitate the tedding process. This may include specially designed tines or attachments that help spread and fluff the straw for faster and more uniform drying. 6. Ground Following Ability: To ensure optimal performance, some hay rakes have ground following capabilities. This means that the rake can adapt to uneven terrain, ensuring that the tines maintain contact with the ground and efficiently gather the straw. 7. Durable Construction: A hay rake designed for raking and tedding straw should have a sturdy and durable construction to withstand the demanding conditions of agricultural operations. This includes high-quality materials and robust components that can withstand prolonged use. 8. Easy Maintenance: Hay rakes often come with features that simplify maintenance tasks. This may include easy access to lubrication points, quick-release mechanisms for replacing tines, and overall user-friendly design to facilitate routine maintenance and servicing.

Applications of Hay Rake with PTO for Raking and Tedding Straw

A hay rake with a Power Take-Off (PTO) for raking and tedding straw has various applications in the agricultural industry. Here are some common applications of this equipment: (1) Haymaking: The primary application of a hay rake with PTO is in haymaking operations. After the straw has been cut and dried in the field, the hay rake is used to gather the loose straw and form windrows. The PTO-driven reel and tines efficiently lift and collect the straw, arranging it into neat rows for further processing. (2) Straw Collection: In addition to haymaking, a hay rake with PTO is also used for collecting straw after other crop harvesting operations, such as grain harvesting. The rake can quickly gather loose straw, making it easier to handle and transport for various purposes. (3) Tedding: The tedding feature of a hay rake with PTO is particularly useful for enhancing the drying process of the straw. By spreading and fluffing the straw, the rake exposes it to sunlight and air, allowing for faster and more uniform drying. This application is beneficial in areas where weather conditions may be unfavorable for quick natural drying. (4) Forage Production: Apart from straw, a hay rake with PTO can also be used in forage production. It can gather and arrange cut forage material, such as grass or alfalfa, into windrows. This makes it easier to dry and bale the forage for storage or livestock feed. (5) Silage Operations: In silage production, a hay rake with PTO can be used to collect and arrange chopped corn stalks or other plant material into windrows. This allows for better fermentation and compaction when the material is stored in silage pits or bales.

PTO Shaft for Hay Rake for Raking and Tedding Straw

A hay rake with a Power Take-Off (PTO) requires a PTO shaft to transfer power from the tractor to the rake's reel and other operational components. Here are some key points about the PTO shaft for a hay rake used for raking and tedding straw:

• PTO Shaft Design: The PTO shaft is a driveline component that connects the tractor's PTO output shaft to the input shaft of the hay rake. It typically consists of an outer tube, inner shaft, and universal joints. The outer tube provides protection and support, while the inner shaft transfers rotational power.
• Length and Size: The length of the PTO shaft depends on the distance between the tractor's PTO output shaft and the hay rake's input shaft. It is essential to choose an appropriately sized shaft that matches the horsepower requirements and torque capacity of the hay rake.
• Telescoping Feature: Many PTO shafts for hay rakes are telescoping, allowing them to adjust in length. This feature enables easy connection and disconnection of the shaft, as well as adjustment for varying hitch heights or tractor and implement combinations.
• Shear Bolt or Slip Clutch: To protect the PTO shaft and the tractor's driveline from damage due to sudden shock or overload, some PTO shafts for hay rakes are equipped with a shear bolt or slip clutch mechanism. These safety devices allow the shaft to disengage or slip momentarily in case of excessive force, preventing damage to the tractor or implement.
• Proper Maintenance: Regular maintenance of the PTO shaft is crucial for safe and efficient operation. This includes greasing the universal joints, inspecting for wear or damage, and replacing any worn or damaged components. Proper alignment and balancing of the shaft are also important to minimize vibrations and ensure smooth power transfer.
• Safety Considerations: Working with PTO-driven equipment requires caution and adherence to safety guidelines. It is essential to engage the PTO only when the shaft is properly connected and secured. Operators should be aware of the potential hazards associated with PTO shafts, such as entanglement risks, and adhere to safety precautions, such as using proper shielding and avoiding loose clothing or jewelry near rotating components.

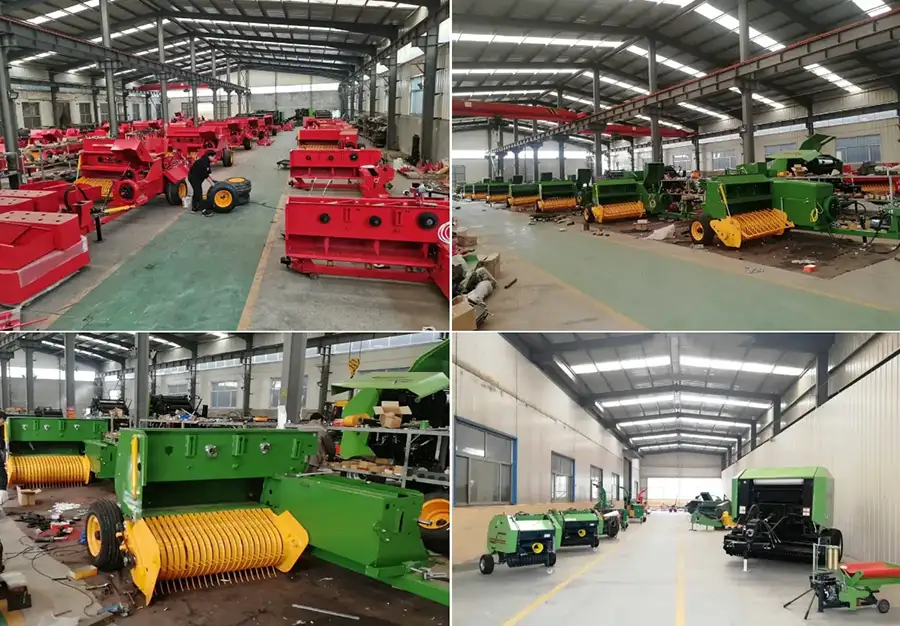

Why Choose Raydafon's Mini Hay Rake?

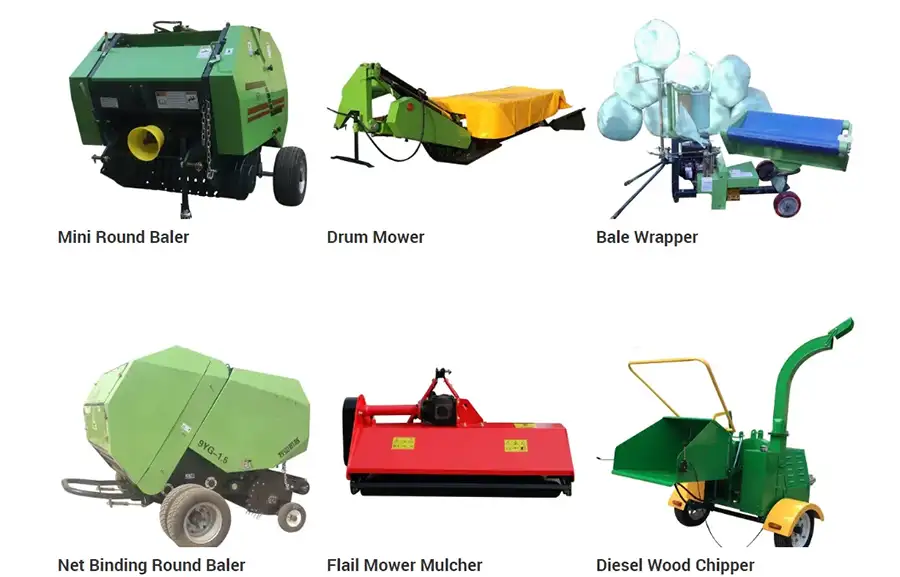

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
