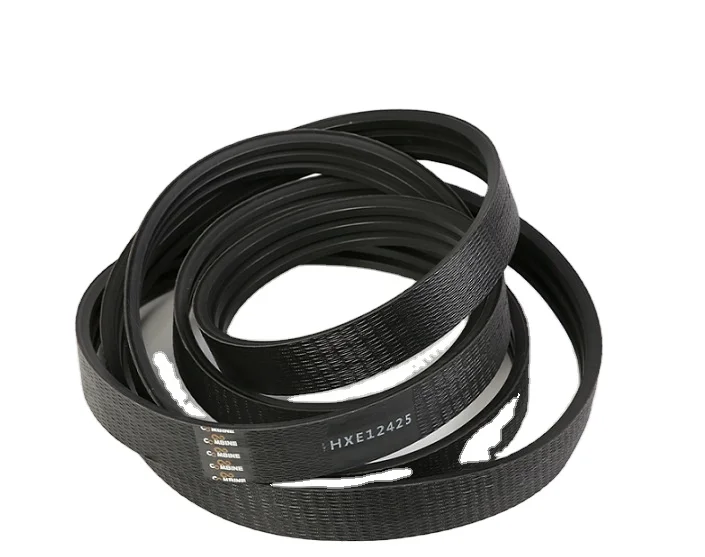

Agricultural machine v belt harvester belts



Product Overview

Material is CR and Aramid (Kevlar) cord. Quality the same as original. - Unique design with teeth on both sides for better performance.- Significant transverse stiffness and flexibility to prevent the risk of abrasion with a minimum diameter where the belt is loadedthe most. HB-2HB-3HB-4HB-Solid ground grip provides positive traction and precise speed control. -High bearing capacity.-Longer service life.

V belt	Type	Bb	Hb	Hbb	Sg
Common V Belt	HA	0.5	0.31	0.41	0.625
		HB	0.66	0.41	0.50	0.750
		HC	0.88	0.53	0.66	1.000
		HD	1.25	0.75	0.84	1.438
Narrow V Belt	H3V	0.38	0.31	0.38	0.406
		H5V	0.62	0.53	0.62	0.688
		H8V	1.00	0.91	1.00	1.125
Hexagon V Belt	HAA	0.50	0.41
		HBB	0.66	0.53
		HCC	0.88	0.69
		HDD	1.26	0.98



Item No.	Replace	Type	Weight/kg
AH163931	4G3208	HC	0.7
H155998	4G3213	2HC	3.54
H156541	4G3041	2HC	4.26
H160654	4G3214	HC	1.62
H171386	4G3215	HB	0.557
H209507	4G3218	2HC	2.11
H218726	4G3219	HL	4.188
H241212	4G3223	2HC	2.39
HXE10556	4G3224	2HC	0.92
HXE12425	4G3225	3HB	4.45
HXE12426	4G3226	3HB	2.06

  Agricultural machine V belt harvester belts are an essential part of a harvester machine. These belts play a vital role in the functioning of a harvester machine. In this article, we will discuss the importance of agricultural machine V belt harvester belts, their working principle, and how we can produce and customize these belts as per our clients' requirements.

Importance and Functioning

Agricultural machine V belt harvester belts are used in the harvester's cutting and threshing mechanisms. The belt's working principle is based on friction, where the belt transfers the power from the engine to the cutting and threshing mechanisms of the harvester, which helps in the harvesting process. Our Advantages At our company, we can produce and replace most brands' common harvester parts. Additionally, we offer the following advantages: 1. Our belts are made of high-quality materials, ensuring longer durability. 2. Our belts have high resistance to wear and tear, making them suitable for prolonged usage. 3. We offer customizations based on our client??s requirements. Harvester Brands and Models We offer agricultural machine V belt harvester belts for a wide range of harvester brands and models. Some of the brands include: | Brand | Model | |-------|-------| | John Deere | S-Series | | Case IH | Axial-Flow | | New Holland | CR Series |

Other Agricultural Machinery Parts

Apart from agricultural machine V belt harvester belts, we provide a wide range of other agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, and concave.

Commonly Worn-out Parts

Some of the harvester's commonly worn-out parts include: 1. Blades/Cutting Components: This includes the main cutting blade, the protective shield, and the cutting blade drive belt. 2. Threshing Drum and Concave: These parts wear out due to friction during threshing and need replacement. 3. Separation Screen and Cleaning Fan Blades: These parts need replacement if they are worn out or damaged. 4. Conveyor Chains and Sprockets: These parts are subjected to wear and tear during the harvesting process and need replacement. 5. Rubber Tracks or Tires: These parts need replacement if they are damaged or worn out. 6. Hydraulic Components: This includes hydraulic cylinders, hoses, and seals, which need replacement if they are worn out. 7. Bearings: Bearings need replacement if they are worn out or damaged. 8. Filters: Air filters, fuel filters, and oil filters need replacement regularly.

When to Replace Worn-out Parts

The following are the signs that indicate the need to replace worn-out parts: 1. Poor Harvesting Performance: If the harvested crops contain significant crop residue or if the threshed grains are not clean, it indicates that the threshing drum and concave need replacement. 2. Decreased Power or Overheating: If the engine lacks power or the temperature is too high, it may indicate a clogged air filter or a faulty cooling system, which needs replacement. 3. Reduced Harvesting Efficiency: If the cutting deck is slow or the material handling speed is slow, it may indicate a worn-out belt, chain, or gear, which needs replacement. 4. Difficulties in Movement or Increased Noise: If the rubber tracks are loose or cracked, they need replacement. If the tires are worn out or punctured, they need replacement. If there is unusual noise during movement, it may indicate a worn-out bearing, which needs replacement. 5. Unstable Hydraulic System: If the system is slow or lacks power, it may indicate faulty hydraulic pumps, cylinders, valves, or seals, which needs replacement. 6. Oil Leakage: If there is significant oil leakage, it may indicate a damaged seal or component, which needs replacement. Author: Miya
