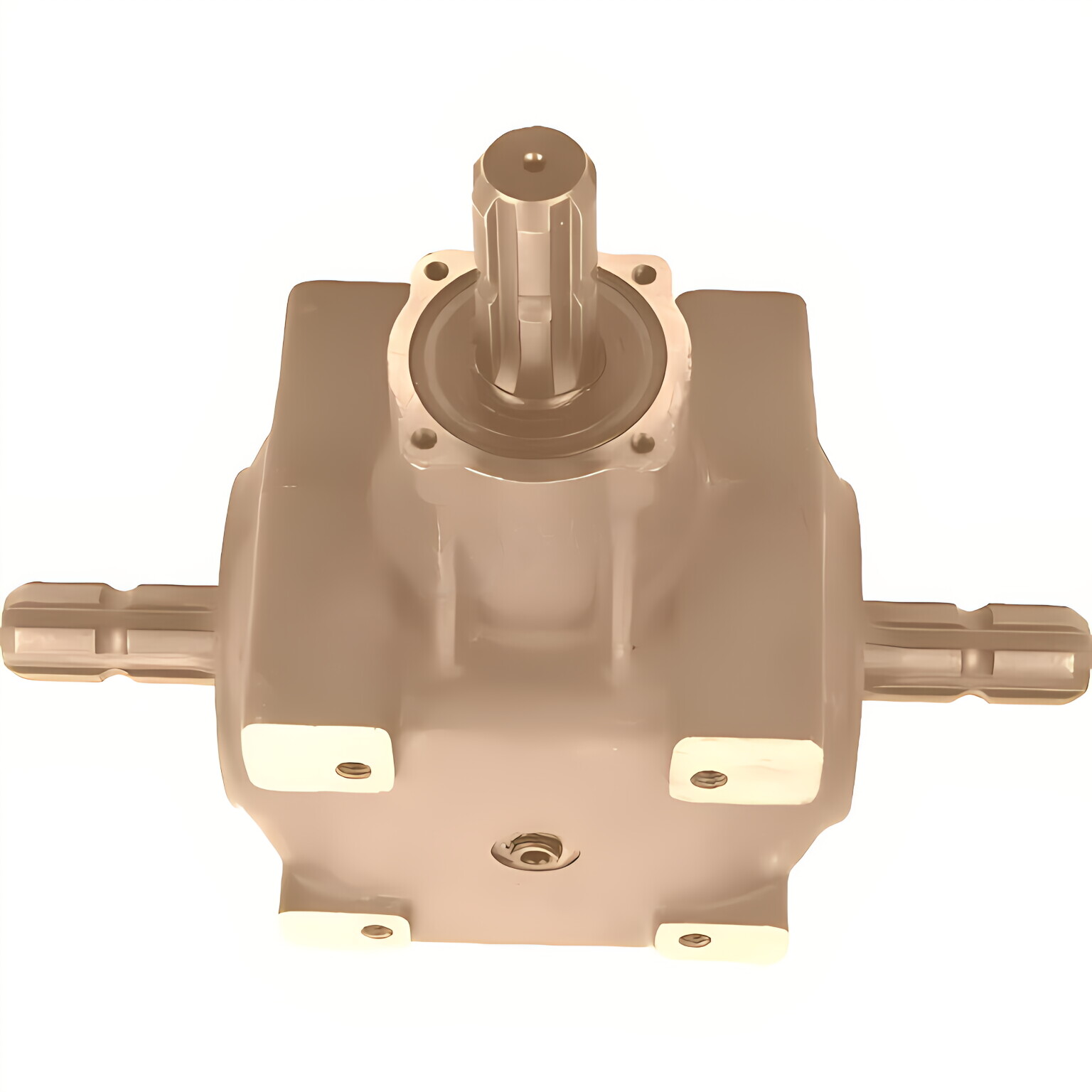

Angular Gearboxes - Replacement of Comer Code T-27A 1:1

Upgrade with Raydafon Group's Angular Gearboxes, the perfect replacement for Comer Code T-27A 1:1. Engineered for precise motion control, these gearboxes offer durability and smooth operation, ideal for industrial applications. Experience reliability and efficiency, solving downtime issues with a superior alternative. Choose Raydafon for unmatched performance and quality.

Send Inquiry

Product Description

Angular Gearboxes - Replacement of Comer Code T-27A 1:1

Description	Angular Gearboxes - Replacement of Comer Code T-27A 1:1
Application	Various (agricultural) applications Fertiliser spreaders Multi-row rotary tillers Band saws
Consists of	Gearbox Without oil
Technical information	If you have any questions regarding performance at different speeds, please do not hesitate to contact us When using for the first time, replace the oil after 50 operating hours
Max. input power	40.5 kW
Max. output torque	693 nm
Contains oil	No
Max. oil capacity	1.2 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GG25
Weight	21 kg
Gear arrangement	5 - 6
Ratio	1 : 1
Input shaft	Z
Shaft X	1 3/8" (6) (C)
Shaft Y	1 3/8" (6) (C)
Shaft Z	1 3/8" (6) (F)
