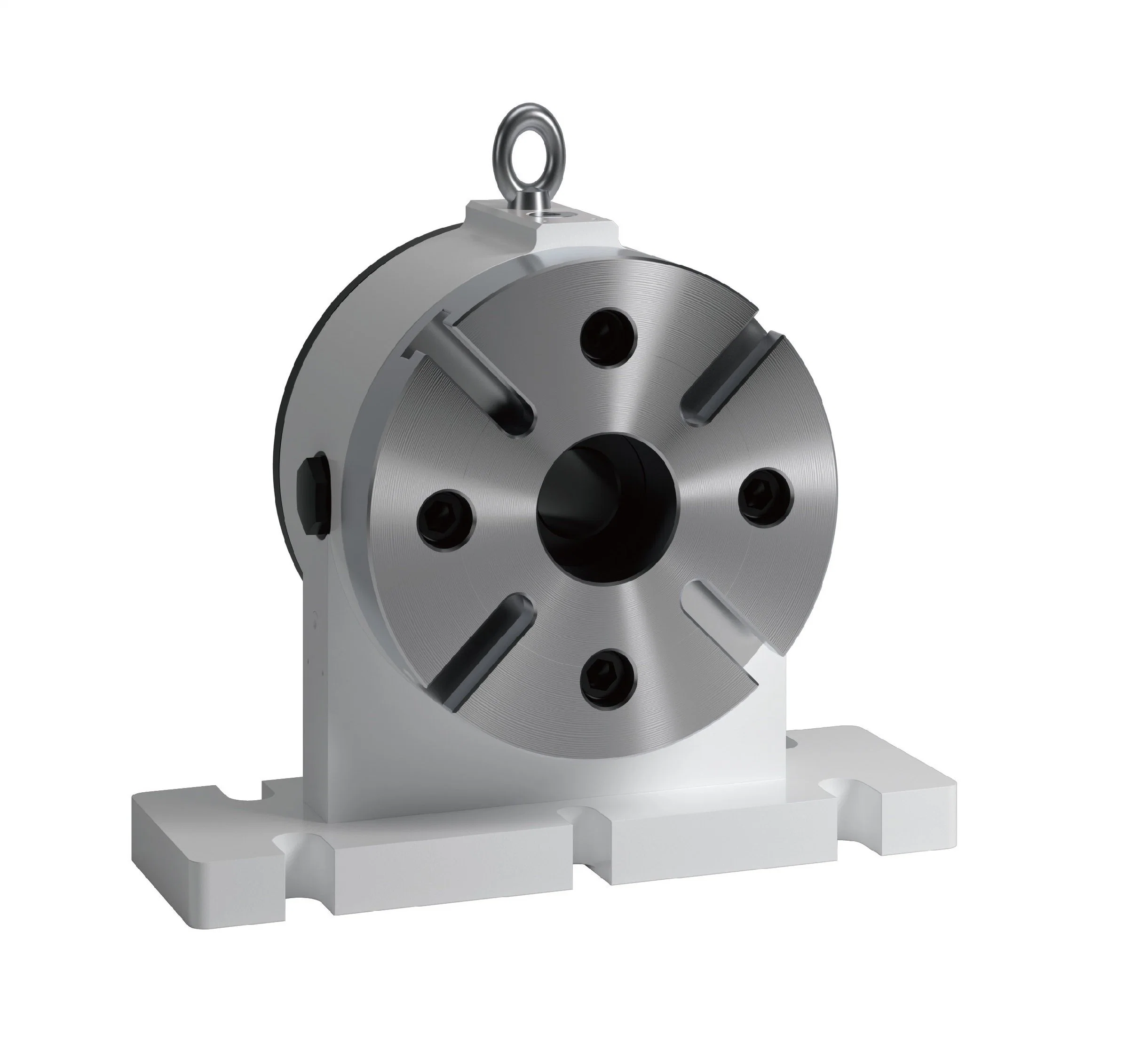

AR-170 Pneumatic Brake Tailstock-170mm for CNC Rotary Table

Understanding the AR-170 Pneumatic Brake Tailstock-170mm for CNC Rotary Table

The AR-170 Pneumatic Brake Tailstock-170mm is an essential tool in mechanical processing. This device is designed to hold and stabilize a workpiece during the CNC rotary table operation. It plays a crucial role in ensuring accurate and precise cutting, drilling, or machining processes.

Structure of the AR-170 Pneumatic Brake Tailstock

The AR-170 Pneumatic Brake Tailstock is composed of several key components, including a pressure adjustment device, a fixing device, and a supporting device. Each of these parts plays a unique role in ensuring the stable and efficient operation of the CNC rotary table. The pressure adjustment device allows for the regulation of the pneumatic pressure, while the fixing device securely holds the workpiece in place. The supporting device provides additional stability during the machining process.

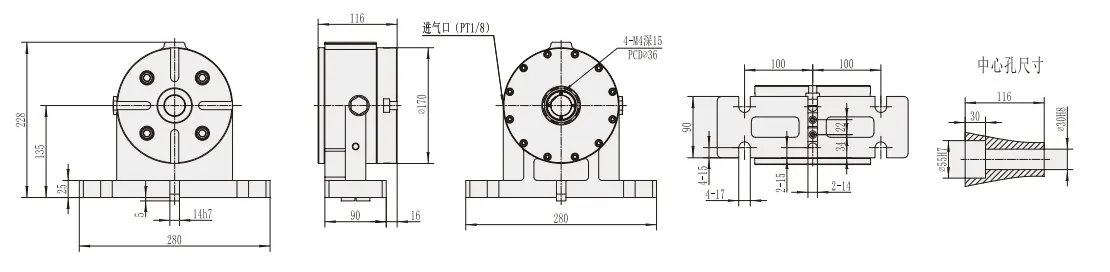

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Width of bottom guide key	Weight
AR-170	φ170mm	φ55H7mm	φ30mm	135mm	12H7mm	14H7mm	25Kg

The Working Principle of the AR-170 Pneumatic Brake Tailstock

The AR-170 Pneumatic Brake Tailstock works by securely holding the workpiece in place on the CNC rotary table, allowing for accurate positioning and machining. It operates in harmony with other mechanical components of the CNC rotary table, ensuring a seamless and efficient production process.

Materials and Manufacturing Process of the AR-170 Pneumatic Brake Tailstock

The AR-170 Pneumatic Brake Tailstock is typically made from high-quality stainless steel. The manufacturing process involves meticulous procedures such as casting, machining, and heat treatment to ensure a robust and durable product.

Applications and Advantages of the AR-170 Pneumatic Brake Tailstock

The AR-170 Pneumatic Brake Tailstock is widely used in industrial production due to its versatility and efficiency. It's particularly beneficial in operations requiring precision and consistency. Its key advantages include its robust design, reliability, and ability to handle various shapes and sizes of workpieces.

Choosing the Right AR-170 Pneumatic Brake Tailstock

When choosing an AR-170 Pneumatic Brake Tailstock, consider the size and shape of the workpiece, the material of the workpiece, the technical requirements, and your budget. Make sure to choose a tailstock that suits your specific needs and requirements.

Why Choose Raydafon's AR-170 Pneumatic Brake Tailstock?

Raydafon is a leading supplier of CNC turntables and is known for its commitment to innovation, quality, and customer satisfaction. Our AR-170 Pneumatic Brake Tailstock is a testament to our dedication to providing high-quality and reliable products. We invite you to explore our product range and experience the difference for yourself.

About Raydafon

Raydafon is a leading provider of CNC turntables, known for its innovative R&D and top-tier production technology. We are committed to meeting the rapidly changing needs of our customers by designing and manufacturing CNC rotary tables that fulfill their specific requirements. Our main products include 4-axis and 5-axis CNC turntables and horizontal 4-axis turntables for tool machine tools.

Frequently Asked Questions

Q: What is the main function of the AR-170 Pneumatic Brake Tailstock?A: The main function of the AR-170 Pneumatic Brake Tailstock is to hold and stabilize a workpiece during the CNC rotary table operation.Q: What are the key components of the AR-170 Pneumatic Brake Tailstock?A: The key components of the AR-170 Pneumatic Brake Tailstock include a pressure adjustment device, a fixing device, and a supporting device.Q: Why should I choose Raydafon's AR-170 Pneumatic Brake Tailstock?A: Raydafon's AR-170 Pneumatic Brake Tailstock is made from high-quality materials and is known for its robust design, reliability, and ability to handle various shapes and sizes of workpieces.Edited by Zqq.
