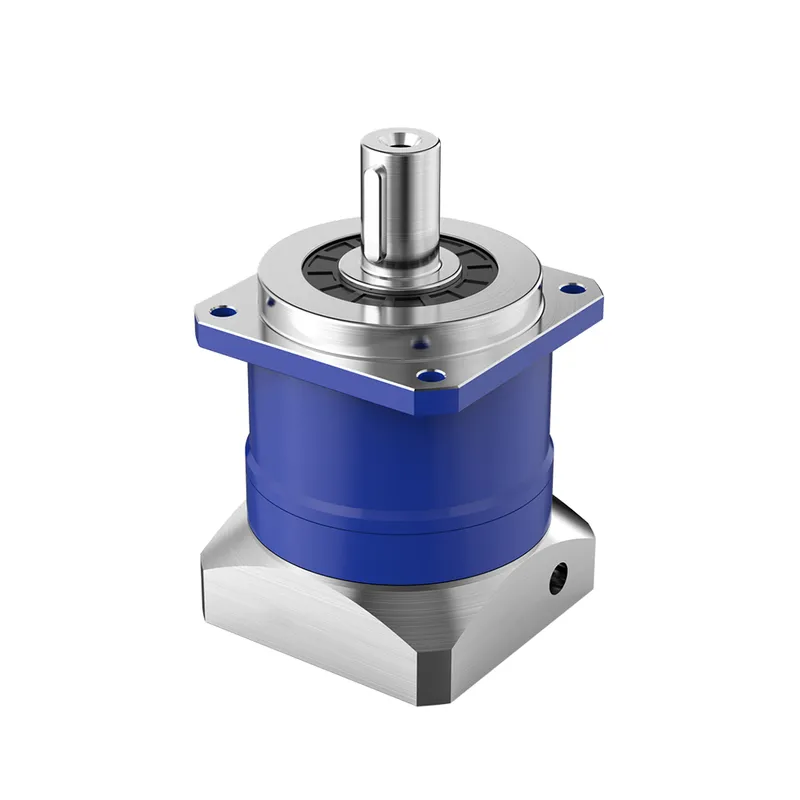

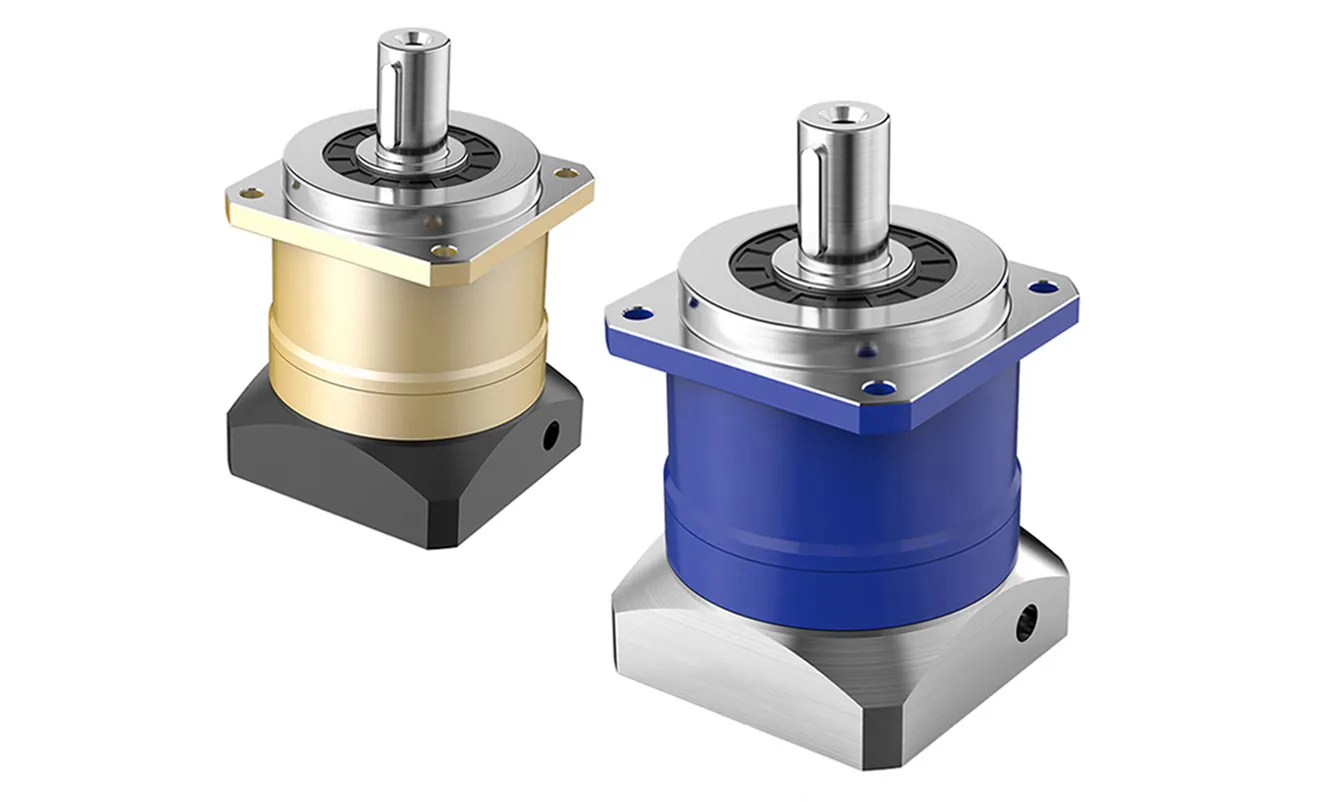

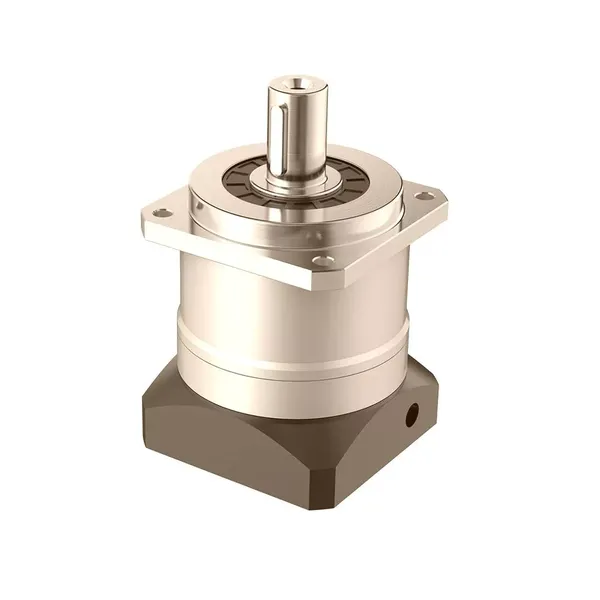

BAF Series High Efficiency High Precision Planetary Gearbox (Planetary Gear Reducer)

BAF Series High Efficiency High Precision Planetary Gearbox (Planetary Gear Reducer)

The BAF series high precision planetary gearbox is a type of gearbox that is designed for high-precision and high-performance applications. It features a planetary gear system, which consists of a central sun gear, planetary gear, and an outer ring gear. The BAF series high precision planetary gearbox is It features a modular design that allows for a wide range of configurations, and it is available in a variety of sizes and ratios.The BAF series high precision planetary gearbox is known for its high torque capacity, high efficiency, and low backlash. These planetary gearboxes are widely used in a range of applications, including robotics, machine tools, semiconductor manufacturing equipment, and medical devices. They are designed to provide smooth, accurate motion control and are often used in applications where high precision is critical. If you are looking for a high precision planetary gear reducer for your application, the BAF series planetary gearbox is a great option to consider.

▍BAF Series High Precision Planetary Gearbox Specification:

BAF Series Model No.: BAF042, BAF060, BAF090, BAF115, BAF142, BAF180, BAF220
7 Sices		70mm-235mm
Output Torque		14N.m-2000N.m
Ratio	1-stage	3/415/6/7/8/9/10
	2-stages	15/20/25/30/35/40/45/50/60/70/80/90/100
Backlash	1-stage	≤ 5 arcmin
	2-stages	≤ 8 arcmin

▍BAF Series High Precision Planetary Gearbox Outline Dimension:

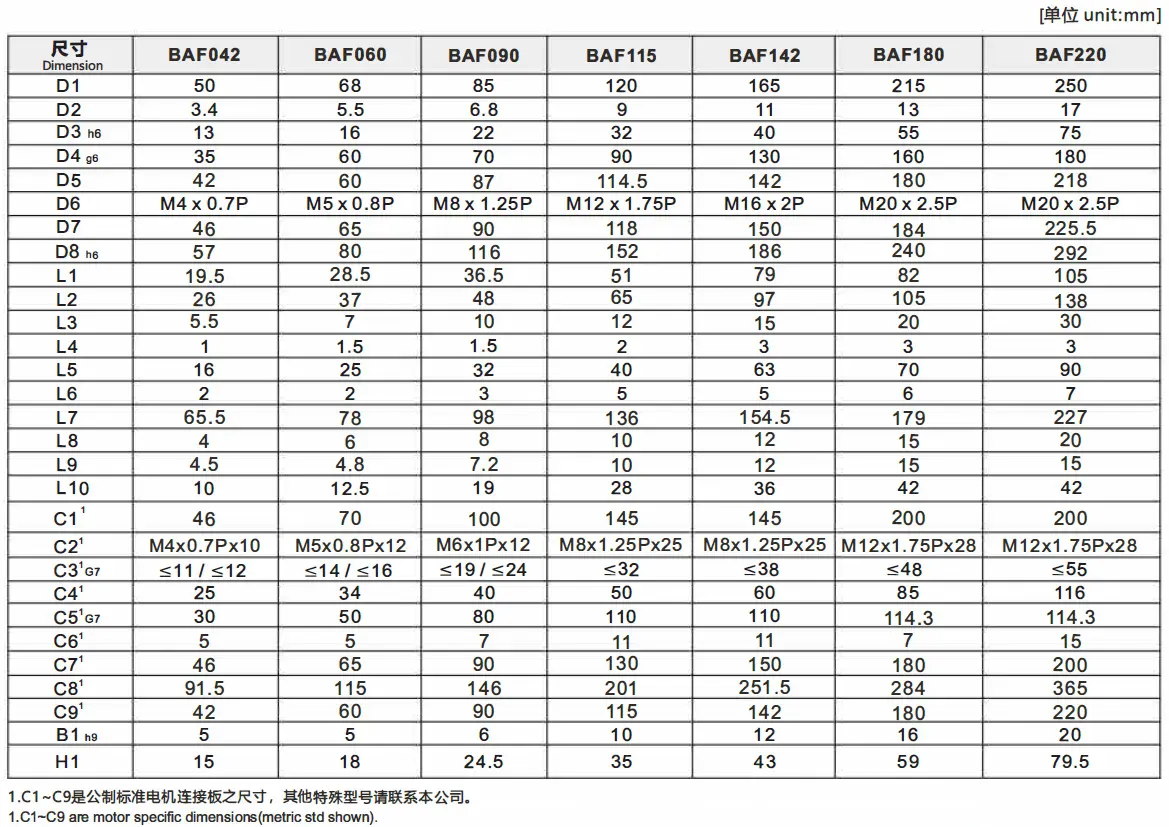

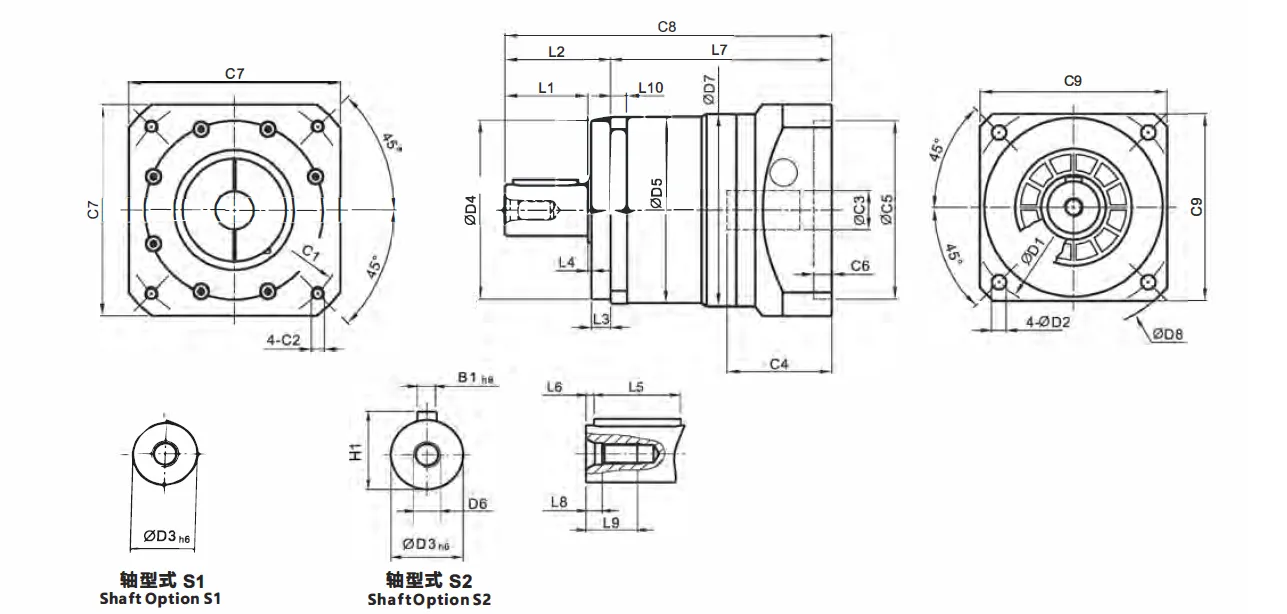

▍Single Stage Planetary Gearbox (Ratio i=3~10)

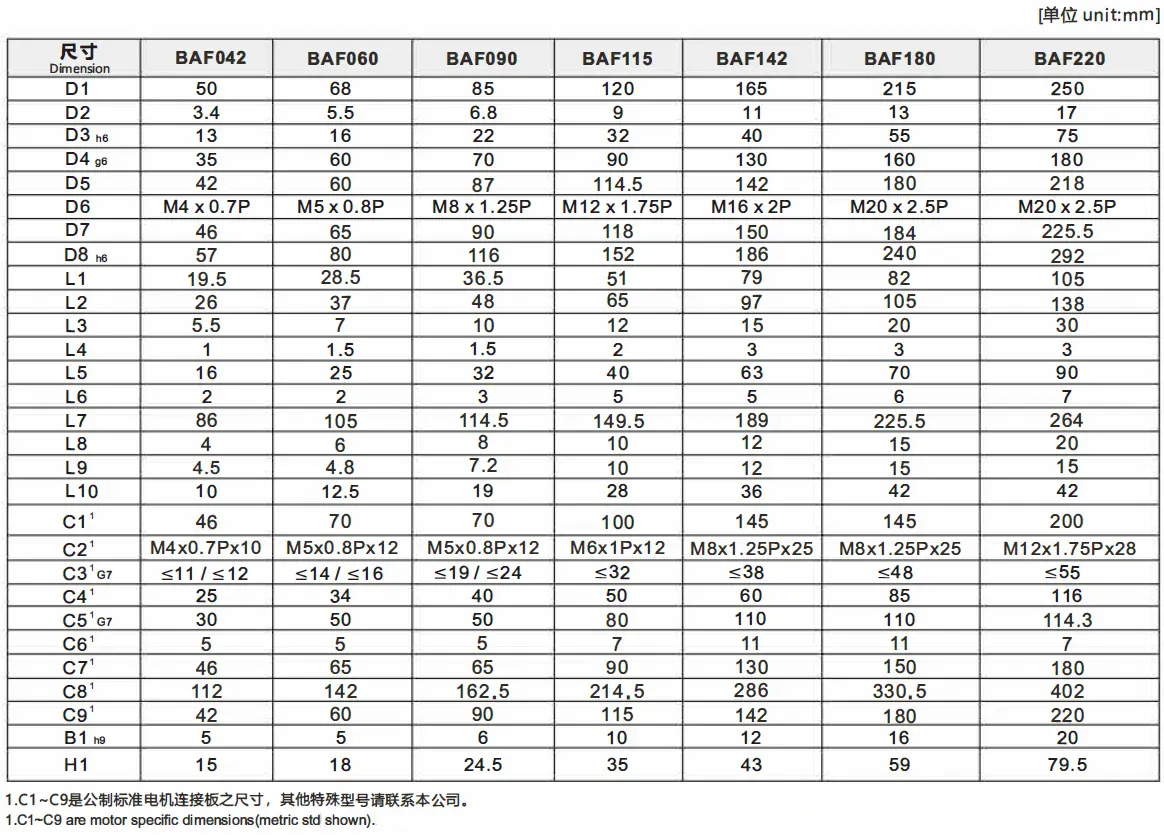

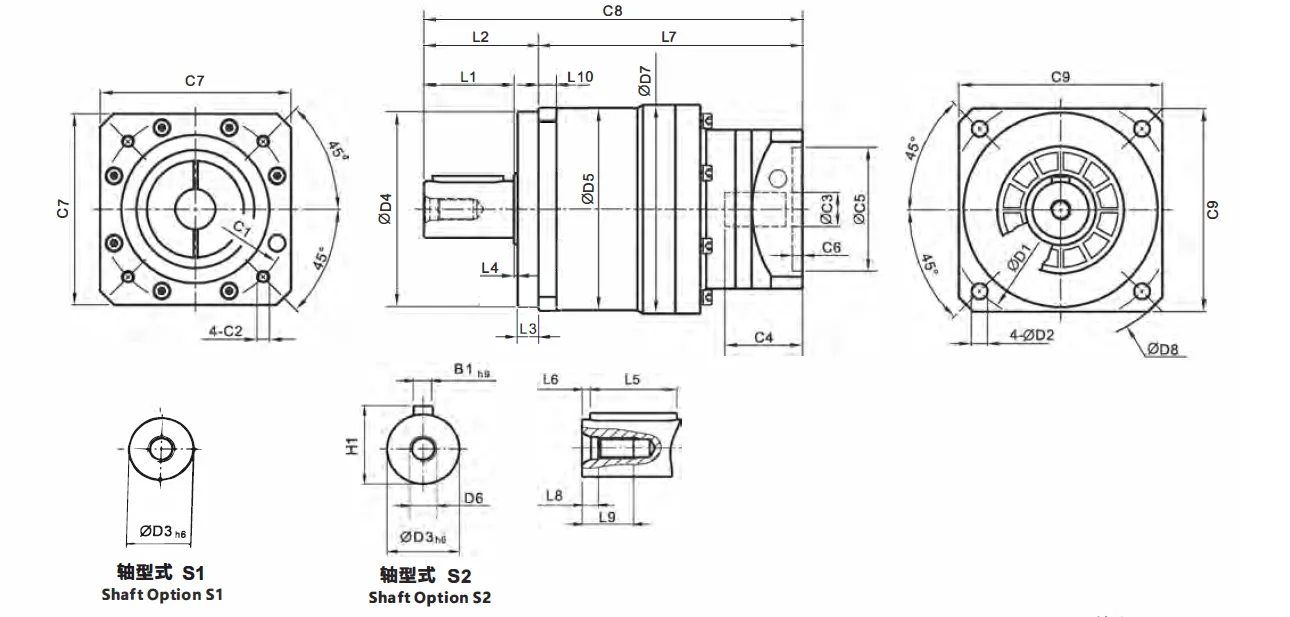

▍Two Stage Planetary Gearbox (Ratio i=15~100)

▍High Precision Planetary Gearbox Working Principle:

A high precision planetary gearbox (also known as a planetary gear reducer or an epicyclic gearbox) is a type of gear system that uses a central sun gear, several planet gears, and an outer ring gear to transmit torque and power between input and output shafts. The gearbox can be designed to achieve high gear ratios, high torque densities, and high precision in motion control applications.The working principle of a high precision planetary gearbox is relatively simple. Input power is supplied to the central sun gear, which is fixed in place and does not rotate. The planet gears, which are mounted on a planetary carrier, mesh with the sun gear and the outer ring gear simultaneously. The planet carrier rotates around the sun gear, causing the planet gears to rotate on their own axes and revolve around the sun gear.As the planet's gears rotate, they transmit torque to the outer ring gear, which is fixed in place. The output shaft is connected to the outer ring gear and receives torque from the planet gears. By varying the number of teeth on the sun gear, planet gears, and outer ring gear, the planetary gearbox can achieve different gear ratios and torque multiplication factors.By controlling the speed and direction of the input shaft, the planetary gearbox can control the speed and direction of the output shaft. The high precision of the planetary gearbox is achieved by using high-quality materials, precise machining, and careful assembly to reduce backlash and ensure accurate positioning.Overall, the working principle of a high precision planetary gearbox involves the use of multiple gears rotating and revolving around each other to transmit torque and power with high accuracy and efficiency.

▍Applications of BAF Series High Precision Planetary Gearbox:

The BAF series high precision planetary gearbox is a versatile gear system that can be used in a wide range of industrial and commercial applications where high precision, high torque density, and high efficiency are required. Some of the common applications of the BAF series high precision planetary gearbox include:1. Robotics: The BAF series high precision planetary gearbox can be used in various types of industrial robots, including articulated robots, delta robots, and SCARA robots. The planetary gearbox can provide precise motion control and the high torque density required for robot joints and end-effectors.2. Machine tools: The BAF series high precision planetary gearbox can be used in various types of machine tools, such as CNC machines, milling machines, and lathes. The planetary gear reducer can provide high precision motion control for the spindle and workpiece, as well as high torque density for heavy cutting operations.3. Printing machinery: The BAF series high precision planetary gearbox can be used in various types of printing machinery, such as printing presses, label printers, and screen printers. The planetary gearbox can provide precise motion control for the printing cylinders and high torque density for the paper feed system.4. Packaging machinery: The BAF series high precision planetary gear reducer can be used in various types of packaging machinery, such as filling machines, sealing machines, and labeling machines. The planetary gearbox can provide precise motion control for the packaging material and high torque density for the packaging process.5. Material handling: The BAF series high precision planetary gearbox can be used in various types of material handling equipment, such as conveyor systems, cranes, and hoists. The planetary gearbox can provide precise motion control for the lifting and moving of heavy loads, as well as high torque density for the drive system.6. Medical equipment: The BAF series high precision planetary gear reducer can be used in various types of medical equipment, such as surgical robots, medical imaging systems, and laboratory automation equipment. The gearbox can provide precise motion control for delicate procedures and high torque density for heavy-duty equipment.Overall, the BAF series high precision planetary gearbox is a versatile gear system that can be used in a wide range of applications where high precision and high torque density are required. Its compact size, high efficiency, and low backlash make it an ideal choice for demanding motion control applications.
