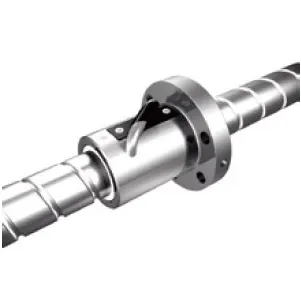

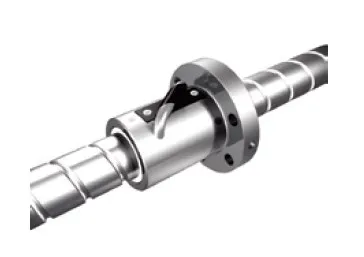

Ball Screw With CTF Outer Cycle Tube

Ball Screw With CTF Outer Cycle Tube

 The ball screw with CTF outer cycle Tube is a cutting-edge mechanical component designed to deliver unmatched precision and efficiency in a wide range of industrial applications. This innovative ball screw system incorporates a CTF outer cycle tube, revolutionizing motion control with its exceptional performance and reliability.The ball screw with CTF outer cycle tube is a remarkable mechanical component that brings precision and efficiency to industrial applications. With its enhanced precision, increased load capacity, and smooth operation, this ball screw system offers reliable and consistent performance. By following the recommended usage method and maintenance guidelines, you can maximize the benefits of the ball screw with CTF outer cycle tube, leading to improved productivity and efficiency in your industrial processes.

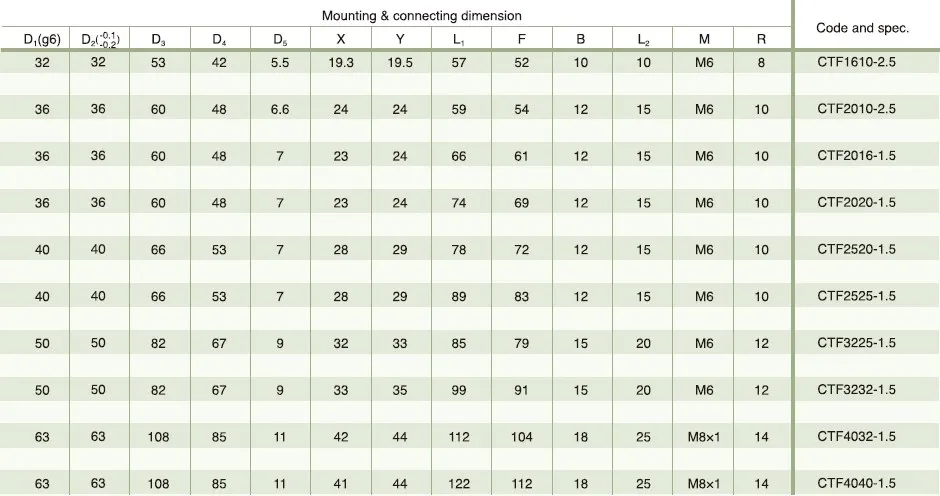

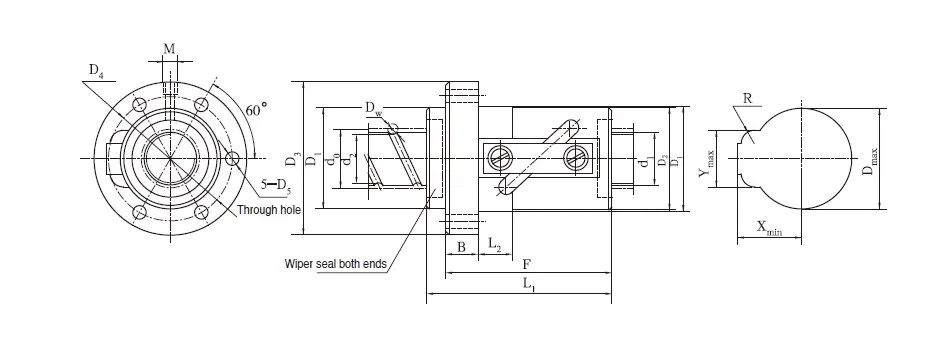

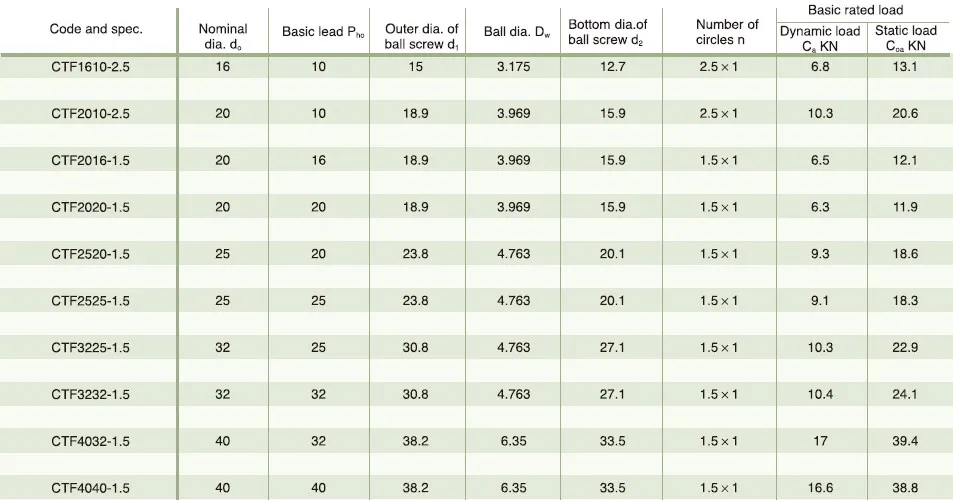

Parameter of Ball Screw With CTF Outer Cycle Tube:

Notes:

The lead accuracy of CTF type of BSA is the grade 5,7,10 of GB/T17587.3-1998.

Usage Method:

To optimize the performance of the ball screw with CTF outer cycle tube, follow these usage guidelines:Installation: Align the ball screw in the desired position and securely mount it using appropriate brackets or supports. Ensure proper alignment with other components for optimal functionality.Lubrication: Apply the recommended lubricant to the ball screw assembly to minimize friction and ensure smooth movement. Regular lubrication maintenance is crucial for optimal performance and extended product life.Calibration and Adjustment: Before full operation, calibrate and adjust the ball screw system to achieve precise and accurate linear motion. Make any necessary adjustments based on your specific application requirements.
