Ball Screw With FF/FFZ Type Inner Cycle Single Nut

Ball Screw With FF/FFZ Type Inner Cycle Single Nut

The Ball Screw with FF/FFZ type inner cycle single nut is a cutting-edge linear motion component that offers exceptional precision and efficiency in a wide range of industrial applications. With its advanced design and high-quality construction, this product is the ideal solution for industries that require accurate and reliable linear motion.The ball screw with FF/FFZ type inner cycle single nut offers precision, efficiency, and durability for industrial applications that require accurate and reliable linear motion. With its precision engineering, efficient load transfer, high durability, and low friction design, it provides exceptional performance even in demanding operating conditions. By following the recommended usage methods and maintenance guidelines, users can maximize the lifespan and efficiency of the Ball Screw with FF/FFZ type inner cycle single nut, making it an essential component for their linear motion applications. Experience the precision and efficiency of the ball screw with FF/FFZ type inner cycle single nut and elevate your industrial processes to new levels of performance and productivity.

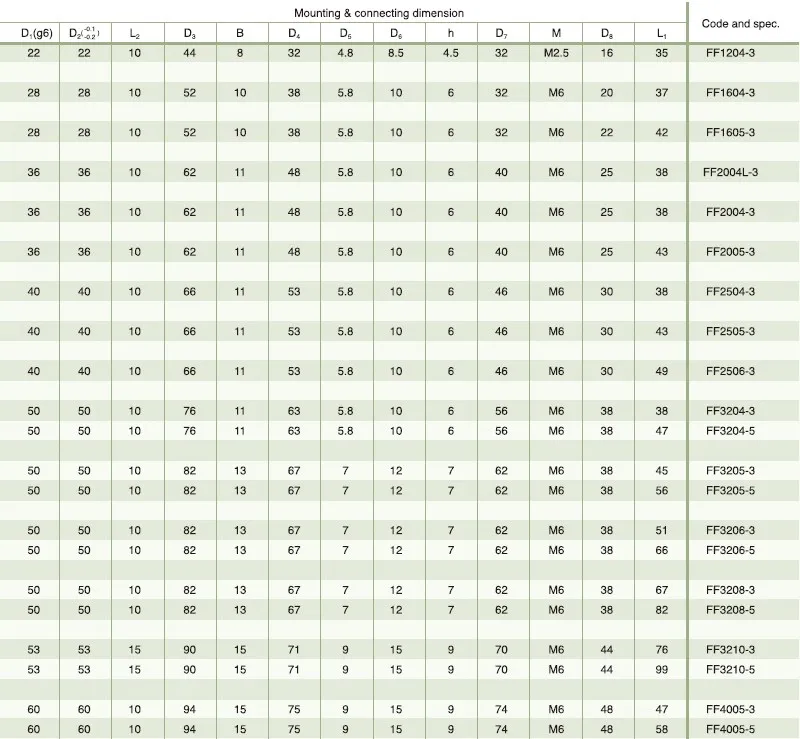

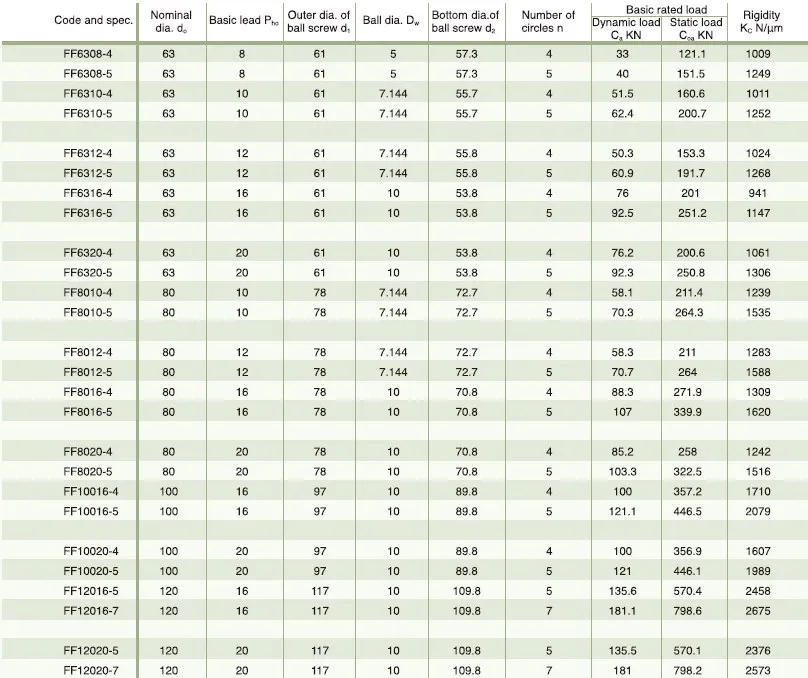

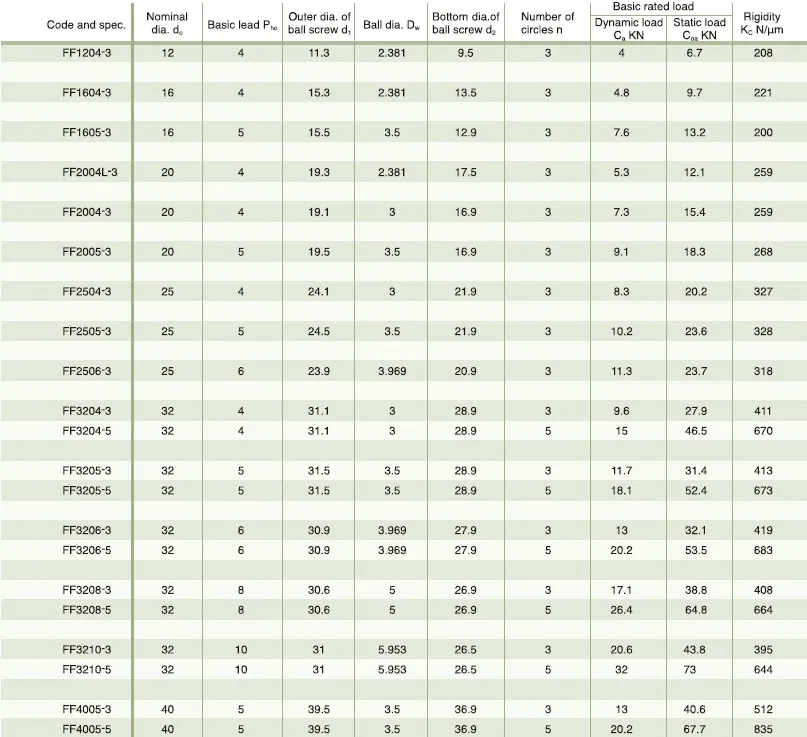

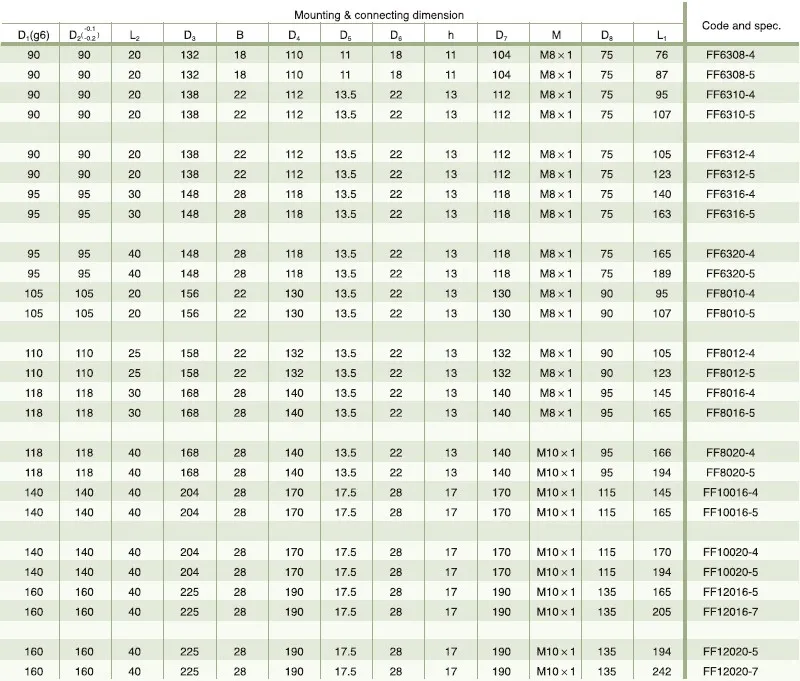

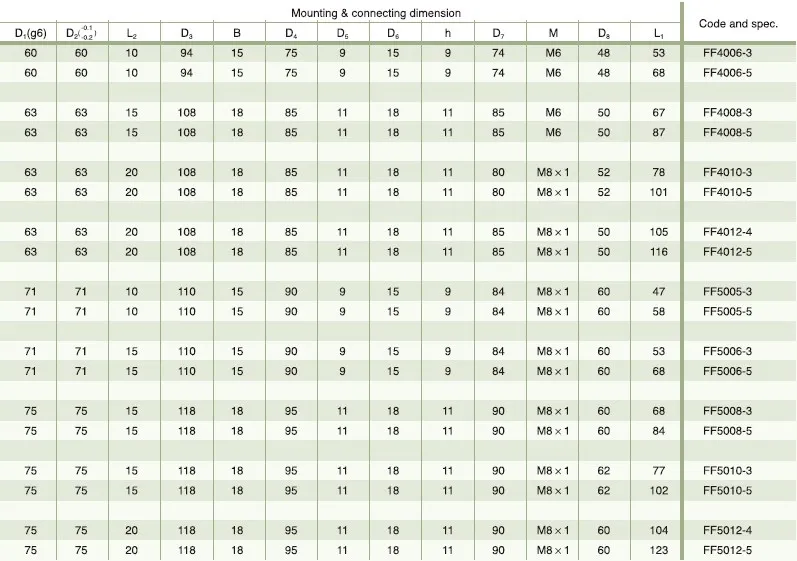

Paramter of Ball Screw With FF/FFZ Type Inner Cycle Single Nut:

Notes:

1. Kc is the theoretical calculation value when preload Fp is 0.1Ca and axial load F is 0.3Ca.2. When axial load F is not equal to 0.3Ca,In formula:K is the rigidity value shown in Table.3. This normal working environment temperature for FF type ball screw is ±80℃.

Notes:

1. Kc is the theoretical calculation value when preload Fp is 0.1Ca and axial load F is 0.3Ca.2. When axial load F is not equal to 0.3Ca,In formula:K is the rigidity value shown in Table.3. This normal working environment temperature for FF type ball screw is ±80℃.

Notes:

1. Kc is the theoretical calculation value when preload Fp is 0.1Ca and axial load F is 0.3Ca.2. When axial load F is not equal to 0.3Ca,In formula:K is the rigidity value shown in Table.3. This normal working environment temperature for FF type ball screw is ±80℃.

Usage Method of Ball Screw With FF/FFZ Type Inner Cycle Single Nut:

Installation: Securely mount the Ball Screw with FF/FFZ Type Inner Cycle Single Nut onto the designated machine frame or surface using appropriate fasteners. Ensure proper alignment and parallelism with other components for optimal performance.Lubrication: Apply the recommended lubricant to the ball screw assembly to reduce friction and ensure smooth motion. Follow the manufacturer's guidelines for lubrication intervals and use the appropriate type of lubricant to maintain optimal performance.Load Distribution: Distribute the applied loads evenly along the ball screw to prevent excessive stress on specific areas. This ensures optimal load-bearing performance and extends the product's lifespan.Motion Control: Utilize compatible motion control systems, such as servo motors or stepper motors, to drive the Ball Screw with FF/FFZ Type Inner Cycle Single Nut. Ensure proper alignment and synchronization between the driving mechanism and the ball screw for precise and efficient linear motion.

Our Company:

The company's main products are various types of ball screws. The company has been awarded honorary titles such as National High Tech Enterprise and Provincial Science and Technology Enterprise. The company has taken the lead in passing the quality, environmental, and occupational health and safety management system certification among its peers. It has established modern facilities, buildings, and standardized workshops.We have advanced machining centers at home and abroad, efficient high-precision gear grinding machines representing the world level, and various CNC machine tools. We have advanced testing equipment such as a gear testing center, an overall error measuring instrument, a gear runout testing instrument, and a double-sided and worm gear testing instrument.We also provide linear guideways and spindle motors and welcome customers to customize. Choose Raydafon for your ball screws needs and experience the difference between high-quality products, preferential prices, and thoughtful service.
