BEH Series SAE Flange Ball Valves

BEH Series SAE Flange Ball Valves

The BEH Series SAE Flange Ball Valves are a type of industrial valve that is designed to control the flow of fluids in hydraulic systems. These valves are specifically designed to be used with SAE flange connections, which are a standard type of flange connection used in hydraulic systems.The BEH Series SAE Flange Ball Valves are known for their high performance, durability, and reliability. They are commonly used in a wide range of applications, including mobile equipment, agricultural machinery, construction machinery, and industrial machinery.One of the key features of the BEH Series SAE Flange Ball Valves is their ball valve design. The valve consists of a ball with a hole in the middle that allows fluid to flow through when the valve is open. The ball is connected to a lever or actuator that can be turned to open or close the valve. When the valve is closed, the ball blocks the flow of fluid, and when it is open, the fluid can pass through freely.These ball valves are typically made from high-quality materials such as stainless steel or carbon steel, which provide excellent resistance to corrosion and ensure a long service life. They also have a compact design, making them suitable for installation in tight spaces.The BEH Series SAE Flange Ball Valves are available in various sizes and pressure ratings to suit different system requirements. They can handle high-pressure applications and offer reliable shut-off capabilities, allowing for precise control of fluid flow.

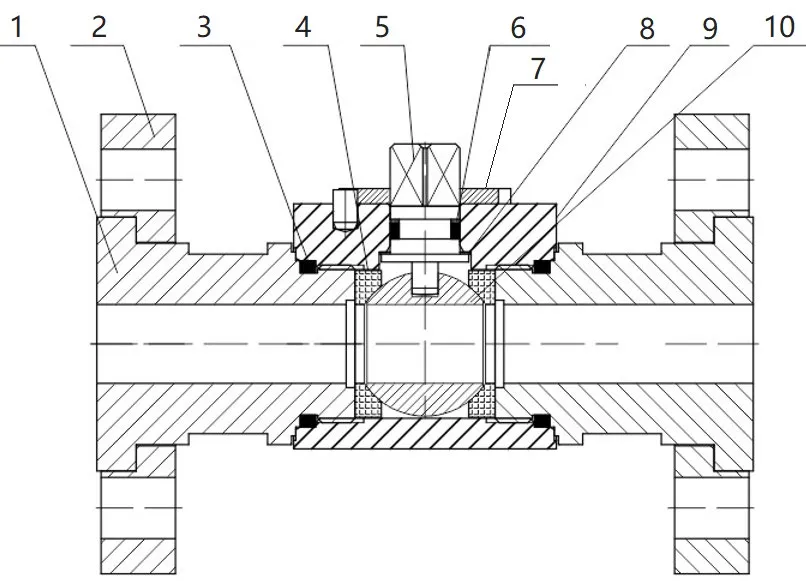

BEH Series SAE Flange Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	Flange	SS 316 / SS 304	A105 / 45#
	3	O-ring	FKM	NBR
	4	Packing	POM / PEEK	POM
	5	Stem	SS 316 / SS 304	A105 / 45#
	6	O-ring	FKM	NBR
	7	stop Pin	SS 316 / SS 304	A105 / 45#
	8	Washer	SS 316 / SS 304	A105 / 45#
	9	Body	SS 316 / SS 304	A105 / 45#
	10	Ball	SS 316 / SS 304	A105 / 45#

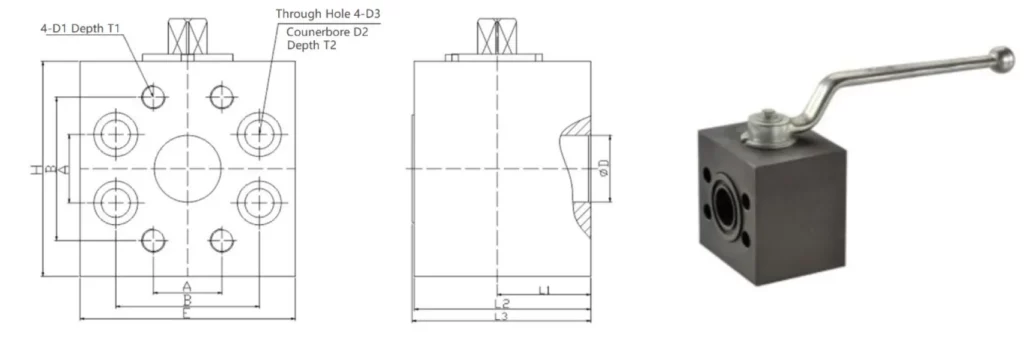

BEH Series SAE Flange Ball Valve Dimensions:

PartNO.	FlangeSize	DN	Dimension(mm)
			D	L1	L2	L3	A	B	H	E	D1	T1	D2	T1	D3
BEH-F3-32	1.1/4”	32	31	43.5	82	83	31.8	66.6	100	100	1/2-13UNC	25	20.5	17.5	13.5
BEH-F3-40	1.1/2”	40	38	53.5	99	100	36.5	79.3	120	120	5/8-11UNC	36	26	21.5	16.5
BEH-F3-50	2”	50	48	61	110	111	44.5	96.8	124	134	3/4-10UNC	36	30.5	25	20.5

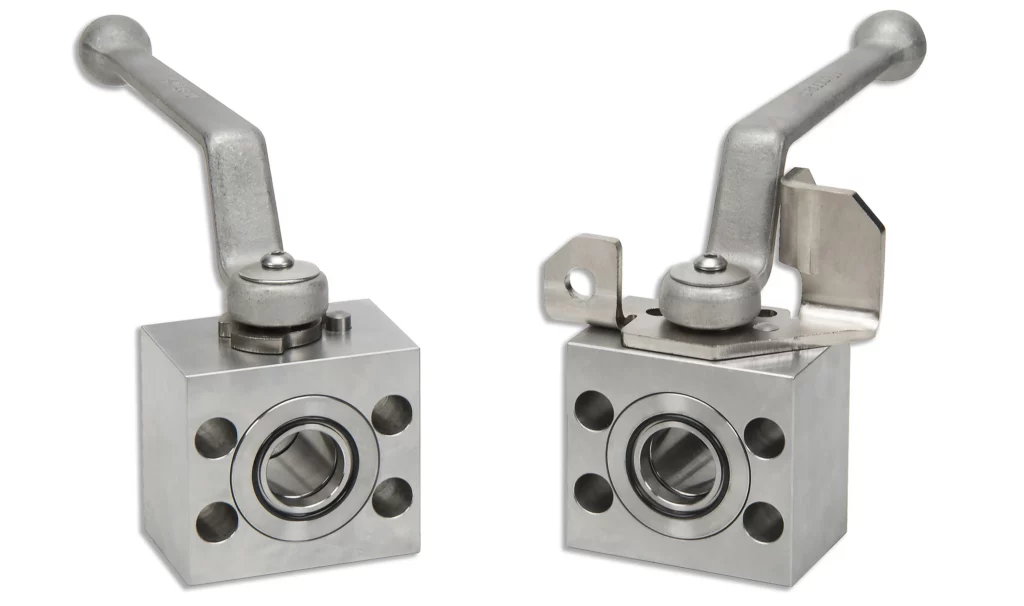

Benefits of Using the BEH Series SAE Flange Ball Valves:

There are several benefits to using the BEH Series SAE Flange Ball Valves in hydraulic systems. Some of the key advantages include:1. Reliable Flow Control: The hydraulic ball valve design of the BEH Series SAE Flange Ball Valves provides excellent flow control. When the valve is fully open, it allows for unrestricted flow of fluids, ensuring efficient operation of the hydraulic system. When closed, it provides a tight shut-off, preventing any leakage or unwanted flow.2. Durability: These ball valves are constructed from high-quality materials such as stainless steel or carbon steel, which offer excellent durability and resistance to corrosion. This ensures a long service life and minimizes the need for frequent maintenance or replacement.3. Wide Range of Applications: The BEH Series SAE Flange Ball Valves are versatile and can be used in various applications across different industries. They are suitable for mobile equipment, agricultural machinery, construction machinery, and industrial machinery, making them a reliable choice for diverse hydraulic systems.4. Compact Design: These BEH Series SAE Flange Ball Valves are designed to be compact, allowing for easy installation in tight spaces. This makes them suitable for applications where space is limited, without compromising on performance or functionality.5. High Pressure Ratings: The BEH Series SAE Flange Ball Valves are designed to handle high-pressure applications. They can withstand significant pressure levels, ensuring reliable performance even in demanding hydraulic systems.6. Easy Operation: The BEH Series SAE Flange Ball Valves are typically operated using a lever or actuator, which makes them easy to open or close. This facilitates quick and efficient control of fluid flow in the hydraulic system.7. Compatibility: The SAE flange connections used in the BEH Series SAE Flange Ball Valves are a widely adopted standard in hydraulic systems. This ensures compatibility and ease of integration with other components, such as pumps, cylinders, and hoses.
