ISO5675 series 3/8 sizes Ball Valve Type Parker 4000 NPT/BSP Thread quick release coupling&quick disconnect coupler

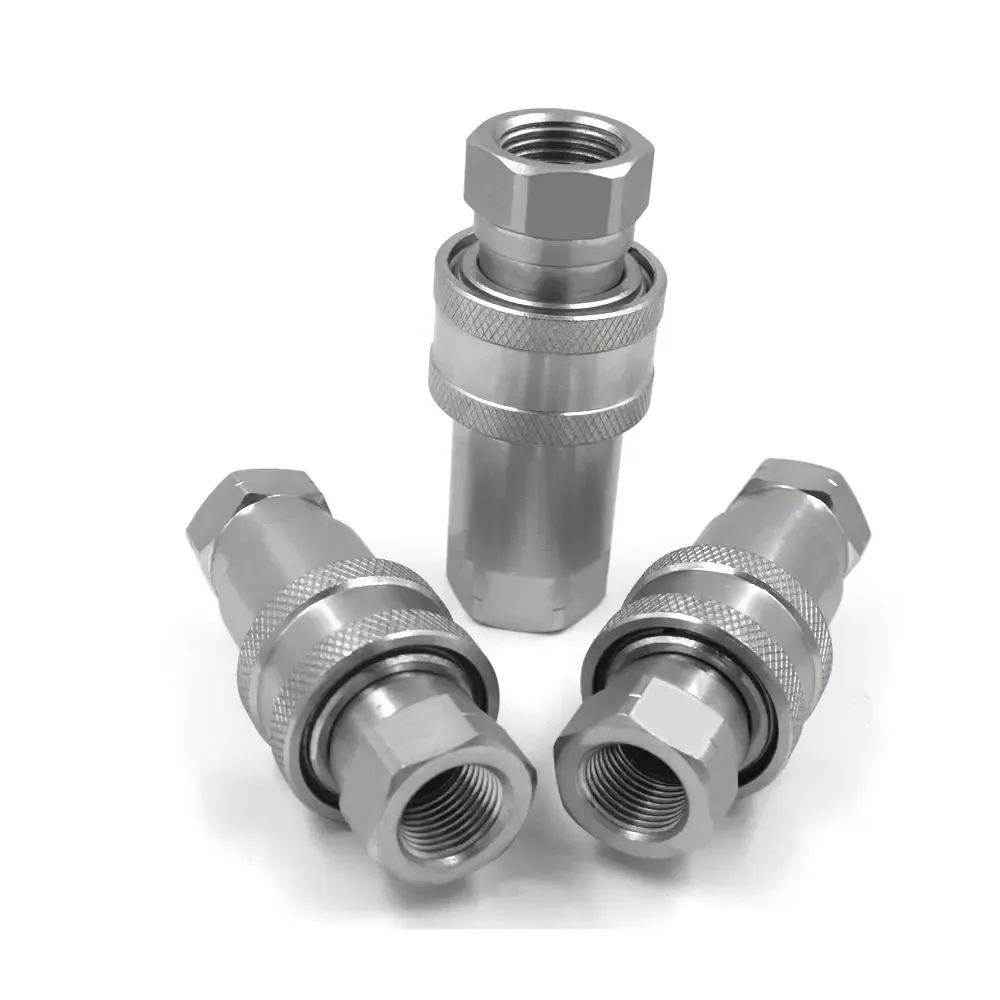

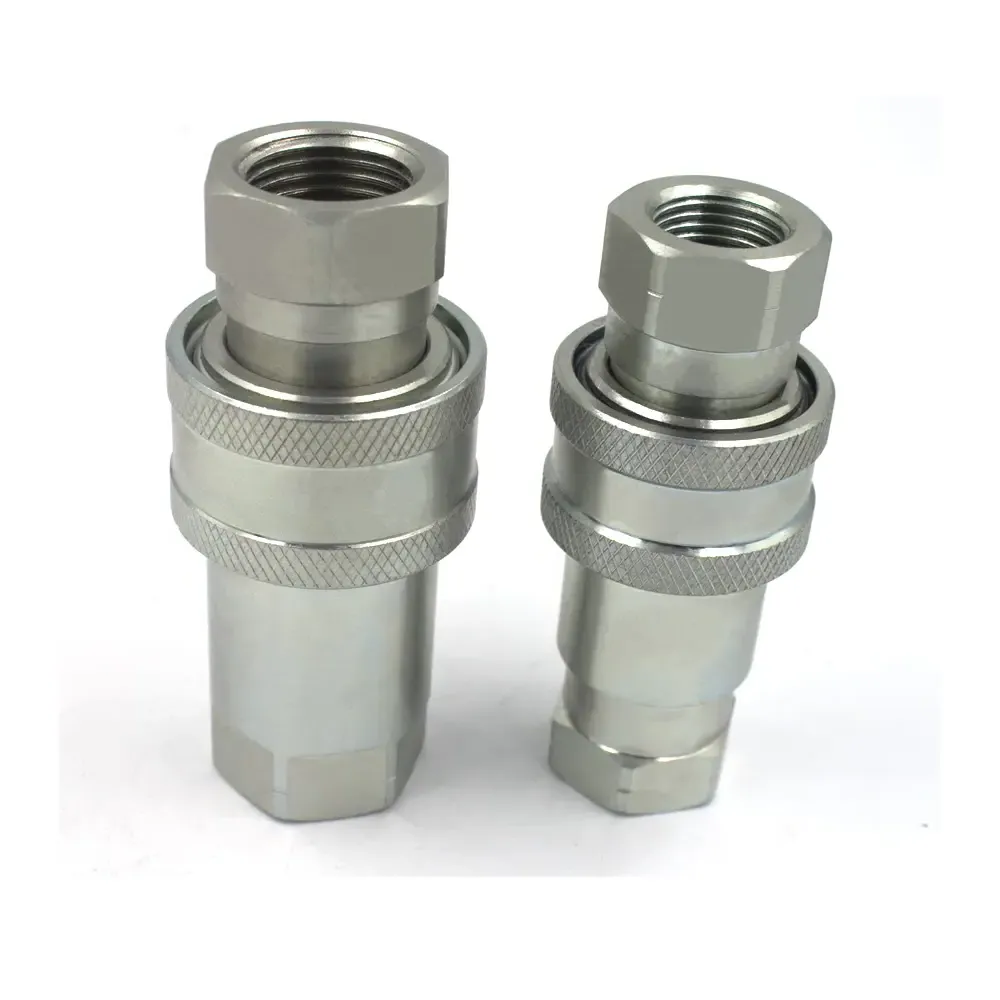

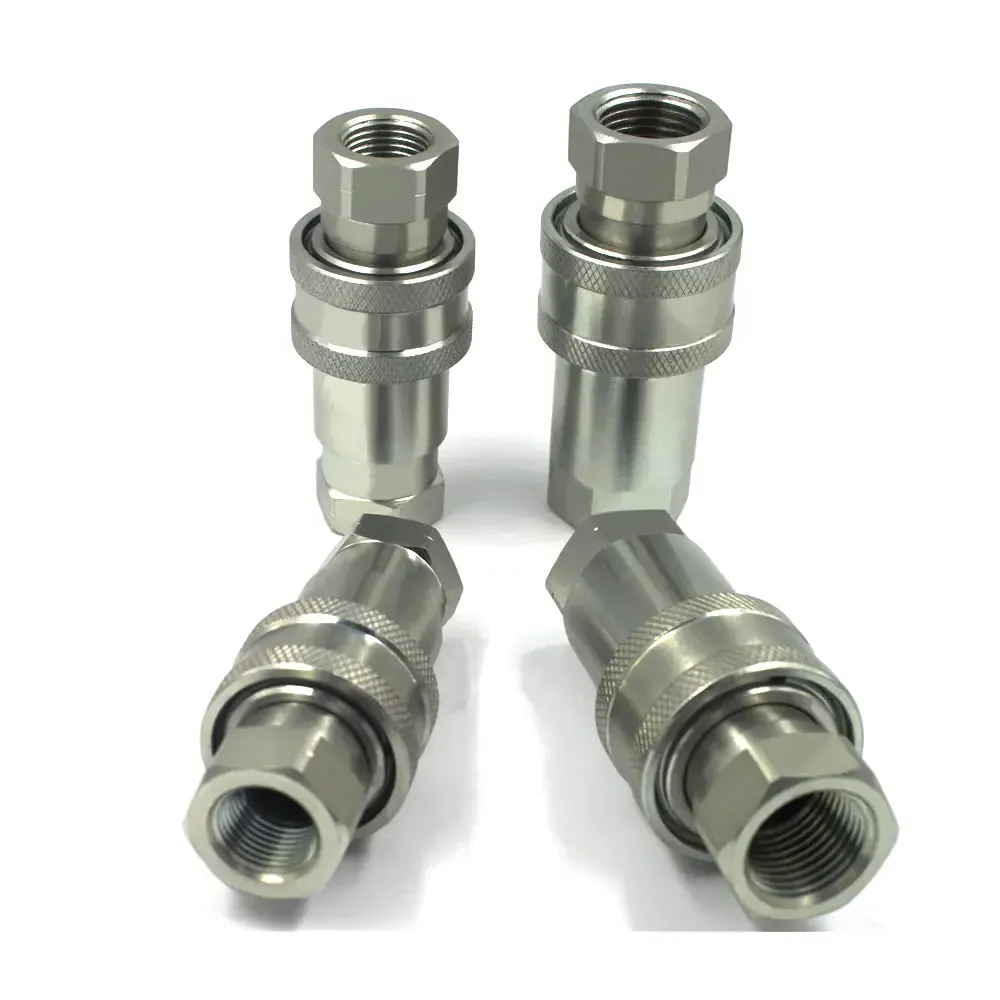

[embed]https://youtu.be/umZnKL2LuNY[/embed]The ISO5675 series 3/8 sizes Ball Valve Type Parker 4000 NPT/BSP Thread quick release coupling&quick disconnect coupler is a product of great precision and quality. With a model number GT-C1-03T-SP, it is crafted using casting techniques and has a female connection with screw thread. The shape of this product is equal and has a hexagonal head code. Made from steel, it has an NPT G BSP thread and comes with a warranty of 1 year.The ISO 5675 series of hydraulic quick couplings is a widely used standard for connecting hydraulic hoses and components in various industrial applications. These couplings provide a quick and reliable method for connecting and disconnecting hydraulic lines, allowing for efficient fluid transfer and system maintenance. The ISO 5675 standard defines the design, dimensions, and performance requirements for hydraulic quick couplings. It ensures compatibility and interchangeability between different manufacturers' couplings, making it easier to source and replace components in hydraulic systems.

Advantages of ISO5675 Series Hydraulic Quick Couplings

The ISO 5675 series hydraulic quick couplings offer several advantages that make them a preferred choice in hydraulic systems. Here are some key advantages:

• Interchangeability: One of the significant advantages of ISO 5675 couplings is their interchangeability. Couplings from different manufacturers that comply with the ISO 5675 standard can be easily connected and disconnected, ensuring compatibility and ease of replacement. This interchangeability simplifies sourcing and maintenance of hydraulic systems, reducing downtime and costs.
• Quick and Easy Connection: ISO 5675 couplings feature a push-to-connect mechanism, enabling fast and effortless connection and disconnection without the need for additional tools. This saves time and effort during assembly, disassembly, and maintenance operations.
• High-Pressure Capability: ISO 5675 couplings are designed to withstand high-pressure hydraulic systems. They are typically rated for working pressures up to 3,000 to 5,000 psi, depending on the size and configuration. This high-pressure capability ensures reliable performance and efficient fluid transfer even in demanding hydraulic applications.
• Durability and Reliability: These couplings are constructed from durable materials such as steel or stainless steel, offering excellent resistance to corrosion, wear, and impact. They are designed to withstand rugged operating conditions, ensuring long-term reliability and reduced maintenance requirements.
• Safety Features: ISO 5675 couplings often incorporate safety features such as a locking mechanism to prevent accidental disconnection during operation. This enhances operator safety and prevents potential hazards caused by fluid leakage or sudden pressure drops.
• Wide Range of Applications: ISO 5675 couplings are suitable for various hydraulic applications across industries such as agriculture, construction, manufacturing, and transportation. They can be used with different types of hydraulic fluids, including mineral oils, synthetic fluids, and biodegradable hydraulic fluids.
• Standardized Design: The ISO 5675 standard defines the design, dimensions, and performance requirements for these couplings. This standardization ensures compatibility and uniformity across different manufacturers, simplifying the selection and integration of hydraulic components and systems.

Applications of Hydraulic Quick Couplings

Hydraulic Quick Couplings find widespread applications across various industries due to their ability to efficiently connect and disconnect hydraulic lines and components. Here are some common applications where hydraulic quick couplings are extensively used:

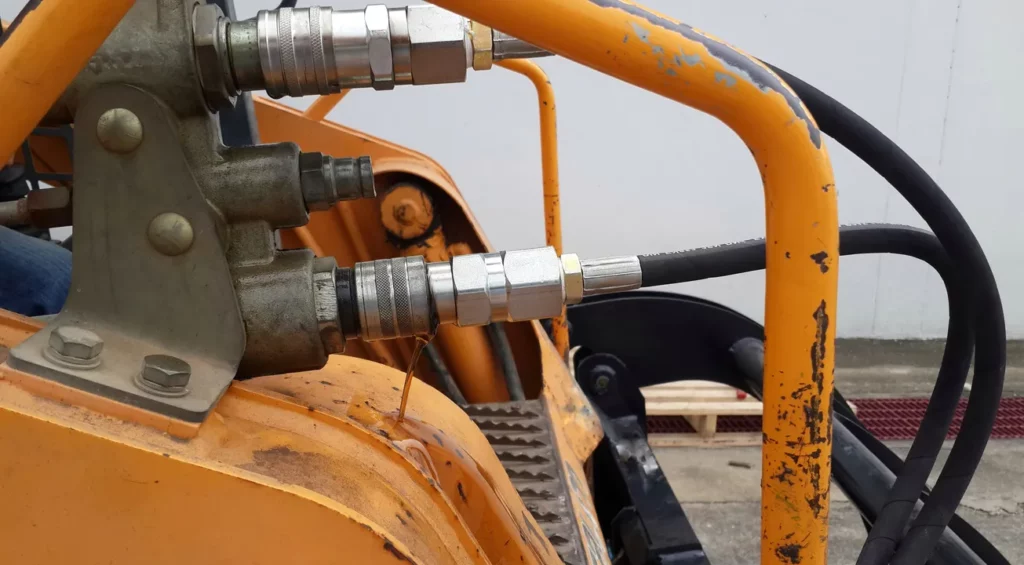

1. Construction and Heavy Machinery: Hydraulic quick couplings are integral to construction equipment like excavators, loaders, and bulldozers. They enable the rapid attachment and detachment of hydraulic attachments such as buckets, breakers, and grapples, enhancing the versatility and efficiency of the machinery.
2. Agriculture: Agricultural machinery relies on hydraulic systems for tasks like plowing, seeding, and harvesting. Quick couplings enable farmers to quickly switch between different implements, saving time and increasing productivity.
3. Manufacturing and Automation: In manufacturing processes, hydraulic quick couplings are used to connect hydraulic actuators, presses, and tools. They facilitate fast tool changes and adjustments, improving production efficiency.
4. Oil and Gas Industry: Hydraulic systems are common in the oil and gas sector for various applications, including wellhead control, drilling rigs, and offshore platforms. Quick couplings are essential for connecting hydraulic lines and components in these harsh environments.
5. Aerospace: Hydraulic systems play a crucial role in aircraft operation, from landing gear to flight control surfaces. Quick couplings are used during maintenance and repair activities to ensure the integrity of hydraulic connections.
6. Automotive Industry: Hydraulic systems are present in vehicles for functions like power steering and braking. Quick couplings enable easy assembly and servicing of hydraulic components in automotive applications.

How Does the Hydraulic Quick Coupling Work?

Hydraulic quick couplings, also known as hydraulic quick disconnects or hydraulic quick connectors, are devices used to rapidly connect and disconnect hydraulic lines and components without the need for tools or extensive manual labor. They work based on a simple yet effective principle to ensure a secure and leak-free connection. Here's how hydraulic quick couplings work:

1. Male and Female Couplings: Hydraulic quick couplings consist of two main components: the male coupling and the female coupling. These components are designed to fit together seamlessly.
2. Valve Mechanism: Within both the male and female couplings, there is a valve mechanism. This valve can be in the form of poppet valves, ball valves, or flat-face valves, depending on the coupling design.
3. Sealing O-Ring: Each coupling has an O-ring or other sealing mechanism that ensures a watertight and pressure-tight seal when the male and female couplings are connected.
4. Push-to-Connect: To make a connection, the operator simply pushes the male coupling into the female coupling. The external force applied during this process compresses the valve mechanism and opens a pathway for hydraulic fluid to flow.
5. Fluid Flow: With the valves open, hydraulic fluid can flow freely from one side of the coupling to the other. This allows for the transmission of hydraulic power, such as pressure or flow, to operate various hydraulic components or machinery.
6. Locking Mechanism: Most hydraulic quick couplings have a locking mechanism that holds the male and female couplings together securely. This prevents accidental disconnection during operation, especially in high-pressure hydraulic systems.

ISO5675 Series Hydraulic Quick Coupling Installation Steps

The installation of ISO 5675 series hydraulic quick couplings involves a few simple steps. Here is a general guide to installing these couplings:

• Prepare the Coupling Halves: Start by inspecting the coupling halves and ensuring they are clean, free from debris, and in good condition. Check for any damage or wear that may affect the performance or sealing of the couplings.
• Prepare the Hydraulic Lines: Ensure that the hydraulic lines or hoses you are connecting to the couplings are clean and free from contaminants. Trim the ends of the hoses if necessary to ensure a clean and straight cut.
• Identify the Male and Female Coupling Halves: Determine which coupling half is the male and which is the female. The male coupling half typically has a protruding nipple, while the female coupling half has a sleeve or collar.
• Connect the Female Coupling Half: Hold the female coupling half and slide back the sleeve or collar to expose the locking mechanism. Insert the male coupling half into the female coupling half until it stops. Release the sleeve or collar, allowing it to slide forward and lock the couplings together securely.
• Check for Proper Connection: Ensure that the couplings are fully engaged and locked in place. Give a gentle tug on the coupling assembly to confirm that it is securely connected. Verify that the locking mechanism is engaged to prevent accidental disconnection.
• Test for Leaks: After connecting the couplings, it is essential to check for hydraulic leaks. Apply hydraulic pressure to the system and inspect the connection points for any signs of leakage. If any leaks are detected, double-check the connection and make any necessary adjustments or replacements.

Common Troubleshooting of ISO5675 Series Hydraulic Quick Couplings

The ISO5675 series hydraulic quick couplings are widely used in agricultural, construction, and industrial applications, known for their reliability and ease of use. However, like all mechanical components, they can encounter issues. Here's a guide to troubleshooting common problems with ISO5675 series hydraulic quick couplings:

1. Difficulty in Connecting or Disconnecting

• Contamination: Debris or dirt in the coupling can hinder connection or release. Clean both halves of the coupling thoroughly.
• Misalignment: Ensure both halves of the coupling are correctly aligned before attempting to connect.
• Wear and Tear: Check for wear on the locking balls or sleeves that might prevent proper engagement. Replace worn components as necessary.

2. Leakage Around the Coupling

• Seal Damage: Inspect the seals for damage or wear. Replace any compromised seals to restore integrity.
• Improper Connection: Ensure the coupling is fully engaged. An incomplete connection can result in leaks.
• Cracks or Damage: Look for cracks in the coupling body or other damage that might compromise the seal. Replace the coupling if damaged.

3. Low Fluid Flow or Pressure Loss

• Partial Engagement: Verify that the couplings are fully engaged. Partial engagement can restrict fluid flow.
• Clogged Valves: Debris inside the coupling can clog the valve mechanism, reducing flow. Disassemble and clean the valve components carefully.
• Size Mismatch: Ensure the coupling size is appropriate for the system’s flow requirements. Incorrect sizing can lead to flow restrictions.

4. Valve Fails to Open or Close Properly

• Spring Failure: Springs inside the coupling can fail, preventing the valve from operating. Inspect the springs and replace if broken.
• Contamination: Debris inside the coupling can obstruct valve movement. Clean the interior components of the coupling.
• Wear and Tear: Over time, components may wear out and not function smoothly. Check for signs of wear and replace parts as needed.

5. Excessive Wear or Damage to the Coupling Face

• Abrasion: Regular connection and disconnection can cause abrasion. Inspect and replace the coupling if the connecting face is excessively worn.
• Impact Damage: Avoid dropping or striking the coupling. Impact damage can deform the coupling face, leading to leaks or connection issues.

Why Choose Raydafon's Hydraulic Quick Couplings?

Raydafon Hydraulic Component Co., Ltd is located in the Ningbo Industrial Zone Zhejiang City, covering 6500 square meters. It launched in 1992, which is the design, development, production, and sales of quick couplings, including hydraulic cylinders, hydraulic couplings, hydraulic fittings, hydraulic ball valves, pneumatic couplings, and pipe couplings. Raydafon is focused on international market explorations and the South China market's development. Our products are not only sold well in the domestic market but also in the USA, Europe, Southeast Asia, and the Middle East. We mainly provide the hydraulic and pneumatic products for oil, engineering, metallurgical, machine tools, military equipment, and machinery manufacturing industry. We stick to the principle of "Quality first, Customer first, Reputation first, and Service first" to satisfy the customers' requirements and increase the market share. We are growing stably and healthily. We pursue the excellent brand and comply with the best service, which will make us move faster to keep up with the international enterprise. We look forward to creating a bright future with you.Our commitment to quality is reflected in our international certifications. We offer customized services to cater to the specific needs of our customers. Our state-of-the-art production facilities enable us to deliver high-quality products consistently. We offer comprehensive after-sales services to ensure customer satisfaction. Our professionalism, expertise, and dedication make us the preferred choice for hydraulic quick couplings.

FAQ:

1. Are you a manufacturer or trading company?We are a professional hydraulic hose fittings manufacturer with ten years' experience. We have done business with our customers well.2. What is the payment method?For samples: T/T, Western Union.For orders: T/T or L/C.3. Do you offer free samples?We can provide free samples and you should pay the freight. After you place an order, we will give back the freight.4. Do you offer OEM service, and can you produce as our drawings?Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawings.5. Do you accept our design on boxes?Yes. We accept custom designs on boxes.6. What's your delivery time?Generally, we will arrange shipment with 30 days after receiving the deposit. If urgent, we can also meet your requirement.7. Is your price higher than other companies?Since we have been a professional manufacturer for 15 years, we can control our quality and costs well. So our prices are very competitive. And we dedicate to establishing long-term and friendly relationships with all the customers.8. How do you control the quality?We will arrange sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to the confirmed sample. We will also guarantee the accuracy of packaging and send you shipping sample. Welcome to our factory to inspect.Author: Yjx
