Best Quality Tractor Lawn Mower/ Flail Mower with Factory Price

[embed]https://youtu.be/uV9sIx16M9o[/embed]

Best Quality Tractor Lawn Mower/ Flail Mower with Factory Price

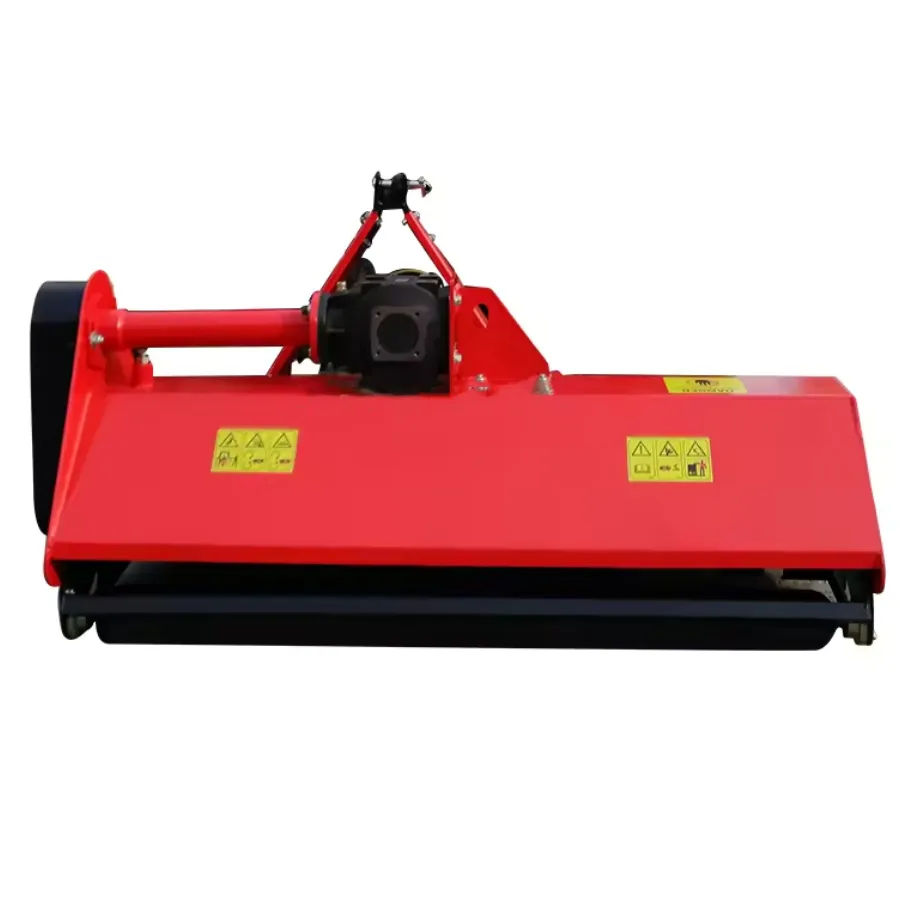

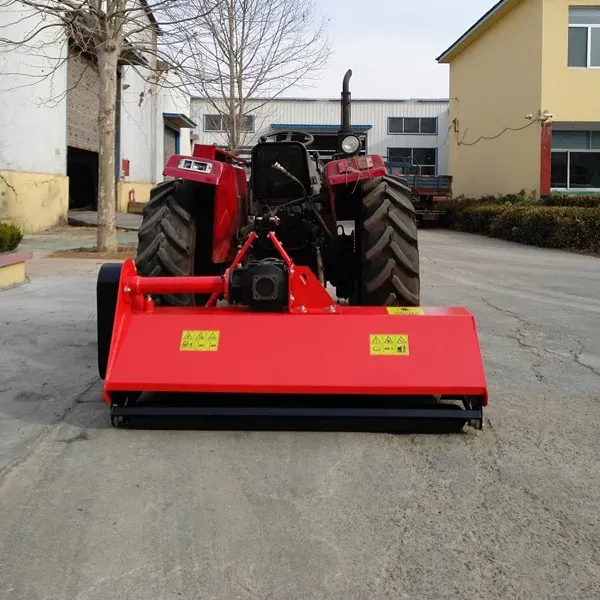

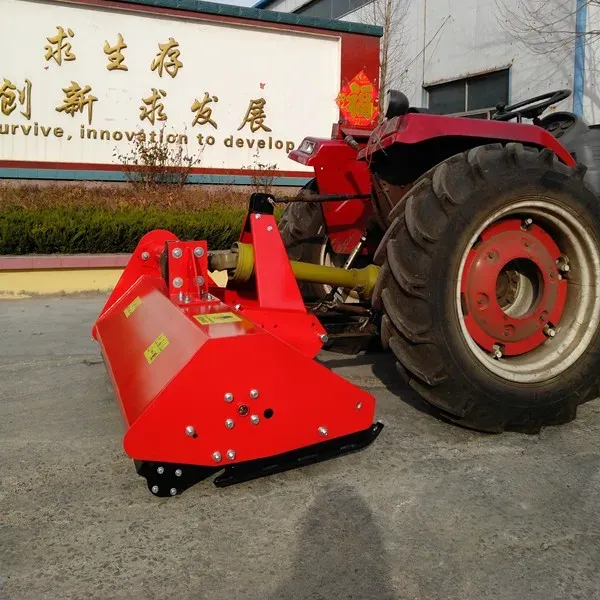

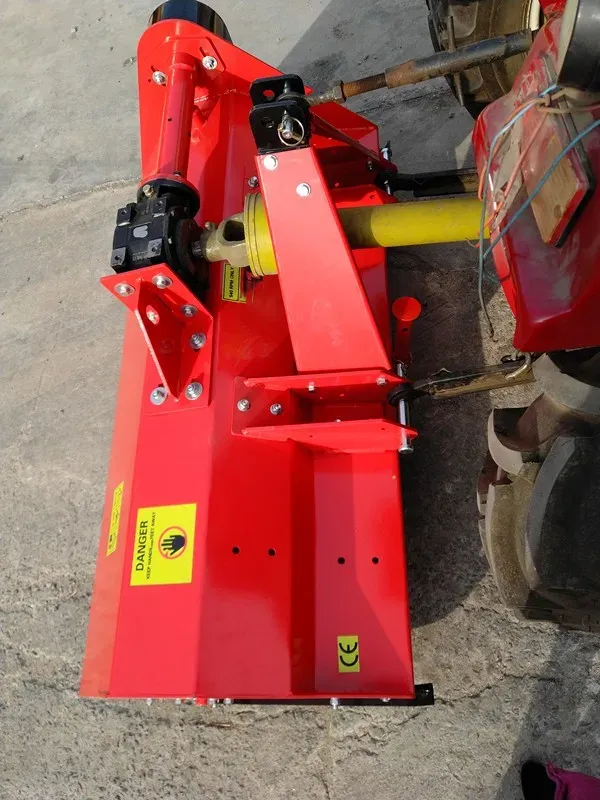

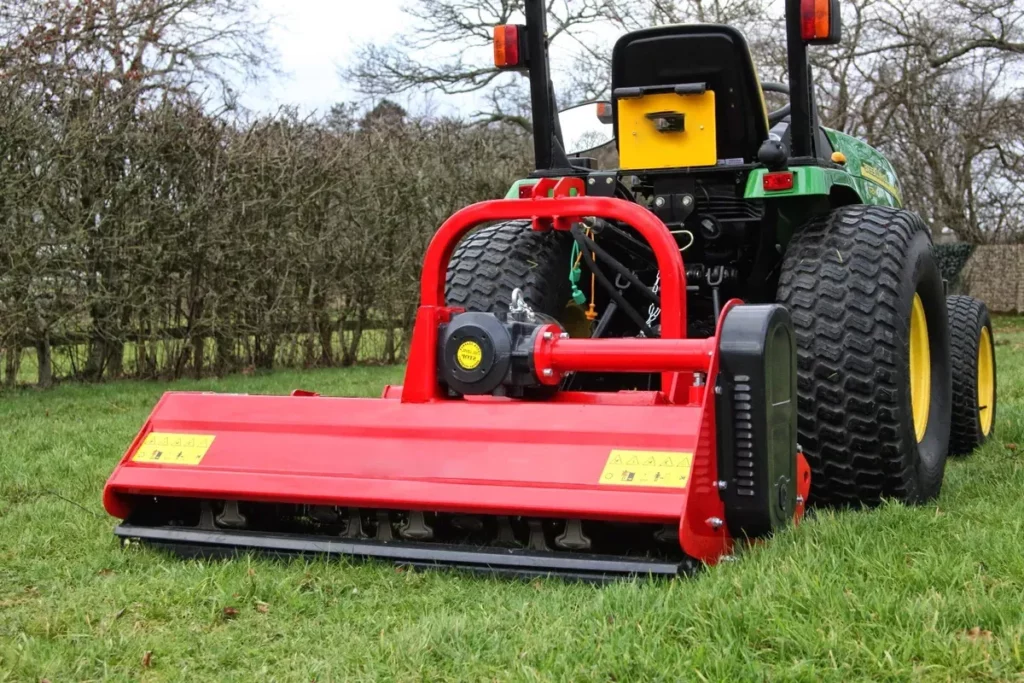

A tractor 3-point hitch flail mower is a heavy-duty agricultural attachment designed to be mounted on the rear of a tractor using a three-point hitch system. It is commonly used for cutting and mulching vegetation such as grass, weeds, small trees, and brush in agricultural fields, pastures, roadsides, and other areas. The flail mower gets its name from the rotating flails or blades that are attached to a horizontal shaft inside the mower's housing. These flails are made up of sturdy metal pieces that are hinged to the shaft, allowing them to swing freely. As the shaft rotates, the flails strike the vegetation, cutting it into small pieces. One of the key advantages of a flail mower is its ability to handle rough and uneven terrain. The swinging action of the flails allows the mower to follow the contours of the ground, resulting in a more even cut compared to other types of mowers. This makes it particularly useful for mowing areas with rocks, ditches, or other obstacles. The 3-point hitch system allows for easy attachment and detachment of the flail mower to the tractor. The hitch consists of three arms, two lower arms that attach to the tractor's rear axle and a top link that connects to the top of the hitch. This configuration provides stability and allows the mower to be raised or lowered, as well as tilted to adjust the cutting height and angle. Flail mowers are available in various sizes and configurations to suit different tractor sizes and cutting requirements. They can range from smaller models suitable for compact tractors to larger, heavy-duty models for larger tractors. Some flail mowers also come with additional features such as hydraulic side-shift capabilities, which allow the operator to extend the mower's reach to the side.

Specifications of Tractor 3 Point Hitch Flail Mower

Specification for EF Series Flail Mowers
Model	EF95	EF105	EF125	EF145	EF155	EF165
Matched Power	18-20HP	20-25HP	20-35HP	25-35HP	30-40HP	35-45HP
Dimensions	1040×790×850	1140x790x850	1370×790x850	1570x790x850	1670x790x850	1770x790x850
Weight	235kg	250kg	275kg	315kg	330kg	345kg
Blade Type	Y	Y	Y	Y	Y	Y
3 Point Linkage	CAT I	CAT I	CAT I	CAT I	CAT I	CAT I
Cutting width	95cm	105cm	125cm	145cm	155cm	165cm

Advantages of Using the Tractor 3 Point Hitch Flail Mower

Using a tractor 3-point hitch flail mower offers several advantages for agricultural and land maintenance purposes. Here are some key advantages: 1. Versatility: A flail mower is versatile and can handle a wide range of vegetation types and conditions. It is effective in cutting and mulching grass, weeds, small trees, brush, and other tough vegetation. This versatility makes it suitable for various applications such as agricultural fields, pastures, roadsides, orchards, and more. 2. Excellent Cutting Performance: The design of a flail mower with rotating flails or blades provides excellent cutting performance. The swinging action of the flails allows the mower to deliver a precise and even cut, even on rough and uneven terrain. The flails are capable of cutting through thick vegetation, resulting in a more thorough and efficient mowing process. 3. Mulching Capability: Flail mowers are equipped with heavy-duty flails that can effectively mulch the cut vegetation into smaller pieces. These mulched materials can be left on the ground, where they act as a natural mulch layer, helping to retain moisture, suppress weed growth, and improve soil health. The mulching capability eliminates the need for additional clean-up and disposal of the cut vegetation. 4. Adaptability to Terrain: The 3-point hitch system allows the flail mower to adapt to various terrains and contours. It can follow the ground's natural shape, ensuring an even cut even on sloped or uneven surfaces. This adaptability is particularly useful in areas with rocks, ditches, or other obstacles that can be challenging for other types of mowers. 5. Adjustable Cutting Height and Angle: The 3-point hitch flail mower offers adjustable cutting height and angle. The operator can easily raise or lower the mower to achieve the desired cutting height, allowing for customization based on the specific vegetation and terrain conditions. Additionally, the cutting angle can be adjusted to reach areas that are difficult to access, such as along fences or around obstacles. 6. Ease of Attachment and Detachment: The 3-point hitch system enables quick and easy attachment and detachment of the flail mower to the tractor. This saves time and effort when switching between different tractor attachments and allows for efficient use of the tractor for other tasks. 7. Durability and Longevity: Flail mowers are designed to withstand heavy-duty use in demanding conditions. They are constructed with robust materials and components, ensuring durability and longevity even when subjected to frequent mowing in rough environments.

Tractor 3 Point Hitch Flail Mower Installation Operation

Installing a 3-point hitch flail mower onto a tractor typically involves the following steps:

• Ensure Compatibility: Make sure that the flail mower you have is compatible with your tractor's 3-point hitch system. Check the specifications of both the flail mower and your tractor to ensure they are compatible in terms of hitch category and horsepower requirements.
• Gather Tools and Equipment: Gather the necessary tools and equipment for the installation process. This may include a wrench, socket set, adjustable wrench, and potentially other tools depending on the specific mower and tractor.
• Position the Tractor: Park your tractor on a level surface, engage the parking brake, and turn off the engine. Ensure that the tractor's hydraulic system is in neutral.
• Adjust the 3-Point Hitch: Lower the 3-point hitch arms of the tractor to the lowest position. This will provide easier access for attaching the flail mower.
• Align the Flail Mower: Position the flail mower behind the tractor, aligning the lower hitch points of the mower with the tractor's 3-point hitch arms.
• Connect the Top Link: Attach the top link of the flail mower to the top center point of the tractor's 3-point hitch. Adjust the length of the top link as necessary to align the flail mower properly.
• Attach the Lower Hitch Points: Securely attach the lower hitch points of the flail mower to the tractor's 3-point hitch arms. Use the appropriate pins or bolts provided with the mower to ensure a secure connection.

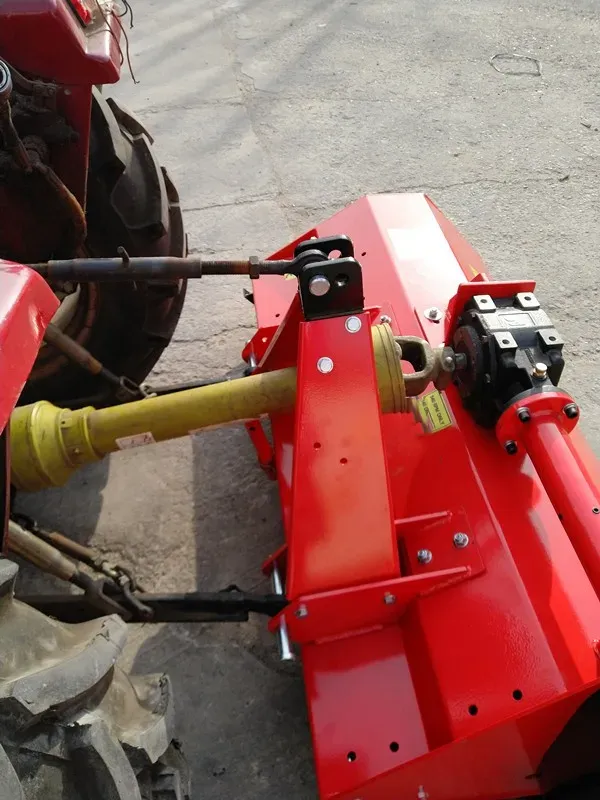

• Connect the PTO Shaft: Connect the power take-off (PTO) shaft of the flail mower to the PTO output shaft of the tractor. Align the splines and securely attach them using the locking mechanism provided.
• Check Connections: Double-check all the connections and ensure that they are securely fastened. Make sure all the pins, bolts, and locking mechanisms are properly engaged.
• Adjust Mower Height and Position: Use the tractor's hydraulic system to raise or lower the 3-point hitch arms, adjusting the height and position of the flail mower as desired.
• Test Operation: Start the tractor's engine and engage the PTO. Test the operation of the flail mower by running it at a low speed and observing its performance. Make any necessary adjustments to the mower height or other settings.

Tractor 3 Point Hitch Flail Mower Common Troubleshooting

Here are some common troubleshooting steps for a tractor 3-point hitch flail mower:

1. Mower Not Turning On:
   • Check the PTO Engagement: Ensure that the power take-off (PTO) is engaged properly. Make sure the PTO shaft is connected securely and that the tractor's PTO is activated.
   • Check the Electrical Connections: Examine the electrical connections between the tractor and the flail mower. Make sure all connectors are clean, free of corrosion, and properly connected.
   • Check the Safety Switches: Some mowers have safety switches that need to be engaged for the mower to start. Check if any safety switches are in the wrong position or malfunctioning.
2. Uneven Cutting or Poor Performance:
   • Check Blade Condition: Inspect the flail mower blades for damage, dullness, or wear. Replace any damaged or worn blades.
   • Adjust Mower Height: Ensure that the mower is set at the correct cutting height. Adjust the 3-point hitch arms of the tractor to raise or lower the mower as needed.
   • Check for Debris Build-up: Examine the mower blades, housing, and discharge chute for any debris or clogs that may be affecting the cutting performance. Clear out any obstructions.
3. Excessive Vibrations or Noise:
   • Check for Loose Bolts or Fasteners: Inspect all bolts, nuts, and fasteners on the flail mower for tightness. Tighten any loose connections.
   • Examine Driveline Components: Inspect the driveline components, including the PTO shaft and universal joints, for any signs of damage or wear. Replace any worn or damaged parts.
   • Balance the Blades: If the mower blades are unbalanced, they can cause excessive vibrations. Check the blade balance and adjust or replace any blades that are causing issues.
4. Hydraulic System Malfunctions:
   • Check Hydraulic Fluid Level: Ensure that the tractor's hydraulic fluid level is sufficient. Add fluid as needed.
   • Inspect Hydraulic Hoses: Examine the hydraulic hoses for any leaks, cracks, or damage. Replace any damaged hoses.
   • Check Hydraulic Controls: Ensure that the hydraulic controls on the tractor are functioning correctly. Test the raise, lower, and float functions of the 3-point hitch.

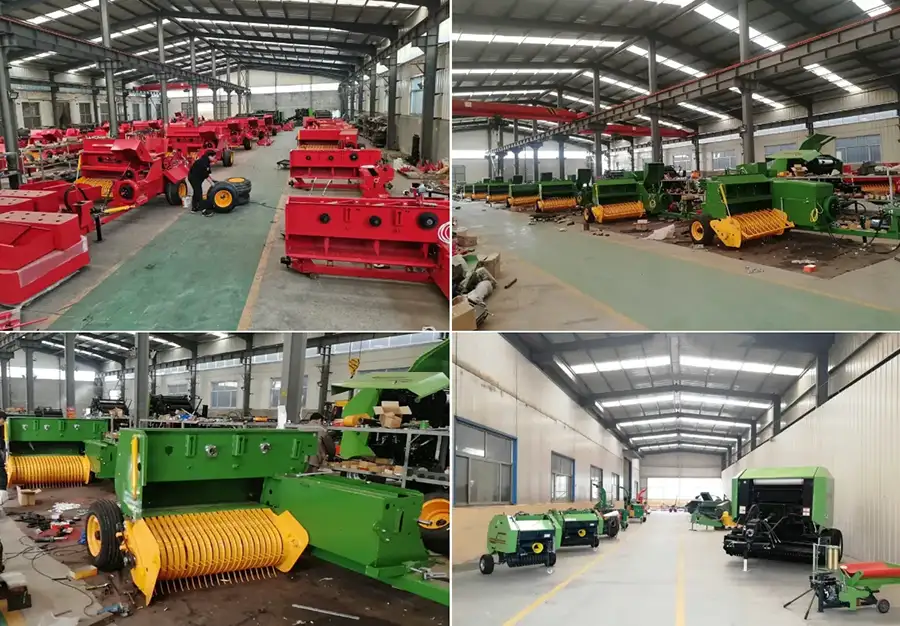

Why Choose Raydafon's Flail Mower?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
